50 mm Travel Translation Stages, Crossed-Roller Bearings


  • 50 mm Travel with Metric Micrometers
  • Low Angular Deviation and High Load Capacity
  • Integrated 3" Wide Dovetails for Multi-Axis Construction
  • Side- or End-Mounted Micrometer Options
  • Constant Force Spring for Consistent Feel

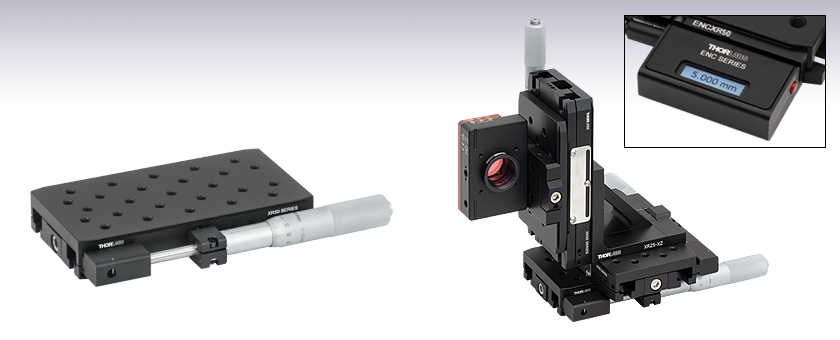

XR50P

50 mm Stage with
Side-Mounted Micrometer

Application Idea

XYZ Stage Using Three XR50P Stages
and the XR25-XZ Assembly Kit

Related Items


Please Wait
Stage Specifications
Travel 50 mm
XY Stacked Orthogonality <25 µrad
Angular Deviation <150 µrad
Platform Size 5.51" x 2.99"
(140.0 mm x 76.0 mm)
Mounting Holes 26 x 1/4"-20 (M6) Taps
Mating Dovetail Width 3"
Spring Forcea
2.96 lbf (13.2 N)
Horizontal Load Capacity (Max) 180 lbs (81.9 kg)
Vertical Load Capacity (Max)b 8.8 lbs (4.0 kg)
Bearing Type Crossed Roller Bearings
Micrometer Specifications
Micrometer Item # 151-411ME-H
Resolution 500 µm Per Revolution
Travel 50 mm
Micrometer Barrel Size Ø3/8" (Ø9.5 mm)
  • Constant Across Travel Range
  • Limited by the Micrometer
Quick Connect Translation Stages
Click to Enlarge

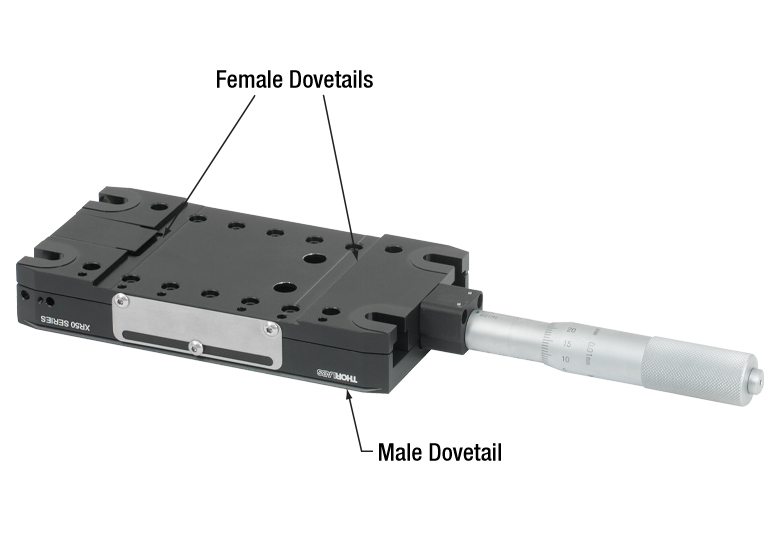

The 3" wide female dovetails on the bottom of one stage mates with the male dovetail on the other to form XY stage configurations. The left female dovetail is on a retractable clamping arm, allowing stages to be dropped into place.

Quickly Construct Multi-Axis Stages
Each stage features 3" dovetails on the top and bottom plate that allow for quick construction of multi-axis systems. There are no dowel pins to install or screws that need to be inserted through the top plate, which means that mounted components do not need to be removed from the top stage before constructing an XY configuration. In addition, the top stage can be locked at any location along the dovetail, allowing for coarse positioning.

Features

  • Crossed-Roller Bearings for High Load Capacity and Low Angular Deviation
  • Metric Micrometer in Two Different Orientations:
    • Side Mounted for Compact Design
    • End Mounted for Ease of Adjustment
  • Quickly Connect Stages and Accessories Using 3" Wide Dovetails
  • Constant Spring Force for Consistent Feel Across Travel Range
  • Optional Accessories Provide Additional Functionality:
    • Z-Axis Assembly Kits: Construct Z, XZ, YZ, and XYZ Stages
    • Rail Carriers: Removable Plates with Additional Mounting Options
    • Rotation Adapter: Coarse Rotation Between Components
    • Baseplates: Coarse Alignment of Stage with Table Hole Matrix
    • Extended Baseplates: Coarse Adjustment Perpendicular to Stage Translation Axis
    • Stage Positioners: Alignment of Stages Along Extended Baseplate
    • XRN25 Mounting Adapter Plate: Enables Compatibility between XR50 and XRN25 Series Compact Stages
    • Micrometer Conversion Kits: Change Micrometer Location

These 50 mm translation stages feature a full aluminum body with crossed roller bearings for precision motion, high load capacity, and low angular deviation. As shown in the image to the upper right, each stage features 3" wide mating male or female dovetails on the top and bottom plates that allow for quick construction of multi-axis systems using no additional hardware. See the animation to the lower right to see how multi-axis systems can be quickly constructed using this novel design. The 3" dovetails on our XR50 series stages are directly compatible with the dovetails on our XR25 series stages. Our XR50 series stages also incorporate springs with a constant spring force for consistent feel across the travel range.

Additional functionality is provided by a complete line of accessories that include multi-axis assembly kits, rail carriers, rotation adapter, baseplates, stage positioners, and micrometer conversion kits. These accessories are compatible with all 25 mm and 50 mm stages that have an integrated 3" wide dovetail. An adapter plate for mounting compact 25 mm stages with an integrated 2" wide dovetail is also available. For more information about a specific accessory, please click on the link in the table below.

Micrometer Conversion Procedure
Compact 25 mm Translation Stage
Click to Enlarge

The side-mounted micrometer can be swapped with the locking plate to create both left-and right-handed stages.

Micrometer Conversion
The video to the left outlines how to convert an end-mounted micrometer stage (XR25C or XR50C) to a side-mounted micrometer stage (XR25P or XR50P) using the XR25-C1 conversion kit. To convert a side-mounted micrometer stage to an end-mounted micrometer stage, simply follow the directions in reverse and use the XR25-C2 conversion kit.

Note: Before removing the micrometer, lock the stage by tightening the button head cap screw in the groove in the steel locking plate using a 5/64" (2 mm) hex key.

Swapping a Side-Mounted Micrometer
If you would like to switch the location of the locking plate, as shown in the photo to the right, retract the micrometer to the end of the travel range before removing all three button head screws from the locking plate. Failure to do this will cause the stage to quickly retract to its minimum position when the micrometer is removed, potentially damaging the mechanism.


Posted Comments:
No Comments Posted

50 mm Translation Stages


Click to Enlarge

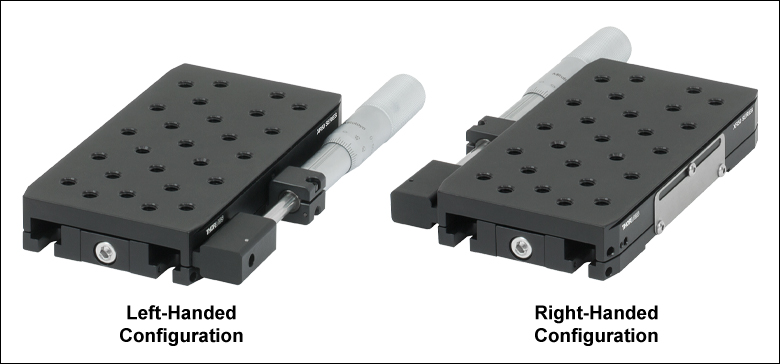

The side-mounted micrometer can be swapped with the locking plate to create both left-and right-handed stages. See the Micrometer Conversion tab for more details.
  • Side- or End-Mounted Metric Micrometer
  • Mounting Surface has Twenty-Six 1/4"-20 (M6) Tapped Blind Holes
  • Create Multi-Axis Configurations Using Dovetail Locking Screw
    • Locking Screw has a Maximum Torque of 15 in•lbs
  • Directly Compatible with 25 mm Translation Stages Using 3" Wide Mating Dovetail

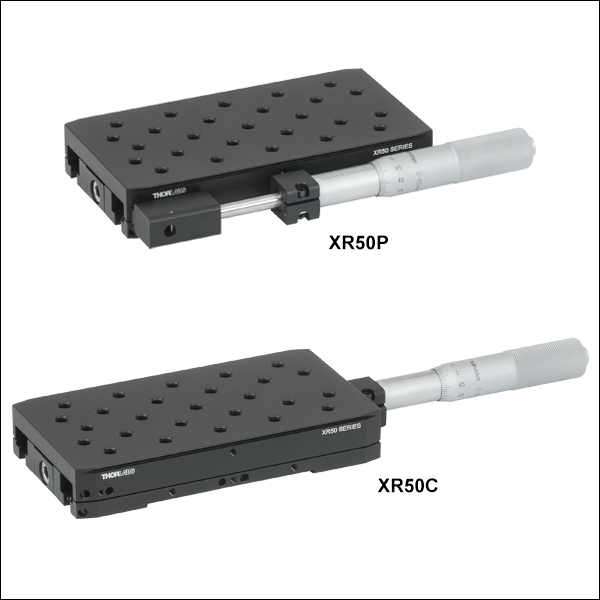

The XR50P(/M) and XR50C(/M) stages provide 50 mm of travel and feature a side- or end-mounted metric micrometer, respectively, which gives a 500 µm displacement for each revolution. Stages are available with side-mounted micrometers for situations where space is a premium, and end-mounted micrometers for ease of adjustment. The end of each micrometer incorporates a 5/64" (2 mm) hex allowing it to be actuated in space-constrained environments. The stages are lockable with a plate on the side of the stage that can be locked using a 5/64" (2.0 mm) hex key. The top plate of each stage is tapped with an array of 1/4"-20 (M6) tapped blind holes.

These stages can be easily stacked and secured to one another using the integrated 3" wide mating dovetails. The stages are secured by a single dovetail locking mechanism with a 3/16" (5 mm) hex key. Other multi-axis configurations are also possible as illustrated in the table below. Take care during assembly to ensure no collisions occur with the Z-axis stage during full downward extension. To purchase the necessary components, simply click on the product list and add the items to your cart.

Micrometer conversion kits are available below that can be used to convert a side- or end-mounted stage into an end- or side-mounted stage, respectively.

Sample Multi-Axis Configurationsa
XY XZb YZb XYZb Zb
Click Images
to Enlarge

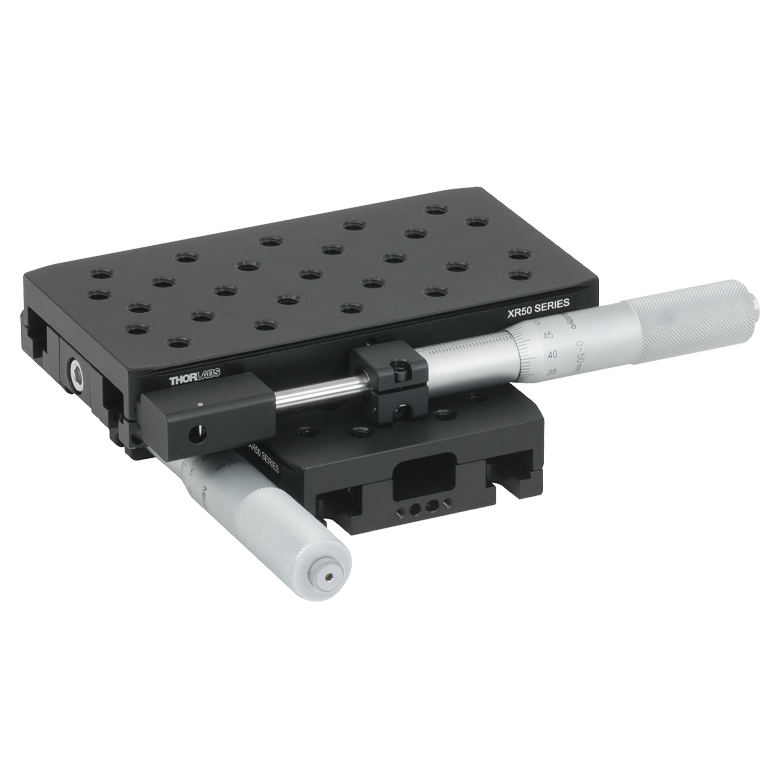

XY Translation Stage XZ Translation Stage YZ Translation Stage XYZ Translation Stage Z Translation Stage
Micrometer
Options
All Side-
Mounted
View Imperial Product List
Item #QtyDescription
XR50P250 mm Travel Linear Translation Stage, Side-Mounted Micrometer, 1/4"-20 Taps
View Metric Product List
Item #QtyDescription
XR50P/M250 mm Travel Linear Translation Stage, Side-Mounted Micrometer, M6 Taps
View Imperial Product List
Item #QtyDescription
XR50P250 mm Travel Linear Translation Stage, Side-Mounted Micrometer, 1/4"-20 Taps
XR25-XZ1XZ Stage Assembly Kit for XR25 and XR50 Series Stages, 1/4"-20 Taps
View Metric Product List
Item #QtyDescription
XR50P/M250 mm Travel Linear Translation Stage, Side-Mounted Micrometer, M6 Taps
XR25-XZ/M1XZ Stage Assembly Kit for XR25 and XR50 Series Stages, M6 Taps
View Imperial Product List
Item #QtyDescription
XR50P250 mm Travel Linear Translation Stage, Side-Mounted Micrometer, 1/4"-20 Taps
XR25-YZ1YZ Stage Assembly Kit for XR25 and XR50 Series Stages, 1/4"-20 Taps
View Metric Product List
Item #QtyDescription
XR50P/M250 mm Travel Linear Translation Stage, Side-Mounted Micrometer, M6 Taps
XR25-YZ/M1YZ Stage Assembly Kit for XR25 and XR50 Series Stages, M6 Taps
View Imperial Product List
Item #QtyDescription
XR50P350 mm Travel Linear Translation Stage, Side-Mounted Micrometer, 1/4"-20 Taps
XR25-XZ1XZ Stage Assembly Kit for XR25 and XR50 Series Stages, 1/4"-20 Taps
View Metric Product List
Item #QtyDescription
XR50P/M350 mm Travel Linear Translation Stage, Side-Mounted Micrometer, M6 Taps
XR25-XZ/M1XZ Stage Assembly Kit for XR25 and XR50 Series Stages, M6 Taps
View Imperial Product List
Item #QtyDescription
XR50P150 mm Travel Linear Translation Stage, Side-Mounted Micrometer, 1/4"-20 Taps
XR25-YZ1YZ Stage Assembly Kit for XR25 and XR50 Series Stages, 1/4"-20 Taps
XR25-B11Baseplate for XR25 and XR50 Series Stages, Imperial Slot Spacing
View Metric Product List
Item #QtyDescription
XR50P/M150 mm Travel Linear Translation Stage, Side-Mounted Micrometer, M6 Taps
XR25-YZ/M1YZ Stage Assembly Kit for XR25 and XR50 Series Stages, M6 Taps
XR25-B1/M1Baseplate for XR25 and XR50 Series Stages, Metric Slot Spacing
All End-
Mounted
View Imperial Product List
Item #QtyDescription
XR50C250 mm Travel Linear Translation Stage, End-Mounted Micrometer, 1/4"-20 Taps
View Metric Product List
Item #QtyDescription
XR50C/M250 mm Travel Linear Translation Stage, End-Mounted Micrometer, M6 Taps
View Imperial Product List
Item #QtyDescription
XR50C250 mm Travel Linear Translation Stage, End-Mounted Micrometer, 1/4"-20 Taps
XR25-XZ1XZ Stage Assembly Kit for XR25 and XR50 Series Stages, 1/4"-20 Taps
View Metric Product List
Item #QtyDescription
XR50C/M250 mm Travel Linear Translation Stage, End-Mounted Micrometer, M6 Taps
XR25-XZ/M1XZ Stage Assembly Kit for XR25 and XR50 Series Stages, M6 Taps
View Imperial Product List
Item #QtyDescription
XR50C250 mm Travel Linear Translation Stage, End-Mounted Micrometer, 1/4"-20 Taps
XR25-YZ1YZ Stage Assembly Kit for XR25 and XR50 Series Stages, 1/4"-20 Taps
View Metric Product List
Item #QtyDescription
XR50C/M250 mm Travel Linear Translation Stage, End-Mounted Micrometer, M6 Taps
XR25-YZ/M1YZ Stage Assembly Kit for XR25 and XR50 Series Stages, M6 Taps
View Imperial Product List
Item #QtyDescription
XR50C350 mm Travel Linear Translation Stage, End-Mounted Micrometer, 1/4"-20 Taps
XR25-XZ1XZ Stage Assembly Kit for XR25 and XR50 Series Stages, 1/4"-20 Taps
View Metric Product List
Item #QtyDescription
XR50C/M350 mm Travel Linear Translation Stage, End-Mounted Micrometer, M6 Taps
XR25-XZ/M1XZ Stage Assembly Kit for XR25 and XR50 Series Stages, M6 Taps
View Imperial Product List
Item #QtyDescription
XR50C150 mm Travel Linear Translation Stage, End-Mounted Micrometer, 1/4"-20 Taps
XR25-YZ1YZ Stage Assembly Kit for XR25 and XR50 Series Stages, 1/4"-20 Taps
XR25-B11Baseplate for XR25 and XR50 Series Stages, Imperial Slot Spacing
View Metric Product List
Item #QtyDescription
XR50C/M150 mm Travel Linear Translation Stage, End-Mounted Micrometer, M6 Taps
XR25-YZ/M1YZ Stage Assembly Kit for XR25 and XR50 Series Stages, M6 Taps
XR25-B1/M1Baseplate for XR25 and XR50 Series Stages, Metric Slot Spacing
  • Photos show stages with side-mounted micrometers. The product lists include stages with all side-mounted or all end-mounted micrometer options. Please note that all configurations except for XY require assembly kits; these kits are included in every applicable product list.
  • Take care during assembly to ensure no collisions occur with the Z-axis stage during full downward extension.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
XR50P Support Documentation
XR50P50 mm Travel Linear Translation Stage, Side-Mounted Micrometer, 1/4"-20 Taps
$769.15
Today
XR50C Support Documentation
XR50C50 mm Travel Linear Translation Stage, End-Mounted Micrometer, 1/4"-20 Taps
$769.15
Today
+1 Qty Docs Part Number - Metric Price Available
XR50P/M Support Documentation
XR50P/M50 mm Travel Linear Translation Stage, Side-Mounted Micrometer, M6 Taps
$769.15
Today
XR50C/M Support Documentation
XR50C/M50 mm Travel Linear Translation Stage, End-Mounted Micrometer, M6 Taps
$769.15
Today

Multi-Axis Stage Assembly Kits

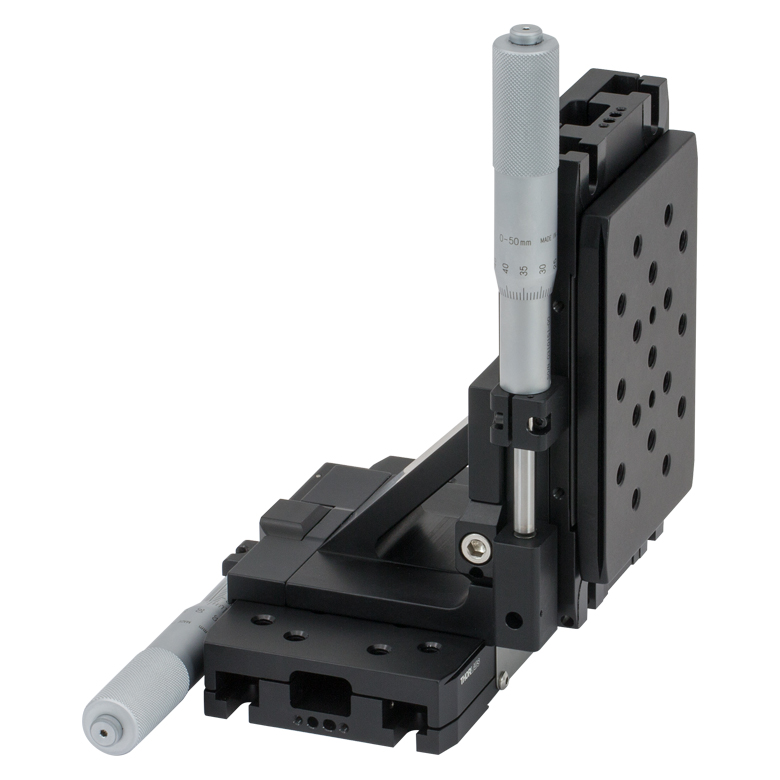

XZ Translation Stage
Click to Assemble

XZ Configuration Constructed Using
the XR25-XZ Assembly Kit

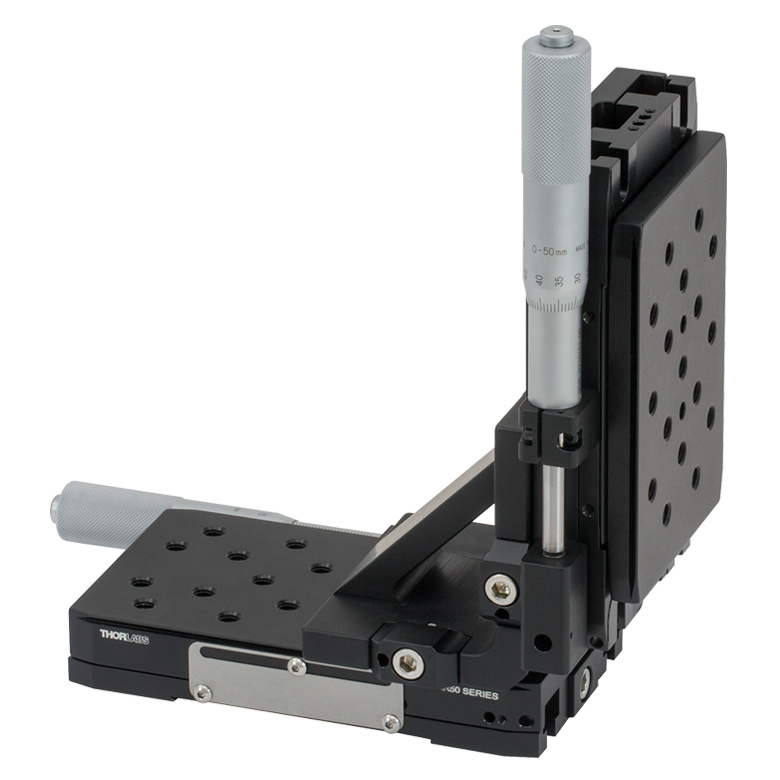

YZ Translation Stage
Click to Assemble

YZ Stage Assembly Constructed Using
the XR25-YZ Assembly Kit
XYZ Translation Stage
Click to Enlarge

XYZ Configuration Constructed Using
the XR25-XZ Assembly Kit
Z Translation Stage
Click to Enlarge

Z-Axis Stage Constructed Using
the XR25-XZ Assembly Kit and
the XR25-B1 Baseplate (Sold Below)
  • Kits Consist of Angle Bracket and Z-Axis Mounting Plate
  • Supports X, Z, XZ, YZ, or XYZ Configurations
  • Compatible with 3" Wide Mating Dovetail Stages
  • Included Dovetail Clamp Screw has a Maximum Torque of 15 in•lbs

Thorlabs offers two assembly kits used to mount two XR25 or XR50 series stages perpendicular to each other. The XR25-XZ(/M) Assembly Kit contains a mounting plate and an angle bracket that mounts the surface of the Z-axis platform in-line to the direction of travel (XZ configuration). The XR25-YZ(/M) Assembly Kit contains a mounting plate and an angle bracket that mounts the surface of the Z-axis platform perpendicular to the direction of travel (YZ configuration). Take care during assembly to ensure no collisions occur with the Z-axis stage during full downward extension.

Both configurations require purchasing two XR25 and/or XR50 series stages in any combination as well as either assembly kit. The female dovetail on one arm of the angle bracket attaches to the male dovetail on the tapped platform of the X- or Y-axis stage, and then the male dovetail of the tapped platform of the Z-axis stage is mated to the other arm of the angle bracket. The tapped mounting plate provided with the XR25-XZ and the XR25-YZ is mounted to the Z-axis stage by attaching the male dovetail of the plate to the female dovetail on the stage, as shown in the image to the right. Mating the Z-axis stage this way ensures that the micrometer is countering forces from both gravity and the internal spring.

The tapped mounting plate included in each assembly kit contains the same 1/4"-20 (M6) tapped hole pattern as the top plate of the stages. Additionally, it offers two rear-located #8 (M4) counterbores for mounting optomechanical components with tapped 8-32 (M4) mounting holes directly to the mounting surface. Note that the component must be mounted with the 8-32 (M4) cap screw before the mounting plate is secured to the stage.

Z-Axis Stage Configuration
For situations where only a Z-axis translation stage is needed, either the XR25-XZ or the XR25-YZ angle bracket can be secured directly to the XR25-B1(/M) baseplate (sold below), as shown in the figure to the right.

X-Axis Stage Configuration
In addition to a Z-axis stage configuration, the XR25-XZ can be used for situations where the X-axis translation stage needs to be mounted vertically. The X-axis stage needs to be secured to the XR25-XZ angle bracket, and the angle bracket secured directly to the XR25-B1 baseplate (sold below).

XYZ Configurations
In order to construct an XYZ configuration, first construct an XY stage as pictured in the sample configuration table above. Then, the XR25-YZ assembly kit can be used to add the Z-axis. An XYZ configuration can also be constructed using the XR25-XZ assembly kit, which functions the same as an XYZ configuration constructed using the XR25-YZ, with only the X-axis and Y-axis stages switched. An XYZ configuration using the XR25-XZ assembly kit is shown to the right.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
XR25-XZ Support Documentation
XR25-XZXZ Stage Assembly Kit for XR25 and XR50 Series Stages, 1/4"-20 Taps
$143.92
Today
XR25-YZ Support Documentation
XR25-YZYZ Stage Assembly Kit for XR25 and XR50 Series Stages, 1/4"-20 Taps
$127.69
Today
+1 Qty Docs Part Number - Metric Price Available
XR25-XZ/M Support Documentation
XR25-XZ/MXZ Stage Assembly Kit for XR25 and XR50 Series Stages, M6 Taps
$143.92
Today
XR25-YZ/M Support Documentation
XR25-YZ/MYZ Stage Assembly Kit for XR25 and XR50 Series Stages, M6 Taps
$127.69
Today

Rail Carriers

XR25 Rail Carrier
Click to Enlarge
An XR25-RC1 being used to mount a scientific camera on a 3-axis stage.

Click to Enlarge
An XR25-RC3 carrier being used to affix and retain the position of an XR25-RC1 rail carrier mounted on an XR50P stage.
  • Each Provides Additional Coarse Translation and Mounting Features
  • XR25-RC1 and XR25-RC2 Include Integrated Steel Pads for use with the XR25-RC3 Hard Stop
  • XR25-RC3 Includes Integrated Steel Balls for use as a Hard Stop
  • Compatible with 3" Wide Mating Dovetail Stages
  • Included Dovetail Clamp Screw has a Maximum Torque of 15 in•lbs

Thorlabs offers three rail carriers that are directly compatible with our XR25 and XR50 series stages, providing coarse translation in addition to the fine translation supplied by the stage's micrometer, as well as expanding the stages' threading options for optomechanical assemblies. A female dovetail allows each rail carrier to slide onto an XR25 or XR50 stage and connect to the stage's male dovetail. The position of the carrier can then be locked into place using a clamping mechanism [3/16" (5 mm) hex] located on one end of the carrier. This simple procedure allows the user to seamlessly swap and install different carriers on a stage in a matter of seconds.

Item # XR25-RC1 XR25-RC2 XR25-RC3
Click Image to Enlarge
Mounting Features 1/4" (M6) Counterbores (x8)
1/4"-20 (M6) Taps (x9)
8-32 (M4) Taps (x7)
#8 (M4) Counterbores (x8)
8-32 (M4) Taps (x16)
1/4" (M6) Counterbored Slot (1x)
8-32 (M4) Taps (2x)
Additional Features Steel Contact Pads for Use with XR25-RC3 Carrier Hardened Steel Balls for Use as Hard Stop
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
XR25-RC1 Support Documentation
XR25-RC1Rail Carrier for XR25 and XR50 Series Stages, 1/4"-20 Taps and 1/4" Counterbores
$61.53
Today
XR25-RC2 Support Documentation
XR25-RC2Rail Carrier for XR25 and XR50 Series Stages, 8-32 Taps and 8-32 Counterbores
$58.35
Today
XR25-RC3 Support Documentation
XR25-RC3Fixed Stop Rail Carrier for XR25 and XR50 Series Stages, Imperial
$55.17
Today
+1 Qty Docs Part Number - Metric Price Available
XR25-RC1/M Support Documentation
XR25-RC1/MRail Carrier for XR25 and XR50 Series Stages, M6 x 1.0 Taps and M6 Counterbores
$61.53
Today
XR25-RC2/M Support Documentation
XR25-RC2/MRail Carrier for XR25 and XR50 Series Stages, M4 x 0.7 Taps and M4 Counterbores
$58.35
Today
XR25-RC3/M Support Documentation
XR25-RC3/MFixed Stop Rail Carrier for XR25 and XR50 Series Stages, Metric
$55.17
Today

Adapter Plate for Stage Rotation

Two XR25 Stages Stacked Using Rotation Adapter
Click to Enlarge

Two XR25P Stages rotated at an arbitrary angle using the XR25-R1 Rotation Adapter.
Two XR25 Stages Stacked Using Rotation Adapter
Click to Enlarge

The XR25-RB used as a rail carrier for a PH2 Post Holder.
View Imperial Product List
Item #QtyDescription
KS11Ø1" Precision Kinematic Mirror Mount, 3 Adjusters
TR21Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 2"
PH21Ø1/2" Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L = 2"
XR25-RB1XR25-R Series Rotation Adapter Base Plate, 1" Bore
XR25P125 mm Travel Linear Translation Stage, Side-Mounted Micrometer, 1/4"-20 Taps
View Metric Product List
Item #QtyDescription
KS11Ø1" Precision Kinematic Mirror Mount, 3 Adjusters
TR50/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 50 mm
PH50/M1Ø12.7 mm Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L=50 mm
XR25-RB/M1XR25-R Series Rotatin Adapter Base Plate Metric, 25.0 mm Bore
XR25C/M125 mm Travel Linear Translation Stage, End-Mounted Micrometer, M6 Taps
Setscrews on the XR25-R1
Click for Details

Side Located Locking Screws for Clamping Adapter (left) and Locking Rotation (right)
  • 360° Coarse Rotation Adjustment
  • Top Plate with 1/4"-20 and 8-32 Tapped Holes
  • Base Plate Provides Ø1" Flexure Clamp
  • Purchase Complete Adapter or Separate Base Plate
  • Compatible with 3" Wide Mating Dovetail Stages
  • Included Dovetail Clamp Screw has a Maximum Torque of 15 in•lbs

The XR25-R1(/M) Rotation Adapter allows users to mount any two 3" dovetail components together on a rotational axis perpendicular to their mounting surfaces. This allows a full 360° range of coarse rotation. The removable top plate features thirteen 1/4"-20 (M6) and twelve 8-32 (M4) tapped holes in addition to the 3" wide male dovetails on all edges. Rotation is achieved by loosening the right-most locking screw on the baseplate (also sold separately as the XR25-RB) using a 3/16"(5 mm) hex key. The adapter is clamped in place to a 3" dovetail with the left-most locking screw using a 3/16" (5 mm) hex key. These screws can be seen in the image above.

If the XR25-R1 is used to mount a stage vertically, that stage should not be rotated where the spring tension is working against gravity. Rotation in this configuration should be limited to 180°. In addition, note that the XR25-R1 is a two-piece solution where the top plate is not permanently retained in the base, and therefore care should be taken when loosening the rotation locking screw in a vertical orientation.

The XR25-RB(/M) Adapter Base Plate can be purchased separately. Utilizing its flexure clamp for 1" (25.0 mm) outer diameter components, like our Ø1" Optical Posts or our Ø1/2" Post Holders, allows the rotation adapter base plate to double as a rail carrier, as seen in the image to above. Here, the coarse height of the KS1 mirror mount can be adjusted with the PH2 post holder, while the coarse rotation can be independently adjusted in the rail carrier. This base plate also includes three 8-32 mounting holes on the face opposite the adjustment screws and integrated steel pads on its sides for use with the XR25-RC3 hard stop.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
XR25-R1 Support Documentation
XR25-R1Rotation Adapter for XR25 and XR50 Series Stages, 1/4"-20 and 8-32 Taps
$122.00
Today
XR25-RB Support Documentation
XR25-RBRotation Adapter Base Plate for XR25 and XR50 Series Stages, 1" Bore, Imperial
$70.02
Today
+1 Qty Docs Part Number - Metric Price Available
XR25-R1/M Support Documentation
XR25-R1/MRotation Adapter for XR25 and XR50 Series Stages, M6 and M4 Taps
$122.00
Today
XR25-RB/M Support Documentation
XR25-RB/MRotation Adapter Base Plate for XR25 and XR50 Series Stages, 25.0 mm Bore, Metric
$70.02
Today

Baseplate with Rotational Adjustment

  • Allows for Coarse Rotational or Translational Alignment of Stages with Table Hole Matrix
  • Orthogonal Male Dovetails for Two Stage Mounting Orientations
  • Compatible with 3" Wide Mating Dovetail Stages

The XR25-B1(/M) Baseplate provides an additional table mounting option for our XR25 and XR50 series translation stages. The baseplate features two orthogonal male dovetails that allow for two mounting orientations of an XR25 or XR50 series stage. A center Ø1/4" (M6) counterbored hole and two radial counterbored slots allow for coarse angular adjustment with respect to the table's 1/4"-20 (M6) hole matrix. For situations where the stage is oriented with the table's hole matrix, two 2.2" (55.9 mm) long 1/4" (M6) counterbored slots on the edge of the baseplate allow for coarse translation adjustment along the hole matrix before the base is secured to the table.

Z-Axis Stage Configuration
For situations where only a Z-axis translation stage is needed, either the XR25-XZ or the XR25-YZ angle bracket (sold above) can be secured directly to the baseplate.

X-Axis Stage Configuration
In addition to a Z-axis stage configuration, the XR25-XZ angle bracket (sold above) can be used for situations where the X-axis translation stage needs to be mounted vertically. The XR25-XZ angle bracket can be secured directly to the XR25-B1(/M) baseplate.


This animation shows how the XR25-B1 baseplate can be used for alignment of the stage.
Translation Stage Swivel Baseplate
Click for Details

The radial slots and counterbored center hole allow the base plate to be rotated with respect to the table's hole matrix. The two slots and orthogonal mounting dovetails provide 360° adjustment.
Translation Stage Swivel Baseplate
Click to Enlarge

The orthogonal dovetails on the top of the XR25-B1 allow the stage to be mounted in two orientations.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
XR25-B1 Support Documentation
XR25-B1Baseplate for XR25 and XR50 Series Stages, Imperial Slot Spacing
$33.28
Today
+1 Qty Docs Part Number - Metric Price Available
XR25-B1/M Support Documentation
XR25-B1/MBaseplate for XR25 and XR50 Series Stages, Metric Slot Spacing
$33.28
Today

Baseplates with Extended Linear Positioning


Click to Enlarge

When mounted on the extended baseplate, the stage's translation axis is perpendicular to the adjustment axis of the baseplate.
  • Allows for Coarse Adjustment Perpendicular to Stage Translation Axis
  • 150 mm, 250 mm, and 500 mm Lengths Available
  • Counterbored Mounting Slots Compatible with Imperial and Metric Breadboards
  • Outer Dovetail Compatible with 3" Wide Mating Dovetail Stages
  • Additional Dovetail Compatible with 34 mm Rail Accessories

These Extended Baseplates provide a convenient way to mount our XR25 and XR50 series translation stages on a breadboard or optical table. Both baseplates feature an outer male dovetail for mounting the translation stage, as shown in the image to the right, and an inner 34 mm male dovetail for mounting other clamps and platforms.

A mounted component can be translated across the entire length of the baseplate. The XR25DR2, XR25DR, and the XR25DR3 come in lengths of 150 mm, 250 mm, and 500 mm, respectively. For these stages, travel along the rail would be in the direction orthogonal to the stage's translation axis. The graduated scale engraved along one edge of each baseplate makes it easy to repeat adjustments between multiple locations on the baseplate; the XR25-RC3 rail carriers sold above can be used to mark a specific location on the baseplate before moving the stage.

The baseplates feature 1" long 1/4" (M6) counterbored mounting slots and a central 1/4" (M6) counterbored mounting hole that allow the rail to be used with both imperial and metric breadboard hole patterns. Standard cap screws can be used with this baseplate without interrupting the translation of mounted components.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
XR25DR2 Support Documentation
XR25DR2Customer Inspired! Extended Dovetail Baseplate for XR25 and XR50 Series Stages, 150 mm
$74.26
Today
XR25DR Support Documentation
XR25DRExtended Dovetail Baseplate for XR25 and XR50 Series Stages, 250 mm
$82.75
Today
XR25DR3 Support Documentation
XR25DR3Extended Dovetail Baseplate for XR25 and XR50 Series Stages, 500 mm
$123.60
Today

Translation Stage Positioners for XR25 and XR50 Stages


Click to Enlarge

The XR25N Tranlsation Stage Positioner and XR25N1 Return Translation Stage Positioner can provide fine alignment of translation stages mounted on an extended dovetail baseplate.
  • Clamps Directly to 3" Wide Mating Dovetails
  • Included Dovetail Clamp Screw has a Maximum Torque of 15 in•lbs
  • Fine Positioning of Stages and Carriers Along an Extended Dovetail Baseplate
  • XR25N Positioner:
    • 1/4"-80 Adjuster Screw Provides 0.013" (320 µm) of Translation per Revolution
    • Translation Range of 1.49" (37.8 mm)
  • XR25N1 Return Positioner:
    • Spring Loaded Plunger with Travel Range of 0.29" (7.2 mm)
    • Use with XR25N Positioner for Bidirectional Adjustment

The XR25N Translation Stage Positioner and XR25N1 Translation Stage Return Positioner are designed to aid in fine alignment of stages or carriers mounted on an extended dovetail baseplate. Each includes a 3" wide mating dovetail and two 8-32 (M4) mounting holes. A side-located 5/64" (2.0 mm) clamping screw locks to the extended baseplate, providing quick and convenient placement along the rail.

The XR25N incorporates an F25SS200 1/4"-80 adjuster screw to provide smaller, smoother movement than coarse translation by hand. The screw allows for 1.49" (37.8 mm) of travel before the interior of the bushing is exposed; longer adjuster screws can be installed if desired.

The XR25N1 translation stage return positioner is comprised of a spring-loaded plunger integrated into a 3" mating dovetail clamp. The plunger can travel a maximum range of 0.29" (7.2 mm), and the compression spring tension can also be adjusted with a 5/32" (4.0 mm) hex driver. When used in conjunction, the XR25N positioner and XR25N1 return positioner provide precision alignment along the axis of the extended rail baseplate. When a carrier or stage is placed between the translation stage positioners, actuating the adjustment screw pushes it toward the XR25N1 return positioner, compressing the spring loaded plunger. Retracting the adjustment screw on the XR25N positioner causes the spring-loaded plunger on the XR25N1 return positioner to expand, which keeps the carrier or stage in contact with the actuating screw of the XR25N positioner.

To use, place the positioners along the rail so that both positioners are in contact with the stage or carrier, and secure the XR25N and XR25N1 positioners with a 3/16" hex driver. Loosen the clamp holding the stage or carriage to the rail, then turn the adjuster screw with a 5/64" (2.0 mm) balldriver to push the platform until the desired amount of translation is achieved.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
XR25N Support Documentation
XR25NTranslation Stage Positioner for XR25 and XR50 Stages
$66.95
Today
XR25N1 Support Documentation
XR25N1Translation Stage Return Positioner for XR25 and XR50 Stages
$73.13
Today
+1 Qty Docs Part Number - Metric Price Available
XR25N/M Support Documentation
XR25N/MTranslation Stage Positioner for XR25 and XR50 Stages, Metric
$66.95
Today
XR25N1/M Support Documentation
XR25N1/MTranslation Stage Return Positioner for XR25 and XR50 Stages, Metric
$73.13
Today

Adapter Plate for Compact XRN25 Series Stages

XR25 and XRN25 Stages
Click to Enlarge

Compact XRN25C Stage Mounted onto XR25P Stage Using XRN-A1 Adapter Plate
XR25 and XRN25 Stages Adapter
Click to Enlarge

Mount an XRN25 Series Stage (Top) on an XR25 or XR50 Series Stage (Bottom)

The XRN-A1 Stage Adapter enables users to mount the female 2" dovetail of our compact XRN25 Series Stages and accessories to the male 3" dovetail of our larger XR25 and XR50 Series Stages and accessories.

To assemble, first loosen the dovetail locking screw on the end of the XRN25 stage. Position the XRN-A1 Adapter on the XR25 or XR50 stage, as illustrated in the photo to the right, then align the compact XRN25 stage on the adapter plate. Lastly, tighten the dovetail locking screw on the end of the XRN25 stage until the entire assembly is secure. Please note that the deep-set screws in the sides of the adapter plate are not user adjustable.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
XRN-A1 Support Documentation
XRN-A1XRN25 Series Stages Adapter Plate for XR25 and XR50 Series Stages
$53.05
Today

Micrometer Mount Conversion Kits

Rear Mount Micrometer Kit
Click to Enlarge

XR25-C2 Converts a Side-Mounted Micrometer Stage to an End-Mounted Micrometer Stage
  • Compatible with XR25 and XR50 Series Stages
  • Kits to Switch Between Side- and End-Mounted Micrometer Designs
    • XR25-C1: End-Mounted to Side-Mounted
    • XR25-C2: Side-Mounted to End-Mounted

The XR25-C1 and XR25-C2 are conversion kits that allow the micrometer head to be removed and refitted on the side or end of the stage, respectively. More details on the conversion process can be found on the Micrometer Conversion tab above.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
XR25-C1 Support Documentation
XR25-C1Side-Mounted Micrometer Kit for XR25 and XR50 Series Stages
$38.69
Today
XR25-C2 Support Documentation
XR25-C2End-Mounted Micrometer Kit for XR25 and XR50 Series Stages
$31.12
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites: West Coast US | Europe | Asia | China | Japan
Copyright 1999-2019 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
