1" (25 mm) Travel Dovetail Stages


  • Dovetail Design for 1" (25 mm) of Smooth Motion
  • Lockable Translation Platform
  • Modular Design for Multi-Axis Configurations

Application Idea

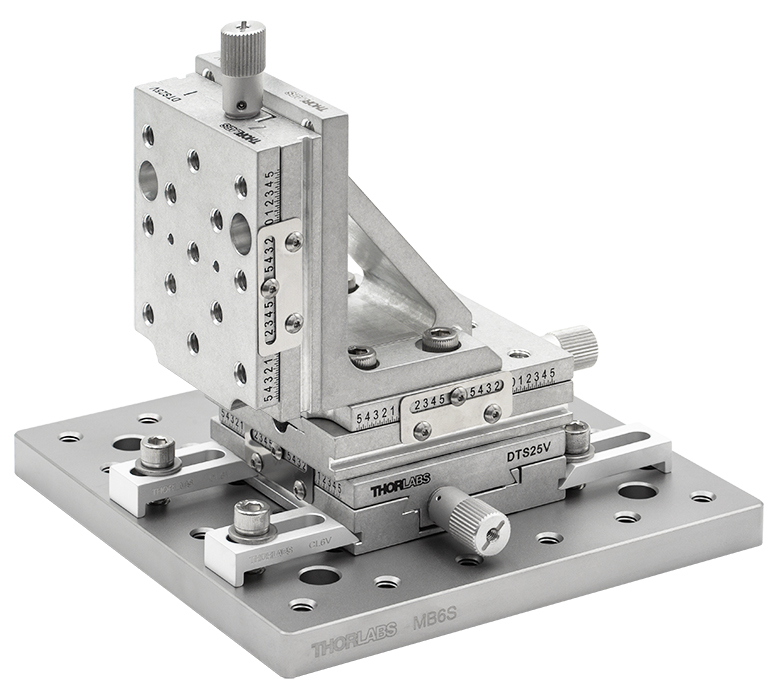

XYZ Configuration Built with Three DTS25 Stages and a DTSA03 Angle Bracket Secured with CL6 Dovetail Clamps

DTS25

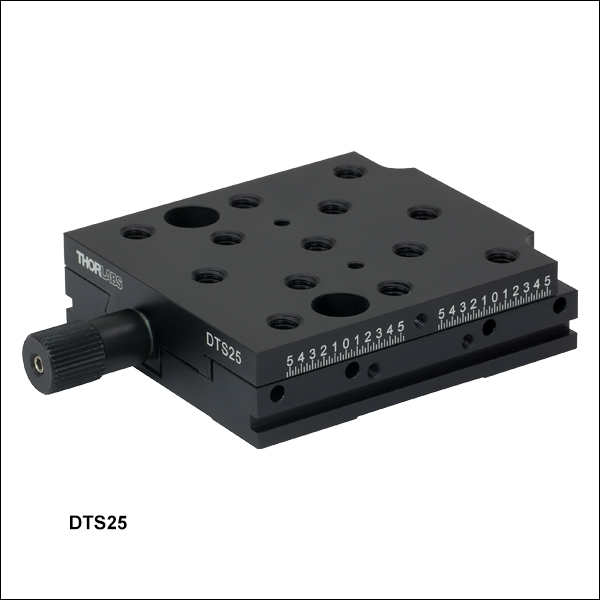

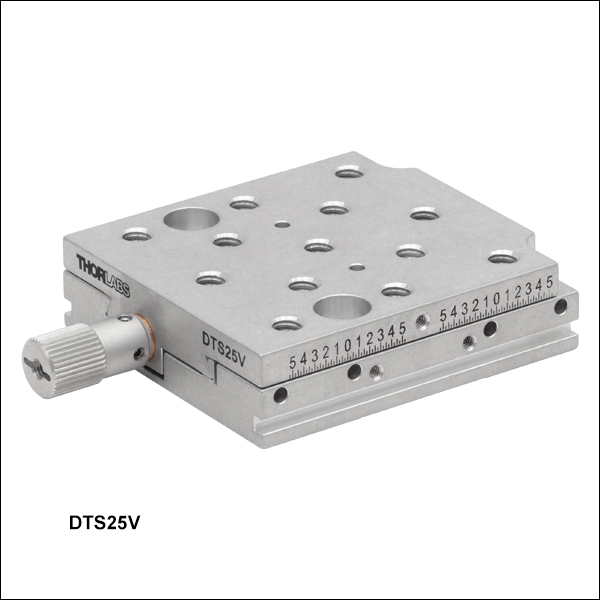

Front View

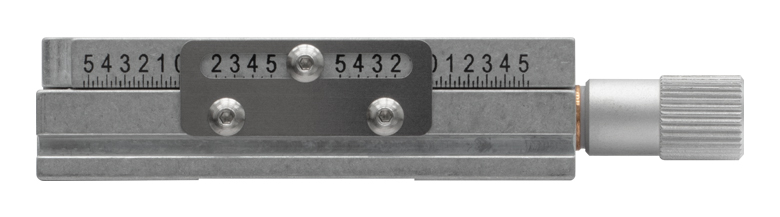

Back View with Locking Bracket

Related Items


Please Wait
Item #DTS25DTS25/M
Travel Range 1" 25 mm
Mounting Holes 1/4"-20 Taps
(13 Places)
M6 Taps
(13 Places)
Horizontal Load Capacity 88 lbs (40 kg)
Vertical Load Capacity 22 lbs (10 kg)
Top Surface Parallelism 1700 µrad
Angular Deviation ±150 µrad
Straightness Horizontal: ±10.00 µm
Vertical: ±5.00 µm
Stiffness Pitch: 200.00 µrad / N·m
Yaw: 725.00 µrad / N·m
Weight 0.53 lbs (0.24 kg)
Dimensions
(Including Actuator)
2.68" x 3.87" x 0.79"
(68.0 mm x 98.3 mm x 20.0 mm)

Click for Details

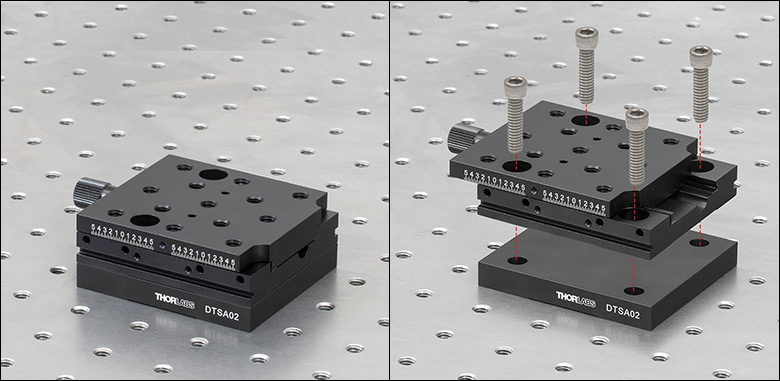

The DTSA02 Adapter Plate Increases the Stage Height to 30 mm

Features

  • 1" (25 mm) Travel
  • Array of 13 1/4"-20 (M6) Tapped Holes
  • XYZ Configurable with Dowel Pins for Orthogonality
  • Mounted to Optical Table using 1/4" (M6) Counterbores or CL6 Table Clamps (Sold Separately)

The DTS25(/M) dovetail translation stage is a compact positioner for use in general purpose motion control applications. It provides a travel range of 1" (25 mm) using a precision-rolled M6 x 1.0 mm pitch leadscrew for smooth linear positioning along the entire range of travel. The top surface of the DTS25(/M) stage is equipped with an array of thirteen 1/4"-20 (M6) tapped holes to maximize the mounting options for moving components. This moving platform is lockable via a side-located screw in a locking bracket to guard against accidental movement. A scale with 1/40" (1 mm) graduations is etched onto each side of the moving platform, with the edge of the locking bracket providing a reference for relative positioning.

Mounting Options
The stage can be bolted directly to the optical table using four counterbored 1/4" (M6) holes that are revealed by translating the top plate of the stage to the proper position. Two of these mounting holes are accessed via clearance holes in the top plate, while the other two are directly accessible. Alternatively, the stage can be mounted using four CL6 clamps (two on each side) secured to the relief cut along the bottom of the stage, as shown in the picture at the top of the page. The DTSA01 and DTSA02 riser plates have four through holes and are designed to be placed between a mounting surface and the stage to increase the height of the system. The resulting stage height is 25 mm if the DTSA01 is in place or 30 mm if the DTSA02 is used.

Dovetail Translation Stages
1/2" (12.7 mm) Travel
1" (25 mm) Travel
2" (50 mm) Travel

Multi-Axis Configurations
The modular design of the DTS25(/M) allows multiple stages to be assembled in 2-axis and 3-axis configurations. Two dowel pins are included with each stage, and these can be used to ensure that orthogonality between the various translation directions is maintained during construction. In order to construct an XY configuration, two stages can be directly connected. For movement in the Z direction, the DTSA03(/M) angle bracket is required to mount a stage vertically. The bracket can be attached to a horizontal stage or optical table using four 1/4" (M6) counterbores and a stage can then be mounted vertically using four of eight 1/4"-20 (M6) tapped holes on the side of the bracket.
