Yttrium Orthovanadate (YVO₄) Beam Displacers

Separate an Input into Two Orthogonally Polarized Beams
Yttrium Orthovanadate Substrate is Transparent from 488 nm to 3.4 µm
Option for 2000 nm V-Coated Beam Displacers, R < 0.25%
Mounted and Unmounted Optics

BDY12

Mounted Beam Displacer

BDY12U

Unmounted Beam Displacer

Application Idea

A BDY12-2000 Mounted Beam Displacer Attached to a Rotation Mount Using a Ø1/2" Lens Tube

BDY12-2000

Mounted Beam Displacer

Please Wait

Overview
Graphs
Feedback
Polarizer Guide

Item #	BDY12(U)	BDY12(U)-2000
Substrate Material^a	Yttrium Orthovanadate (YVO₄)
Substrate Spectral Range (Click for Graph)	488 nm - 3.4 µm
AR Coating (Click for Graph)	N/A	2000 nm V Coating
AR Coating Reflectance (0° AOI)	N/A	R < 0.25% at 2000 nm
Beam Separation (@ 2000 nm)	1.2 mm
Clear Aperture	>3 mm x 5 mm Ellipse
Beam Deviation	<30 arcsec Between Output Beams
Surface Flatness	λ/10 at 633 nm
Surface Quality	40-20 Scratch-Dig

Click Link for Detailed Specifications on the Substrate

Click to Enlarge

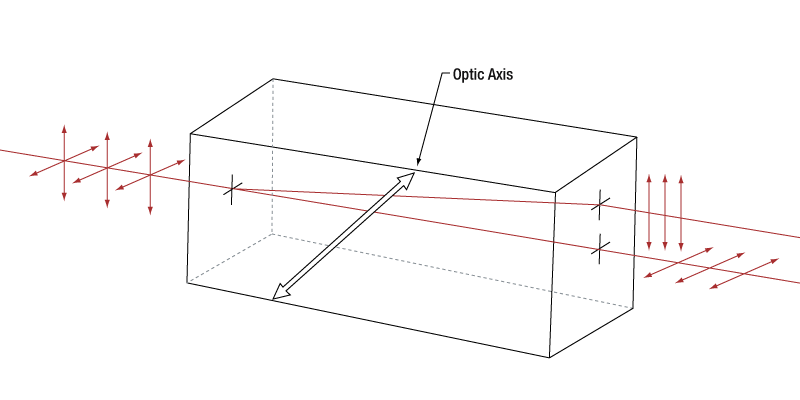

Figure 1.1 Birefringent Beam Displacers Seperate Unpolarized Light into Two Orthogonally Polarized Beams

Birefringent Crystal Beamsplitters
Type	Ordinary Ray Angle^a	Extraordinary Ray Angle^a
Calcite Beam Displacers	Parallel	Parallel
YVO₄ Beam Displacers	Parallel	Parallel
Rochon Prisms	Parallel	Deviated
Wollaston Prisms	Deviated	Deviated

With Respect to Input Beam

Features

Two Orthogonally Polarized Output Beams
1.2 mm Beam Displacement at 2000 nm
Available Uncoated or V-Coated at 2000 nm
Outputs Beams Parallel within 30 arcsec
Transparent from 488 nm to 3.4 μm
Available Unmounted or Mounted in a Ø1/2" Housing

Beam displacing prisms are used to separate an input beam into two orthogonally polarized output beams and can be used as polarizing beamsplitters in applications where the 90° separation generated by polarizing beamsplitter cubes is not desired. Fabricated from yttrium orthovanadate (YVO₄), these beam displacers provide a beam separation of 1.2 mm at a wavelength of 2000 nm and can be used with wavelengths from 488 nm to 3.4 μm (see Graphs tab). This beam separation sets an upper limit to the beam size that is appropriate for use with these polarizers. Our D-shaped mirrors are ideal for picking off one of the two polarized beams.

These YVO₄ beam displacers are available uncoated or with a V coating that provides <0.25% reflectance at 2000 nm (see the Graphs tab). The BDY12 and BDY12-2000 beam displacers are mounted in Ø1/2" anodized aluminum housings for compatibility with our Ø1/2" lens tubes and Ø1/2" rotation mounts, while the BDY12U and BDY12U-2000 beam displacers are unmounted 12.0 mm x 6.0 mm x 4.0 mm (0.47" x 0.24" x 0.16") optics. All of these beam displacers produce output beams that are parallel to each other to within 30 arcsec.

In addition to these beam displacers, Thorlabs also offers a complete line of polarizers made from a variety of materials, including α-BBO, calcite, quartz, and rutile. We also produce a wide range of other polarization optics and polarization instrumentation.

Click to Enlarge
Click Here for Raw Data

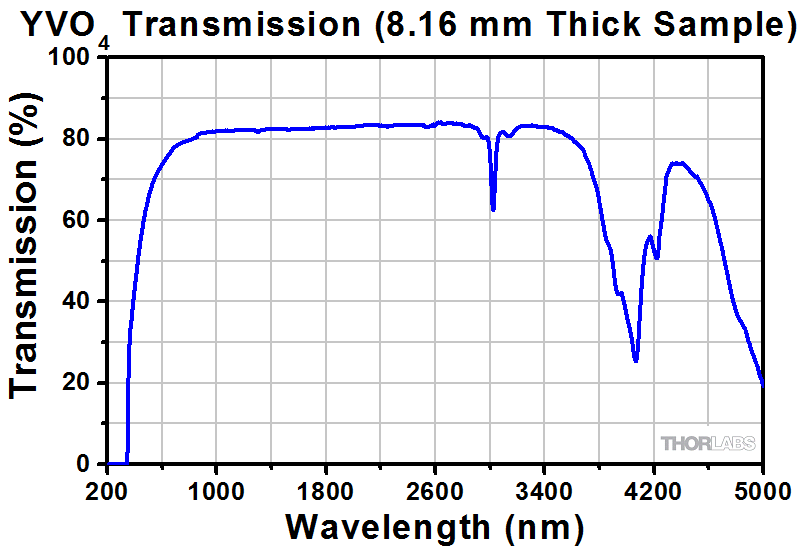

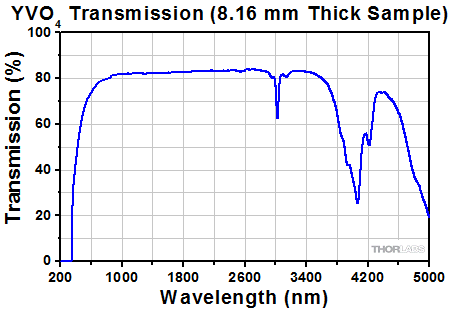

Transmission Through Uncoated YVO₄

Click to Enlarge
Click Here for Raw Data

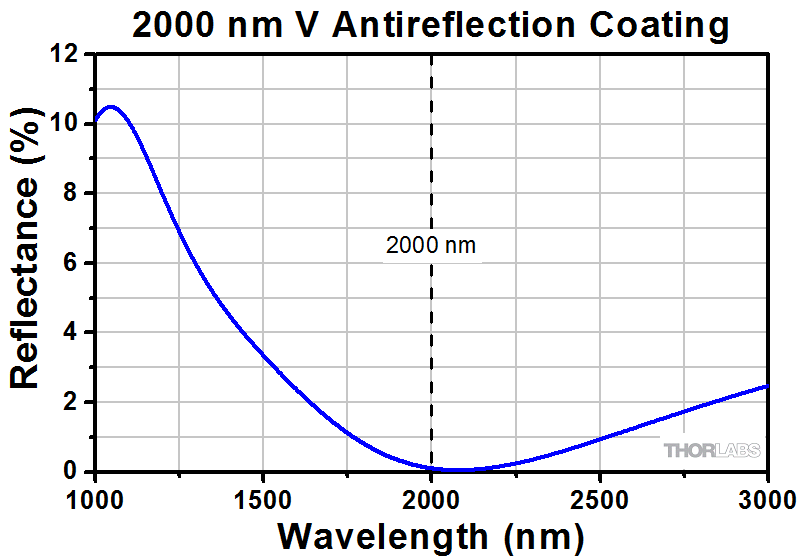

Reflectance for the BDY12-2000 and BDYU12-2000 Beam Displacers

Click to Enlarge
Click Here for Raw Data
The linear separation between the orthogonally polarized output beams varies with wavelength.
