Tip, Tilt, and Rotation Stage


  • ±5° Tip and Tilt
  • ±10° Rotation
  • Micrometer Positioning

Adjusts Pitch and
Roll Preload

Adjusts Yaw
Preload

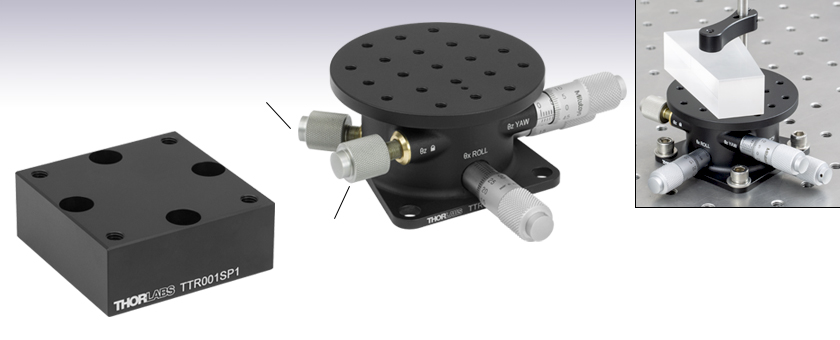

TTR001SP1

62.5 mm (2.46") Deck Height Adapter

TTR001

Provides Tip, Tilt, and Rotation

TTR001 Stage with a PM3
Clamping Arm, Holding a Prism

Related Items


Please Wait
Item # TTR001(/M)
Tip/Tilt (Pitch and Roll) Adjustment Range ±5°
Tip/Tilt (Pitch and Roll) Micrometer Resolution 0.036°
Rotation (Yaw) Adjustment Range ±10°
Rotation (Yaw) Micrometer Resolution 0.03°
Deck Height 1.48" (37.5 mm)
Deck Height with TTR001SP1(/M) Mounting Plate 2.46" (62.5 mm)
Load Capacitya,b (Max) 11.0 lbs (5.0 kg)
Construction Aluminum
Finish Black Anodized
  • This Specification Applies to All Axes (Tip [Θx], Tilt [Θy], and Rotation [Θz])
  • This stage was designed to be mounted on a horizontal surface.

Features

  • Micrometer Operated Tip, Tilt, and Rotation
  • 8-32 (M4) Tapped Holes with 1/2" (12.5 mm) Spacing
  • Can be Used with PM3(/M), PM4(/M), and PM5(/M) Clamping Arms
    • Imperial Versions Include 8-32 to 6-32 Adapter for Compatibility
    • Metric Versions are Directly Compatible
  • 1.48" (37.5 mm) Deck Height
  • Black Anodized Aluminum Construction

The TTR001(/M) Tip, Tilt, and Rotation Stage provides ±5° uncoupled tilt adjustment in pitch and roll, together with ±10° rotation (yaw) adjustment. These adjustments allow optical components and fixtures to be aligned with a plane and then rotated within that plane. The center of rotation axis is located at a line normal to the center of the platform. Both the tip and tilt axes will move with respect to a point located 12 mm below the top surface of the stage on the rotation axis. The top plate features an array of 21 8-32 (M4) threaded holes on a 1/2" (12.5 mm) pitch. An 8-32 to 6-32 thread adapter is included with imperial stages for use with the PM3 and PM4 clamping arms sold below. The PM5 is directly compatible with the imperial stages, and all metric clamping arms are directly compatible with the metric stages; these combinations do not require an adapter.


Click to Enlarge

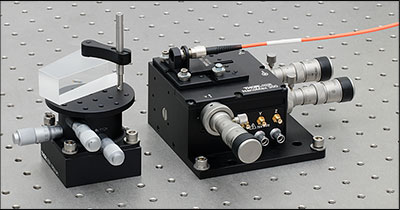

TTR001 stage raised to same deck height as MAX311D stage for use in a typical refraction application. The prism is held in place by a PM3 clamping arm attached to the stage using a thread adapter, which is included with the TTR001.

The high-resolution Mitutoyo micrometers incorporated into the stage are marked with a 0.001" (10 µm) scale. Turning the micrometers gives 1.5° of rotation (with a resolution of 0.03°) and 1.78° of tilt per revolution (with a resolution of 0.036°). Preload adjustment to eliminate backlash can be performed by adjusting the knobs adjacent to the micrometers as shown above. One knob adjusts/locks the pitch (Θx) and roll (Θy) axes simultaneously, while the other knob adjusts/locks the yaw (Θz) axis. Note that if the knob is tightened, the motion in that axis is effectively locked until the micrometer is backed off. In this case, some friction may be experienced when adjusting the remaining axis.

The stage is fixed to the work surface via three clearance holes for standard 1/4"-20 (M6) screws. The deck height of the stage is 1.48" (37.5 mm). A Height Adapter Plate [TTR001SP1(/M)] is available to raise the deck height to the standard 2.46" (62.5 mm), making the stage compatible with our NanoMax, MicroBlock, and RollerBlock 3-Axis Stages. The height adapters are fixed to the work surface using the four clearance holes that accept standard 1/4"-20 (M6) screws. The stage is then mounted to the height adapter using the three 1/4"-20 (M6) tapped holes.

A typical application is shown to the right, where the TTR stage is raised up to mate with a MAX311D 3-axis stage. A PM4 clamping arm is used to mount a Pellin Broca prism on the tip, tilt, and rotation stage. An HCS209 Mount and previous-generation HFB004 fiber holder are mounted on the MAX311D stage and used to hold a collimating lens with connectorized fiber. The collimated laser beam is directed onto the prism, and the laser refraction is adjusted via the TTR001 stage micrometers.
