Broadband Polarizing Beamsplitter Cubes in 16 mm Cage Cubes


  • Transmitted Beam Extinction Ratio: >1000:1
  • Reflects S Polarization by 90°
  • SM05 Lens Tube and 16 mm Cage System Compatible
  • AR Coated on All Four Optical Faces

CCM5-PBS201

420 - 680 nm

CCM5-PBS203

900 - 1300 nm

Application Idea

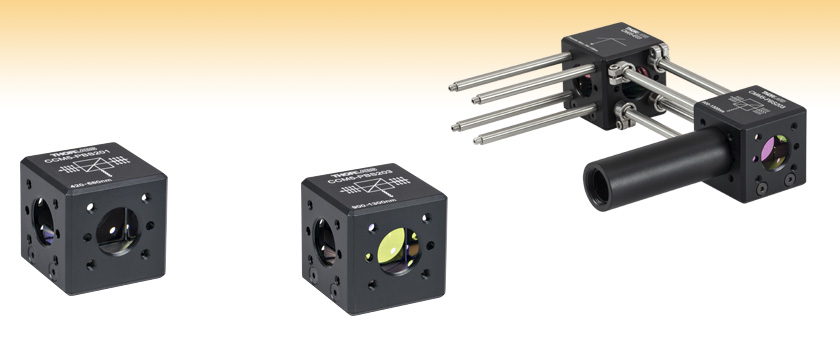

CCM5-PBS203 Beamsplitter Cube
Connected in a 16 mm Cage System
with a CM05-E03 Turning Mirror
Cube via Four SRSCA Adapters

Related Items


Please Wait
Mounted Beamsplitter Cube
Cube Beamsplitter Diagram
(Coating and Cement Layer Not to Scale)

Features

  • 16 mm Cage System and SM05 Lens Tube Compatible Mounts
  • Wavelength Ranges Available
    • 420 - 680 nm
    • 620 - 1000 nm
    • 700 - 1300 nm
    • 900 - 1300 nm
    • 1200 - 1600 nm
  • Extinction Ratio
    • TP:TS > 1000:1
    • RS:RP ~ 100:1

These 16 mm Cage-Compatible Polarizing Beamsplitter Cubes have a dielectric coating along the diagonal interface between the two right angle prisms that make up the cube. This coating reflects s-polarized light, while transmitting p-polarized light. For polarization-insensitive applications, we also offer Non-Polarizing Beamsplitter Cubes, as well as Cube-Mounted Turning Prism Mirrors.

For highest polarization purity, use the transmitted beam, which offers a 1000:1 (TP:TS) extinction ratio. The reflected beam will only have an extinction ratio of roughly 20:1 to 100:1, depending on the beamsplitter. All of the faces of this cube have broadband antireflective coatings that minimize losses due to reflections. The dielectric beamsplitting coating is applied to the hypotenuse of one of the two prisms that make up the cube. Then, cement is used to bind the two prism halves together (refer to the diagram to the right). In order to achieve the desired 50:50 split ratio, the light can enter through any of the faces. One possible orientation is engraved on the top of the cage cube.

A bottom-located 8-32 or M4 tap is included for post mounting. The housings feature four SM05-threaded entrance and exit ports for compatibility with our SM05 (0.535"-40) lens tubes. Four 4-40 tapped holes surrounding each port provide compatibility with our 16 mm cage systems. The Mounted Beamsplitters can be connected to other cage cubes through the use of our cage rods and SRSCA adapters.

For an overview of our complete selection of beamsplitting optics, please see the BS Selection Guide tab. For applications requiring a higher damage threshold, we also offer 1" unmounted High-Power Polarizing Beamsplitting Cubes. These may be mounted in our 30 mm Cage Cubes and incorporated into 16 mm cage systems using our Cage Size Adapters.

Please note that each beamsplitter cube is epoxied within the cage cube mount and cannot be removed.

Cube-Mounted Beamsplitter Drawing
Click to Enlarge
Reference drawing for CCM5-PBS series cubes. The imperial versions have an
8-32 tap, whereas the metric versions have an M4 x 0.7 tap.
Item # Suffix PBS201(/M) PBS202(/M) PBS205(/M) PBS203(/M) PBS204(/M)
AR Coating Range 420 - 680 nm 620 - 1000 nm 700 - 1300 nm 900 - 1300 nm 1200 - 1600 nm
AR Coating (0° Incident Angle) Ravg < 0.5% Ravg < 0.5% Ravg < 1.0% Ravg < 0.5% Ravg < 0.5%
Ports 4 Ports with SM05 (0.535"-40) Threading
Beamsplitter Material N-SF1
Extinction Ratioa TP:TS > 1000:1
Transmission Efficiencyb TP > 90%
Reflection Efficiencyb RS, avg > 95%
Transmitted Beam Deviationc 0° ± 5 arcmin
Reflected Beam Deviationd 90° ± 20 arcmin
Clear Aperture Ø12.50 mm
Transmitted Wavefront Error <λ/4 at 633 nm over Ø12.50 mm
Surface Quality 40-20 Scratch-Dig
  • The extinction ratio (ER) is the ratio of maximum to minimum transmission of a sufficiently linearly polarized input. When the transmission axis and input polarization are parallel, the transmission is at its maximum; rotate the polarizer by 90° for minimum transmission.
  • Transmission and reflection data is based on that of the beamsplitter coating and does not account for the BBAR surface coating.
  • Defined with respect to the beamsplitter cube, not the mechanical housing.
  • Defined with respect to the mechanical housing.

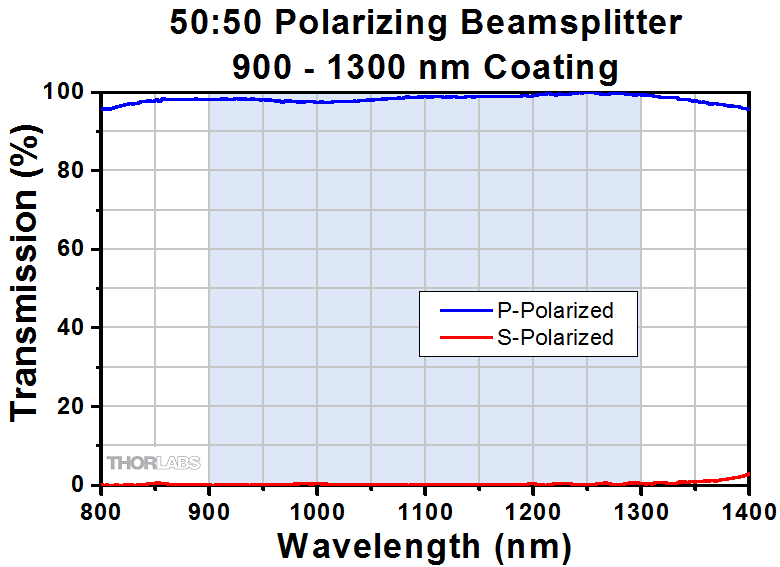

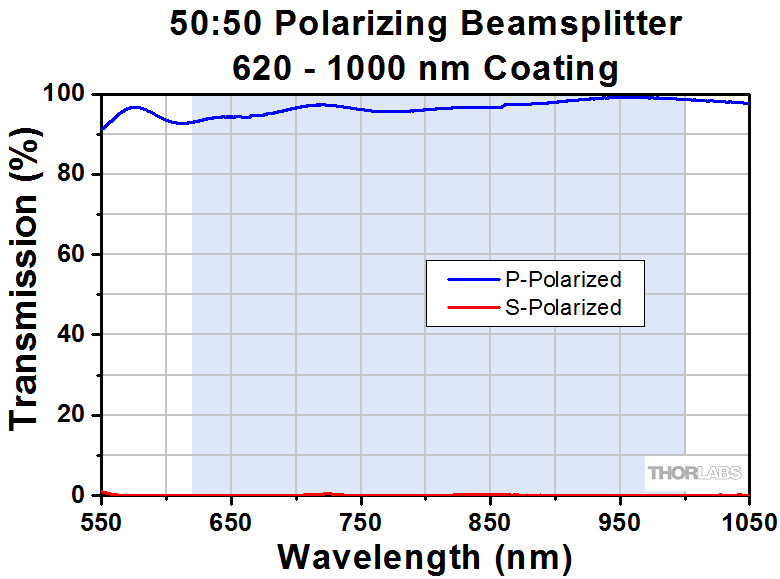

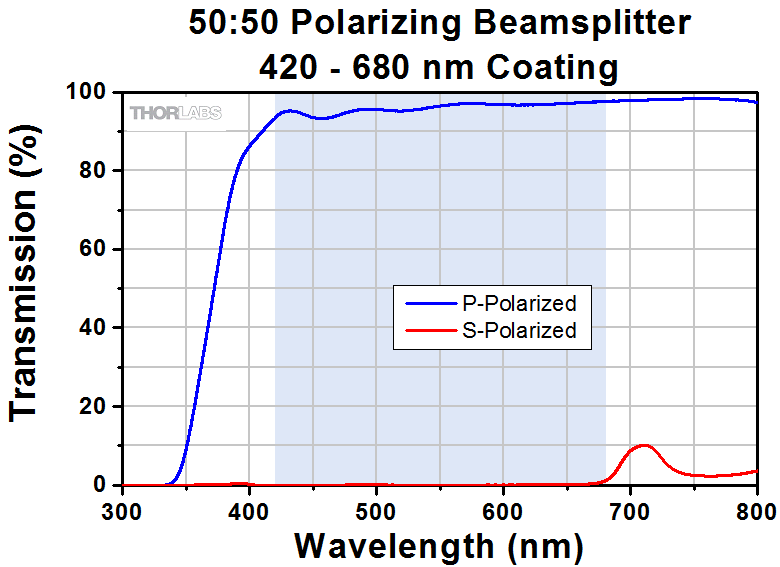

The shaded regions in the graphs below denote the transmission bands of the beamsplitters for which the performance is guaranteed to meet the stated specifications. Performance outside the shaded regions will vary from lot to lot and is not guaranteed.
