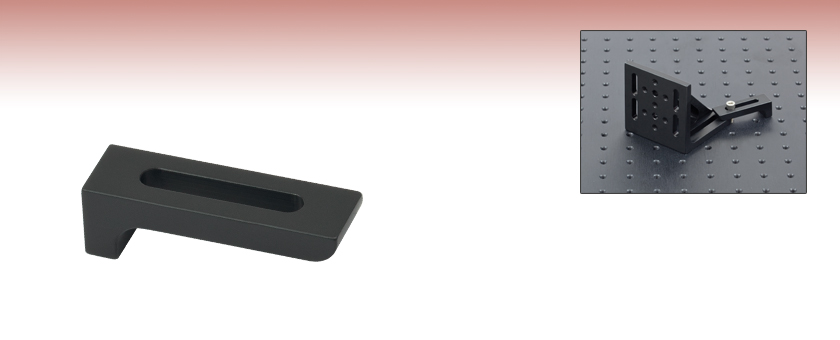

Mini-Series Table Clamps

Click to Enlarge

Options

• MSCL3: General-Purpose Clamp (Imperial and Metric Compatible)
• MSCL2(/M): Height Adjustable with 4-40 (M3) Cap Screw

Our Mini-Series table clamps are fashioned similarly to our CL series clamps but feature #4 (M3) counterbores. These small, space-conscious clamps are useful when constructing complex optomechanical assemblies on our MS12B(/M) breadboard, enabling standard optomechanical components to be secured to the breadboard. The clamps require 4-40 (M3) cap screws and washers, which are conveniently provided in our screw kits.

Adjustable Height Clamps

Uniquely, the MSCL2(/M) clamp features two cap screws, one for height adjustment and the other for lock-down (see diagram above). This allows for easy adaptation to variable heights without compromising clamping force.
