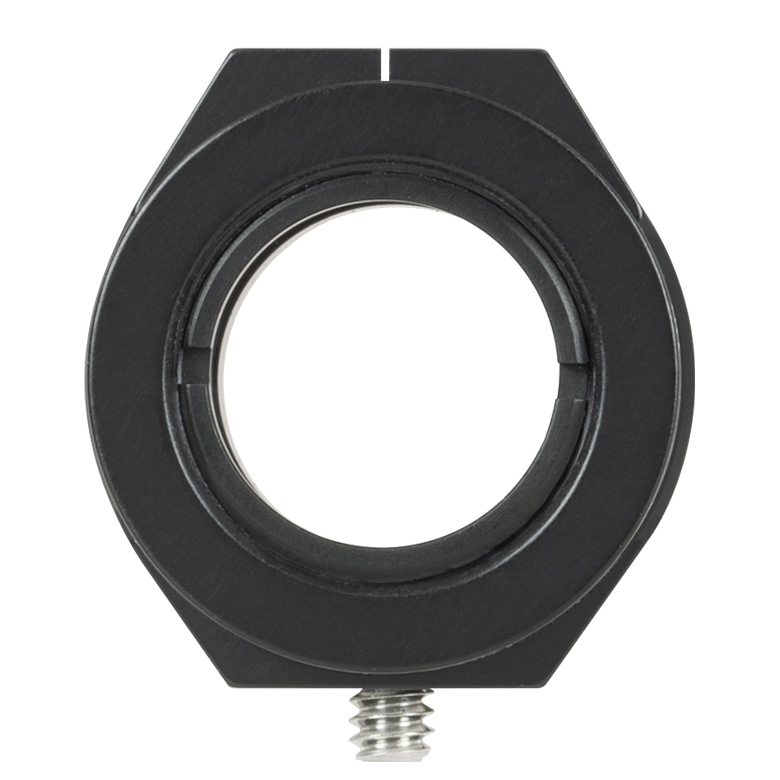

Mini-Series Rotation Mount

Lockable Rotation Mount for Ø1/2" Optics
4-40 (M3) Stud for Post Mounting
Compact Footprint

Application Idea

Ø1/2" Linear Polarizer Mounted in the MRM05 Mini-Series Rotation Mount, Mounted onto a Ø6 mm Post

MRM05

Ø1/2" Mini-Series Rotation Mount

Please Wait

Overview
Feedback
Rotation Mounts and Stages

Click to Enlarge
4-40 (M3) Mounting Stud for Post Mounting

Features

Rotation Mount with 360° Continuous Rotation
4-40 (M3) Stud for Post Mounting
SM05 (0.535"-40) Threaded Optic Bore for Ø1/2" Optics
Lockable Rotational Position
One SM05RR Retaining Ring Included

The MRM05(/M) is a lockable, continuous rotation mount for Ø1/2" optics. The mount features full 360° rotation of the mounting carriage, with a marking at every 2° engraved on the front face. The back of the mounting carriage has a knurled edge for easy grip. A setscrew with a 0.05" (1.3 mm) hex is located on top for locking the rotational position. The center aperture is SM05-threaded (0.535"-40) and accepts Ø1/2" (Ø12.7 mm) optics up to 5.8 mm thick. Optics are held in the mount with an included SM05RR retaining ring, which can be adjusted with an SPW603, SPW603L, or SPW801 spanner wrench. These mounts are designed to provide a 10 mm optic axis height when measured from the bottom of the mount to match our Mini-Series Kinematic Mounts.

The MRM05(/M) has a 4-40 (M3) mounting stud for post mounting (see image to the right), making this mount compatible with our Mini-Series Optical Post Assemblies. The mounting stud has a length that is optimal for mounting into posts, but can be removed if desired. The mounting hole has a depth of 0.09" (2.3 mm); caution should be taken in choosing a setscrew with the correct length, as damage to the part can occur.

Posted Comments:
No Comments Posted

Rotation Mount and Stage Selection Guide

Thorlabs offers a wide variety of manual and motorized rotation mounts and stages. Rotation mounts are designed with an inner bore to mount a Ø1/2", Ø1", or Ø2" optic, while rotation stages are designed with mounting taps to attach a variety of components or systems. Motorized options are powered by a DC Servo motor, 2 phase stepper motor, piezo inertia motor, or an Elliptec™ resonant piezo motor. Each offers 360° of continuous rotation.

Manual Rotation Mounts

Rotation Mounts for Ø1/2" Optics
Item #	MRM05(/M)	RSP05(/M)	CRM05	PRM05(/M)^a	SRM05	KS05RS	CT104
Click Photo to Enlarge
Features	Mini Series	Standard	External SM1 (1.035"-40) Threads	Micrometer	16 mm Cage-Compatible	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Compatible with 30 mm Cage Translation Stages and 1/4" Translation Stages^b
Additional Details

This mount is available in the PRM05GL5 bundle, which includes the PRM05 rotation mount with the SM05PM5 polarizing prism mount.
The CT104 is complatible with the 1/4" translation stages using our MS103(/M) adapter plate.
The CT104 is compatible with the CT1A(/M) cage translation stage, which is designed for use with 30 mm cage systems.

Rotation Mounts for Ø1" Optics
Item #	RSP1(/M)	LRM1	RSP1D(/M)	DLM1(/M)	CLR1(/M)	RSP1X15(/M)	RSP1X225(/M)	PRM1(/M)^a
Click Photo to Enlarge
Features	Standard	External SM1 (1.035"-40) Threads	Adjustable Zero	Two Independently Rotating Carriages	Rotates Optic Within Fixed Lens Tube System	Continuous 360° Rotation or 15° Increments	Continuous 360° Rotation or 22.5° Increments	Micrometer
Additional Details

This mount is available in the PRM1GL10 bundle, which includes the PRM1 rotation mount with the SM1PM10 polarizing prism mount.

Rotation Mounts for Ø1" Optics
Item #	LM1-A & LM1-B(/M)	CRM1T(/M)	CRM1LT(/M)	CRM1PT(/M)	KS1RS	K6XS
Click Photo to Enlarge
Features	Optic Carriage Rotates Within Mounting Ring	30 mm Cage-Compatible^a	30 mm Cage-Compatible for Thick Optics^a	30 mm Cage-Compatible with Micrometer^a	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Six-Axis Kinematic Mount^a
Additional Details

This mount also features four 4-40 (M3) holes on the rotation dial for use with the K6A1(/M) prism platform.

Rotation Mounts for Ø2" Optics
Item #	RSP2(/M)	RSP2D(/M)	PRM2(/M)	LM2-A & LM2-B(/M)	LCRM2(/M)	KS2RS	K6X2
Click Photo to Enlarge
Features	Standard	Adjustable Zero	Micrometer	Optic Carriage Rotates Within Mounting Ring	60 mm Cage-Compatible	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Six-Axis Kinematic Mount
Additional Details

Manual Rotation Stages

Manual Rotation Stages
Item #	RP005(/M)	PR005(/M)	MSRP01(/M)	RP01(/M)	RP03(/M)	QRP02(/M)
Click Photo to Enlarge
Features	Standard					Two Hard Stops
Additional Details

Manual Rotation Stages
Item #	XRNR1(/M)	XRR1(/M)	PR01(/M)	CR1(/M)	XYR1(/M)	OCT-XYR1(/M)
Click Photo to Enlarge
Features	Fine Rotation Adjuster and 2" Wide Dovetail Quick Connect	Fine Rotation Adjuster and 3" Wide Dovetail Quick Connect	Fine Rotation Adjuster and SM1-Threaded Central Aperture	Fine Pitch Worm Gear	Rotation and 1/2" Linear XY Translation
Additional Details

The stage profile is higher when it is mounted using the screw slots rather than stacked on another stage or accessory with mating dovetails.
The OCT-XYR1(/M) stage includes the XYR1A solid sample plate. This plate can be detached from the stage to reveal the same mounting features present on the XYR1(/M) stage.

Motorized Rotation Mounts and Stages

Motorized Rotation Mounts and Stages with Central Clear Apertures
Item #	DDR25(/M)	PDR1C(/M)	PDR1(/M)	PDR1V(/M)
Click Photo to Enlarge
Features	Compatible with SM05 Lens Tubes, 16 mm Cage System, & 30 mm Cage System	Compatible with 16 mm Cage System	Compatible with SM05 Lens Tubes & 30 mm Cage System	Vacuum-Compatible; Also Compatible with SM05 Lens Tubes & 30 mm Cage System
Additional Details

Motorized Rotation Mounts and Stages with Central Clear Apertures
Item #	K10CR1(/M)	PRM1Z8(/M)^a	DDR100(/M)	ELL14	HDR50(/M)
Click Photo to Enlarge
Features	Compatible with SM1 Lens Tubes & 30 mm Cage System		Compatible with SM1 Lens Tubes, 16 mm Cage System, 30 mm Cage System	Compatible with SM1 Lens Tubes, Open Frame Design for OEM Applications	Compatible with SM2 Lens Tubes
Additional Details

This stage is available in the KPRMTE(/M), which includes the PRMTZ8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.

Motorized Rotation Mounts and Stages with Tapped Platforms
Item #	PRMTZ8(/M)^a	ELL18(/M)^b
Click Photo to Enlarge
Features	Tapped Mounting Platform for Mounting Prisms or Other Optics	Tapped Mounting Platform, Open Frame Design for OEM Applications
Additional Details

This stage is available in the KPRM1E(/M), which includes the PRMT1Z8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.
This stage is available in the ELL18K(/M), which includes an interface board, mounting brackets, and connectors for PC control.

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous			Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°	Manual, 360° Continuous
Optic Mounting	Internally SM05-Threaded Carriage
Maximum Accepted Optic Thickness	0.23" (5.8 mm)	0.23" (5.8 mm)	0.26" (6.5 mm)	0.23" (5.9 mm)	0.24" (6.0 mm)	0.41" (10.4 mm)	0.29" (7.3 mm)
Post Mounting	4-40 (M3) Stud	8-32 (M4) Tap	None	8-32 (M4) Tap	None	Two Counterbores for 8-32 (M4) Cap Screws	Two Counterbores for 4-40 (M3) Cap Screws
Cage System Compatibility	N/A				Four Bores for ∅4 mm Cage Rods with 16 mm Spacing	N/A	N/A^c

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous					Manual, Continuous: 360°; Discrete: 15°	Manual, Continuous: 360°; Discrete: 22.5°	Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°
Optic Mounting	Internally SM1-Threaded Carriage
Maximum Accepted Optic Thickness	0.47" (11.9 mm)	0.34" (8.6 mm)	0.51" (12.9 mm)	0.25" (6.4 mm)	0.27" (6.8 mm)	0.50" (12.7 mm)	0.50" (12.7 mm)	0.50" (12.7 mm)
Post Mounting	8-32 (M4) Tap	N/A	8-32 (M4) Tap
Cage System Compatibility	N/A							Four 4-40 (M3) Taps on Rotation Dial with 30 mm Spacing

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous			Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°	Manual, 360° Continuous
Optic Mounting	Internal SM1 Threads in LM1-A	Internally SM1-Threaded Carriage	Double-Bore with Setscrew	Internally SM1-Threaded Carriage
Accepted Optic Thickness	Max: 0.37" (9.4 mm)	Max: 0.37" (9.4 mm)	Min: 0.31" (7.9 mm)	Max: 0.37" (9.4 mm)	Max: 0.47" (11.9 mm)	Max: 0.55" (14 mm)
Post Mounting	8-32 (M4) Tap in LM1-B	8-32 (M4) Tap			Six Counterbores for 8-32 (M4) Cap Screws
Cage System Compatibility	N/A	Four Bores for ∅6 mm Cage Rods with 30 mm Spacing			N/A

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous		Coarse: Manual, 360° Continuous; Fine: ±7° Micrometer	Manual, 360° Continuous
Optic Mounting	Internally SM2-Threaded Carriage			Internal SM2 Threads in LM2-A	Internally SM2-Threaded Carriage
Maximum Accepted Optic Thickness	0.51" (13 mm)	0.54" (13.7 mm)	0.48" (12.2 mm)	0.46" (11.7 mm)	0.51" (13 mm)	0.47" (12 mm)	0.53" (13.4 mm)
Post Mounting	8-32 (M4) Tap			8-32 (M4) Tap in LM2-B	8-32 (M4) Tap	Four Counterbores for 8-32 (M4) Cap Screws	Six Counterbores for 8-32 (M4) Cap Screws
Cage System Compatibility	N/A		Four 4-40 (M3) Taps on Rotation Dial with 60 mm Spacing	N/A	Four Bores for Ø6 mm Cage Rods with 60 mm Spacing	N/A	N/A

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous
Mounting Platform
Diameter	Ø1.00" (Ø25.4 mm)	Ø1.00" (Ø25.4 mm)	Ø1.40" (Ø35.6 mm)	Ø2.07" (Ø52.8 mm)	Ø4.29" (Ø109.0 mm)	Ø2.00" (Ø50.8 mm)
Height	0.67" (17.0 mm)	0.75" (19.1 mm)	0.51" (13.1 mm)	0.63" (16.1 mm)	0.70" (17.8 mm)	1.00" (25.4 mm)
Taps	Six 4-40 (M3) One 1/4"-20 (M6)	One 8-32 (M4) Eight 4-40 (M3)	Four 4-40 (M3) One 8-32 (M4)	Four 8-32 (M4) One 1/4"-20 (M6)	Eight 6-32 (M4) Sixteen 8-32 (M4) Thirteen 1/4"-20 (M6)	Four 6-32 (M4) Four 8-32 (M4) Five 1/4"-20 (M6)
Additional Holes	Two Ø0.13" (Ø3.2 mm) Holes for FiberBench Accessories	-	Four Clearance Holes for 4-40 (M3) Cap Screws	-	-	-
Platform Adapter Plate(s)	-	-	-	-	-	-
Base
Dimensions	1.50" x 1.50" (38.1 x 38.1 mm)	1.50" x 1.50" (38.1 x 38.1 mm)	1.78" x 1.40" (45.2 x 35.6 mm)	2.45" x 2.45" (62.2 x 62.2 mm)	4.65" x 4.65" (118.1 x 118.1 mm)	2.55" x 2.55" (64.8 x 64.8 mm)
Mounting Holes	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 4-40 (M3) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Counterbores for 1/4"-20 (M6) Cap Screws
Side Taps for Vertical Mounting	-	-	One 4-40 (M3)	One 8-32 (M4)	Three 8-32 (M4)	-
Cage System Compatibility	N/A

Rotation Drive Mechanism and Adjustment Range	Manual: 360° Continuous; Fine: Adjuster Screw, ±5°	Manual: 360° Continuous; Fine: Adjuster Screw, ±5°	Manual: 360° Continuous; Fine: Micrometer, ±5°	Worm Gear, 360° Continuous	Manual, 360° Continuous with 1/2" (13 mm) Linear Travel Along X and Y Axes with Micrometer
Mounting Platform
Diameter	Ø2.21" (Ø56.0 mm)	Ø3.19" (Ø81.0 mm)	Ø2.70" (Ø68.6 mm)	Ø1.70" (Ø43.2 mm)	Ø4.18" (Ø106.0 mm)	Ø4.04" (Ø102.5 mm)
Height	On Breadboard: 0.91" (23.0 mm)^a Dovetail Stacked: 0.83" (21.0 mm)	On Breadboard: 0.91" (23.0 mm)^a Dovetail Stacked: 0.83" (21.1 mm)	1.00" (25.3 mm)	1.00" (25.4 mm)	1.00" (25.4 mm)	1.65" (41.8 mm)
Taps	Thirteen 1/4"-20 (M6) Four 8-32 (M4) Four 6-32 (M4)	Thirteen 1/4"-20 (M6) Four 8-32 (M4) Four 6-32 (M4)	Four 4-40 (M3) Ten 6-32 (M4) Six 1/4"-20 (M6)	Four 4-40 (M3) Eight 6-32 (M4) Four 8-32 (M4)	Eight 4-40 (M3) Twelve 8-32 (M4) Sixteen 1/4"-20 (M6)	-^b
Additional Holes	-	-	Ø0.94" (Ø23.9 mm) Clear Aperture with SM1 Threading	-	Ø0.90" (Ø22.9 mm) Clear Aperture with SM1 Threading	-^b
Platform Adapter Plate(s)	-	-	PR01A(/M) CRA30(/M)	CR1A(/M)	XYR1A	-^b
Base
Dimensions	3.35" x 2.52" (85.0 mm x 63.9 mm)	4.33" x 3.58" (110.0 mm x 91.0 mm)	2.75" x 3.50" (69.9 x 88.9 mm)	2.76" x 2.10" (70.1 x 53.4 mm)	5.50" x 4.42" (139.7 x 112.3 mm) (Not Including Micrometers)
Mounting Holes	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Two Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws
Side Taps for Vertical Mounting	-	-	Two 1/4"-20 (M6)	-	-
Cage System Compatibility	-	N/A	Four 4-40 Taps on Top Surface for 30 mm Cage System	N/A	Four 4-40 Taps on Top Surface for 30 mm Cage System Four 4-40 Taps on Top Surface for 60 mm Cage System Four 4-40 Taps on Bottom Surface for 60 mm Cage System	-^b

Motor Type	Brushless DC Servo	Piezo Inertia Drive
Rotation Adjustment Range	360° Continuous
Rotating Platform/Carriage
Diameter	1.14" (29.0 mm)	1.10" (28.0 mm)	1.34" (34.0 mm)
Height	1.12" (28.5 mm)	0.71" (18.0 mm)
Threaded Mounting Holes	Four 4-40 with 16 mm Spacing	Four 8-32 (M4 x 0.7), Four 4-40 with 16 mm Spacing	Four 8-32 (M4 x 0.7)
Center Aperture	SM05 Internal Threads, 1.2" (28.5 mm) Deep	Ø4.9 mm Clear Aperture with 1/4"-20 (M6 x 1.0) Internal Threads, Thru	Ø9.0 mm Clear Aperture with SM05 Internal Threads, 2.5 mm Deep
Speed (Max)	1800°/s	100°/s	20°/s
Base
Dimensions	2.19" x 2.19" (55.6 mm x 55.6 mm)	1.18" x 1.18" (30 mm x 30 mm)	1.57" x 1.57" (40.0 mm x 40.0 mm)
Bottom Surface Mounting Features	-	Two #2 (M2) Slots	Two 8-32 (M4 x 0.7) Holes
Side Holes for Vertical Mounting	Four 8-32 (M4 x 0.7) Eight 4-40	Three 8-32 (M4 x 0.7)	One 8-32 (M4 x 0.7), Two Sides
Cage System Compatibility	Four 4-40 Holes on Back Side with 16 mm Spacing, Four 4-40 Taps on Front Side with 30 mm Spacing	-	Ø6 mm Holes for ER Cage Rods with 30 mm Spacing

Motor Type	2 Phase Stepper Motor with Worm Gear	DC Servo	Brushless DC Servo	Piezo Resonant Motor	2 Phase Stepper Motor with Worm Gear
Rotation Adjustment Range	360° Continuous
Rotating Platform/Carriage
Diameter	1.81" (46.0 mm)	1.97" (50.0 mm)	4.37" (111.0 mm)	-	3.86" (98.0 mm)
Height	0.84" (21.5 mm)	0.91" (23.0 mm)	1.57" (39.9 mm)	0.59" (15.1 mm)	1.73" (44.0 mm)
Threaded Mounting Holes	Six 4-40 (M3)	Four 6-32 (M4), Four 8-32 (M4), Four 4-40 with 30 mm Spacing	Eight 8-32 (M4), Four 1/4"-20 (M6), Four 4-40 with 16 mm Spacing, Four 4-40 with 30 mm Spacing	-	Four 8-32 (M4)
Center Aperture	SM1 Internal Threads, 0.84" (21.5 mm) Deep	SM1 Internal Threads, 0.91" (23.0 mm) Deep	SM1 Internal Threads, 0.82" (21.0 mm) Deep	SM1 Internal Threads, 0.58" (14.7 mm) Deep	Ø50.0 mm Clear Aperture with SM1 Internal Threads, 6.9 mm Deep
Speed (Max)	10°/s	25°/s	1080°/s	430°/s	50°/s
Platform Adapter Plate(s)	K10CR1A2(/M)	PRM1SP1(/M)	NR360SP9(/M) NR360SP4(/M)	-	NR360SP9(/M) NR360SP8 NR360SP4(/M)
Base
Dimensions	4.21" x 2.60" (107.0 mm x 66.0 mm)	5.18" x 3.26" (131.5 mm x 82.8 mm)	4.53" x 4.53" (115 mm x 115 mm)	2.60" x 3.25" (66.0 mm x 82.5 mm)	7.46" x 4.55" (189.4 mm x 115.5 mm)
Stage Adapter Plates	K10CR1A1 K10CR1A3	PRM1SP2 PRM1SP3	-	-	NR360SP2(/M) NR360SP5(/M)
Bottom Surface Mounting Holes	-	Two 1/4" (M6) Counterbores	Four 1/4" (M6) Clearance Holes	-	Four 1/4" (M6) Counterbores
Side Holes for Vertical Mounting	Three 8-32 (M4)	Four 8-32 (M4)	Eight 1/4"-20 (M6)	-	Six 1/4"-20 (M6)
Cage System Compatibility	Four 4-40 Holes on Each Side with 30 mm Spacing	-	Four 4-40 Holes on Back Side with 30 mm Spacing	60 mm Cage using Four Ø0.12" (3.0 mm) Holes for 4-40 Screws, 30 mm Cage using SR025 Cage Rods to Adapt to ER Cage Rods	-
