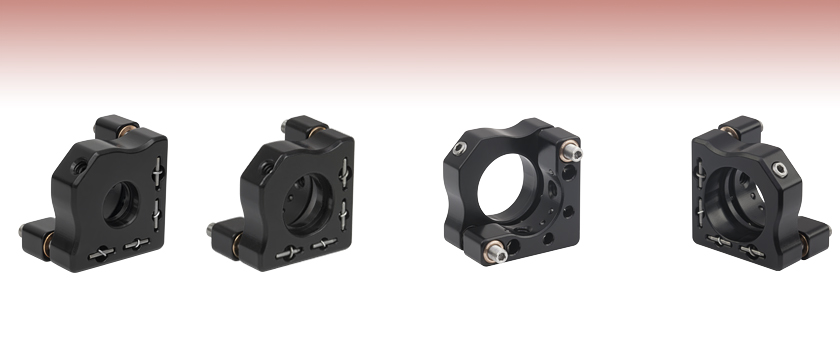

Mini-Series Kinematic Mirror Mounts with Two Adjusters


  • Kinematic Mirror Mounts for Ø7 mm, Ø10 mm, and Ø1/2" Optics
  • 4-40 (M3) Mounting Holes
  • Compact Footprint

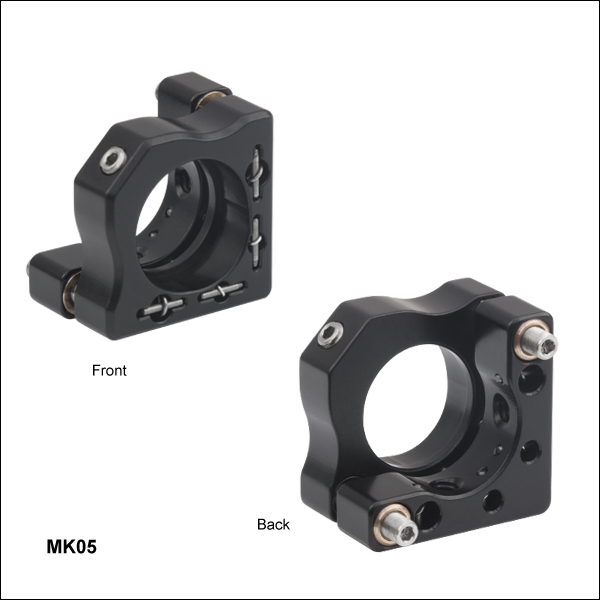

MK05

Ø1/2" Kinematic Mirror Mount, 4-40 Taps



Back

Front

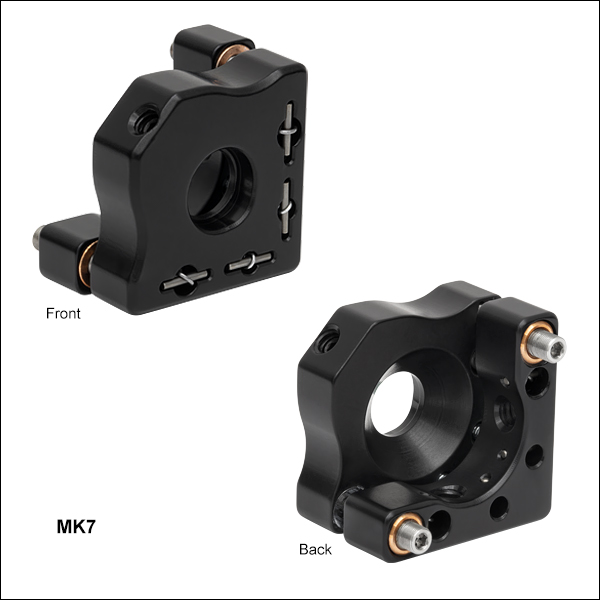

MK7

Ø7 mm Kinematic Mirror Mount, 4-40 Taps

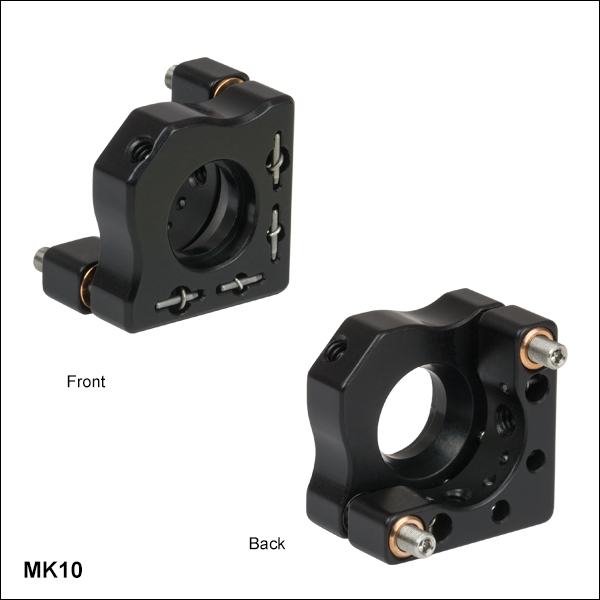

MK10

Ø10 mm Kinematic Mirror Mount, 4-40 Taps

Related Items


Please Wait
Stop Collar Lock Nut
Click to Enlarge

A single locking collar can lock an adjuster's position with an SPW403 spanner wrench. Both are available below.
Stop Collar Lock Nut
Click to Enlarge

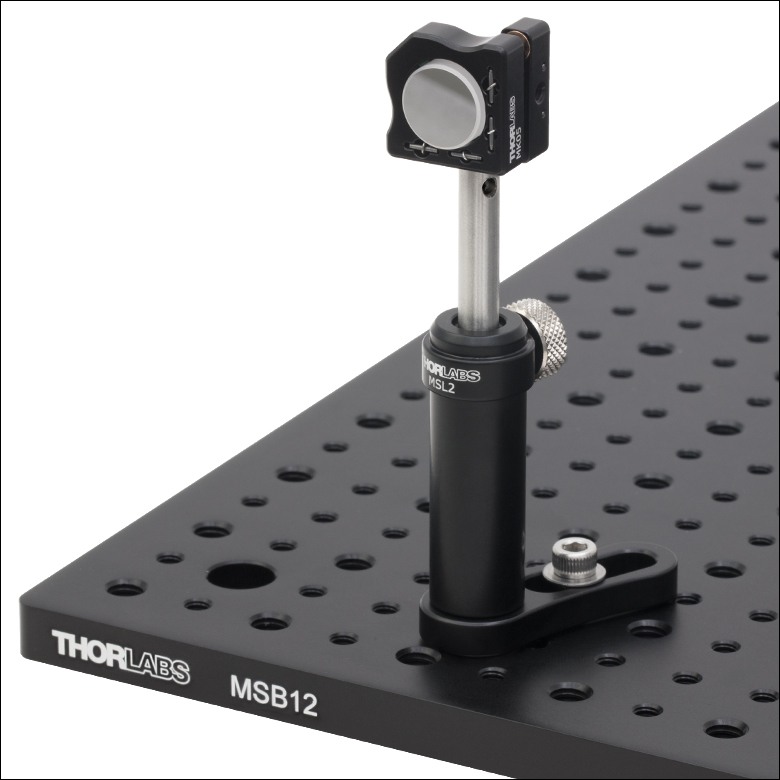

MK05 Mounted onto an MSB12 Breadboard Using a Mini-Series Post and Post Holder

Features

  • Securely Mount Ø7 mm, Ø10 mm, and Ø1/2" Optics
  • Angular Range: ±4°
  • Hardened Steel Inserts at Kinematic Contact Points to Reduce Wear
  • Phosphor Bronze Bushings and Stainless Steel Lead Screws for Smooth Adjustment
  • Fabricated from Black Anodized Aluminum

Thorlabs' Mini-Series Kinematic Mirror Mounts are our smallest two-adjuster mirror mounts for Ø7 mm, Ø10 mm, and Ø1/2" optics, featuring a nominal 0.79" x 0.52" (20.0 mm x 13.2 mm) footprint. The optic is secured at three points using a nylon-tipped locking screw and a double-bored mounting hole. Both the nylon-tipped setscrew and the two M2.5 x 0.20 adjuster screws accept a 0.050" (1.3 mm) hex key (not included). For ease of adjustment, we recommend using the 0.050" hex key thumbscrews sold below. Additionally, we offer a locking collar and spanner wrench for locking the adjuster screws in a desired position or for creating a hard stop.

These mounts feature two 4-40 (M3) mounting holes for either left- or right-handed orientation at 90°, enabling them to be mounted onto our Ø6 mm Mini-Series posts or Ø12 mm pedestal posts. Our Mini-Series post holders allow our Ø6 mm posts to be mounted onto our Mini-Series breadboards.

We also offer a Mini-Series Kinematic Mount for Cylindrical Components that accepts Ø11 mm cylindrical components such as our fixed collimators and laser diode modules.


Posted Comments:
No Comments Posted

Ø7 mm Mini-Series Kinematic Mirror Mount


Click to Enlarge

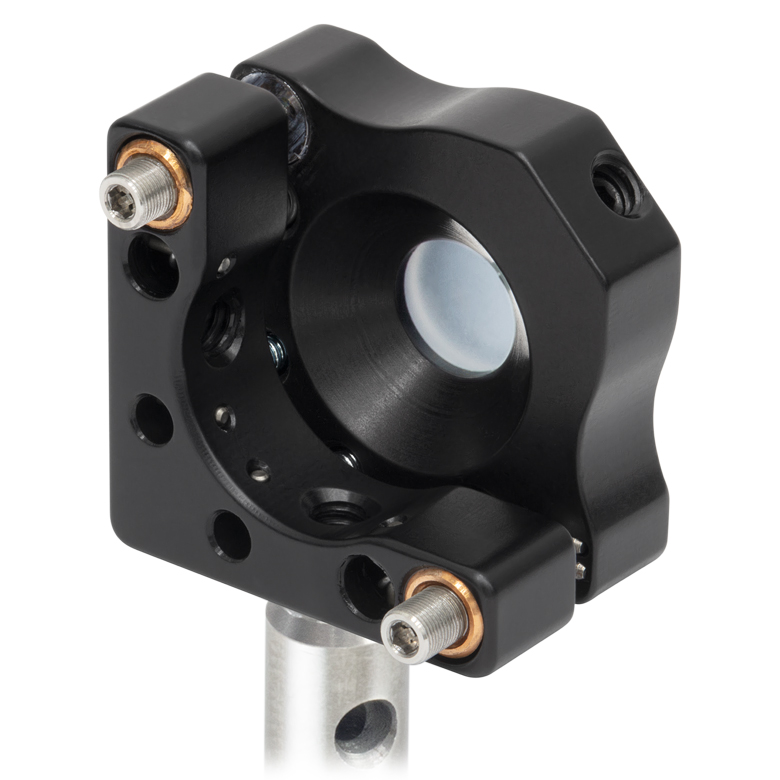

PF03-03-P01 7 mm Optic Mounted in an MK7 Kinematic Mirror Mount
  • Mounts Ø7 mm Optics at Least 0.04" (1.00 mm) Thick
  • Compact Nominal Footprint: 0.79" x 0.52" (20.0 mm x 13.2 mm)
  • Resolution: 0.187 mrad (0.011°) per Revolution via Two M2.5 x 0.20 Precision Adjusters
  • 4-40 (M3) Mounting Holes Allow for Left- or Right-Handed Orientation

Thorlabs' MK7(/M) Mini-Series Kinematic Mirror Mount is designed to mount Ø7 mm optics in optomechanical setups where space is a premium. The optic can be adjusted using two M2.5 x 0.20 adjuster screws that accept a 0.050" (1.3 mm) hex key (not included), each having a resolution of 0.187 mrad (0.11°) per revolution.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
MK7 Support Documentation
MK7Mini-Series Kinematic Mirror Mount for Ø7 mm Optics, 4-40 Taps
$90.64
Today
+1 Qty Docs Part Number - Metric Price Available
MK7/M Support Documentation
MK7/MMini-Series Kinematic Mirror Mount for Ø7 mm Optics, M3 Taps
$90.64
Today

Ø10 mm Mini-Series Kinematic Mirror Mount

  • Mounts Ø10 mm Optics at Least 0.04" (1.00 mm) Thick
  • Compact Nominal Footprint: 0.79" x 0.52" (20.0 mm x 13.2 mm)
  • Resolution: 0.187 mrad (0.011°) per Revolution via Two M2.5 x 0.20 Precision Adjusters
  • 4-40 (M3) Mounting Holes Allow for Left- or Right-Handed Orientation

Thorlabs' MK10(/M) Mini-Series Kinematic Mirror Mount is designed to mount Ø10 mm optics in optomechanical setups where space is a premium. The optic can be adjusted using two M2.5 x 0.20 adjuster screws that accept a 0.050" (1.3 mm) hex key (not included), each having a resolution of 0.187 mrad (0.11°) per revolution.

Optics compatible with the MK10(/M) include our AL108, AL108-A, AL108-B, AL108-C Ø10 mm CNC-polished aspheric lenses, as well as our ACL108U, ACL108U-A, and ACL108U-B Ø10 mm aspheric condenser lenses.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
MK10 Support Documentation
MK10Mini-Series Kinematic Mirror Mount for Ø10 mm Optics, 4-40 Taps
$90.64
Today
+1 Qty Docs Part Number - Metric Price Available
MK10/M Support Documentation
MK10/MMini-Series Kinematic Mirror Mount for Ø10 mm Optics, M3 Taps
$90.64
Today

Ø1/2" Mini-Series Kinematic Mirror Mount


Click to Enlarge

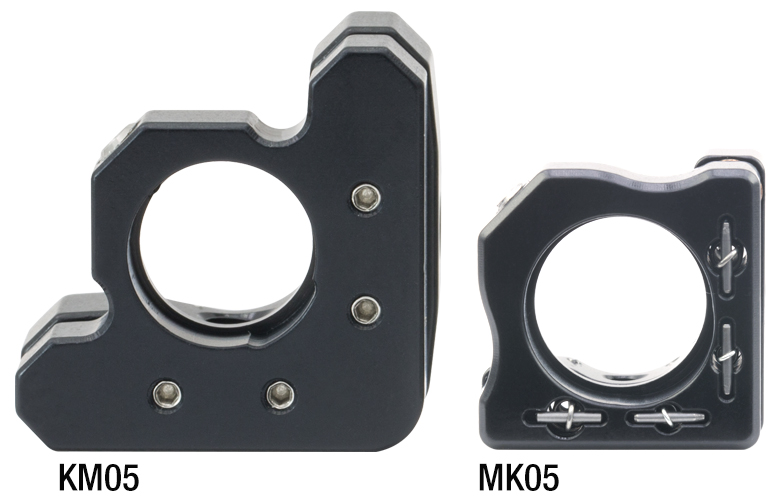

Size Comparison between Our Ø1/2" KM05 (Left) and Ø1/2" MK05 (Right) Kinematic Mirror Mounts
  • Mounts Ø1/2" Optics at Least 0.12" (3.05 mm) Thick
  • Compact Nominal Footprint: 0.79" x 0.52" (20.0 mm x 13.2 mm)
  • Resolution: 0.187 mrad (0.011°) per Revolution via Two M2.5 x 0.20 Precision Adjusters
  • 4-40 (M3) Mounting Holes Allow for Left- or Right-Handed Orientation

Thorlabs' MK05(/M) Mini-Series Kinematic Mirror Mount is designed to mount Ø1/2" and 12.5 mm optics in optomechanical setups where space is a premium. The optic can be adjusted using two M2.5 x 0.20 adjuster screws that accept a 0.050" (1.3 mm) hex key (not included), each having a resolution of 0.187 mrad (0.11°) per revolution. As shown in the image to the right, it is significantly more compact than our KM05(/M) Ø1/2" Kinematic Mirror Mount.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
MK05 Support Documentation
MK05Mini-Series Kinematic Mirror Mount for Ø1/2" Optics, 4-40 Taps
$82.40
Today
+1 Qty Docs Part Number - Metric Price Available
MK05/M Support Documentation
MK05/MMini-Series Kinematic Mirror Mount for Ø1/2" Optics, M3 Taps
$82.40
Today

0.050" Hex Key Adjusters


Click to Enlarge
MK05 Mini-Series Kinematic Mirror Mount with
HKTS-050 Thumbscrew
  • For Convenient Adjustment of 0.050" Hex-Driven Actuators
  • Red, Anodized Adjustment Knob with Engraved Hex Size
  • Replaceable Hex Tip
  • Sold in Packs of 4

Hex Key Thumbscrews allow for quick, low-profile adjustment of hex-driven actuators, cap screws, and setscrews. Unlike balldrivers, they can be left in the screw's hex socket between adjustments for convenience. The 0.050" size is especially useful for adjusting our imperial, hex-driven, mini-series kinematic mirror mounts, sold above, as well as any 4-40-sized screws, such as the setscrews on our 30 mm cage plates.

Additional hex key thumbscrews are available in sizes from 1/8" to 3/16" and 2 mm to 5 mm.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
HKTS-050 Support Documentation
HKTS-050Customer Inspired! 0.050" (1.3 mm) Hex Key Thumbscrew, 4 Pack
$24.40
Today

M2.5 x 0.20 Locking Collar

Stop Collar Lock Nut
Click to Enlarge

A single locking collar can lock an adjuster's position with an SPW403 spanner wrench.
  • Extremely Compact Lock Nut: 0.07" (1.7 mm) Thick
  • Use One Collar To Lock an Adjuster to a Bushing
  • Use Two Collars to Create a Hard Stop on an Adjuster
  • Locking Collars Sold in Packs of Five
  • Install and Remove with the SPW403 Spanner Wrench

These locking collars are only 0.07" (1.7 mm) thick and are constructed of 303 stainless steel. They are compatible with the M2.5 x 0.20 adjusters on our Mini-Series Kinematic Mirror Mounts, Mini-Series Kinematic Mount for Cylindrical Components, and our FiberBench and Post-Mountable Kinematic Tip/Tilt and Rotation Mounts.

The locking collars can be used to lock an adjuster in a desired position, or to create a hard stop at any position to prevent overdriving an adjuster. In addition to using two collars to create a hard stop, a single collar can be epoxied to an adjuster using our G14250 epoxy to create a permanent hard stop. We recommend the SPW403 Spanner Wrench to install or remove these locking collars. The end of the SPW403 is machined to accept a 5/64" hex wrench, which can be used to provide additional torque. The hollow cylindrical construction of the SPW403 allows a tool to pass through the entire length of the spanner wrench and access the adjuster.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
F10SC1-5 Support Documentation
F10SC1-5Locking Collar for M2.5 x 0.20 Adjusters, 5 Pack
$28.11
Today
SPW403 Support Documentation
SPW403Spanner Wrench for FiberPort Zθ Locking Collars and F10SC1-5 M2.5 x 0.20 Locking Collars
$26.27
Today
