Coupling Prisms: Rutile (TiO₂) & Gadolinium Gallium Garnet (GGG)

High Index of Refraction Prisms
Used to Couple Light into Films
Choose from TiO₂ or GGG

ADG-6

ADT-6

Related Items

Prisms

Translation Stages

Power and Energy Meters

Optics Cleaning

Optics Handling

Please Wait

Overview
Prism Guide
Feedback

Item #	ADT-6		ADG-6
Material	Rutile		Gadolinium Gallium Garnet
Index of Refraction^a,b

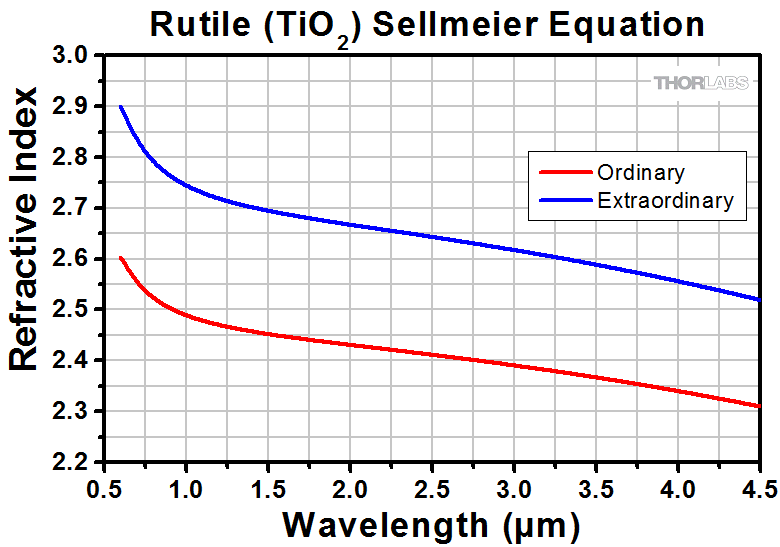

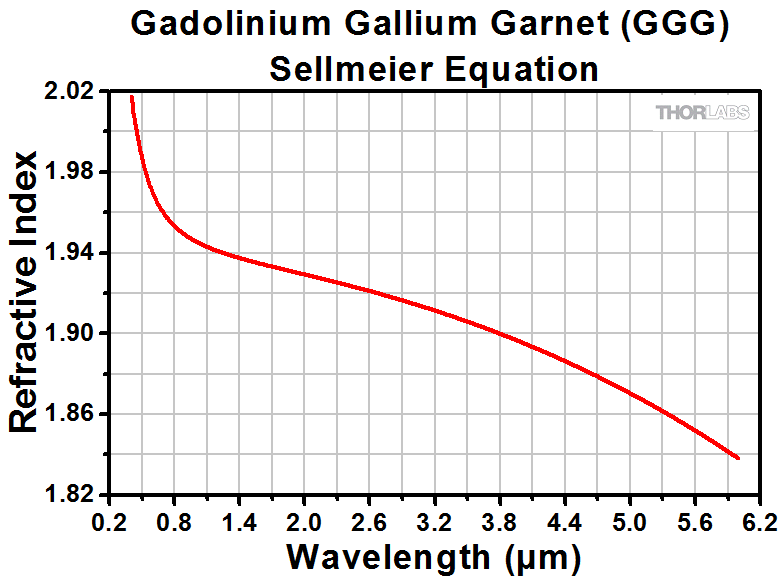

Sellmeier Equation^a,b
L^c	6.0 mm
X^c	8.5 mm
Index of Refraction for Select Wavelengths
λ	n_o	n_e	n
633 nm	2.583	2.874	1.965
830 nm	2.516	2.781	1.951
1064 nm	2.482	2.734	1.944
1550 nm	2.449	2.691	1.936

Borne, Adrien, et al. "Refractive Indices, Phase-Matching Directions and Third Order Nonlinear Coefficients of Rutile TiO₂ from Third Harmonic Generation." Optical Materials Express, vol. 2, no. 12, 2012, p. 1797.
Wood, Darwin L., and Kurt Nassau. "Optical Properties of Gadolinium Gallium Garnet." Applied Optics, vol. 29, no. 25, 1990, p. 3704.
As Specified in the Diagram to the Left

Zemax Files
Click on the red Document icon next to the item numbers below to access the Zemax file download. Our entire Zemax Catalog is also available.

Features

Right-Angle Prisms for Coupling Light into Films
Two Materials Available: Rutile (TiO₂) or Gadolinium Gallium Garnet (GGG)
Surface Flatness: λ/4 (Rutile Prism), λ/8 (GGG Prism)
Surface Quality: 40-20 Scratch-Dig

Prisms characterized by a high index of refraction are commonly used to couple light into films, thereby enabling one to measure the film thickness and index of refraction. A rutile (TiO₂) crystal prism should be used if the index of refraction of the film is greater than 1.8 whereas a gadolinium gallium garnet (GGG) prism should be used if it is less than 1.8. The prism faces are polished to 1/4-wave flatness for the rutile prism (ADT-6) and 1/8-wave flatness for the GGG prism (ADG-6). The 90° corner is sharp (not beveled) and the base measures 6 mm x 6 mm. Please note that prism coupling can cause scratching of the prism faces and chipping of the prism's sharp edge.

Click to Enlarge
Figure 1.1 Optical Axis of ADT-6 Rutile Coupling Prism

Figure 1.2 The size of these prisms is defined by the leg dimension, L, which is indicated in the product lists below.

Selection Guide for Prisms

Thorlabs offers a wide variety of prisms, which can be used to reflect, invert, rotate, disperse, steer, and collimate light. For prisms and substrates not listed below, please contact Tech Support.

Beam Steering Prisms

Prism	Material	Deviation	Invert	Reverse or Rotate	Applications
Right Angle Prisms	N-BK7, UV Fused Silica, Calcium Fluoride, or Zinc Selenide	90°	90°	No	90° reflector used in optical systems such as telescopes and periscopes.
Right Angle Prisms	N-BK7, UV Fused Silica, Calcium Fluoride, or Zinc Selenide	180°	180°	No	180° reflector, independent of entrance beam angle. Acts as a non-reversing mirror and can be used in binocular configurations.
TIR Retroreflectors (Unmounted and Mounted) and Specular Retroreflectors (Unmounted and Mounted)	N-BK7	180°	180°	No	180° reflector, independent of entrance beam angle. Beam alignment and beam delivery. Substitute for mirror in applications where orientation is difficult to control.
Unmounted Penta Prisms and Mounted Penta Prisms	N-BK7	90°	No	No	90° reflector, without inversion or reversal of the beam profile. Can be used for alignment and optical tooling.
Roof Prisms	N-BK7	90°	90°	180^o Rotation	90° reflector, inverted and rotated (deflected left to right and top to bottom). Can be used for alignment and optical tooling.
Unmounted Dove Prisms and Mounted Dove Prisms	N-BK7	No	180°	2x Prism Rotation	Dove prisms may invert, reverse, or rotate an image based on which face the light is incident on. Prism in a beam rotator orientation.
Unmounted Dove Prisms and Mounted Dove Prisms	N-BK7	180°	180°	No	Prism acts as a non-reversing mirror. Same properties as a retroreflector or right angle (180° orientation) prism in an optical setup.
Wedge Prisms	N-BK7	Models Available from 2° to 10°	No	No	Beam steering applications. By rotating one wedged prism, light can be steered to trace the circle defined by 2 times the specified deviation angle.
Wedge Prisms	N-BK7	Models Available from 2° to 10°	No	No	Variable beam steering applications. When both wedges are rotated, the beam can be moved anywhere within the circle defined by 4 times the specified deviation angle.
Coupling Prisms	Rutile (TiO₂) or GGG	Variable^a	No	No	High index of refraction substrate used to couple light into films. Rutile used for n_film > 1.8 GGG used for n_film < 1.8

Depends on Angle of Incidence and Index of Refraction

Dispersive Prisms

Prism	Material	Deviation	Invert	Reverse or Rotate	Applications
Equilateral Prisms	F2, N-F2, N-SF11, Calcium Fluoride, or Zinc Selenide	Variable^a	No	No	Dispersion prisms are a substitute for diffraction gratings. Use to separate white light into visible spectrum.
Dispersion Compensating Prism Pairs	Fused Silica, Calcium Fluoride, SF10, or N-SF14	Variable Vertical Offset	No	No	Compensate for pulse broadening effects in ultrafast laser systems. Can be used as an optical filter, for wavelength tuning, or dispersion compensation.
Pellin Broca Prisms	N-BK7, UV Fused Silica, or Calcium Fluoride	90°	90°	No	Ideal for wavelength separation of a beam of light, output at 90°. Used to separate harmonics of a laser or compensate for group velocity dispersion.

Prism

Material

Deviation

Invert

Reverse or Rotate

Illustration

Applications

Equilateral Prisms

F2, N-F2,
N-SF11,
Calcium Fluoride,
or Zinc Selenide

Variable^a

Dispersion prisms are a substitute for diffraction gratings.

Use to separate white light into visible spectrum.

Dispersion Compensating Prism Pairs

Fused Silica, Calcium Fluoride, SF10, or N-SF14

Variable Vertical Offset

Compensate for pulse broadening effects in ultrafast laser systems.

Can be used as an optical filter, for wavelength tuning, or dispersion compensation.

Pellin Broca Prisms

N-BK7,
UV Fused Silica,
or Calcium Fluoride

90°

Ideal for wavelength separation of a beam of light, output at 90°.

Used to separate harmonics of a laser or compensate for group velocity dispersion.

Depends on Angle of Incidence and Index of Refraction

Beam Manipulating Prisms

Prism	Material	Deviation	Invert	Reverse or Rotate	Illustration	Applications
Anamorphic Prism Pairs	N-KZFS8 or N-SF11	Variable Vertical Offset	No	No		Variable magnification along one axis. Collimating elliptical beams (e.g., laser diodes) Converts an elliptical beam into a circular beam by magnifying or contracting the input beam in one axis.
Axicons (UVFS, ZnSe)	UV Fused Silica or Zinc Selenide	Variable^a	No	No		Creates a conical, non-diverging beam with a Bessel intensity profile from a collimated source.

Prism

Material

Deviation

Invert

Reverse or Rotate

Illustration

Applications

Anamorphic Prism Pairs

N-KZFS8 or
N-SF11

Variable Vertical Offset

Variable magnification along one axis.

Collimating elliptical beams (e.g., laser diodes)

Converts an elliptical beam into a circular beam by magnifying or contracting the input beam in one axis.

Axicons (UVFS, ZnSe)

UV Fused Silica
or Zinc Selenide

Variable^a

Creates a conical, non-diverging beam with a Bessel intensity profile from a collimated source.

Depends on Prism Physical Angle

Polarization Altering Prisms

Prism	Material	Deviation	Invert	Reverse or Rotate	Applications
Glan-Taylor, Glan-Laser, and α-BBO Glan-Laser Polarizers	Glan-Taylor: Calcite Glan-Laser: α-BBO or Calcite	p-pol. - 0° s-pol. - 112°^a	No	No	Double prism configuration and birefringent calcite produce extremely pure linearly polarized light. Total Internal Reflection of s-pol. at the gap between the prism while p-pol. is transmitted.
Rutile Polarizers	Rutile (TiO₂)	s-pol. - 0° p-pol. absorbed by housing	No	No	Double prism configuration and birefringent rutile (TiO₂) produce extremely pure linearly polarized light. Total Internal Reflection of p-pol. at the gap between the prisms while s-pol. is transmitted.
Double Glan-Taylor Polarizers	Calcite	p-pol. - 0° s-pol. absorbed by housing	No	No	Triple prism configuration and birefringent calcite produce maximum polarized field over a large half angle. Total Internal Reflection of s-pol. at the gap between the prism while p-pol. is transmitted.
Glan Thompson Polarizers	Calcite	p-pol. - 0° s-pol. absorbed by housing	No	No	Double prism configuration and birefringent calcite produce a polarizer with the widest field of view while maintaining a high extinction ratio. Total Internal Reflection of s-pol. at the gap between the prism while p-pol. is transmitted.
Wollaston Prisms and Wollaston Polarizers	Quartz, Magnesium Fluoride, α-BBO, Calcite, Yttrium Orthovanadate	Symmetric p-pol. and s-pol. deviation angle	No	No	Double prism configuration and birefringent calcite produce the widest deviation angle of beam displacing polarizers. s-pol. and p-pol. deviate symmetrically from the prism. Wollaston prisms are used in spectrometers and polarization analyzers.
Rochon Prisms	Magnesium Fluoride or Yttrium Orthovanadate	Ordinary Ray: 0° Extraordinary Ray: deviation angle	No	No	Double prism configuration and birefringent MgF₂ or YVO₄ produce a small deviation angle with a high extinction ratio. Extraordinary ray deviates from the input beam's optical axis, while ordinary ray does not deviate.
Beam Displacing Prisms	Calcite	2.7 or 4.0 mm Beam Displacement	No	No	Single prism configuration and birefringent calcite separate an input beam into two orthogonally polarized output beams. s-pol. and p-pol. are displaced by 2.7 or 4.0 mm. Beam displacing prisms can be used as polarizing beamsplitters where 90^o separation is not possible.
Fresnel Rhomb Retarders	N-BK7	Linear to circular polarization Vertical Offset	No	No	λ/4 Fresnel Rhomb Retarder turns a linear input into circularly polarized output. Uniform λ/4 retardance over a wider wavelength range compared to birefringent wave plates.
Fresnel Rhomb Retarders	N-BK7	Rotates linearly polarized light 90°	No	No	λ/2 Fresnel Rhomb Retarder rotates linearly polarized light 90°. Uniform λ/2 retardance over a wider wavelength range compared to birefringent wave plates.

S-polarized light is not pure and contains some P-polarized reflections.

Beamsplitter Prisms

Prism	Material	Deviation	Invert	Reverse or Rotate	Illustration	Applications
Beamsplitter Cubes	N-BK7	50:50 splitting ratio, 0° and 90° s- and p- pol. within 10% of each other	No	No		Double prism configuration and dielectric coating provide 50:50 beamsplitting nearly independent of polarization. Non-polarizing beamsplitter over the specified wavelength range.
Polarizing Beamsplitter Cubes	N-BK7, UV Fused Silica, or N-SF1	p-pol. - 0° s-pol. - 90°	No	No		Double prism configuration and dielectric coating transmit p-pol. light and reflect s-pol. light. For highest polarization use the transmitted beam.

Prism

Material

Deviation

Invert

Reverse or Rotate

Illustration

Applications

Beamsplitter Cubes

N-BK7

50:50 splitting ratio, 0° and 90°

s- and p- pol. within 10% of each other

Double prism configuration and dielectric coating provide 50:50 beamsplitting nearly independent of polarization.

Non-polarizing beamsplitter over the specified wavelength range.

Polarizing Beamsplitter Cubes

N-BK7, UV Fused Silica, or N-SF1

p-pol. - 0°

s-pol. - 90°

Double prism configuration and dielectric coating transmit p-pol. light and reflect s-pol. light.

For highest polarization use the transmitted beam.

Posted Comments:

Marina Raevskaia (posted 2022-05-04 13:20:13.613)

Dear Thorlabs, I am Marina, a PhD student in Ecole Centrale de Lyon. I got interested in purchasing the Rutile (TiO₂) prism (ADT-6). Could you please provide me a quote for that? Thank you in advance! Best wishes, Marina

cdolbashian (posted 2025-01-31 04:16:51.0)

Thank you for reaching out to us with this inquiry. To request a quote, simply contact your local sales team. In this case, sales.fr@thorlabs.com would be the direct email to reach your local sales team.

j.p.epping (posted 2012-04-23 13:50:58.0)

What is the direction of the optical axis with respect to the edges of the prism?
