2" Rails for Compact Quick-Connect Stages


  • Compact Rails Designed for Extended Linear Positioning
  • 150 mm, 250 mm, and 500 mm Stock Lengths
  • Custom Lengths up to 750 mm

XRN25DR2

XRN25DR

XRN25DR3

1/4" (M6) Counterbored Holes and Slots for Breadboard Mounting

2.00"

0.39"

0.49"

XRN25DR

XRN25DR2 and XRN25DR3

2.00"0.39"0.49"0.20"
Related Items


Please Wait

Click to Enlarge

XRNR1 Rotation Stage Mounted on XRN25DR2 Rail for Coarse Linear Positioning

Click to Enlarge

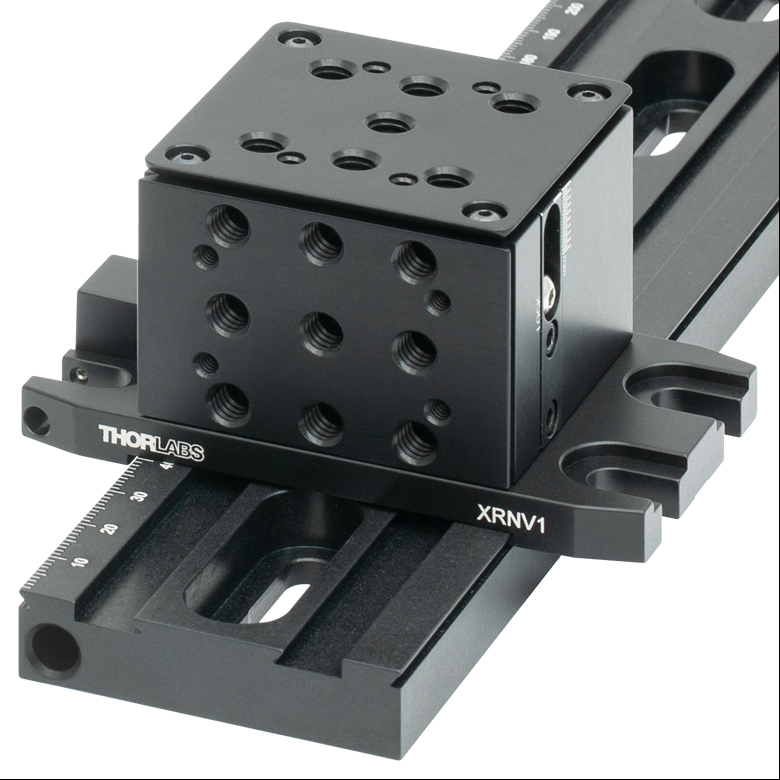

XRNV1 Vertical Translation Stage Mounted on XRN25DR Rail for Coarse Linear Positioning

Click to Enlarge

When mounted on a rail, a stage's translation axis is perpendicular to the adjustment axis of the rail.

Features

  • Outer Dovetail Compatible with 2" XRN Quick Connect Stages
  • Allows for Coarse Adjustment of Mounted Components
  • 150 mm, 250 mm, and 500 mm Lengths Available
  • Counterbored 1/4" (M6) Mounting Slots Compatible with Imperial and Metric Breadboards
  • Additional Dovetail Compatible with 34 mm Rail Accessories

These 2" rails provide a convenient way to mount our XRN series stages and accessories on a breadboard or optical table. All rails feature an outer 2" male dovetail for mounting components with matching female dovetails as well as an inner 34 mm male dovetail for mounting other clamps and platforms.

A mounted component can be translated across the entire length of the rail. The XRN25DR2, XRN25DR, and XRN25DR3 come in lengths of 150 mm, 250 mm, and 500 mm, respectively. Rails with custom lengths up to 750 mm can be custom ordered by contacting Tech Support. For XRN25 stages, travel along the rail would be in the direction orthogonal to the stage's translation axis. The graduated scale engraved along one edge of each rail makes it easy to repeat adjustments between multiple locations on the rail; XRN25-RC3 rail carriers can be used to mark a specific location on the rail before moving the stage.

The rails feature 1" long, 1/4" (M6) counterbored mounting slots and a central 1/4" (M6) counterbored mounting hole that allow the rail to be used with both imperial and metric breadboard hole patterns. Standard cap screws can be used with these rails without interrupting the translation of mounted components.

For our complete selection of 2" dovetail components, see the Quick-Connect Stages tab.


Posted Comments:
No Comments Posted

Build Multi-Axis Configurations

Vertical Rotation Translation Stage
Click for Details

Z-axis assembly kits allow stages to be mounted in vertical orientations.

Quick-Connect Dovetails

Quick Connect Translation Stages
Click to Enlarge
The female dovetails on the bottom of one stage mate with the male dovetails on another.

XR & XRN Dovetail Stages and Accessories

Our XR series manual stages feature quick-connect dovetails that allow for the construction of multi-axis systems without the need for additional hardware. The common dovetail feature with a single locking clamp makes it quick and simple to swap parts in and out while preserving excellent orthogonality.

Our selection of products with a quick-connect dovetail includes:

  • Linear Translation Stages:
    • Stackable 1-Axis Stages
    • Pre-Assembled 2- and 3-Axis Configurations
  • Rotational Stages:
    • 360° Flat Rotation
    • Tip/Tilt Goniometers
  • Adapters:
    • Z-Axis Assembly Kits
    • Parallel and Perpendicular Mounting between 2" and 3" Dovetails
  • Rail Accessories:
    • Stationary Mounting Platforms
    • Rail Component Positioners
  • Base Plates and Rails

Most items are available in compact (2" dovetail) and full-size (3" dovetail) varieties. Adapters are available to interface between the two sizes. See the tables below for all available options.

Linear Translation Stages
Click Photo to Enlarge XRN Stages XR Stages
Items Compact 25 mm Stages Compact 9 mm Vertical Stage Full-Size 25 mm Stages Full-Size 50 mm Stages
Motion X, XY, XZ, YZ, XYZ Z (Vertical) X, XY, XZ, YZ, XYZ X, XY, XZ, YZ, XYZ
Quick-Connect Dovetail 2" Dovetail 3" Dovetail
Additional Features info info info info



Rotation and Goniometric Stages
Click Photo to Enlarge
Items Compact Rotation Stage Compact Goniometric Stages Full-Size Rotation Stage
Motion 360° Rotation ±8° Tip/Tilt About Fixed Point Above Stage 360° Rotation
Quick-Connect Dovetail 2" Dovetail 3" Dovetail
Additional Features info info info



Dovetail Accessories
Mounting Platforms XRN Platforms XR Platforms
2" Mounting Platforms 3" Mounting Platforms
Rail Positioners Rail Positioner
2" Rail Positioners 3" Rail Positioners


Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
XRN25DR2 Support Documentation
XRN25DR22" Dovetail Rail, 150 mm Long
$77.60
Today
XRN25DR Support Documentation
XRN25DR2" Dovetail Rail, 250 mm Long
$86.47
7-10 Days
XRN25DR3 Support Documentation
XRN25DR32" Dovetail Rail, 500 mm Long
$133.02
7-10 Days
