Circular Precision Pinholes, Tungsten Foils


  • Precision Pinholes in Tungsten Foils
  • Mounted in Ø1/2" or Ø1" Aluminum Disks
  • Pinhole Sizes from Ø5 μm to Ø2 mm or Undrilled Blank Foils
  • High Melting Point Useful for High-Power Applications

P5W

Ø5 µm Pinhole

Ø1" Housing

P5HW

Ø5 µm Pinhole

Ø1/2" Housing

P400W

Ø400 µm Pinhole

Ø1" Housing

PBHW

Undrilled Blank Foil

Ø1/2" Housing

Related Items


Please Wait

Features

  • Pinhole Sizes from Ø5 µm to Ø2 mm
  • Undrilled Blank Foils Available for In-Situ Pinhole Drilling
  • Uncoated Tungsten Foils (55% Reflectance at 800 nm)
  • Centration to Outer Edge of Housing: ±75 µm
  • Mounted in Ø1/2" or Ø1" Black-Anodized-Aluminum Housings

Single, mounted, precision pinholes offer small optical apertures for applications such as alignment, beam conditioning, and imaging. The pinholes offered here use tungsten foils, are available in sizes from Ø5 µm to Ø2 mm, and are mounted in Ø1/2" or Ø1" black-anodized-aluminum housings. We also offer pinholes with a variety of other foil materials; see the table to the right for options.

For many applications, such as holography, spatial intensity variations in the laser beam are unacceptable. Using precision pinholes in conjunction with positioning and focusing equipment such as our KT311(/M) Spatial Filter System creates a "noise" filter, effectively stripping variations in intensity out of a Gaussian beam. Please see the Tutorial tab for more information on spatial filters.

Undrilled Blank Foils
For pulsed laser sources, Thorlabs offers blank foils enabling pinholes to be drilled in-situ with the laser itself, cleaning up the beam's spatial profile without the need for precise alignment. Results are highly dependent on experimental conditions such as peak power density, pulse duration, repetition rate, spot size, etc. Thorlabs recommends a minimum peak power density of at least 50 GW/mm2 for drilling pinholes.

Precision Pinhole Options
Thorlabs' precision pinholes are available with an assortment of fabrication materials and coatings. The choice of a particular size and material should depend on the application. Low-power applications may benefit more from the absorbance of our blackened stainless steel foils, which are offered in anodized-aluminum housings, or our stainless steel foils with a black PVD coating, which are offered in vacuum-compatible stainless steel housings. High-power applications may need the high damage threshold and reflectance of gold-plated copper foils, the high melting point and lower reflectance of our tungsten foils, or the high melting point of our molybdenum foils paired with the low reflectance (4% @ 800 nm) of their black-coated front side. Please see the Foil Comparison and Graph tabs for more information.

In addition to single pinholes, Thorlabs also offers pinhole wheels that contain 16 radially-spaced pinholes that are lithographically etched onto a chrome-plated fused silica substrate. These wheels allow the user to test multiple pinhole sizes within a setup.

If you do not see what you need among our stock pinhole offerings, it is possible to special order pinholes that are fabricated from different substrate materials, have different pinhole sizes, incorporate multiple holes in one foil, or provide different pinhole configurations. Customized pinhole housings are also available. Please contact Tech Support to discuss your specific needs.

Precision Pinhole and Optical Slit Selection Guide
Material Product
Blackened Stainless Steel Circular Precision Pinholes
Square Precision Pinholes
Optical Slits
Stainless Steel with
PVD Black Coating
Circular Precision Pinholes
Gold-Plated Copper Foil (Rear)
and PVD Black Coating (Front)
Circular Precision Pinholes
Tungsten Foil Circular Precision Pinholes
Molybdenum Foil (Rear) and
Absorptive Polymer Coating (Front)
Circular Precision Pinholes

Precision Pinholes and Slits
Thorlabs offers precision pinholes with blackened stainless steel, gold-plated copper, tungsten, or molybdenum foils. Our pinholes with stainless steel foils are blackened on both sides for increased absorbance and are available from stock in circles from Ø1 µm to Ø9 mm and squares from 100 µm x 100 µm to 1 mm x 1 mm. Our stainless steel pinholes with a black PVD coating are vacuum compatible and available in 5 μm to 2 mm diameters. Our pinholes with gold-plated copper foils, plated with gold on one side and black PVD coated on the reverse, are available with pinhole diameters from 5 µm to 2 mm. Our pinholes with tungsten foils are uncoated and available with pinhole diameters from 5 µm to 2 mm. Lastly, our pinholes with molybdenum foils have an absorptive polymer coating on the front sides and are available with pinhole diameters from 5 µm to 2 mm. We also offer slits in blackened stainless steel foils from stock with slit widths from 5 to 200 µm.

If you do not see what you need among our stock pinhole and slit offerings, it is also possible to special order pinholes and slits that are made with different foil materials, have different hole sizes and shapes, incorporatoles in one foil, or provide different hole configurations. Please contact Tech Support to discuss your specific needs. For more information on the properties of the bulk materials from which the pinholes are fabricated, see the table below.



Material Properties
Depending on the application, it can be important to consider the material properties of the pinhole or slit. The material used to construct the aperture can have varying levels of melting point, density, and thermal conductivity, as detailed in the table below.

Material Properties
Material 300 Series Stainless Steela Copperb Tungsten Molybdenumc
Melting Point 1390 - 1450 °C 1085 °C 3422 °C 2623 °C
Density 8.03 g/cm3 8.96 g/cm3 19.25 g/cm3 10.28 g/cm3
Brinell Hardness 170 MPa 878 MPa 2570 MPa 1500 MPa
Damage Thresholdd (10 ns Pulse, 1 kHz @ 355 nm) 1.54 MW/mm2 4.82 MW/mm2 9.39 MW/mm2 6.34 MW/mm2
Thermal Expansion Coefficient 16.2 (µm/m)/°C 16.7 (µm/m)/°C 4.5 (µm/m)/°C 5.0 (µm/m)/°C
Specific Heat @ 20 °C 485 J/(K*kg) 385 J/(K*kg) 134 J/(K*kg) 250 J/(K*kg)
Thermal Conductivity 16.2 W/(m*K) 401 W/(m*K) 173 W/(m*K) 138 W/(m*K)
Thermal Diffusivity @ 300 K 3.1 mm2/s 111 mm2/s 80 mm2/s 54.3 mm2/s
  • Stainless steel pinholes and slits are blackened on both sides to increase absorbance. The material properties will be predominantly that of bulk stainless steel.
  • Gold-plated copper pinholes have a thin coating of gold on one side of the bulk copper foil. With a beam incident on this side, reflectance will be dominated by the properties of the thin gold coating (77% @ 800 nm), while thermal properties will be predominantly copper-based.
  • Molybdenum pinholes have an absorptive coating on the front side. The material properties will be predominantly that of bulk molybdenum.
  • Damage threshold data refers to the bulk materials listed here only.



Reflectance
The reflectance of the foil material or coating affects performance in a variety of applications. Below is presented a reflectance graph for all the materials and coatings that are offered with our circular and square precision pinholes, as well as our mounted optical slits. The raw reflectance data can be found here.

It is important to note that the front of the gold-plated copper foil circular precision pinholes have a low-reflectance PVD black coating. The rear of these pinholes leaves the gold-plated copper foil bare. This also occurs on the molybdenum foil circular precision pinholes, which have a low-reflectance absorptive polymer coating on the front and the molybdenum foil is left bare on the back.

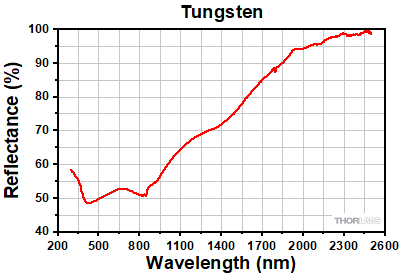

Reflectance Graph

Below is presented a reflectance graph for the tungsten circular precision pinholes. The raw reflectance data can be found here.

Principles of Spatial Filters

For many applications, such as holography, spatial intensity variations in the laser beam are unacceptable. Our KT311 spatial filter system is ideal for producing a clean Gaussian beam.

Spatial Filter System Ray Diagram

Figure 1: Spatial Filter System

The input Gaussian beam has spatially varying intensity "noise". When a beam is focused by an aspheric lens, the input beam is transformed into a central Gaussian spot (on the optical axis) and side fringes, which represent the unwanted "noise" (see Figure 2 below). The radial position of the side fringes is proportional to the spatial frequency of the "noise".

Input Gaussian Beam

Figure 2

By centering a pinhole on a central Gaussian spot, the "clean" portion of the beam can pass while the "noise" fringes are blocked (see Figure 3 below).

Clean Gaussian Beam

Figure 3

The diffraction-limited spot size at the 99% contour is given by:

Diffraction-Limited Spot Size

where λ = wavelength, ƒ=focal length and r = input beam radius at the 1/e2 point.

Choosing the Correct Optics and Pinhole for Your Spatial Filter System

The correct optics and pinhole for your application depend on the input wavelength, source beam diameter, and desired exit beam diameter.

For example, suppose that you are using a 650 nm diode laser source that has a diameter (1/e2) of 1.2 mm and want your beam exiting the spatial filter system to be about 4.4 mm in diameter. Based on these parameters, the C560TME-B mounted aspheric lens would be an appropriate choice for the input side of spatial filter system because it is designed for use at 650 nm, and its clear aperture measures 5.1 mm, which is large enough to accommodate the entire diameter of the laser source.

The equation for diffraction limited spot size at the 99% contour is given above, and for this example, λ = (650 x 10-9 m), f = 13.86 mm for the C560TM-B, and r = 0.6 mm. Substitution yields

Spot Size Example

Diffraction-Limited Spot Size (650 nm source, Ø1.2 mm beam)

The pinhole should be chosen so that it is approximately 30% larger than D. If the pinhole is too small, the beam will be clipped, but if it is too large, more than the TEM00 mode will get through the pinhole. Therefore, for this example, the pinhole should ideally be 19.5 microns. Hence, we would recommend the mounted pinhole P20D, which has a pinhole size of 20 μm. Parameters that can be changed to alter the beam waist diameter, and thus the pinhole size required, include changing the input beam diameter and focal length of focusing lens. Decreasing the input beam diameter will increase the beam waist diameter. Using a longer focal length focusing lens will also increase the beam waist diameter.

Finally, we need to choose the optic on the output side of the spatial filter so that the collimated beam's diameter is the desired 4.4 mm. To determine the correct focal length for the lens, consider the following diagram in Figure 4, which is not drawn to scale. From the triangle on the left-hand side, the angle is determined to be approximately 2.48o. Using this same angle for the triangle on the right-hand side, the focal length for the plano-convex lens should be approximately 50 mm.

Spatial Filter Diagram

Figure 4:
 Beam Expansion Example

For this focal length, we recommend the LA1131-B plano-convex lens [with f = 50 mm at the design wavelength (λ = 633 nm), this is still a good approximation for f at the source wavelength (λ = 650 nm)].

Note: The beam expansion equals the focal length of the output side divided by the focal length of the input side.

For optimal performance, a large-diameter aspheric lens can be used in place of a plano-convex lens if the necessary focal length on the output side is 20 mm (see AL2520-A, AL2520-B, AL2520-C). These lenses are 25 mm in diameter and can be held in place using the supplied SM1RR Retaining Ring.

Beam Circularization Setup
Click to Enlarge

 Figure 1: The beam circularization systems were placed in the area of the experimental setup highlighted by the yellow rectangle.
Spatial Filter Setup
Click to Enlarge

Figure 4: Spatial Filter System
Anamorphic Prism Pair Setup
Click to Enlarge

Figure 3: Anamorphic Prism Pair System
Cylindrical Lens Pair Setup
Click to Enlarge

Figure 2: Cylindrical Lens Pair System

Comparison of Circularization Techniques for Elliptical Beams

Edge-emitting laser diodes emit elliptical beams as a consequence of the rectangular cross sections of their emission apertures. The component of the beam corresponding to the narrower dimension of the aperture has a greater divergence angle than the orthogonal beam component. As one component diverges more rapidly than the other, the beam shape is elliptical rather than circular.

Elliptical beam shapes can be undesirable, as the spot size of the focused beam is larger than if the beam were circular, and as larger spot sizes have lower irradiances (power per area). Techniques for circularizing an elliptical beam include those based on a pair of cylindrical lenses, an anamorphic prism pair, or a spatial filter. This work investigated all three approaches. The characteristics of the circularized beams were evaluated by performing M2 measurements, wavefront measurements, and measuring the transmitted power.

While it was demonstrated that each circularization technique improves the circularity of the elliptical input beam, each technique was shown to provide a different balance of circularization, beam quality, and transmitted power. The results of this work, which are documented in this Lab Fact, indicate that an application's specific requirements will determine which is the best circularization technique to choose.

Experimental Design and Setup

The experimental setup is shown in Figure 1. The elliptically-shaped, collimated beam of a temperature-stabilized 670 nm laser diode was input to each of our circularization systems shown in Figures 2 through 4. Collimation results in a low-divergence beam, but it does not affect the beam shape. Each system was based on one of the following:

The beam circularization systems, shown to the right, were placed, one at a time, in the vacant spot in the setup highlighted by the yellow rectangle. With this arrangement, it was possible to use the same experimental conditions when evaluating each circularization technique, which allowed the performance of each to be directly compared with the others. This experimental constraint required the use of fixturing that was not optimally compact, as well as the use of an unmounted anamorphic prism pair, instead of a more convenient mounted and pre-aligned anamorphic prism pair.

The characteristics of the beams output by the different circularization systems were evaluated by making measurements using a power meter, a wavefront sensor, and an M2 system. In the image of the experimental setup, all of these systems are shown on the right side of the table for illustrative purposes; they were used one at a time. The power meter was used to determine how much the beam circularization system attenuated the intensity of the input laser beam. The wavefront sensor provided a way to measure the aberrations of the output beam. The M2 system measurement describes the resemblance of the output beam to a Gaussian beam. Ideally, the circularization systems would not attenuate or aberrate the laser beam, and they would output a perfectly Gaussian beam.

Edge-emitting laser diodes also emit astigmatic beams, and it can be desirable to force the displaced focal points of the orthogonal beam components to overlap. Of the three circularization techniques investigated in this work, only the cylindrical lens pair can also compensate for astigmatism. The displacement between the focal spots of the orthogonal beam components were measured for each circularization technique. In the case of the cylindrical lens pair, their configuration was tuned to minimize the astigmatism in the laser beam. The astigmatism was reported as a normalized quantity.

Experimental Results

The experimental results are summarized in the following table, in which the green cells identify the best result in each category. Each circularization approach has its benefits. The best circularization technique for an application is determined by the system’s requirements for beam quality, transmitted optical power, and setup constraints.

Spatial filtering significantly improved the circularity and quality of the beam, but the beam had low transmitted power. The cylindrical lens pair provided a well-circularized beam and balanced circularization and beam quality with transmitted power. In addition, the cylindrical lens pair compensated for much of the beam's astigmatism. The circularity of the beam provided by the anamorphic prism pair compared well to that of the cylindrical lens pair. The beam output from the prisms had better M2 values and less wavefront error than the cylindrical lenses, but the transmitted power was lower.

Method Beam Intensity Profile Circularitya M2 Values RMS Wavefront Transmitted Power Normalized
Astigmatismb
Collimated Source Output
(No Circularization Technique)
Collimated
Click to Enlarge

Scale in Microns
0.36 X Axis: 1.28
Y Axis: 1.63
0.17 Not Applicable 0.67
Cylindrical Lens Pair Cylindrical
Click to Enlarge

Scale in Microns
0.84 X Axis: 1.90
Y Axis: 1.93
0.30 91% 0.06
Anamorphic Prism Pair
Anamorphic
Click to Enlarge

Scale in Microns
0.82 X Axis: 1.60
Y Axis: 1.46
0.16 80% 1.25
Spatial Filter Spatial
Click to Enlarge

Scale in Microns
0.93 X Axis: 1.05
Y Axis: 1.10
0.10 34% 0.36
  • Circularity=dminor/dmajor, where dminor and dmajor are minor and major diameters of fitted ellipse (1/e intensity) and Circularity = 1 indicates a perfectly circular beam.
  • Normalized astigmatism is the difference in the waist positions of the two orthogonal components of the beam, divided by the Raleigh length of the beam component with the smaller waist.

Components used in each circularization system were chosen to allow the same experimental setup be used for all experiments. This had the desired effect of allowing the results of all circularization techniques to be directly compared; however, optimizing the setup for a circularization technique could have improved its performance. The mounts used for the collimating lens and the anamorphic prism pair enabled easy manipulation and integration into this experimental system. It is possible that using smaller mounts would improve results by allowing the members of each pair to be more precisely positioned with respect to one another. In addition, using made-to-order cylindrical lenses with customized focal lengths may have improved the results of the cylindrical lens pair circularization system. All results may have been affected by the use of the beam profiler software algorithm to determine the beam radii used in the circularity calculation.

Additional Information

Some information describing selection and configuration procedures for several components used in this experimental work can be accessed by clicking the following hyperlinks:


Posted Comments:
user  (posted 2021-04-25 04:13:34.09)
There is a typo in the features section. It says 2mm to 5mm, instead of 5 μm to 2mm
YLohia  (posted 2021-04-27 04:24:35.0)
Hello, thank you for bringing this to our attention. We will fix this typo.
Apertures Selection Guide
Aperture Type Representative Image
(Click to Enlarge)
Description Aperture Sizes Available from Stocka
Single Precision Pinholesa
Circular Pinholes in Stainless Steel Foils Ø1 µm to Ø9 mm
Circular Pinholes in Stainless Steel Foils,
Vacuum Compatible
Ø5 µm to Ø2 mm
Circular Pinholes in Gold-Plated Copper Foils Ø5 µm to Ø2 mm
Circular Pinholes in Tungsten Foils Ø5 µm to Ø2 mm
Circular Pinholes in Molybdenum Foils Ø5 µm to Ø2 mm
Square Pinholes in Stainless Steel Foils 100 to 1000 µm Square
Slitsa Slits in Stainless Steel Foils 3 mm Slit Lengths: 5 to 200 µm Widths
10 mm Slit Lengths: 20 to 200 µm Widths
Double Slits in Stainless Steel Foils 3 mm Slit Lengths with 40, 50, or 100 µm Widths,
Spacing of 3X or 6X the Slit Width
Annular Apertures Annular Aperture Obstruction Targets on
Quartz Substrates with Chrome Masks
Ø1 mm Apertures with ε Ratiosb from 0.05 to 0.85
Ø2 mm Aperture with ε Ratiob of 0.85
Pinhole Wheels Manual, Mounted, Chrome-Plated Fused Silica Disks
with Lithographically Etched Pinholes
Each Disk has 16 Pinholes from Ø25 µm to Ø2 mm and
Four Annular Apertures (Ø100 µm Hole, 50 µm Obstruction)
Motorized Pinhole Wheels with Chrome-Plated Glass Disks
with Lithographically Etched Pinholes
Each Disk has 16 Pinholes from Ø25 µm to Ø2 mm and
Four Annular Apertures (Ø100 µm Hole, 50 µm Obstruction)
Pinhole Kits Stainless Steel Precision Pinhole Kits Kits of Ten Circular Pinholes in Stainless
Steel Foils Covering Ø5 µm to Ø9 mm
  • Precision pinholes and slits can be special ordered with different aperture sizes, foil materials, shapes, and hole distributions than those offered from stock. Please contact Tech Support with inquiries.
  • Ratio of the Obstruction Diameter to the Pinhole Diameter
Back to Top

Pinholes, Tungsten Foils, Ø1/2" Housings

Mounted Pinhole Dimensions
Click to Enlarge

Dimensions for Mounted Tungsten Pinholes in Ø1/2" (12.7 mm) Housing

Click to Enlarge

Rear of Mounted Pinhole
  • Precision Pinholes from Ø5 µm to Ø2 mm
  • Undrilled Blank Foils Available for In-Situ Pinhole Drilling
  • Tungsten Foils (55% Reflectance @ 800 nm)
  • Black-Anodized Aluminum Housings with 1/2" Outer Diameters
  • Centration to Outer Edge of Housing: ±75 µm

These mounted precision pinholes are available with pinhole diameters from 5 µm to 2 mm. They are fabricated from uncoated tungsten foils. The pinholes are mounted in a Ø1/2", 0.10" (2.5 mm) thick aluminum disk housing that is black anodized. The housings are engraved with the pinhole item # and the size of the pinhole.

The foils can be taken out of their housings by removing the retaining ring using small tweezers; use care as the foil is very thin (50 µm). Gloves should be warn to avoid damaging the foils.

Upon request, these pinholes are available with item-specific test reports at an additional cost. Please contact Tech Support for details.

Item # Pinhole Diameter Diameter Tolerance Circularitya Foil Thickness Foil Material Housing Material
PBHWb N/A N/A N/A 50 µm Tungsten 6061-T6 Aluminum
P5HW 5 µm ±1 µm ≥85%
P10HW 10 µm
P15HW 15 µm ±1.5 µm
P20HW 20 µm ±2 µm
P25HW 25 µm ±2 µm ≥90%
P30HW 30 µm
P40HW 40 µm ±3 µm
P50HW 50 µm
P75HW 75 µm
P100HW 100 µm ±4 µm ≥95%
P150HW 150 µm ±6 µm
P200HW 200 µm
P300HW 300 µm ±8 µm
P400HW 400 µm ±10 µm
P500HW 500 µm
P1000HW 1000 µm
P2000HW 2000 µm
  • Circularity is defined as the ratio between the semi-minor axis (Rmin) and semi-major axis (Rmax) of an ellipse (Rmin / Rmax), and is the inverse of the aspect ratio (click here to see a diagram). A circularity of 100% indicates a perfect circle.
  • Undrilled Blank Foil
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PBHW Support Documentation
PBHWNEW!Ø1/2" Mounted Blank Foil, 4 Replacement Foils Included, Tungsten
$140.00
Today
P5HW Support Documentation
P5HWØ1/2" Mounted Pinhole, 5 ± 1 µm Pinhole Diameter, Tungsten
$132.22
Today
P10HW Support Documentation
P10HWØ1/2" Mounted Pinhole, 10 ± 1 µm Pinhole Diameter, Tungsten
$132.22
Today
P15HW Support Documentation
P15HWØ1/2" Mounted Pinhole, 15 ± 1.5 µm Pinhole Diameter, Tungsten
$132.22
Today
P20HW Support Documentation
P20HWØ1/2" Mounted Pinhole, 20 ± 2 µm Pinhole Diameter, Tungsten
$124.75
Today
P25HW Support Documentation
P25HWØ1/2" Mounted Pinhole, 25 ± 2 µm Pinhole Diameter, Tungsten
$124.75
Today
P30HW Support Documentation
P30HWØ1/2" Mounted Pinhole, 30 ± 2 µm Pinhole Diameter, Tungsten
$124.75
Today
P40HW Support Documentation
P40HWØ1/2" Mounted Pinhole, 40 ± 3 µm Pinhole Diameter, Tungsten
$124.75
Today
P50HW Support Documentation
P50HWØ1/2" Mounted Pinhole, 50 ± 3 µm Pinhole Diameter, Tungsten
$124.75
Today
P75HW Support Documentation
P75HWØ1/2" Mounted Pinhole, 75 ± 3 µm Pinhole Diameter, Tungsten
$124.75
Today
P100HW Support Documentation
P100HWØ1/2" Mounted Pinhole, 100 ± 4 µm Pinhole Diameter, Tungsten
$124.75
Today
P150HW Support Documentation
P150HWØ1/2" Mounted Pinhole, 150 ± 6 µm Pinhole Diameter, Tungsten
$124.75
Today
P200HW Support Documentation
P200HWØ1/2" Mounted Pinhole, 200 ± 6 µm Pinhole Diameter, Tungsten
$124.75
Today
P300HW Support Documentation
P300HWØ1/2" Mounted Pinhole, 300 ± 8 µm Pinhole Diameter, Tungsten
$124.75
Today
P400HW Support Documentation
P400HWØ1/2" Mounted Pinhole, 400 ± 10 µm Pinhole Diameter, Tungsten
$124.75
Today
P500HW Support Documentation
P500HWØ1/2" Mounted Pinhole, 500 ± 10 µm Pinhole Diameter, Tungsten
$124.75
Today
P1000HW Support Documentation
P1000HWØ1/2" Mounted Pinhole, 1000 ± 10 µm Pinhole Diameter, Tungsten
$124.75
Today
P2000HW Support Documentation
P2000HWØ1/2" Mounted Pinhole, 2000 ± 10 µm Pinhole Diameter, Tungsten
$124.75
Today
Back to Top

Pinholes, Tungsten Foils, Ø1" Housings


Click to Enlarge

Mounted Pinhole Dimensions

Click to Enlarge

Rear of Mounted Pinhole
  • Precision Pinholes from Ø5 µm to Ø2 mm
  • Undrilled Blank Foils Available for In-Situ Pinhole Drilling
  • Tungsten Foils (55% Reflectance @ 800 nm)
  • Black-Anodized Aluminum Housings with 1" Outer Diameters
  • Centration to Outer Edge of Housing: ±75 µm

These mounted precision pinholes are available with pinhole diameters from 5 µm to 2 mm. They are fabricated from uncoated tungsten foils. The pinholes are mounted in a Ø1", 0.10" (2.5 mm) thick aluminum disk housing that is black anodized. The housings are engraved with the pinhole item # and the size of the pinhole.

The foils can be taken out of their housings by removing the retaining ring using small tweezers; use care as the foil is very thin (50 µm). Gloves should be warn to avoid damaging the foils.

Upon request, these pinholes are available with item-specific test reports at an additional cost. Please contact Tech Support for details.

Item # Pinhole Diameter Diameter Tolerance Circularitya Foil Thickness Foil Material Housing Material
PBW N/A N/A N/A 50 µm Tungsten 6061-T6 Aluminum
P5W 5 µm ±1 µm ≥85%
P10W 10 µm
P15W 15 µm ±1.5 µm
P20W 20 µm ±2 µm
P25W 25 µm ±2 µm ≥90%
P30W 30 µm
P40W 40 µm ±3 µm
P50W 50 µm
P75W 75 µm
P100W 100 µm ±4 µm ≥95%
P150W 150 µm ±6 µm
P200W 200 µm
P300W 300 µm ±8 µm
P400W 400 µm ±10 µm

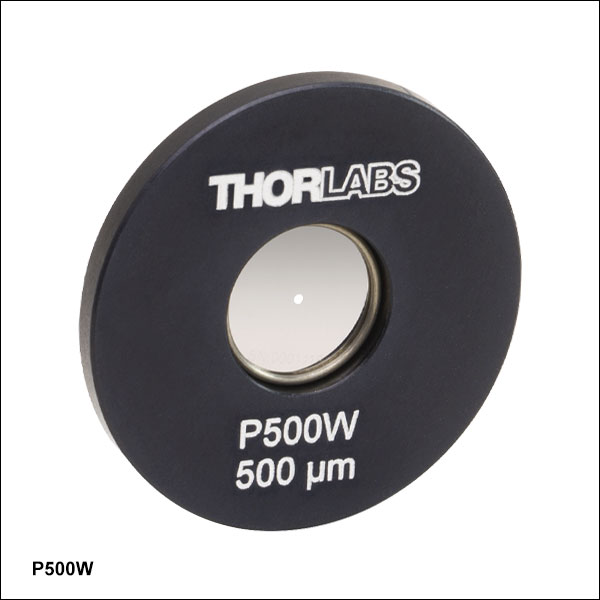

P500W 500 µm
P1000W 1000 µm
P2000W 2000 µm
  • Circularity is defined as the ratio between the semi-minor axis (Rmin) and semi-major axis (Rmax) of an ellipse (Rmin / Rmax), and is the inverse of the aspect ratio (click here to see a diagram). A circularity of 100% indicates a perfect circle.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PBW Support Documentation
PBWNEW!Ø1" Mounted Blank Foil, 4 Replacement Foils Included, Tungsten
$140.00
Today
P5W Support Documentation
P5WØ1" Mounted Pinhole, 5 ± 1 µm Pinhole Diameter, Tungsten
$132.22
Today
P10W Support Documentation
P10WØ1" Mounted Pinhole, 10 ± 1 µm Pinhole Diameter, Tungsten
$132.22
Today
P15W Support Documentation
P15WØ1" Mounted Pinhole, 15 ± 1.5 µm Pinhole Diameter, Tungsten
$132.22
Today
P20W Support Documentation
P20WØ1" Mounted Pinhole, 20 ± 2 µm Pinhole Diameter, Tungsten
$124.75
Today
P25W Support Documentation
P25WØ1" Mounted Pinhole, 25 ± 2 µm Pinhole Diameter, Tungsten
$124.75
Today
P30W Support Documentation
P30WØ1" Mounted Pinhole, 30 ± 2 µm Pinhole Diameter, Tungsten
$124.75
Today
P40W Support Documentation
P40WØ1" Mounted Pinhole, 40 ± 3 µm Pinhole Diameter, Tungsten
$124.75
Today
P50W Support Documentation
P50WØ1" Mounted Pinhole, 50 ± 3 µm Pinhole Diameter, Tungsten
$124.75
Today
P75W Support Documentation
P75WØ1" Mounted Pinhole, 75 ± 3 µm Pinhole Diameter, Tungsten
$124.75
Today
P100W Support Documentation
P100WØ1" Mounted Pinhole, 100 ± 4 µm Pinhole Diameter, Tungsten
$124.75
Today
P150W Support Documentation
P150WØ1" Mounted Pinhole, 150 ± 6 µm Pinhole Diameter, Tungsten
$124.75
Today
P200W Support Documentation
P200WØ1" Mounted Pinhole, 200 ± 6 µm Pinhole Diameter, Tungsten
$124.75
Today
P300W Support Documentation
P300WØ1" Mounted Pinhole, 300 ± 8 µm Pinhole Diameter, Tungsten
$124.75
Today
P400W Support Documentation
P400WØ1" Mounted Pinhole, 400 ± 10 µm Pinhole Diameter, Tungsten
$124.75
Today
P500W Support Documentation
P500WØ1" Mounted Pinhole, 500 ± 10 µm Pinhole Diameter, Tungsten
$124.75
Today
P1000W Support Documentation
P1000WØ1" Mounted Pinhole, 1000 ± 10 µm Pinhole Diameter, Tungsten
$124.75
Today
P2000W Support Documentation
P2000WØ1" Mounted Pinhole, 2000 ± 10 µm Pinhole Diameter, Tungsten
$124.75
Today
