- GRIN Lens Couples and Collimates Light
- AR-Coated Lens Surface
- 1310 nm or 1550 nm Alignment Wavelength
- Pigtailed Multimode Fiber with Optional FC/PC or FC/APC Connector
50-1550M-FC

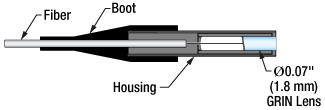

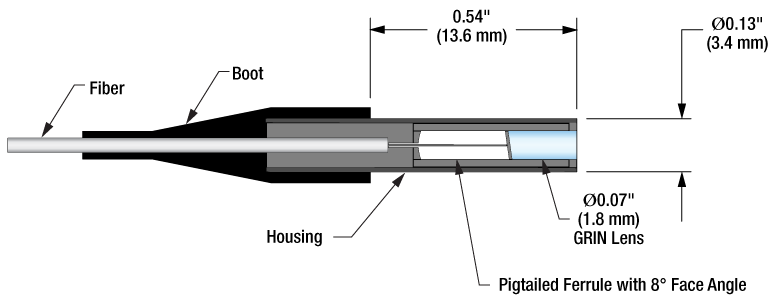

GRIN Lens is Housed
Inside a Ø3.4 mm
Stainless Steel Housing
Please Wait
| Common Specifications | |
|---|---|
| Collimator Pair Performance | |
| Working Distancea | 15 ± 5 mm |
| Pair Insertion Lossb | ≤0.35 dB |
| Individual Performance | |
| Insertion Lossc | ≤0.35 dB |
| Min Return Lossc | ≥30 dB (Typ.) |
| General | |
| Operating Wavelength Range | Alignment Wavelength ± 40 nm |
| Clear Aperture | Ø1.8 mm |
| Optical Power | 300 mW (Max) |
| GRIN Lens Material | Oxide Glass |
| Fiber Type | Corning PI360 Graded Index, 1 m Long |
| Fiber NA | 0.275 ± 0.015 |
| Core Diameter | Ø62.5 ± 3.0 µm |
| Cladding Diameter | Ø125 ± 2.0 µm |
| Fiber Jacket | Ø900 µm Hytrel®d Tubing (Orange) |
| Tensile Load | 5 N (Max) |
| Operating Temperature | 0 to 70 °C |
| Storage Temperature | -40 to 85 °C |
Features
- Couple and Collimate Light Into or Out of a Fiber
- Pigtailed to Graded-Index Multimode Fiber with an Optional FC/PC or FC/APC Connector
- Lens Surface is AR Coated for the Specified Wavelength Range
- Ø1.8 mm Clear Aperture
- 300 mW Maximum Power
Thorlabs offers pigtailed fiber collimators that use Graded-Index (GRIN) lenses. These GRIN collimators feature a Ø1.8 mm clear aperture and are coupled to graded-index multimode (MM) fiber. They are designed to be used in pairs, with a free-space beam between the lenses. They can also be used individually, as a single collimator or coupler. We offer models aligned at 1310 nm or 1550 nm and with a choice of an unterminated fiber end, a 2.0 mm narrow key FC/PC connector, or a 2.0 mm narrow key FC/APC connector. Contact Tech Support for custom connector options.
We also offer single mode pigtailed GRIN collimators and loose GRIN lenses, which can be paired with single mode pigtailed ferrules that have terminated or unterminated fiber ends to create a custom collimator similar to those sold on this page. For Thorlabs' complete selection of fiber collimators, please see the Collimator Guide tab.
Free-Space Coupling
When using GRIN collimators to couple a free-space beam into a fiber, precise alignment is needed for good coupling efficiency. We recommend using a kinematic tip and tilt mount and lens tube adapter, paired with an XYZ adjustable platform (such as our POLARIS-K05T6, SM05PT, sold below, and MT3), or our 6-axis kinematic mount paired with a lens tube adapter (K6XS and SM1PT, sold below).
Collimator Pair with Free-Space Beam
Our GRIN pigtailed collimators are designed to be used in pairs, with a free-space beam between the lenses. This free-space beam can be manipulated with many types of optics prior to entering the second lens. The collimators should be placed with a spacing of 15 ± 5 mm (working distance) between the front lens surfaces for maximum coupling efficiency. When used within the specified working distance and mounted on tip-tilt mounts, typical insertion losses of ≤0.35 dB are possible.
Click to Enlarge

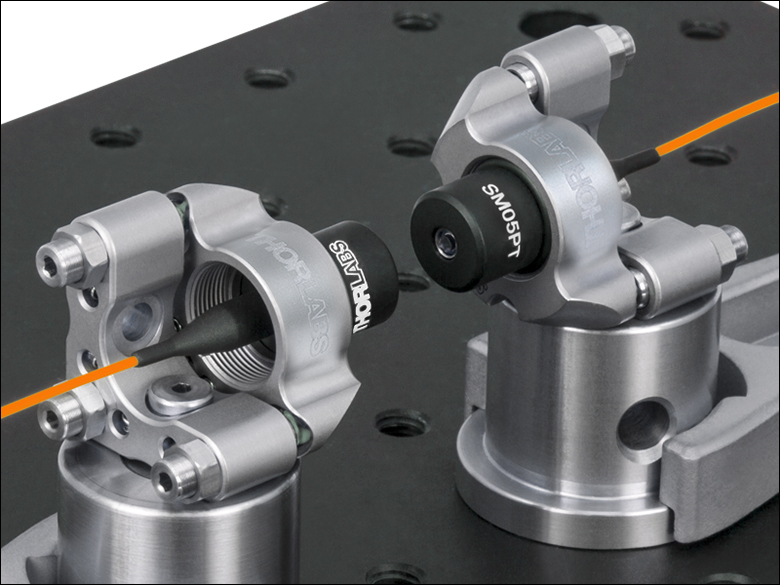

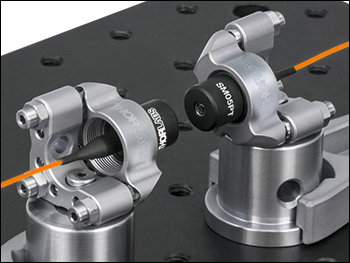

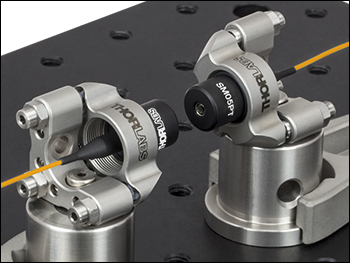

GRIN Collimator Pair with Free-Space Beam, Mounted with
POLARIS-K05T6 Mirror Mounts and SM05PT Adapters (Sold Below)

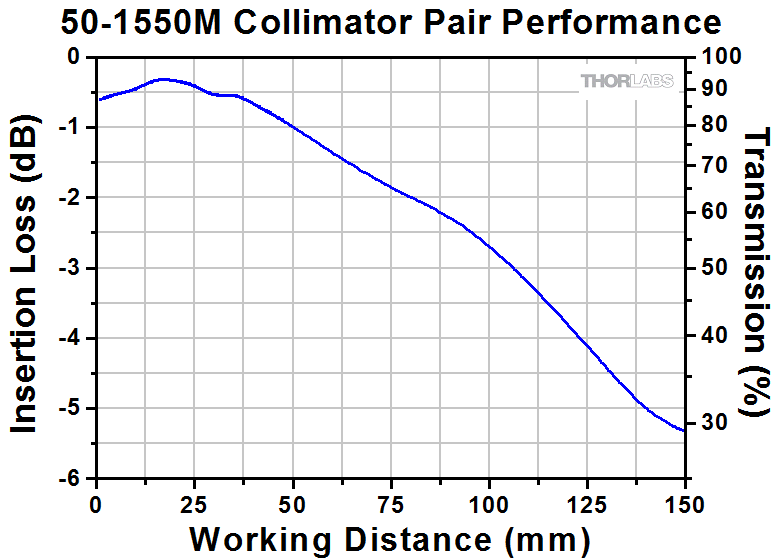

Click on the Pair Performance icon in the tables below to view experimentally measured coupling efficiency data for each collimator pair as a function of the spacing between the collimators. Although the optimal working distance will slightly deviate for any two individual collimators due to small manufacturing variations, these slight deviations do not significantly affect pair or individual performance. This is evidenced by the data given below, which was taken with randomly selected collimators. To achieve the best possible coupling, we recommend mounting both collimators in kinematic adjustable mounts, such as the POLARIS-K05T6 with SM05PT, sold below, for final alignment. All specifications, including beam diameter, beam distance, and pair insertion loss, are guaranteed at a working distance of 15 ± 5 mm for any given collimator pair.
Thorlabs also offers a modular fiber/free-space setup, the FiberBench, which can accommodate pre-aligned FiberPort collimators and allows modular optical components to be placed in the beam path.
Loose GRIN Lenses
Thorlabs also offers single wavelength or broadband loose GRIN lenses for use with either a single wavelength or broadband light source. These GRIN lenses can be paired with our single mode pigtailed ferrules, which are offered with or without connectors. In contrast to the products sold on this page, these options allow the combination of GRIN lens and pigtailed ferrule to be chosen individually, satisfying a wide range of experimental requirements.
Insights into Best Lab Practices
Scroll down to read about a practice we follow when setting up lab equipment.
- Align Fiber Collimators to Create Free Space Between Fibers
Click here for more insights into lab practices and equipment.
Align Fiber Collimators to Create Free Space Between Fibers
Two collimators, inserted into a fiber optic setup, provide free-space access to the beam. The first collimator accepts the highly diverging light from the first fiber and outputs a free-space beam, which propagates with an approximately constant diameter to the second collimator. The second collimator accepts the free-space beam and couples that light into the second fiber. Some collimation packages, including the pair used in this demonstration, are designed for use with optical fibers and mate directly to fiber connectors.
Ideally, 100% of the light emitted by the first fiber would be coupled into the second fiber, but some light will always be lost due to reflections, scattering, absorption, and misalignment. Misalignment, typically the largest source of loss, can be minimized using the alignment and stabilization techniques described in Video 179A.
In this demonstration, the first fiber is single mode. The optical power incident on the second collimator, as well as the power output by the second fiber, are measured. When the second fiber is multimode with a 50 µm diameter core, alignment resulted in 91% of the power incident on the second collimator being measured at the fiber output. This value was 86% when the second fiber is single mode. Some differences in collimator designs, and their effects on the characteristics of the collimated beams, are also discussed.
If you would like more information about tips, tricks, and other methods we often use in the lab, we recommend our other Video Insights. In addition, our webinars provide practical and theoretical introductions to our different products.
| Products Featured During Demonstration | ||||
|---|---|---|---|---|
| Fiber-Coupled Laser | Kinematic Mounts | Fiber Adapter Cap (for Power Sensor) |
Single Mode Patch Cable (FC/PC) | Fiber Cable Storage Reels |
| Triplet Fiber Optic Collimators | Power Sensor | Power Meter | Hybrid Single Mode Patch Cable | 2" Posts |
| Adapter (Mount-to-Collimator) |
SM1 Thread Adapter (for Power Sensor) |
Fiber Connector Cleaner | Step-Index Multimode Patch Cable | Ø1/2" Post Holders |
Date of Last Edit: April 21, 2021
| Posted Comments: | |
yong jiang
(posted 2019-10-14 14:50:32.483) 我们需要该产品的Zemax模型，麻烦提供一下，谢谢 YLohia
(posted 2019-10-14 12:05:49.0) Hello, thank you for contacting Thorlabs. One of our Applications Engineers from our Thorlabs China group will reach out to you directly. dipak1989
(posted 2019-01-08 06:18:55.12) Do you have GRIN fiber optic collimator for multimode fiber at 785 nm? YLohia
(posted 2019-04-01 03:44:53.0) Hello, thank you for contacting Thorlabs. Special item inquiries can be sent by clicking the red "Request Quote" above. I reached out to you at the time of your feedback post to gather more details about your application/requirements. christopher.betters
(posted 2016-04-20 19:33:19.027) Are these available with other GRIN lens options? besembeson
(posted 2016-04-21 01:46:21.0) Response from Bweh at Thorlabs USA: Yes we could offer special versions depending on what your requirements are. I will contact you. xbarci00
(posted 2015-07-01 14:46:18.09) Dear Sir/Madam,
I would like to ask you,what is the distance between MM fiber and the GRIN lens? What type of the GRIN is exactly used in this collimator (50-1550M-APC).
Thank you very much.
Kind Regards
Peter Barcik besembeson
(posted 2015-09-22 08:41:37.0) Response from Bweh at Thorlabs USA: The fiber is bonded to the GRIN such as those on this page: http://www.thorlabs.de/newgrouppage9.cfm?objectgroup_id=1209&pn=GRIN2315A. I will follow-up with you by email regarding your application. xgsun
(posted 2015-01-16 11:42:56.54) do you have GRIN Fiber Optic Collimators / Couplers, Multimode Fiber at 1064nm? besembeson
(posted 2015-01-22 05:27:59.0) Response from Bweh at Thorlabs USA: We have the single mode collimators for 1064nm (50-1064), and we can provide the multimode version as a custom item for now. I will follow-up with you by email for quotation. |
