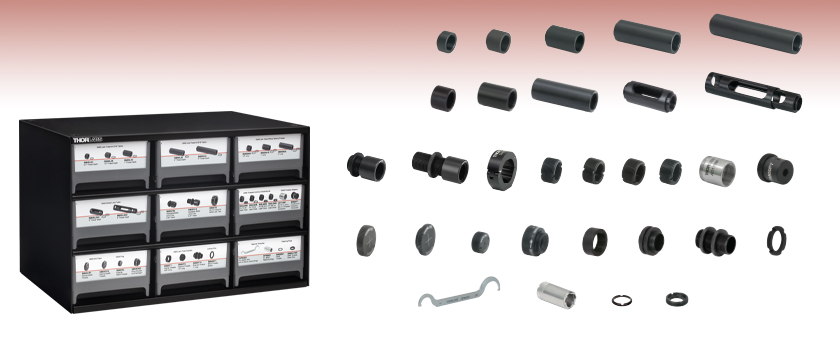

Mechanical Essentials Kit: SM05 Lens Tube Kit


  • SM05 Lens Tube Kit
  • Heavy-Duty, Welded Steel Cabinet Frame
  • Cabinet Frame Can Be Wall Mounted or Stacked
  • Equipped with Easy-to-Read Labels

ESK24

9 Drawers, 103 Pieces

x5

x5

x5

x5

x5

Kit Components

See Contents Tab for Details on All Items Included in the Kit

x4

x4

x4

x3

x3

x2

x2

x5

x2

x2

x2

x2

x2

x2

x3

x3x2x2x3x3x3x5x1

x1

x10x3
Related Items


Please Wait
Back Side of ESK Kit
Click to Enlarge

Slots on the rear of each cabinet for wall mounting.

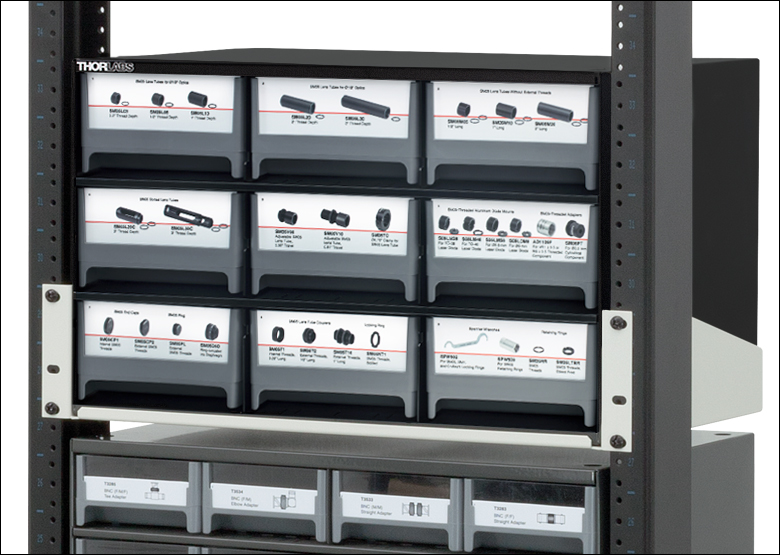

ESK Kit in Rack System
Click to Enlarge
ESK24 SM05 Lens Tube Kit is shown on an RK4102 rack shelf, which is installed in an RK3884 19" rack.

Features

  • Lens Tubes and Accessories for Ø1/2" Optics
  • 9-Drawer Kit with 103 Pieces
  • Frame Dimensions (L x W x D): 11.08" x 17.13" x 11.11" (281.3 mm x 435.0 mm x 282.3 mm)
  • Drawer Dimensions (L x W x D): 3.15" x 5.50" x 10.89" (79.9 mm x 139.7 mm x 276.5 mm)
  • Easy-to-Read Labels List Contents for Each Drawer
  • Savings Over Individual Component Products

This kit contains our most popular SM05 (0.535"-40) threaded optomechanical components as well as many common accessories used with our SM05-threaded lens tubes. The contents of this kit are compatible with our vast selection of 16 mm optical cage system components. Additionally, our ESK17 (ESK17/M) Ø1/2" Optics Mounts Kit includes components compatible with SM05 threads. We also offer the ESK25 SM1 Lens Tube Kit; the ESK26 SM2 Lens Tube Kit; the ESK07A (ESK07A/M) Cage Assemblies and Lens Tubes Kit, which includes a variety of SM1-threaded and 30 mm cage compatible components; and the ESK07B (ESK07B/M) Cage Assemblies and Lens Tubes Extension Kit, which includes cage system components and SM1- and SM2-threaded components.

Mounting Options
The kits can be stored on a tabletop for easy, convenient access or placed on an RK4101 or RK4102 rack shelf, both of which can be installed in our RK3884 standard 19" rack. The cabinet used in this kit has slots in the rear of the case (see the image to the right) for wall mounting and features indentations on the top and four feet on the bottom for stable stacking.
Warning: the ESK24 weighs approximately 17 lbs (7.7 kg); ensure that the wall and wall mounts can support this weight before mounting.

Kit Components

The ESK24 includes the listed components and an ST9 9-Drawer Cabinet.

SM05 Lens Tubes
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM05L03
SM05 Lens Tube, 0.30" Thread Depth, One Retaining Ring Included
1" Stainless Steel Post
5
SM05L05
SM05 Lens Tube, 0.50" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
5
SM05L10
SM05 Lens Tube, 1" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
5
SM05L20
SM05 Lens Tube, 2" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
5
SM05L30
SM05 Lens Tube, 3" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
5
SM05M05
SM05 Lens Tube Without External Threads, 1/2" Long, Two Retaining Rings Included

3" Stainless Steel Post
4
SM05M10
SM05 Lens Tube Without External Threads, 1" Long, Two Retaining Rings Included

4" Stainless Steel Post
4
SM05M20
SM05 Lens Tube Without External Threads, 2" Long, Two Retaining Rings Included
6" Stainless Steel Post
4
SM05L20C
SM05 Slotted Lens Tube, 2" Thread Depth, 2 Retaining Rings Included
8" Stainless Steel Post
3
SM05L30C
SM05 Slotted Lens Tube, 3" Thread Depth, 2 Retaining Rings Included
8" Stainless Steel Post
3

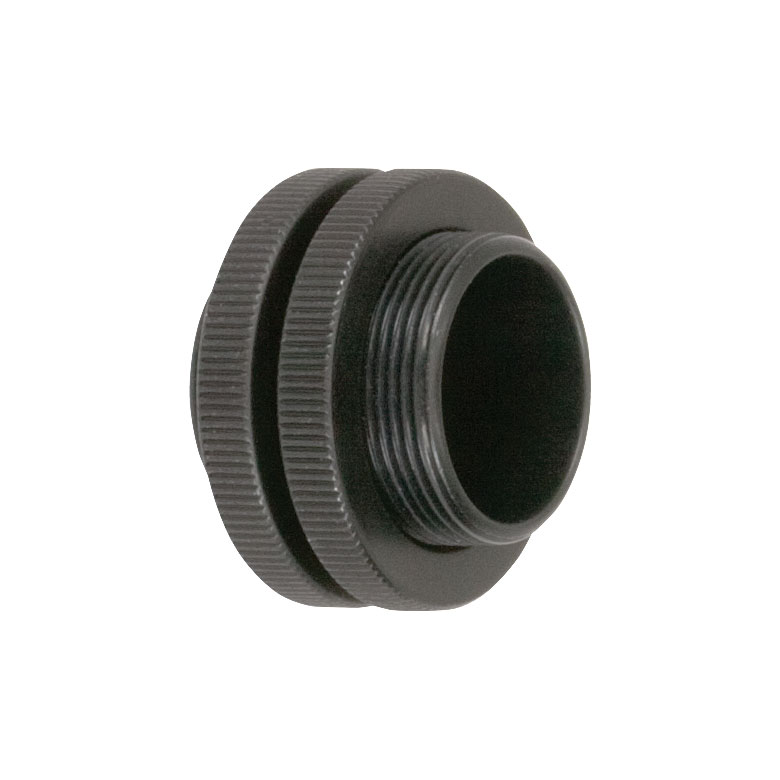

SM05V05
Ø1/2" Adjustable Lens Tube, 0.3" Travel
1" Stainless Steel Post
2
SM05V10
Ø1/2" Adjustable Lens Tube, 0.8" Travel

1" Stainless Steel Post
2
SM05 Couplers
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM05T1
SM05 (0.535"-40) Coupler, Internal Threads
1" Stainless Steel Post
3
SM05T2
SM05 (0.535"-40) Coupler, External Threads, 0.5" Long
1" Stainless Steel Post
3
SM05T10
SM05 (0.535"-40) Coupler, External Threads, 1” Long
1" Stainless Steel Post
3
SM05 Adapters and Accessories
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM05TC
Ø0.70" (Ø17.8 mm) Clamp for SM05 Lens Tubes
1" Stainless Steel Post
5
S05LM38
SM05-Threaded Aluminum Mount for TO-38 Laser Diodes
R2
2
S05LM46
SM05-Threaded Aluminum Mount for TO-46 Laser Diodes
1" Stainless Steel Post
2
S05LM56
SM05-Threaded Aluminum Mount for Ø5.6 mm Laser Diodes
1" Stainless Steel Post
2
S05LDM9
SM05-Threaded Aluminum Mount for Ø9 mm Laser Diodes
1" Stainless Steel Post
2
AD1109F
SM05-Threaded Adapter for M11 x 0.5 or M9 x 0.5 Threaded Components
1" Stainless Steel Post
2

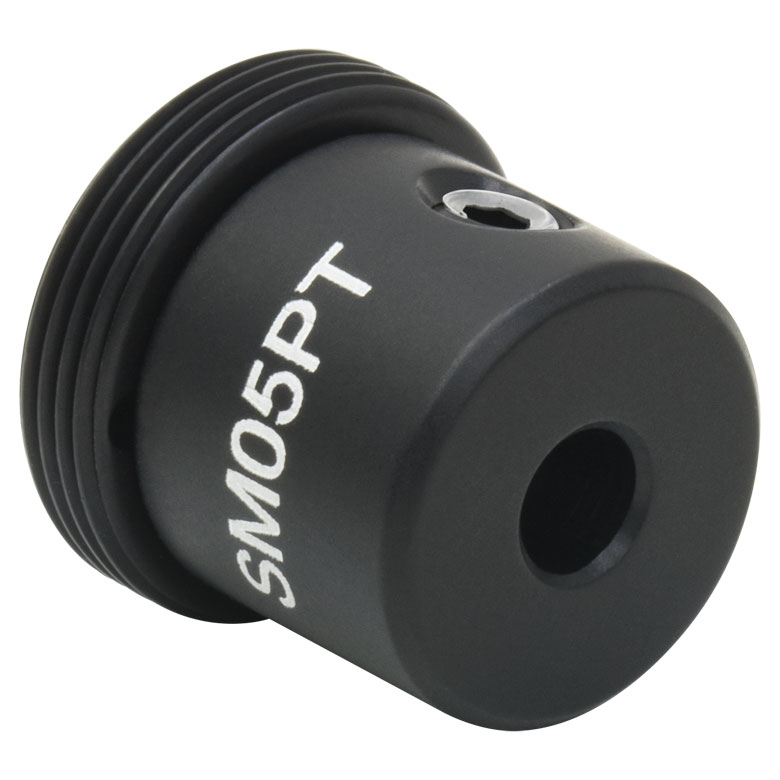

SM05PT
SM05-Threaded Adapter for Ø3.5 mm Cylindrical Components
1" Stainless Steel Post
2
SM05CP1
Internally SM05-Threaded End Cap
1" Stainless Steel Post
3
SM05CP2
Externally SM05-Threaded End Cap
1" Stainless Steel Post
3
SM05PL
Externally SM05-Threaded Plug
1" Stainless Steel Post
2
SM05D5D
SM05 Ring-Actuated Iris Diaphragm (Ø0.7 - Ø5 mm)
1" Stainless Steel Post
2
SM05 Spanner Wrenches and Retaining Rings
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM05NT1
SM05 (0.535"-40) Locking Ring, 0.75" Outer Diameter, Slots for Spanner Wrench
1" Stainless Steel Post
5
SPW502
Spanner Wrench for Slotted SM05, SM1, and C-Mount Locking Rings
1" Stainless Steel Post
1
SPW603
Spanner Wrench for SM05-Threaded Retaining Rings, Length = 1.00"
1" Stainless Steel Post
1
SM05RR
SM05 Retaining Ring for Ø1/2" Lens Tubes and Mounts
1" Stainless Steel Post
10
SM05LTRR
SM05 (0.535"-40) Stress-Free Retaining Ring
1" Stainless Steel Post
3
