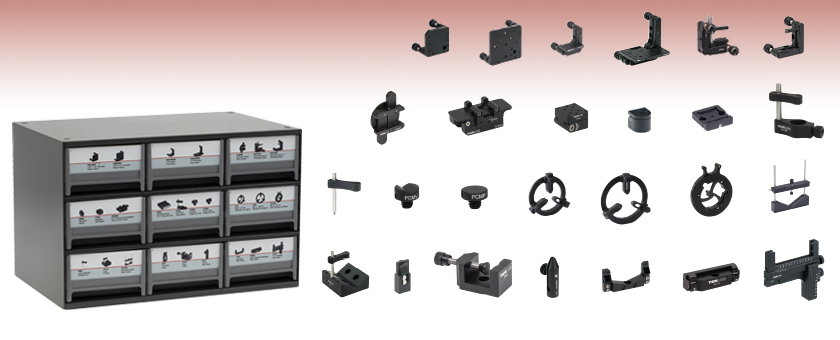

Mechanical Essentials Kit: Specialty Optic Mounts


  • Specialty Optic Mounts Kit
  • Heavy-Duty, Welded Steel Cabinet Frame
  • Cabinet Frame Can Be Wall Mounted or Stacked
  • Equipped with Easy-to-Read Labels

KM100B

x3

KM100PM

x2

KM200PM

x2

KM100C

x2

KM100S

x1

KGM40

x2

RFM90

x2

FP90

x2

FM90

x2

BSH1

x3

PCM

x4

PM4

x2

PCMV

x2

PCMP

x2

LH1

x2

LH2

x2

SCL03

x2

VG100

x2

VC3C

x2

DH1

x2

FP01

x2

PC2

x3

FH2

x2

SFH2

x2

XYF1

x2

ESK23

9 Drawers, 56 Pieces

KM200B

x2

Related Items


Please Wait
Back Side of ESK Kit
Click to Enlarge

Slots on the rear of the case allow for wall mounting.

Features

  • Specialty Optic Mounts Kit
  • Imperial and Metric Options
  • Drawer Dimensions (L x W x H): 10.89" x 5.50" x 3.15" (276.5 mm x 139.7 mm x 79.9 mm)
  • Cabinet Dimensions (L x W x H): 17.13" x 11.11" x 11.08" (435.0 mm x 282.3 mm x 281.3 mm)
  • Easy-to-Read Labels List Contents for Each Drawer
  • Savings Over Individual Component Products

This kit contains our most popular kinematic, fixed, translational, platorm, clamp, and adapter components for various optic sizes. Refer to the Contents tab above for detailed information concerning the specific components included with the imperial and metric versions of the kit. We also offer the ESK17(/M) Ø1/2" Optic Mounts Kit, ESK18(/M) Ø1" Optic Mounts Kit, and ESK19(/M) Ø2" Optic Mounts Kit. Complement these kits with our ESK01(/M) Bases and Post Holders and ESK16(/M) Posts and Accessories Essentials Kits.

Mounting Options
The kit can be stored on a tabletop for easy, convenient access or placed on an RK4101 or RK4102 rack shelf, both of which can be installed in our RK3884 standard 19" rack. The cabinet used in each Essential Series Kit features slots in the rear of the case (see the image to the right) for wall mounting and features indentations on the top and four feet on the bottom for stable stacking.

Please Note: This kit weighs approximately 24 lbs (11 kg); ensure that the wall and wall mounts can support this weight prior to mounting.

Kit Components

The ESK23 includes the listed components and an ST9 9-Drawer Cabinet.

Kinematic Mounts
Item # and Description Photo
(Click to
Enlarge)
Quantity
KM100PM (KM100PM/M)
Kinematic Prism Mount, 1.00" Deep, 6-32 (M4) Taps
2" Stainless Steel Post
2

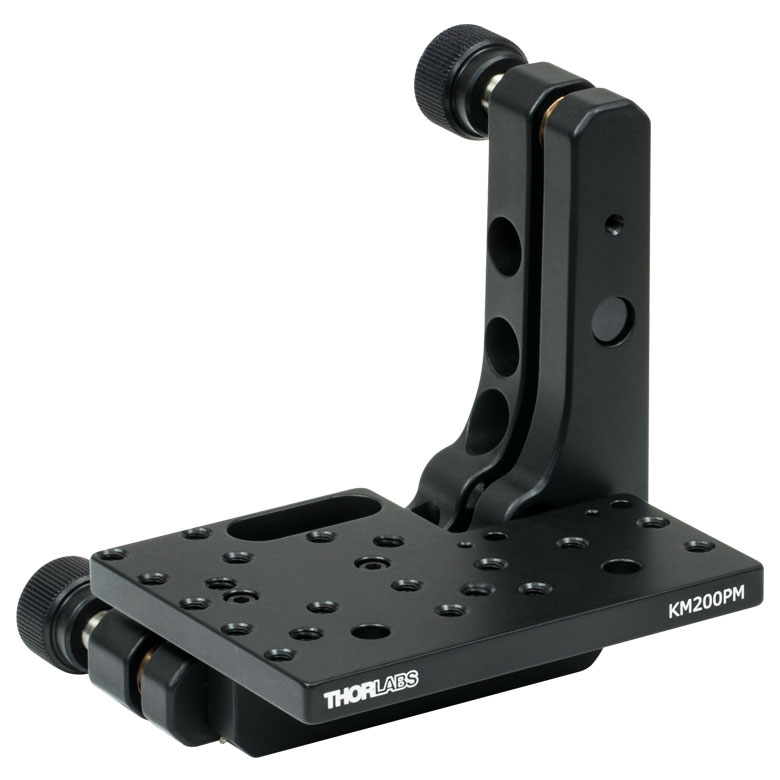

KM200PM (KM200PM/M)
Kinematic Prism Mount, 2.10" Deep, 6-32 (M4) and 8-32 (M4) Taps
2" Stainless Steel Post
2

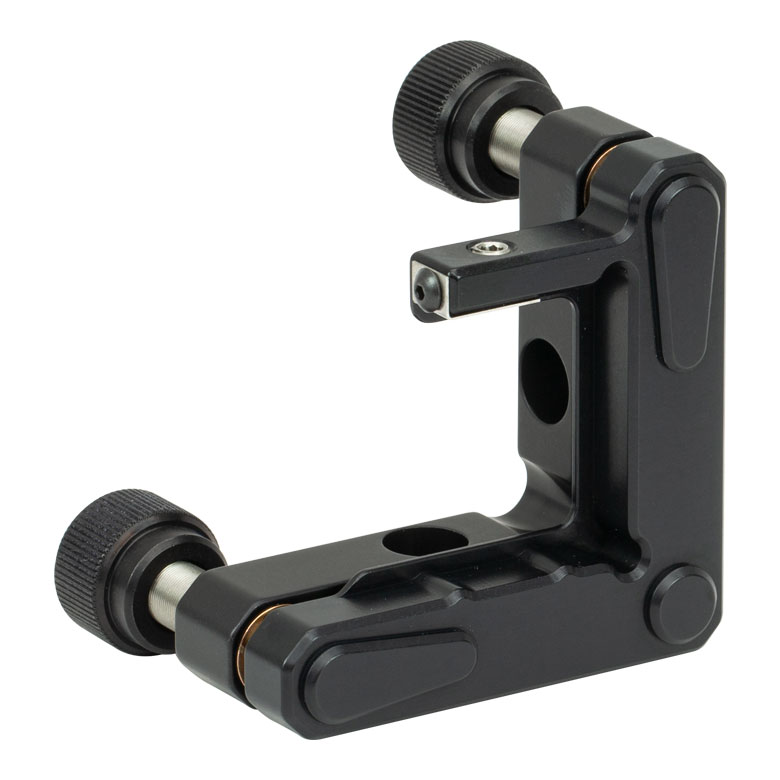

KM100C
Kinematic Mount for up to 1.3" (33 mm) Tall Rectangular Optics, Right Handed
2" Stainless Steel Post
2
KM100S
Kinematic Mount for 1" (25.4 mm) Tall Rectangular Optics, Right Handed
3" Stainless Steel Post
1
Fixed Mounts and Holders
Item # and Description Photo
(Click to
Enlarge)
Quantity
RFM90
90° Flip Mount for Ø1" (Ø25 mm) and Rectangular Filters and Optics
6" Stainless Steel Post
2
LH1 (LH1/M)
Adjustable Lens Mount: Ø0.28" (Ø7.1 mm) to Ø1.80" (Ø45.7 mm), 8-32 (M4) Tap
1" Stainless Steel Post
2
LH2 (LH2/M)
Adjustable Lens Mount: Ø0.77" (Ø19.6 mm) to Ø2.28"
(Ø57.9 mm), 8-32 (M4) Tap
R2
2

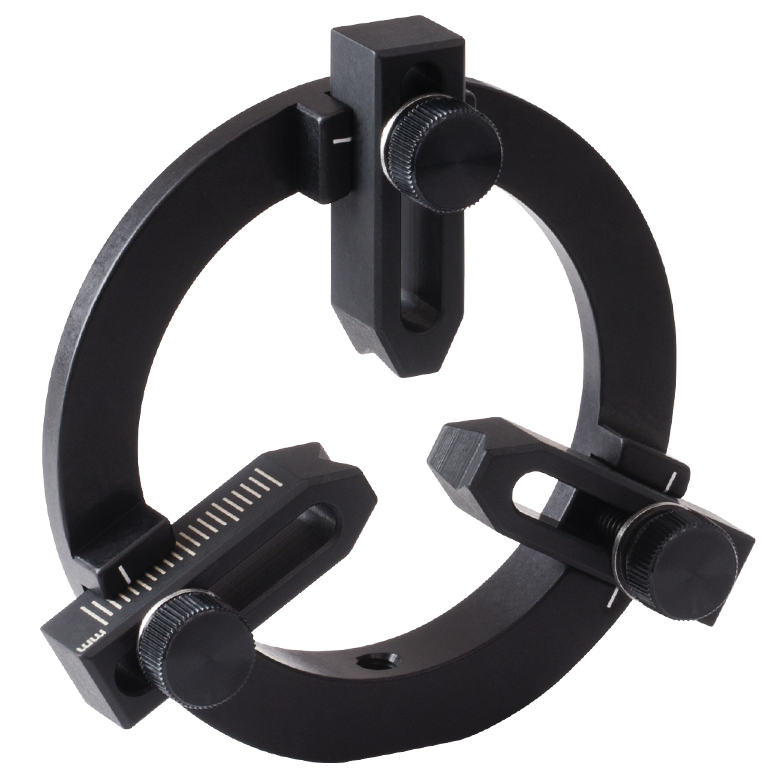

SCL03 (SCL03/M)
Self-Centering Lens Mount, Ø0.15" (Ø3.8 mm) to Ø1.77" (Ø45.0 mm), 8-32 (M4) Tap
1" Stainless Steel Post
2
PC2 (PC2/M)
Compact Flexure Plate Clamp, 1/4"-20 (M6) Tap
1" Stainless Steel Post
3
FP01
Plate Holder, 0.9" Wide, Holds Plates up to 0.58" Thick
1" Stainless Steel Post
2
DH1 (DH1/M)
Compact Dual Filter Holder, 8-32 (M4) Tap
1" Stainless Steel Post
2
FH2
Filter Holder, Stackable
1" Stainless Steel Post
2
SFH2
Quick-Release Rectangular Filter Holder
1" Stainless Steel Post
2
Platform Mounts
Item # and Description Photo
(Click to
Enlarge)
Quantity
KM100B (KM100B/M)
1.92" x 1.92" Kinematic Platform Mount
1" Stainless Steel Post
3
KM200B (KM200B/M)
3.01" x 3.01" Kinematic Platform Mount
2" Stainless Steel Post
2
BSH1 (BSH1/M)
Platform Mount for 1" or 25.0 mm Beamsplitters and Right-Angle Prisms, 8-32 (M4) Tap
1" Stainless Steel Post
3
FP90 (FP90/M)
Adjustable Flip Platform, 8-32 (M4) Taps
1" Stainless Steel Post
2
Clamps and Clamping Arms
Item # and Description Photo
(Click to
Enlarge)
Quantity

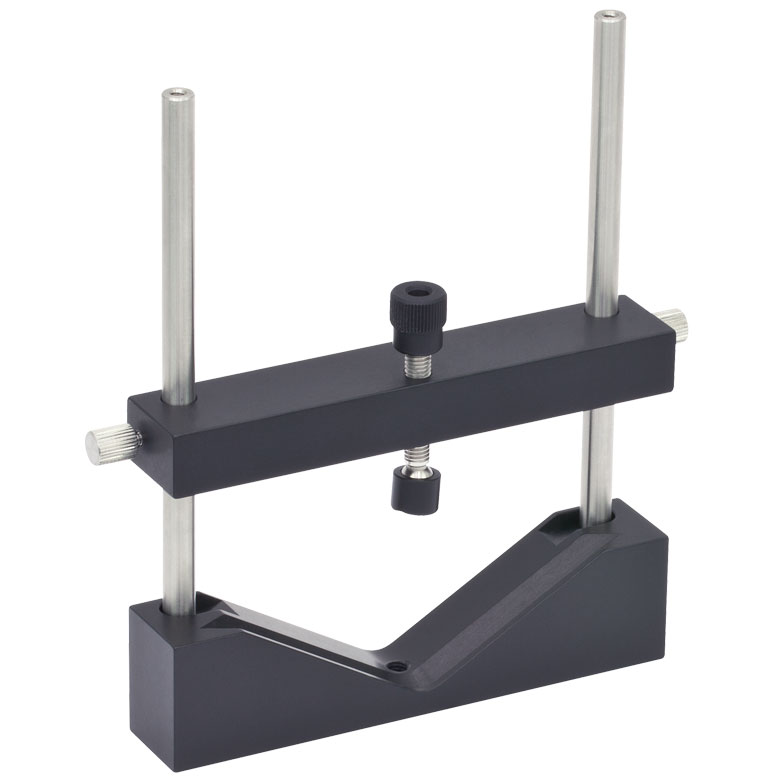

VG100 (VG100/M)
Adjustable-Height Optics Clamp
1" Stainless Steel Post
2

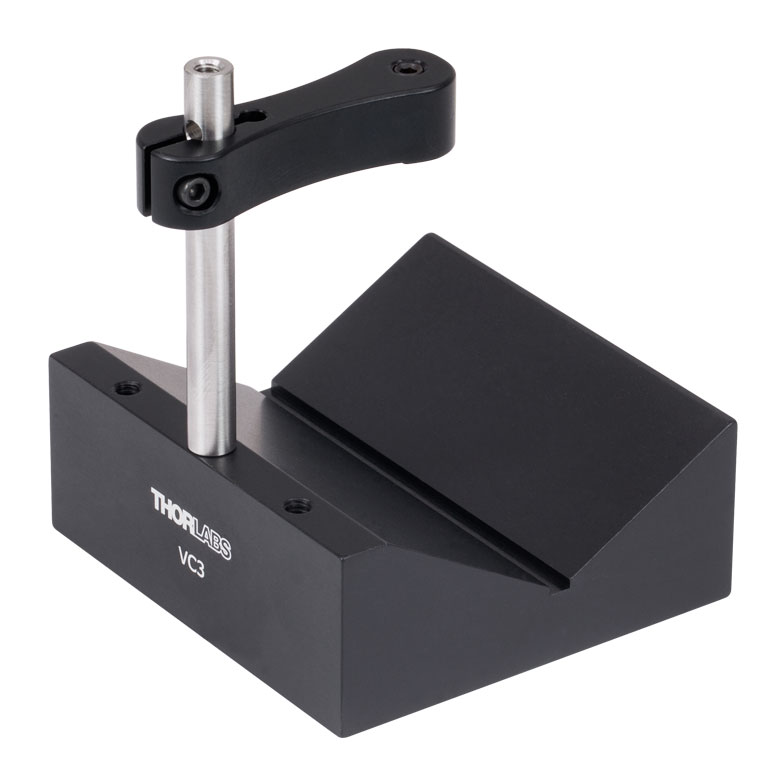

VC3C (VC3C/M)
Large V-Clamp with PM4 Clamping Arm, 2.5" Long
1" Stainless Steel Post
2

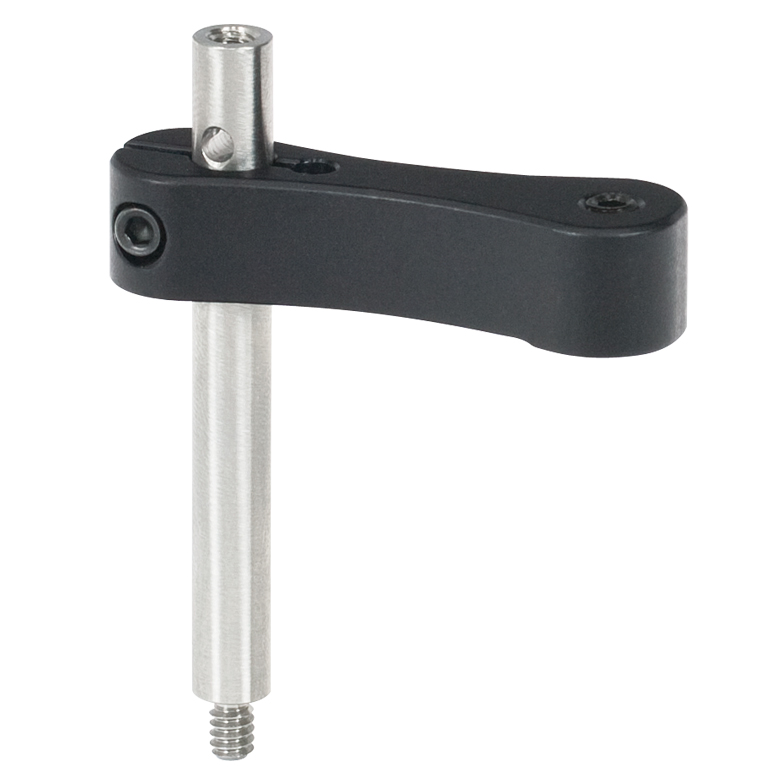

PM4 (PM4/M)
Large Adjustable Clamping Arm, 6-32 (M4) Threaded Post
1" Stainless Steel Post
2
Adapters
Item # and Description Photo
(Click to
Enlarge)
Quantity
FM90 (FM90/M)
Flip Mount Adapter
8" Stainless Steel Post
2
KGM40
Kinematic Grating Mount Adapter (Grating Height: 20-40 mm)
4" Stainless Steel Post
2

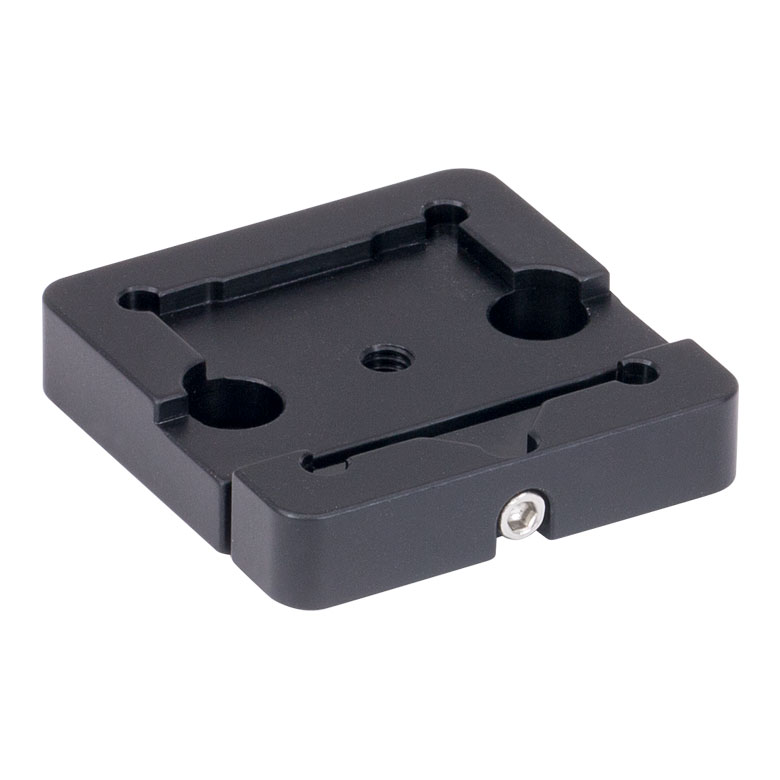

PCMP (PCMP/M)
Flat Base Adapter for PCM(/M) Mount, 1/4"-20 (M6) Threaded Stud
1" Stainless Steel Post
2

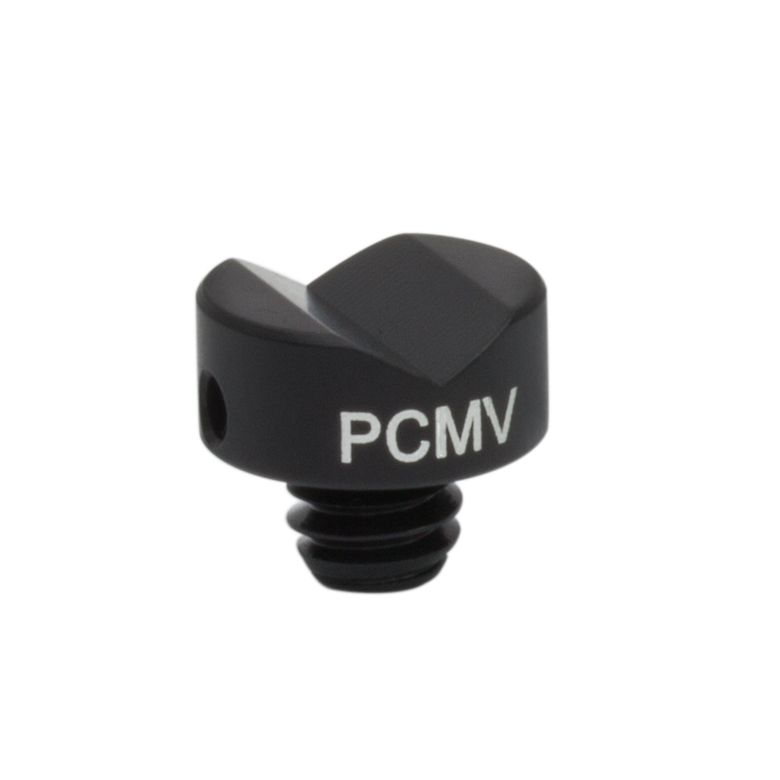

PCMV (PCMV/M)
V-Groove Base Adapter for PCM(/M) Mount, 1/4"-20 (M6) Threaded Stud
R2
2
PCM (PCM/M)
Post Clamp Mount for Ø1/2" (12.7 mm) Posts (Base Adapter Sold Separately)
2" Stainless Steel Post
4
Translation Mount
Item # and Description Photo
(Click to
Enlarge)
Quantity
XYF1 (XYF1/M)
XY Mount for 1/2" - 3" Rectangular Optics, 8-32 (M4) Taps
1" Stainless Steel Post
2

Posted Comments:
No Comments Posted

Specialty Optic Mounts Kit

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
ESK23 Support Documentation
ESK23Specialty Optic Mounts Essentials Kit, Imperial and Universal Components, 56 Pieces
$3,708.00
Today
+1 Qty Docs Part Number - Metric Price Available
ESK23/M Support Documentation
ESK23/MSpecialty Optic Mounts Essentials Kit, Metric and Universal Components, 56 Pieces
$3,708.00
Today
