Mechanical Essentials Kit: Ø2" Optic Mounts


  • Ø2" Optic Mounts Kit
  • Heavy-Duty, Welded Steel Cabinet Frame
  • Cabinet Frame Can Be Wall Mounted or Stacked
  • Equipped with Easy-to-Read Labels

KM200

x4

KM200CP

x4

KM2CE

x5

KS2D

x4

LM2XY

x2

KS2T

x2

H45CN

x2

TR2F90

x3

KS2RS

x2

PRM2

x2

RSP2

x2

LM2-A

x3

LM2-B

x3

FMP2

x5

LMR2

x5

ESK19

9 Drawers, 48 Pieces

Related Items


Please Wait
Back Side of ESK Kit
Click to Enlarge

Slots on the rear of the case allow for wall mounting.

Features

  • Ø2" Optic Mounts Kit
  • Imperial and Metric Options
  • Drawer Dimensions (L x W x H): 10.89" x 5.50" x 3.15" (276.5 mm x 139.7 mm x 79.9 mm)
  • Cabinet Dimensions (L x W x H): 17.13" x 11.11" x 11.08" (435.0 mm x 282.3 mm x 281.3 mm)
  • Easy-to-Read Labels List Contents for Each Drawer
  • Savings Over Individual Component Products

This kit contains our most popular kinematic, fixed, translational, and rotational mounting components for Ø2" optics. Refer to the Contents tab above for detailed information about the components included with the imperial and metric versions of each kit. We also offer the ESK17(/M) Ø1/2" Optic Mounts Kit, ESK18(/M) Ø1" Optic Mounts Kit, and ESK23(/M) Specialty Optic Mounts Kit. Complement these kits with our ESK01(/M) Bases and Post Holders and ESK16(/M) Posts and Accessories Essentials Kits.

Mounting Options
The kit can be stored on a tabletop for easy, convenient access or placed on an RK4101 or RK4102 rack shelf, both of which can be installed in our RK3884 standard 19" rack. The
cabinet used in each Essential Series Kit features slots in the rear of the case (see the image to the right) for wall mounting and features indentations on the top and four feet on the bottom for stable stacking.

Please Note: This kit weighs approximately 27 lbs (12.2 kg); ensure that the wall and wall mounts can support this weight prior to mounting.

Kit Components

The ESK19 includes the listed components and an ST9 9-Drawer Cabinet.

Kinematic Mounts
Item # and Description Photo
(Click to
Enlarge)
Quantity
KM200
Kinematic Mirror Mount for Ø2" Optics
1" Stainless Steel Post
4
KM2CE
Ø2" Clear-Edge Kinematic Mirror Mount, 2 Adjusters
2" Stainless Steel Post
5
KM200CP (KM200CP/M)
Kinematic Mirror Mount for Ø2" Optics with Post-Centered Front Plate, 8-32 (M4) Taps
2" Stainless Steel Post
4
KS2D
Ø2" Kinematic Mirror Mount, 2 Differential Adjusters, 1 1/4"-80 Adjuster
2" Stainless Steel Post
4

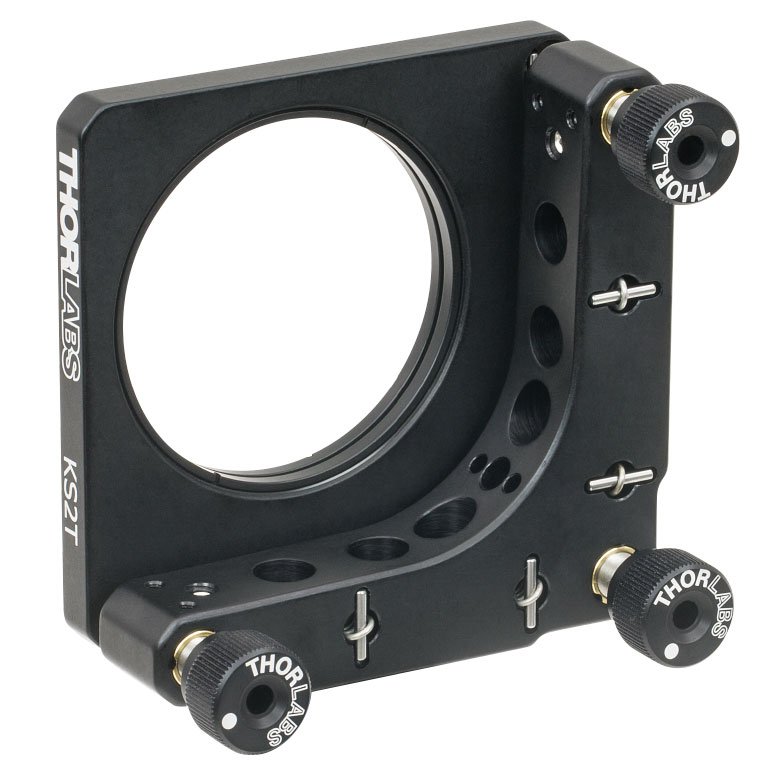

KS2T
SM2-Threaded Precision Kinematic Mirror Mount for Ø2" Optics,
3 Adjusters
3" Stainless Steel Post
2
Rotation and Translation Mounts
Item # and Description Photo
(Click to
Enlarge)
Quantity
KS2RS
Kinematic Rotation Mount for Ø2" Optics
2" Stainless Steel Post
2
LM2-A
Rotating Inner Carriage for Ø2" Optics, One SM2RR Retaining Ring
6" Stainless Steel Post
3
LM2-B (LM2-B/M)
Rotation Mounting Ring for LM2-A Ø2" Optic Carriage, 8-32 (M4) Tap
8" Stainless Steel Post
3
PRM2 (PRM2/M)
High-Precision Rotation Mount for Ø2" (50.8 mm) Optics
1" Stainless Steel Post
2
RSP2 (RSP2/M)
Rotation Mount for Ø2" (Ø50.8 mm) Optics, 8-32 (M4) Tap
1" Stainless Steel Post
2
LM2XY (LM2XY/M)
Translating Lens Mount for Ø2" Optics, 1 Retaining Ring Included
2" Stainless Steel Post
2
Fixed Mounts
Item # and Description Photo
(Click to
Enlarge)
Quantity
LMR2 (LMR2/M)
Lens Mount with Retaining Ring for Ø2" Optics, 8-32 (M4) Tap
1" Stainless Steel Post
5
FMP2 (FMP2/M)
Fixed Ø2" Mirror Mount, 8-32 (M4) Tap
1" Stainless Steel Post
5
TR2F90 (TR2F90/M)
90° Flip Mount for Ø2" Filters and Optics, 8-32 (M4) Tap
R2
3
H45CN
45° Mount for Ø2" Optics
4" Stainless Steel Post
2

Posted Comments:
No Comments Posted
Back to Top

Ø2" Optic Mounts Kit

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
ESK19 Support Documentation
ESK19Ø2" Optic Mounts Essentials Kit, Imperial and Universal Components, 48 Pieces
$5,201.26
Today
+1 Qty Docs Part Number - Metric Price Available
ESK19/M Support Documentation
ESK19/MØ2" Optic Mounts Essentials Kit, Metric and Universal Components, 48 Pieces
$5,201.26
Today
