Mechanical Essentials Kit: SM1 Lens Tube Kit


  • SM1 Lens Tube Kit
  • Heavy-Duty, Welded Steel Cabinet Frame
  • Cabinet Frame Can Be Wall Mounted or Stacked
  • Equipped with Easy-to-Read Labels

ESK25

SM1 Lens Tube Kit

Kit Components

See Contents Tab for Details on All Items Included in the Kit

x5

x5

x5

x5

x5

x4

x3

x2

x4

x4

x4

x4

x4

x4

x3

x3

x2

x2

x2

x2

x1

x2

x2

x2

x2

x2

x2

x2

x5

x3

x3

x3

x1

x1

x1

x3

x3

x3

x5

x1

x1

x10

x3

Related Items


Please Wait
Back Side of ESK Kit
Click to Enlarge

Slots on the rear of the cabinet allow for wall mounting.
ESK Kit in Rack System
Click to Enlarge
ESK25 is shown on an RK4102 rack shelf, which is installed in an RK3884 19" rack.

Features

  • Lens Tubes and Accessories for Ø1" Optics
  • Frame Dimensions (L x W x D): 11.08" x 17.13" x 11.11" (281.3 mm x 435.0 mm x 282.3 mm)
  • Drawer Dimensions (L x W x D): 2.27" x 4.14" x 10.90" (57.5 mm x 105.3 mm x 276.9 mm)
  • Easy-to-Read Labels List Contents for Each Drawer
  • Savings Over Individual Component Products

This kit contains our most popular SM1 (1.035"-40) threaded optomechanical components as well as many common accessories used with our SM1-threaded lens tubes. Refer to the Contents tab above for detailed information about the included components. The contents of this kit are compatible with our vast selection of 30 mm optical cage system components. Additionally, our ESK18 (ESK18/M) Ø1" Optics Mounts Kit includes components compatible with SM1 threads. We also offer the ESK13 (ESK13/M) and ESK24 SM05 Lens Tube Kits; the ESK26 SM2 Lens Tube Kit; the ESK07A
(ESK07A/M) Cage Assemblies and Lens Tubes Kit, which includes SM1-threaded and 30 mm cage system components; and the ESK07B ESK07B/M) Cage Assemblies and Lens Tubes Extension Kit, which includes SM1- and SM2-threaded components and 30 mm and 60 mm cage system components.

Mounting Options
The kit can be stored on a tabletop for easy, convenient access or placed on an RK4101 or RK4102 rack shelf, both of which can be installed in our RK3884 standard 19" rack. The image to the right shows an ESK25 as well as another custom-labeled 16-drawer cabinet installed in a 19" rack. The cabinet used in this kit has slots in the rear of the case (see image to far right) for wall mounting and features indentations on the top and four feet on the bottom for stable stacking. Warning: this kit weighs approximately 23 lbs (10.4 kg); ensure that the wall and wall mounts can support this weight before mounting.

Kit Components

The ESK25 includes the listed components and an ST16 16-Drawer Cabinet.

SM1 Lens Tubes
Item # and Description Photo
(Click to
Enlarge)
Quantity

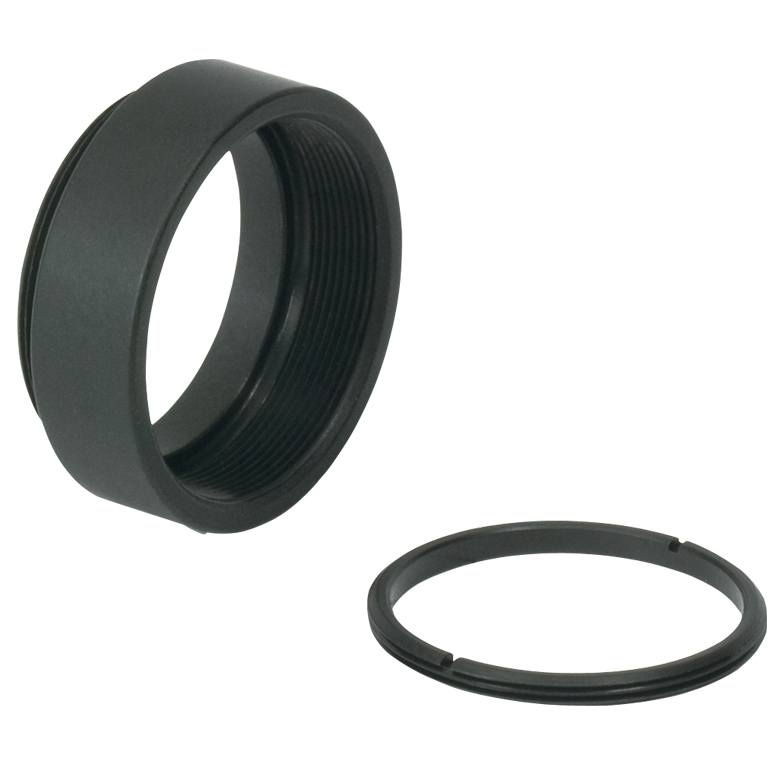

SM1L03
SM1 Lens Tube, 0.30" Thread Depth, One Retaining Ring Included
1" Stainless Steel Post
5
SM1L05
SM1 Lens Tube, 0.50" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
5
SM1L10
SM1 Lens Tube, 1.00" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
5
SM1L15
SM1 Lens Tube, 1.50" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
5

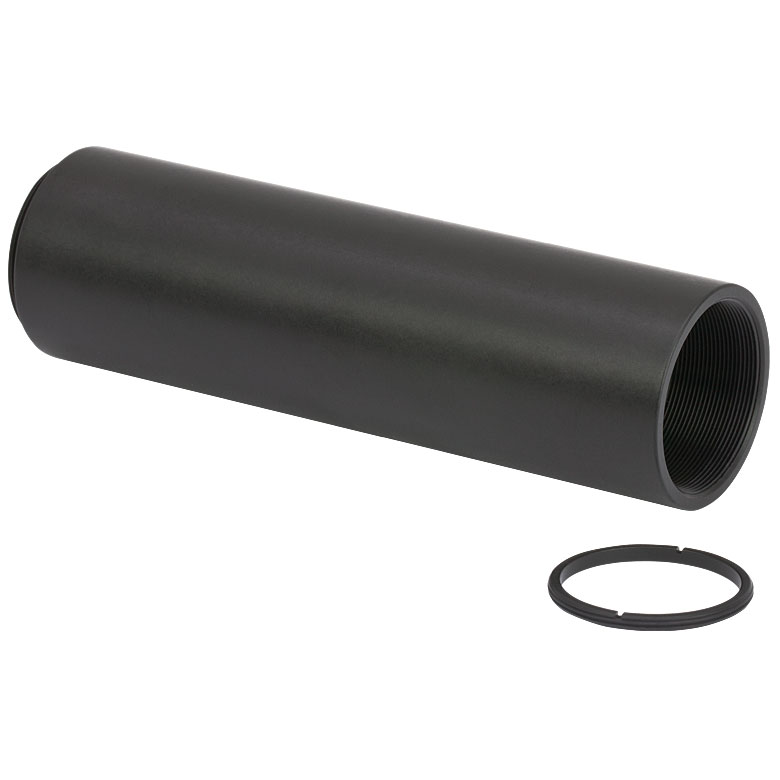

SM1L20
SM1 Lens Tube, 2.00" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
5
SM1L30
SM1 Lens Tube, 3.00" Thread Depth, One Retaining Ring Included

3" Stainless Steel Post
4
SM1L40
SM1 Lens Tube, 4.00" Thread Depth, One Retaining Ring Included
4" Stainless Steel Post
3

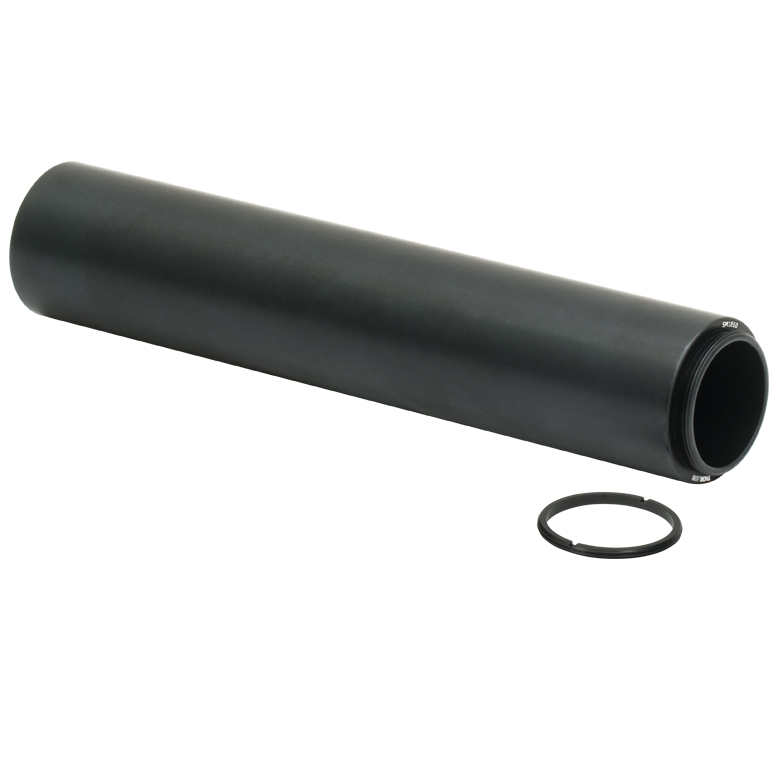

SM1E60
SM1 Extension Tube, 6" Long, 1" Thread Depth, One Retaining Ring Included
6" Stainless Steel Post
2
SM1M05
SM1 Lens Tube Without External Threads, 1/2" Long, Two Retaining Rings Included
8" Stainless Steel Post
4
SM1M10
SM1 Lens Tube Without External Threads, 1" Long, Two Retaining Rings Included
8" Stainless Steel Post
4
SM1M20
SM1 Lens Tube Without External Threads, 2" Long, Two Retaining Rings Included
1" Stainless Steel Post
4

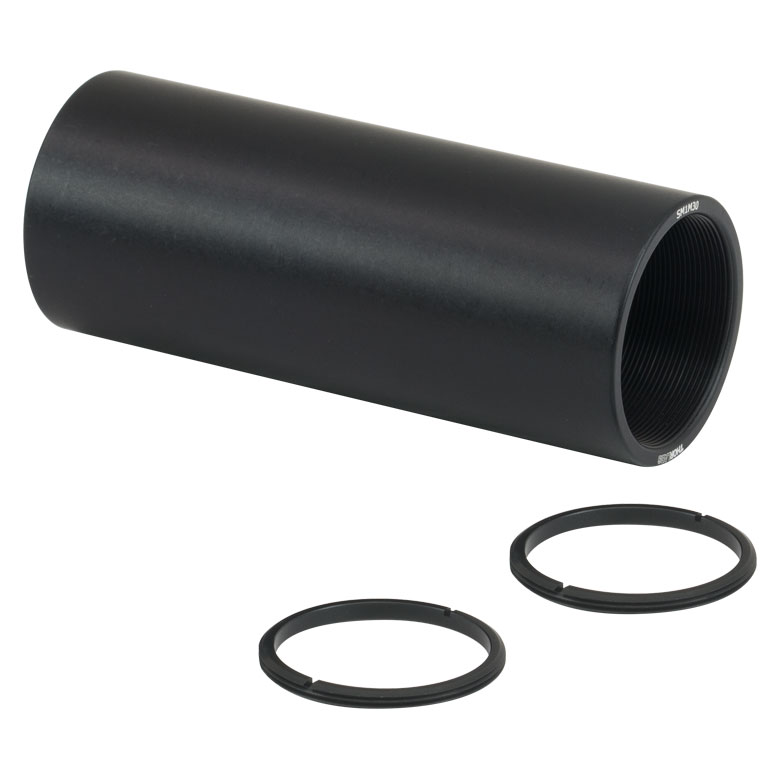

SM1M30
SM1 Lens Tube Without External Threads, 3" Long, Two Retaining Rings Included

1" Stainless Steel Post
4
SM1L20C
SM1 Slotted Lens Tube, 2" Thread Depth, 2 Retaining Rings Included
1" Stainless Steel Post
3
SM1L30C
SM1 Slotted Lens Tube, 3" Thread Depth, 2 Retaining Rings Included
1" Stainless Steel Post
3
SM1V05
Ø1" Adjustable Lens Tube, 0.31" Travel Range
1" Stainless Steel Post
2
SM1V10
Ø1" Adjustable Lens Tube, 0.81" Travel Range
2" Stainless Steel Post
2
SM1V15
Ø1" Adjustable Lens Tube, 1.31" Travel Range
R2
2
SM1 Couplers and Spacers
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM1T1
SM1 (1.035"-40) Coupler, Internal Threads, 0.29" Long
1" Stainless Steel Post
3
SM1T2
SM1 (1.035"-40) Coupler, External Threads, 1/2" Long
1" Stainless Steel Post
3
SM1T10
SM1 (1.035"-40) Coupler, External Threads, 1" Long
1" Stainless Steel Post
3
SM1S10
SM1 Lens Tube Spacer, 1" Long

1" Stainless Steel Post
4
SM1S20
SM1 Lens Tube Spacer, 2" Long
1" Stainless Steel Post
4
SM1 Adapters and Accessories
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM1ZM
SM1 Zoom Housing for Ø1" Optics, Non-Rotating, 3.5 mm Travel
1" Stainless Steel Post
2
SM1NR1
SM1 Zoom Housing for Ø1" Optics, Non-Rotating, 2"
(50.8 mm) Travel
R2
1

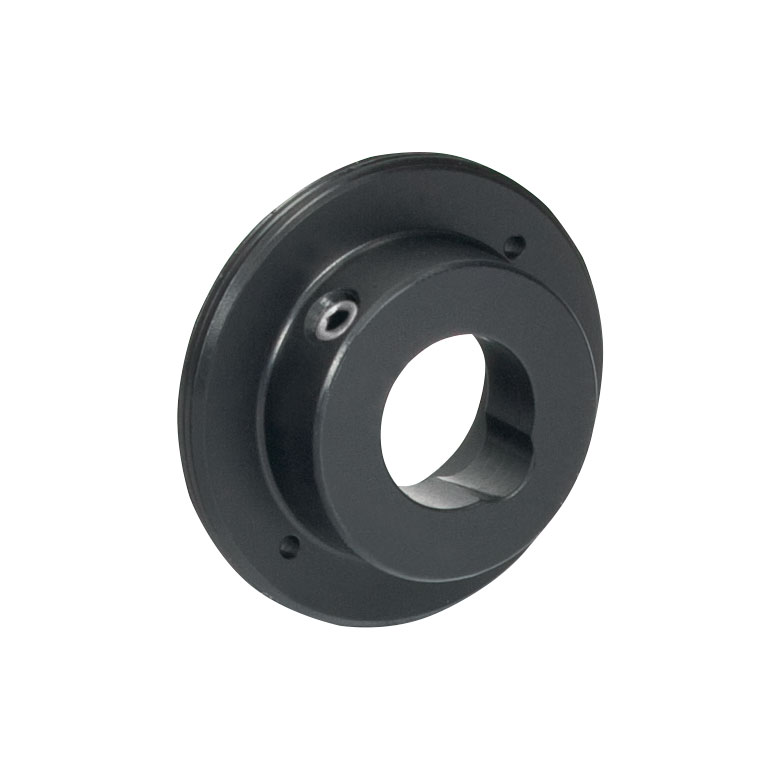

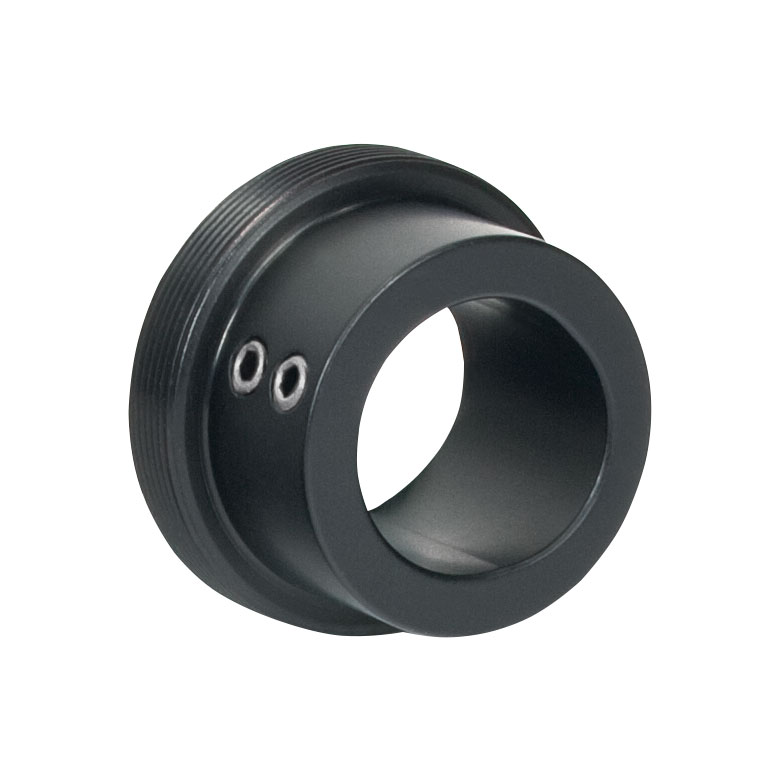

AD9.5F
SM1-Threaded Adapter for Ø9.5 mm Cylindrical Components
1" Stainless Steel Post
2
AD11F
SM1-Threaded Adapter for Ø11 mm Cylindrical Components
1" Stainless Steel Post
2

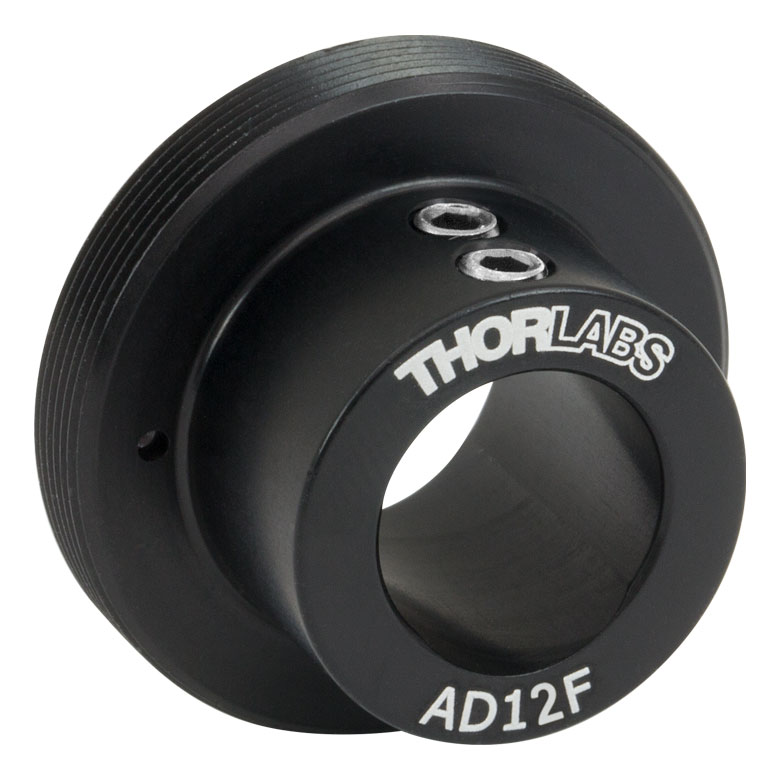

AD12F
SM1-Threaded Adapter for Ø12 mm Cylindrical Components
1" Stainless Steel Post
2
AD15F
SM1-Threaded Adapter for Ø15 mm Cylindrical Components
1" Stainless Steel Post
2
SM1SH1
SM1-Threaded Manual Beam Shutter, Ø7.2 mm Clear Aperture
1" Stainless Steel Post
2

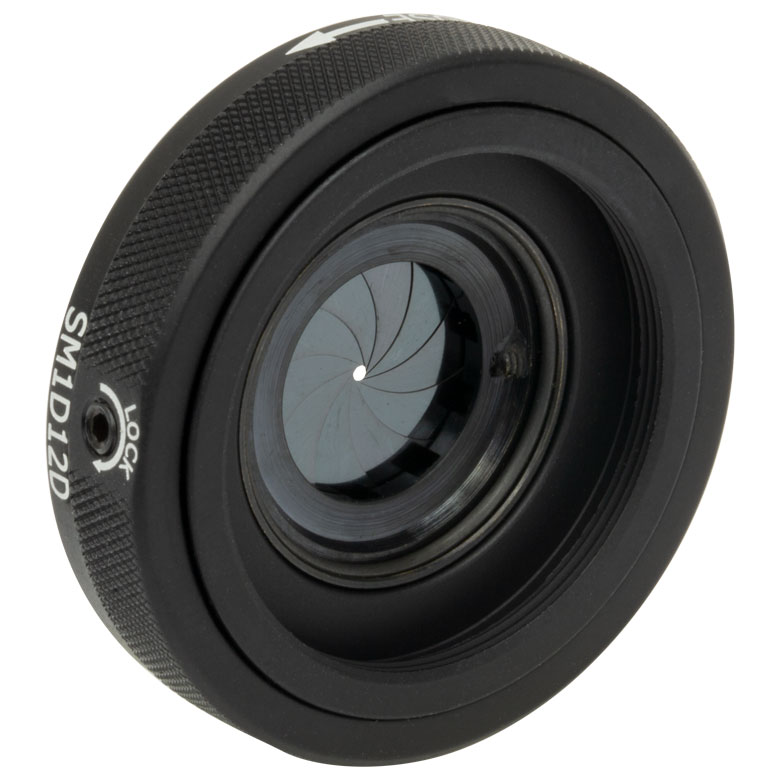

SM1D12D
SM1 Ring-Actuated Iris Diaphragm (Ø0.8 - Ø12 mm)
1" Stainless Steel Post
2
SM1TC
Ø1.20" Clamp for SM1 Lens Tubes and C-Mount Extension Tubes
1" Stainless Steel Post
5

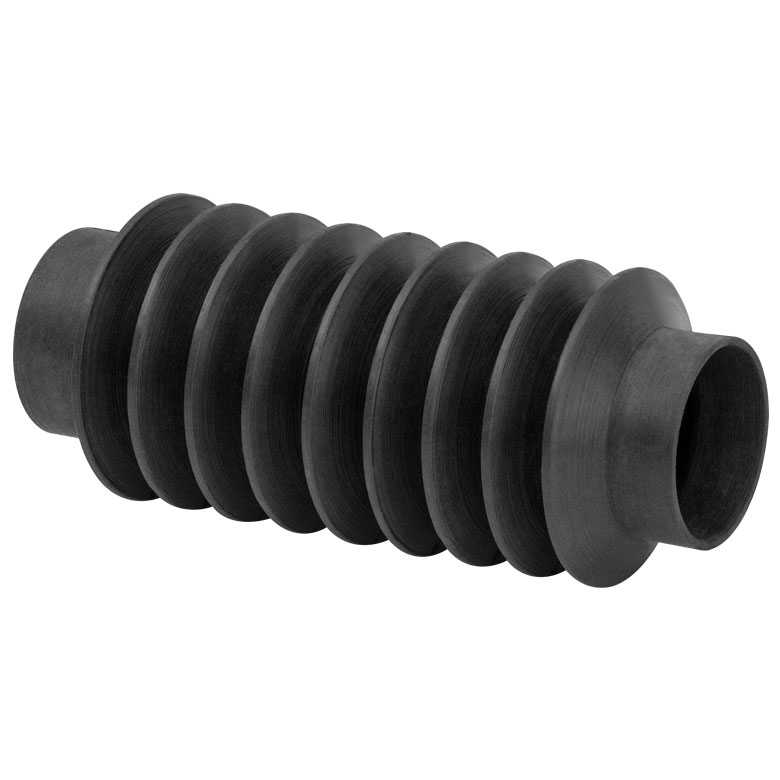

SM1B3
SM1 Lens Tube Bellows, Rubber, 1.50" to 8.66" Long
1" Stainless Steel Post
2

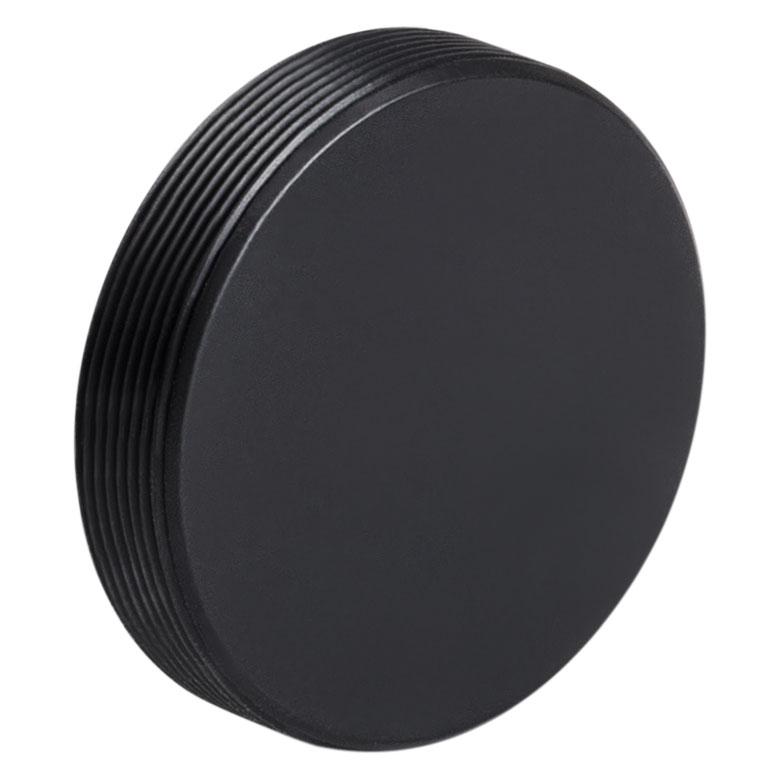

SM1PL
Externally SM1-Threaded Plug
1" Stainless Steel Post
3
SM1CP1
Internally SM1-Threaded End Cap
1" Stainless Steel Post
3
SM1CP2
Externally SM1-Threaded End Cap
1" Stainless Steel Post
3
VRC1SM1
SM1-Threaded UV and Visible Alignment Disk
(250 - 540 nm)
1" Stainless Steel Post
1
VRC2SM1
SM1-Threaded Visible and IR Alignment Disk
(400 - 640 nm, 800 - 1700 nm)
1" Stainless Steel Post
1
VRC4SM1
SM1-Threaded IR Alignment Disk (790 - 840 nm, 870 - 1070 nm, 1500 - 1590 nm)
1" Stainless Steel Post
1
SM1 Spanner Wrenches and Retaining Rings
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM1NT1
SM1 (1.035"-40) Locking Ring, 1.25" Outer Diameter, Slots for Spanner Wrench
1" Stainless Steel Post
5
SPW502
Spanner Wrench for Slotted SM05, SM1, and C-Mount Locking Rings
1" Stainless Steel Post
1
SPW602
Spanner Wrench for SM1-Threaded Retaining Rings, Graduated Scale with 0.1"
(2.5 mm) Increments, Length = 3.88"
1" Stainless Steel Post
1
SM1RR
SM1 Retaining Ring for Ø1" Lens Tubes and Mounts
1" Stainless Steel Post
10
SM1LTRR
SM1 (1.035"-40) Stress-Free Retaining Ring
1" Stainless Steel Post
3
