Mechanical Essentials Kit: SM2 Lens Tube Kit


  • SM2 Lens Tube Kit
  • Heavy-Duty, Welded Steel Cabinet Frame
  • Cabinet Frame Can Be Wall Mounted or Stacked
  • Equipped with Easy-to-Read Labels

SM2L03

x5

ESK26

SM2 Lens Tube Kit

SM2L05

x5

SM2L10

x5

SM2L20

x4

SM2L30

x3

SM2E60

x2

SM2M05

x4

SM2M10

x4

SM2M20

x4

SM2M30

x4

SM2T1

x3

SM2T2

x3

SM2T10

x3

SM2V10

x2

SM2V15

x2

SM2TC

x5

SM2CP1

x3

SM2CP2

x3

SM2PL

x3

SM2D25D

x2

SM2L20C

x2

SM2L30C

x2

SPW503

x1

SPW604

x1

SM2RR

x5

SM2LTRR

x3

SM2NT1

x5

Related Items


Please Wait
Back Side of ESK Kit
Click to Enlarge

Slots on the rear of the cabinet allow for wall mounting.

Features

  • Lens Tubes and Accessories for Ø2" Optics
  • Frame Dimensions (L x W x D): 11.08" x 17.13" x 11.11" (281.3 mm x 435.0 mm x 282.3 mm)
  • Drawer Dimensions (L x W x D): 3.15" x 5.50" x 10.89" (79.9 mm x 139.7 mm x 276.5 mm)
  • Easy-to-Read Labels List Contents for Each Drawer
  • Savings Over Individual Component Products

This kit contains our most popular SM2 (2.035"-40) threaded optomechanical components as well as many common accessories used with our SM2-threaded lens tubes. Refer to the Contents tab above for detailed information about the included components. The contents of this kit are compatible with our vast selection of 60 mm optical cage system components. Additionally, our ESK19 (ESK19/M) Ø2" Optics Mounts Kit includes components compatible with SM2 threads. We also offer the ESK13 (ESK13/M) and ESK24 SM05 Lens Tube Kit; the ESK25 SM1 Lens Tube Kit; the ESK07A (ESK07A/M) Cage Assemblies and Lens Tubes Kit, which includes a variety of SM1-threaded and 30 mm cage compatible components; and the ESK07B (ESK07B/M) Cage Assemblies and Lens Tubes Extension Kit, which includes cage system components and SM1- and SM2-threaded components.

Mounting Options
The kit can be stored on a tabletop for easy, convenient access or placed on an RK4101 or RK4102 rack shelf, both of which can be installed in our RK3884 standard 19" rack. The cabinet used in this kit has slots in the rear of the case (see the image to the right) for wall mounting and features indentations on the top and four feet on the bottom for stable stacking. Warning: this kit weighs approximately 23 lbs (10.4 kg); ensure that the wall and wall mounts can support this weight before mounting.

Kit Components

The ESK26 includes the listed components and an ST9 9-Drawer Cabinet.

SM2 Lens Tubes
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM2L03
SM2 Lens Tube, 0.3" Thread Depth, One Retaining Ring Included
1" Stainless Steel Post
5
SM2L05
SM2 Lens Tube, 0.5" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
5
SM2L10
SM2 Lens Tube, 1" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
5
SM2L20
SM2 Lens Tube, 2" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
4
SM2L30

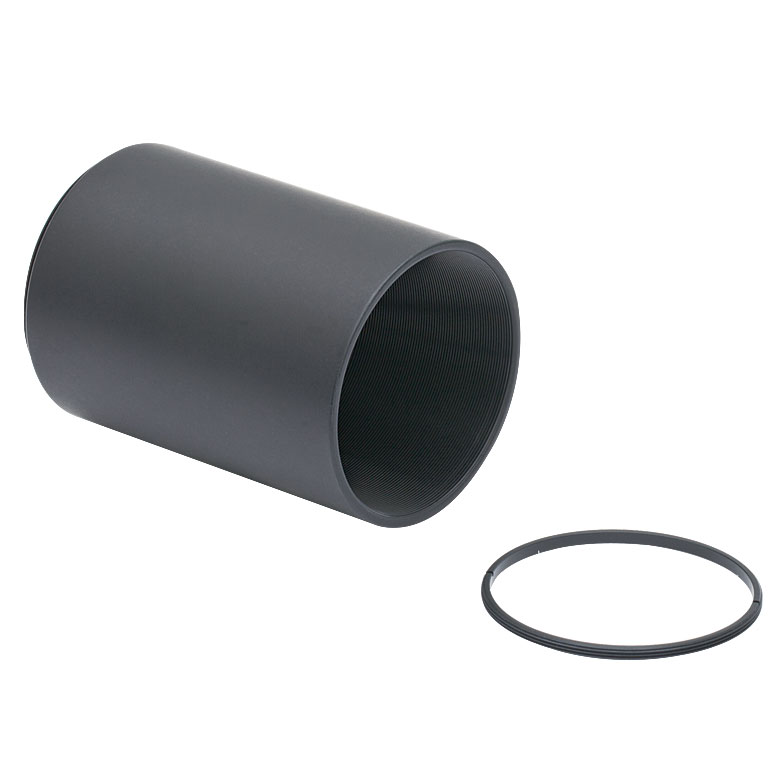

SM2 Lens Tube, 3" Thread Depth, One Retaining Ring Included
2" Stainless Steel Post
3
SM2L20C

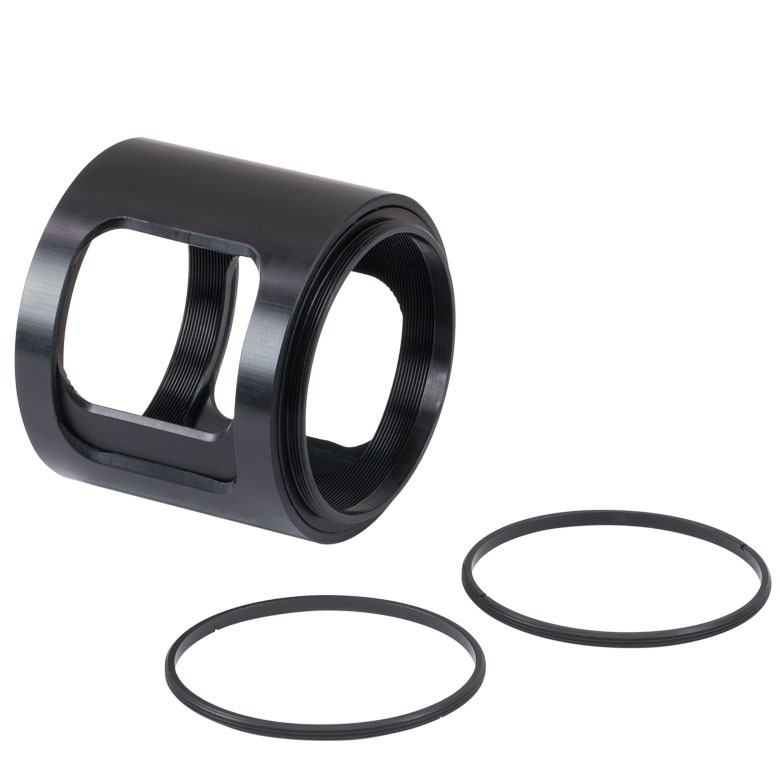

SM2 Slotted Lens Tube, 2" Thread Depth, 2 Retaining Rings Included
1" Stainless Steel Post
2
SM2L30C
SM2 Slotted Lens Tube, 3" Thread Depth, 2 Retaining Rings Included
1" Stainless Steel Post
2
SM2E60
SM2 Series Extension Tube, 6"
3" Stainless Steel Post
2
SM2M05
SM2 Lens Tube Without External Threads, 0.5" Thread Depth, Two Retaining Rings Included
4" Stainless Steel Post
4
SM2M10
SM2 Lens Tube Without External Threads, 1" Thread Depth, Two Retaining Rings Included
6" Stainless Steel Post
4
SM2M20

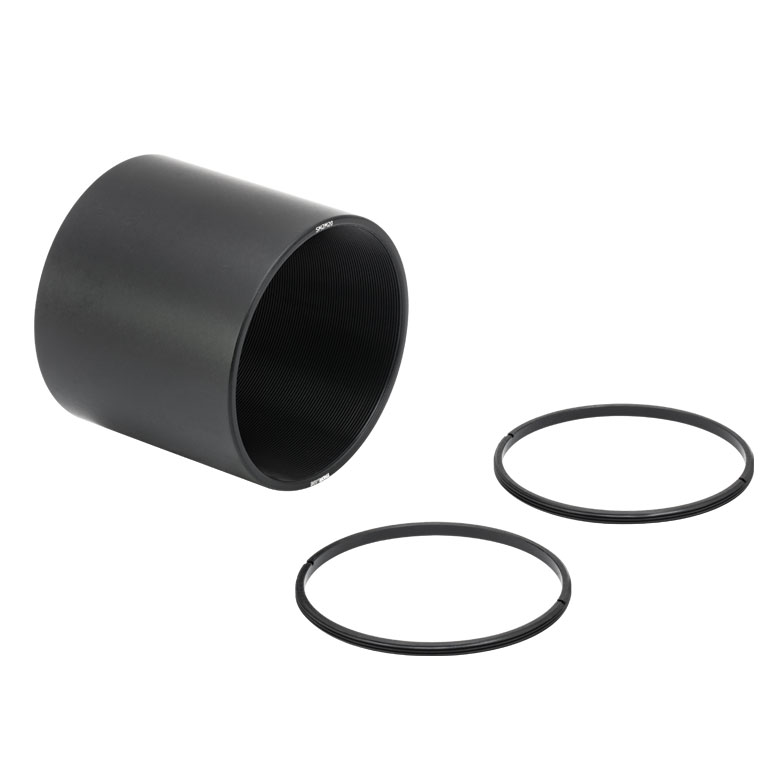

SM2 Lens Tube Without External Threads, 2" Thread Depth, Two Retaining Rings Included
8" Stainless Steel Post
4
SM2M30

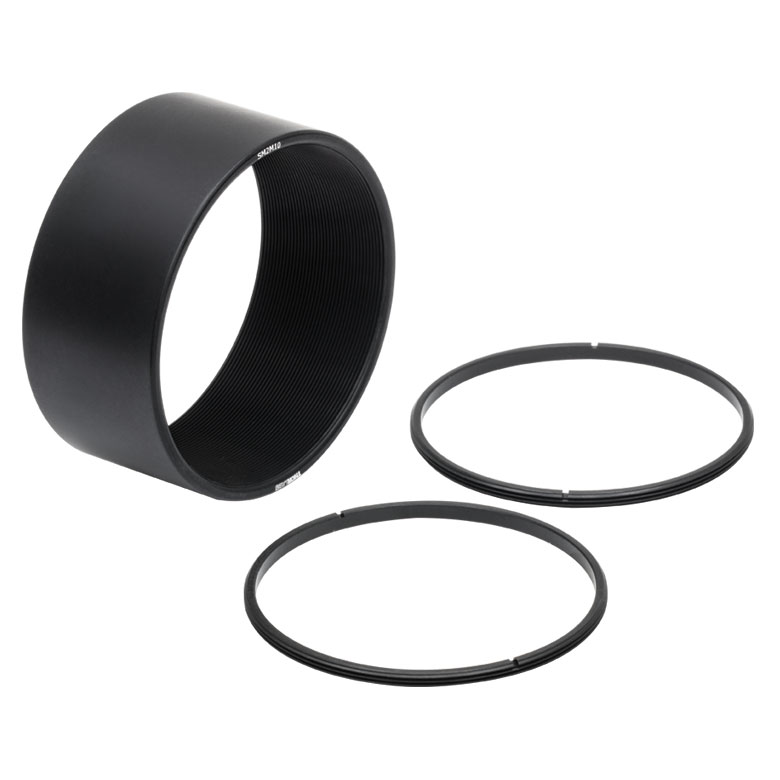

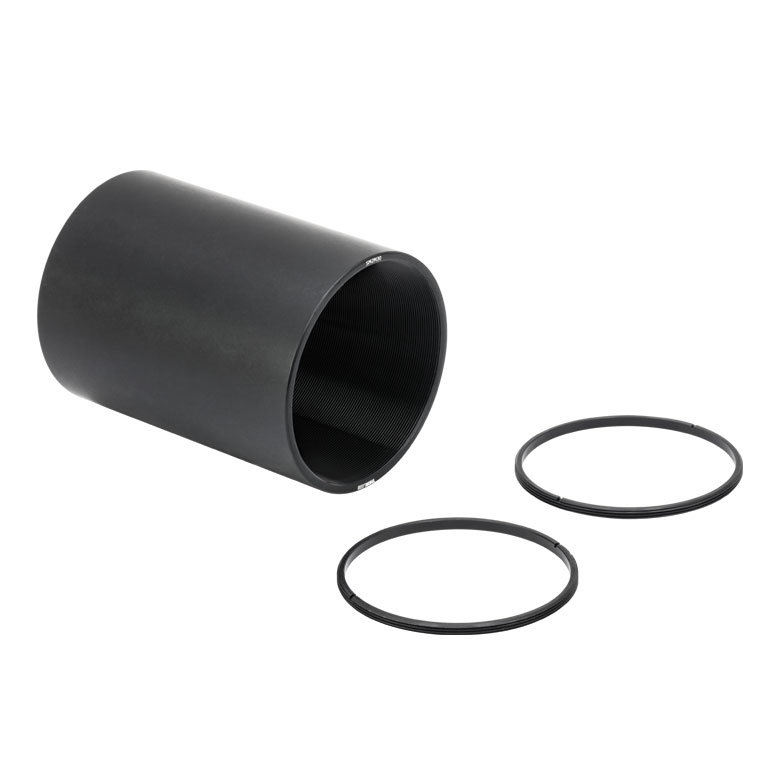

SM2 Lens Tube Without External Threads, 3" Thread Depth, Two Retaining Rings Included
1" Stainless Steel Post
4
SM2V10
Ø2" Adjustable Lens Tube, 0.81" Travel
1" Stainless Steel Post
2
SM2V15
Ø2" Adjustable Lens Tube, 1.31" Travel
1" Stainless Steel Post
2
SM2 Couplers
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM2T1
SM2 (2.035"-40) Coupler, Internal Threads, 0.26" Long
1" Stainless Steel Post
3
SM2T2
SM2 (2.035"-40) Coupler, External Threads, 1/2" Long
1" Stainless Steel Post
3
SM2T10
SM2 (2.035"-40) Coupler, External Threads, 1" Long
1" Stainless Steel Post
3
SM2 Spanner Wrenches and Retaining Rings
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM2NT1
SM2 (2.035"-40) Locking Ring, 2.25" Outer Diameter, Slots for Spanner Wrench
1" Stainless Steel Post
5
SPW503
Spanner Wrench for Slotted SM2 Locking Rings
1" Stainless Steel Post
1
SPW604
Spanner Wrench for SM2-Threaded Retaining Rings, Length = 4.35"
2" Stainless Steel Post
1
SM2RR
SM2 Retaining Ring for Ø2" Lens Tubes and Mounts
1" Stainless Steel Post
5
SM2LTRR
SM2 (2.035"-40) Stress-Free Retaining Ring
1" Stainless Steel Post
3
SM2 Accessories
Item # and Description Photo
(Click to
Enlarge)
Quantity
SM2D25D

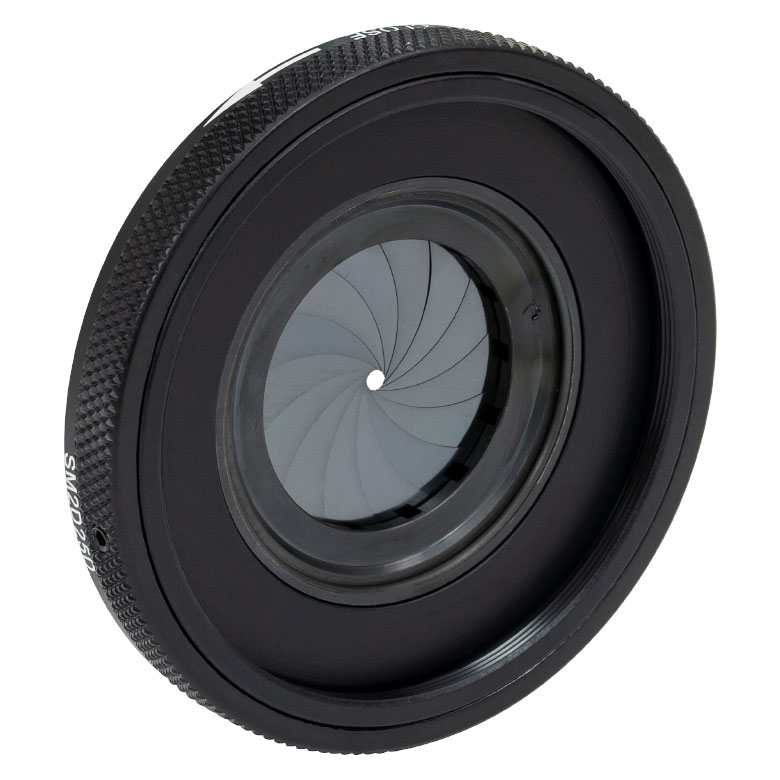

SM2 Ring-Actuated Iris Diaphragm (Ø1 - Ø25 mm)
R2
2
SM2TC
Ø2.20" Clamp for SM2 Lens Tubes
1" Stainless Steel Post
5
SM2CP1
Internally SM2-Threaded End Cap
1" Stainless Steel Post
3
SM2CP2
Externally SM2-Threaded End Cap
1" Stainless Steel Post
3
SM2PL
Externally SM2-Threaded Plug
1" Stainless Steel Post
3

Posted Comments:
No Comments Posted

SM2 Lens Tube Kit

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
ESK26 Support Documentation
ESK26SM2 Lens Tube Essentials Kit, Universal Components, 88 Pieces
$2,866.49
Today
