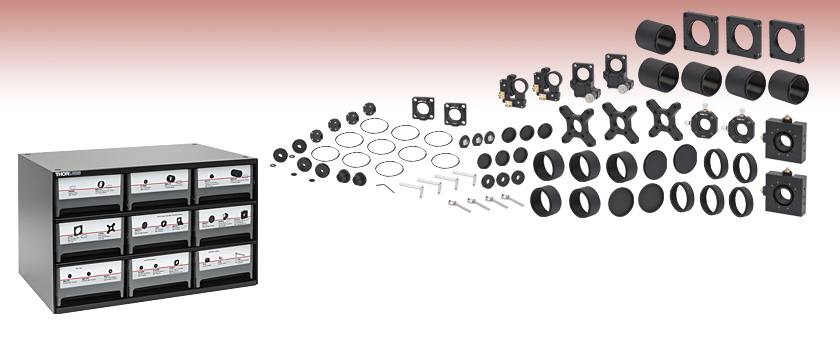

Mechanical Essentials Kit: Cage Assemblies and Lens Tubes Extension Kit


  • Kit Contains 75 Pieces
  • Stackable, Heavy-Duty Welded Steel Cabinet Frame
  • Cabinet Frame can be Wall Mounted or Stacked
  • Equipped with Easy-to-Read Labels

ESK07B

9 Drawers, 75 Pieces

Kit Components

See Contents Tab for Descriptions of Each Item

Related Items


Please Wait

Features

  • Imperial and Metric Kits
  • Fully Stocked and Labeled Cabinets
  • Frame Dimensions: 17.13" x 11.11" x 11.08" (435.0 mm x 282.3 mm x 281.3 mm)
  • Drawer Dimensions: 10.89" x 5.50" x 3.15" (276.5 mm x 139.7 mm x 79.9 mm)
  • Easy-to-Read Labels List Contents for Each Drawer
  • Greater than 10% Savings Over Individual Items
Back Side of ESK Kit
Click to Enlarge

Slots on the rear of the cabinet allow for wall mounting.

This Cage Assemblies and Lens Tubes Essentials Kit picks up where the ESK07A(/M) leaves off. This essentials kit offers a powerful use of the cage assembly system and includes the 2" lens tubes as well as additional 1" components. For added flexibility, X, Y, and Z Translators and the cage turret mount are included. Refer to the Contents tab above for detailed information about the components included with the metric and imperial versions of this kit. All ESK Series Essentials Kits are equipped with easy-to-read labels complete with product icons, allowing quick access to all products housed within the kits.

Mounting Options

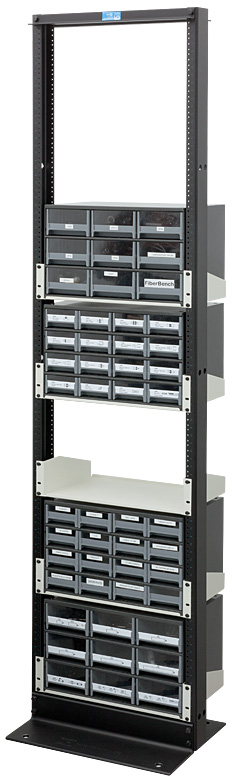

The kit can be stored on a tabletop for easy, convenient access or placed on an RK4101 or RK4102 rack shelf, both of which can be installed in our RK3884 standard 19" rack. The image to the right shows several different ESK kits installed in a 19" rack. The cabinet used in this kit has slots in the rear of the case (see image to the left) for wall mounting and features indentations on the top and four feet on the bottom for stable stacking. Warning: This kit weighs approximately 22 lbs (10 kg); ensure that the wall and wall mounts can support this weight before mounting.

Item # in ESK07B
(Imperial)
Item # in ESK07B/M
(Metric)
Description Image Quantity

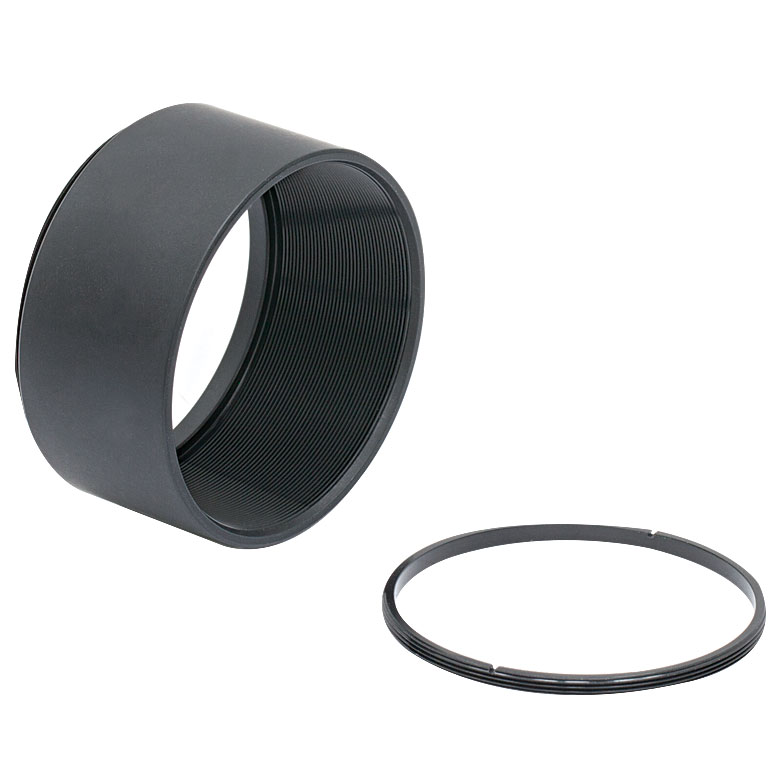

SM2L05 SM2 (2.035"-40) Lens Tube, 1/2" (12.7 mm) Bore Depth,
One SM2RR Included
SM2 Lens Tube, 1/2" Bore Depth
Click to Enlarge
5
SM2L10 SM2 (2.035"-40) Lens Tube, 1" (25.4 mm) Bore Depth,
One SM2RR Included
SM2 Lens Tube, 1" Bore Depth
Click to Enlarge
5
SM2L20 SM2 (2.035"-40) Lens Tube, 2" (50.8 mm) Bore Depth,
One SM2RR Included
SM2 Lens Tube, 2" Bore Depth
Click to Enlarge
5
LCP33 LCP33/M 30 mm to 60 mm Cage Plate Adapter 30 mm to 60 mm Cage Plate Adapter
Click to Enlarge
3

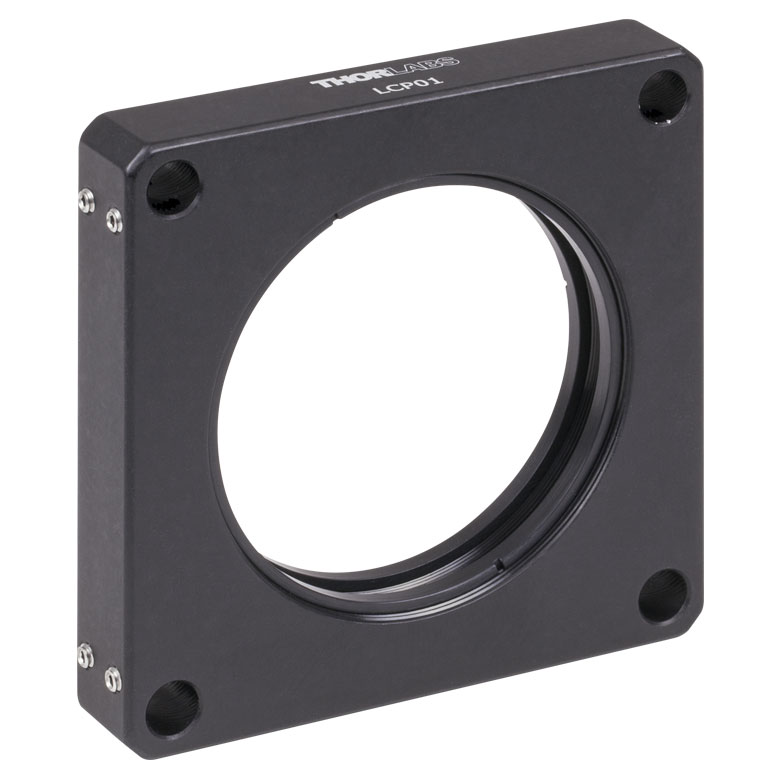

LCP01a LCP01/Mb SM2 Cage Plate, 60 mm, 2.035"-40 Threaded Aperture, 1/2" Thick SM2 Cage Plate, 60 mm, 1/2" Thick
Click to Enlarge
3
SM1ZA SM1 Series Z Translator SM1 Series Z Translator
Click to Enlarge
2
ST1XY-A ST1XY-A/M XY Translator with 100 TPI Adjusters XY Translator with 100 TPI Adjusters
Click to Enlarge
2

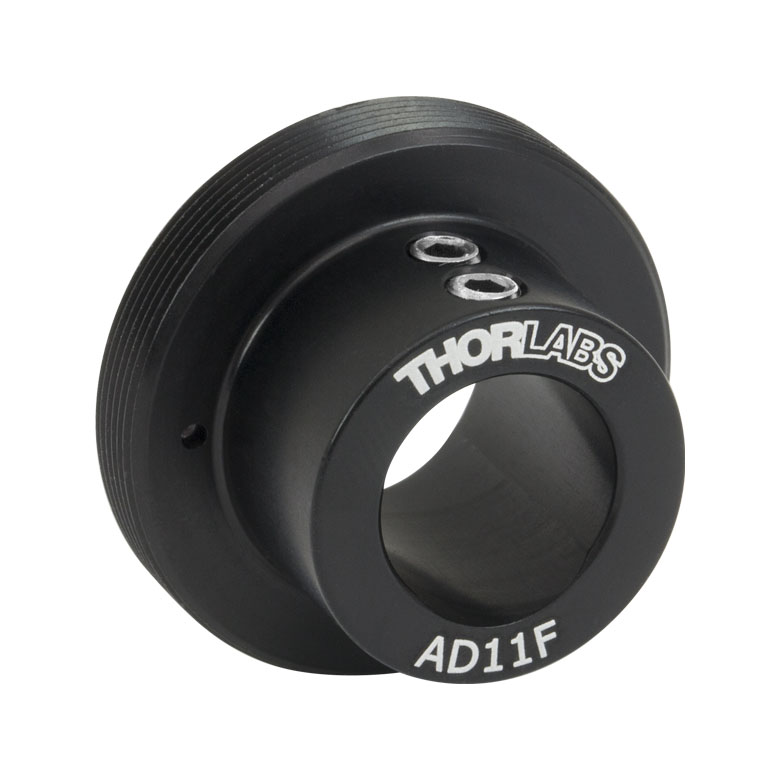

AD11F Adapter for Ø11 mm modules, F220, F230, F260 collimators
to SM1 thread
Adapter for Ø11 mm modules, F220, F230, F260 collimators to SM1 thread
Click to Enlarge
2

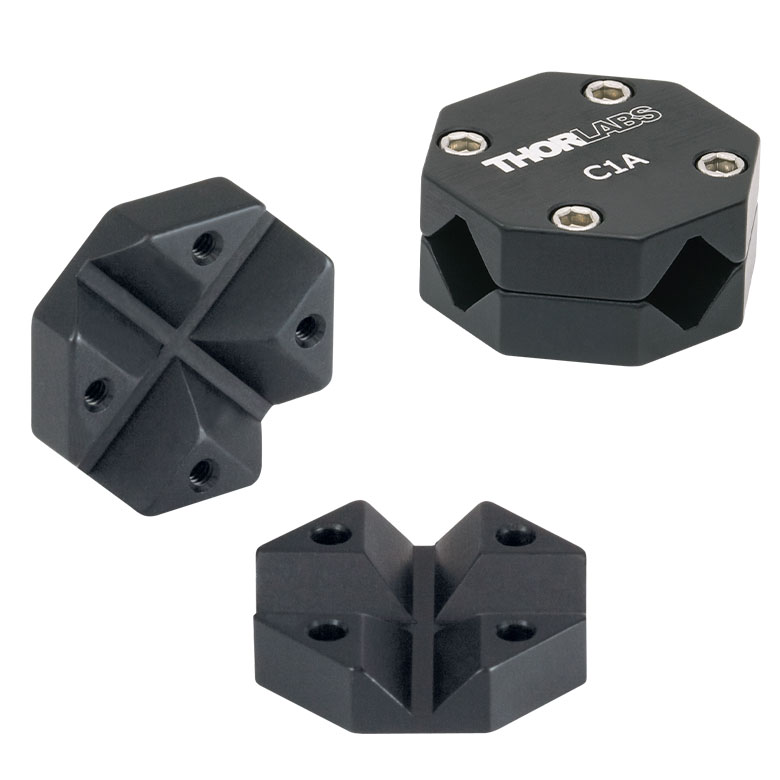

C1A Rod Cross Coupler, One Top and Bottom Pair Included Rod Cross Coupler
Click to Enlarge
4
C2A Set of 4 Swivel Couplers Set of 4 Swivel Couplers
Click to Enlarge
4

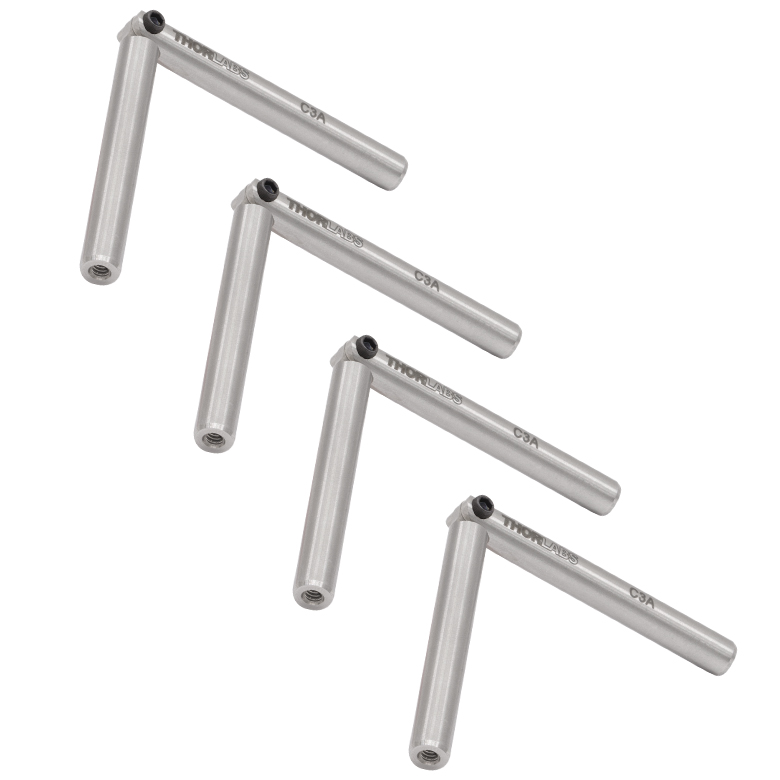

C3A Rod End Swivel Connector (Set of Four) Rod End Swivel Connector
Click to Enlarge
4

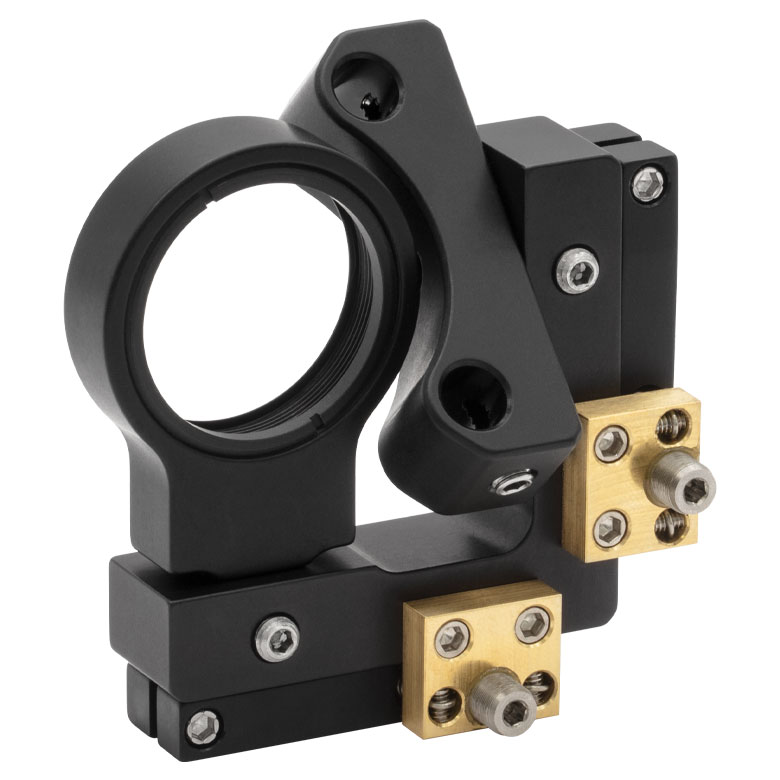

CRM1T CRM1T/M Cage Rotation Mount for 1" Optics, Manual Adjustment Cage Rotation Mount for 1" Optics, Manual Adjustment
Click to Enlarge
2

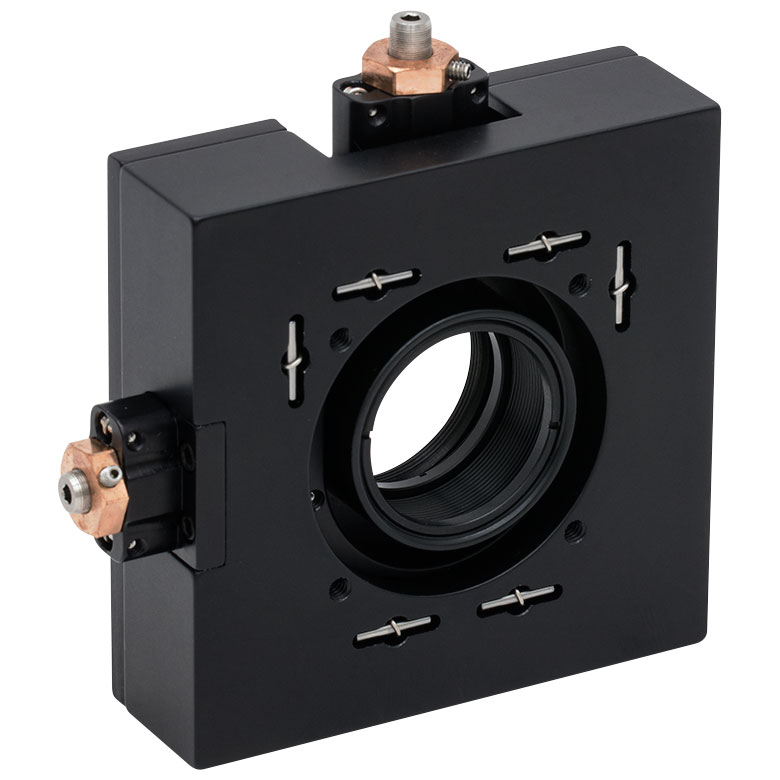

CXY1A 30 mm Cage Assembly, XY Translating Lens Mount for Ø1" Optics 30 mm Cage Assembly, XY Translating Lens Mount
Click to Enlarge
2

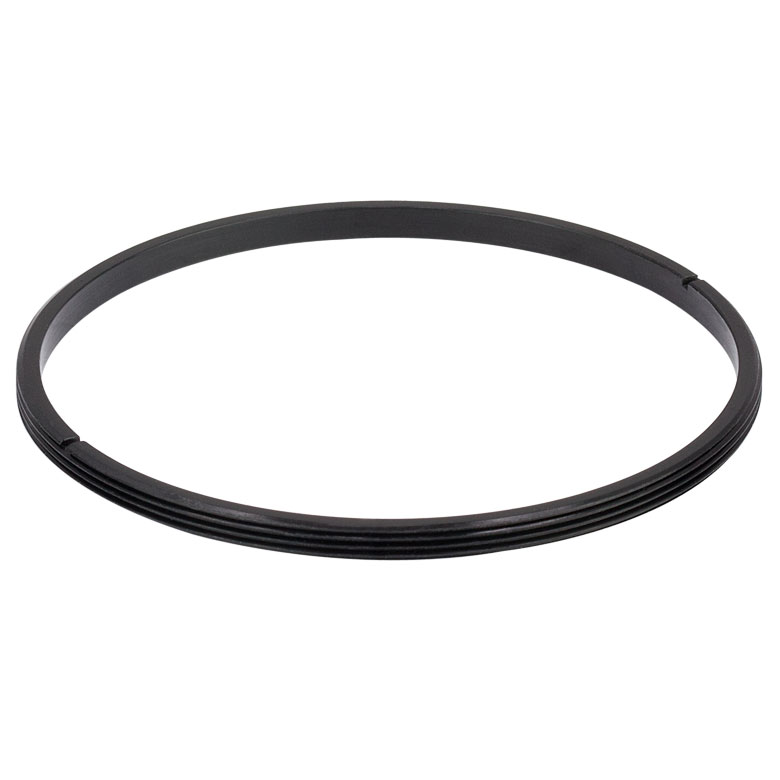

SM2RR Retaining Ring, SM2 (2.035"-40) Threaded x 0.10" (2.5 mm) Thick Retaining Ring, SM2 Threaded x 0.10"  Thick
Click to Enlarge
10

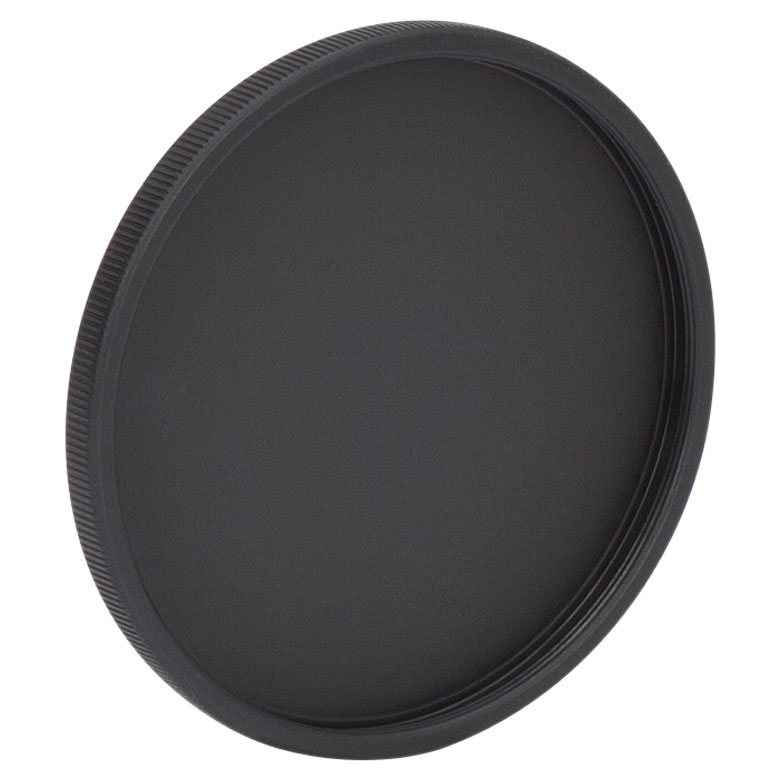

SM2CP1 SM2 (2.035"-40) Series End Cap, Internal Thread SM2 Series End Cap, Internal Thread
Click to Enlarge
2

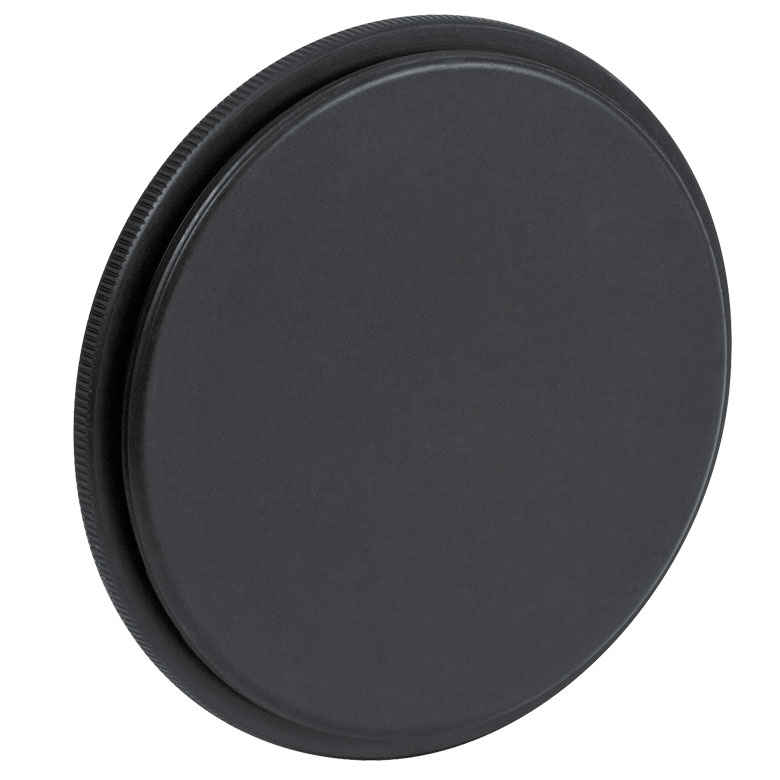

SM2CP2 SM2 (2.035"-40) Series End Cap, External Thread SM2 Series End Cap, External Thread
Click to Enlarge
2
KC45D1 Cage Assembly Turret Mount For Ø1" Optics Cage Assembly Turret Mount For Ø1" Optics
Click to Enlarge
2
SM1FC FC Fiber Adapter FC Fiber Adapter
Click to Enlarge
3
S1TM09 SM1 to M9 Aspheric Lens Cell Adapter SM1 to M9 Aspheric Lens Cell Adapter
Click to Enlarge
3
S1LDM9 SM1-Threaded Mount for Ø9 mm Laser Diodes SM1 Series 9 mm Laser Mount
Click to Enlarge
2
S1LM56 SM1-Threaded Mount for Ø5.6 mm Laser Diodes SM1 Series 9 mm Laser Mount
Click to Enlarge
2

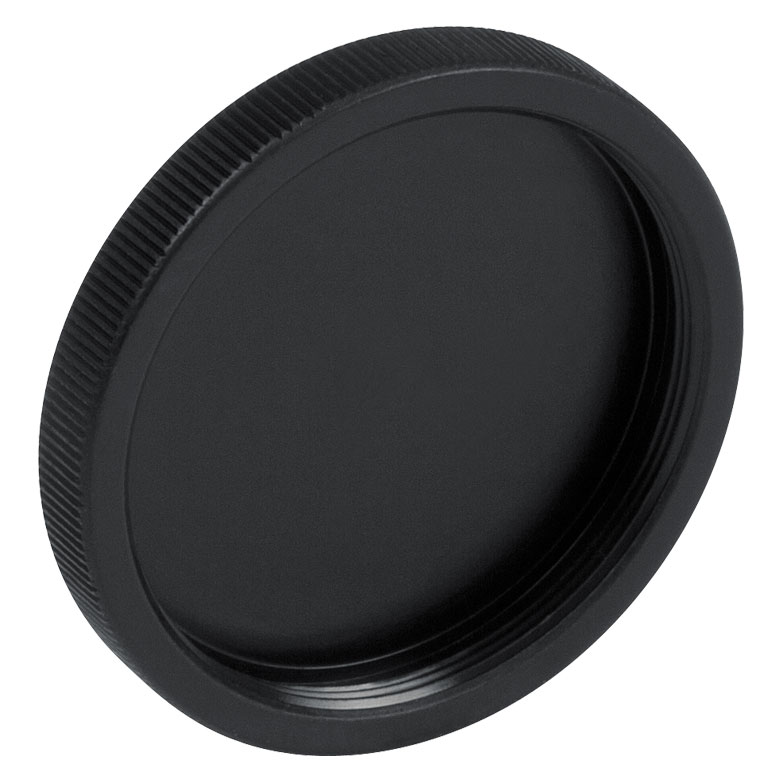

SM1CP1 End Cap Internal Threads, SM1 (1.035"-40) Series End Cap Internal Threads, SM1 Series
Click to Enlarge
3
SM1CP2 End Cap External Threads, SM1 (1.035"-40) Series End Cap External Threads, SM1 Series
Click to Enlarge
3
ST9 9-Drawer Cabinet 9 Drawer Stackable Cabinet
Click to Enlarge
1
  • This previous generation item is no longer available for individual sale. The LCP34 cage plate can be used if a replacement is needed.
  • This previous generation item is no longer available for individual sale. The LCP34/M cage plate can be used if a replacement is needed.

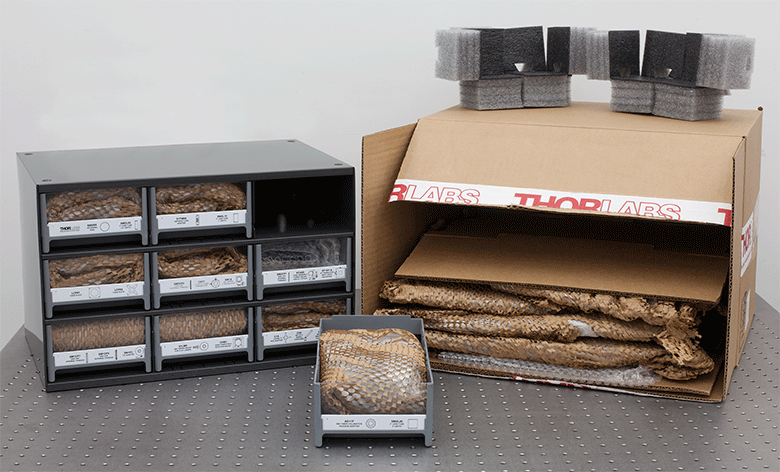

ESK07B SmartPack Packaging
Click to Enlarge

ESK07B Packaging

Smart Pack

Item # % Weight
Reduction
CO2-Equivalent
Reductiona
ESK07B 83.10% 23.78 kg

Smart Pack

  • Reduce Weight of Packaging Materials
  • Increase Usage of Recyclable Packing Materials
  • Improve Packing Integrity
  • Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at waste minimization while still maintaining adequate protection for our products. By eliminating any unnecessary packaging, implementing packaging design changes, and utilizing eco-friendly packaging materials for our customers when possible, this initiative seeks to improve the environmental impact of our product packaging. Products listed above are now shipped in re-engineered packaging that minimizes the weight and the use of non-recyclable materials.b As we move through our product line, we will indicate re-engineered packages with our Smart Pack logo.

  • Travel-based emissions reduction calculations are estimated based on the total weight reduction of packaging materials used for all of 2013’s product sales, traveling 1,000 miles on an airplane, to provide general understanding of the impact of packaging material reduction. Calculations were made using the EPA’s shipping emissions values for different modes of transport.
  • Some Smart Pack products may show a negative weight reduction percentage as the substitution of greener packaging materials, such as the Greenwrap, at times slightly increases the weight of the product packaging.
