Mechanical Essentials Kit: Ø1/2" Optic Mounts


  • Ø1/2" Optic Mounts Kit
  • Heavy-Duty, Welded Steel Cabinet Frame
  • Cabinet Frame Can Be Wall Mounted or Stacked
  • Equipped with Easy-to-Read Labels

ESK17

9 Drawers, 94 Pieces

KM05

x10

KM05CP

x5

KMSS

x5

MH12

x5

KM05FR

x5

KM05DR

x3

DMM05

x3

KS05

x4

KS05T

x4

CXYZ05A

x1

LM05XY

x3

KS05RS

x2

MK05

x5

RSP05

x2

PRM05

x2

FMP05

x5

TR05F90

x3

LMR05

x5

H45A

x2

SS8N013

x1 (10 Pack)

HKTS-5/64

x1 (4 Pack)

SPW603

x1

AP8E4E

x5

Related Items


Please Wait
Back Side of ESK Kit
Click to Enlarge

Slots on the rear of the case allow for wall mounting.

Features

  • Ø1/2" Optic Mounts Kit
  • Imperial and Metric Options
  • Drawer Dimensions (L x W x H): 10.89" x 5.50" x 3.15" (276.5 mm x 139.7 mm x 79.9 mm)
  • Cabinet Dimensions (L x W x H): 17.13" x 11.11" x 11.08" (435.0 mm x 282.3 mm x 281.3 mm)
  • Easy-to-Read Labels List Contents for Each Drawer
  • Savings Over Individual Component Products

This kit contains our most popular kinematic, fixed, translational, and rotational mounting components for Ø1/2" optics. Refer to the Contents tab for detailed information about the components included with the imperial and metric versions of the kit. We also offer the ESK18(/M) Ø1" Optic Mounts Kit, ESK19(/M) Ø2" Optic Mounts Kit, and ESK23(/M) Specialty Optic Mounts Kit. Complement these kits with our ESK01(/M) Bases and Post Holders and ESK16(/M) Posts and Accessories Essentials Kits.

Mounting Options
The kit can be stored on a tabletop for easy, convenient access or placed on an RK4101 or RK4102 rack shelf, both of which can be installed in our RK3884 standard 19" rack. The cabinet used in each Essential Series Kit features slots in the rear of the case (see the image to the right) for wall mounting and features indentations on the top and four feet on the bottom for stable stacking.

Please Note: This kit weighs approximately 18 lbs (8.2 kg); ensure that the wall and wall mounts can support this weight prior to mounting.

Kit Components

The ESK17 includes the listed components and an ST9 9-Drawer Cabinet.

Kinematic Mounts
Item # and Description Photo
(Click to
Enlarge)
Quantity
KM05 (KM05/M)
Kinematic Mirror Mount for Ø1/2" Optics, 8-32 (M4) Taps
1" Stainless Steel Post
10
MH12
Mirror Holder for Ø1/2" Optics
2" Stainless Steel Post
5
KMSS (KMSS/M)
Compact Kinematic Mirror Mount, Hex Adjuster, 8-32 (M4) Taps for Post Mounting
2" Stainless Steel Post
5

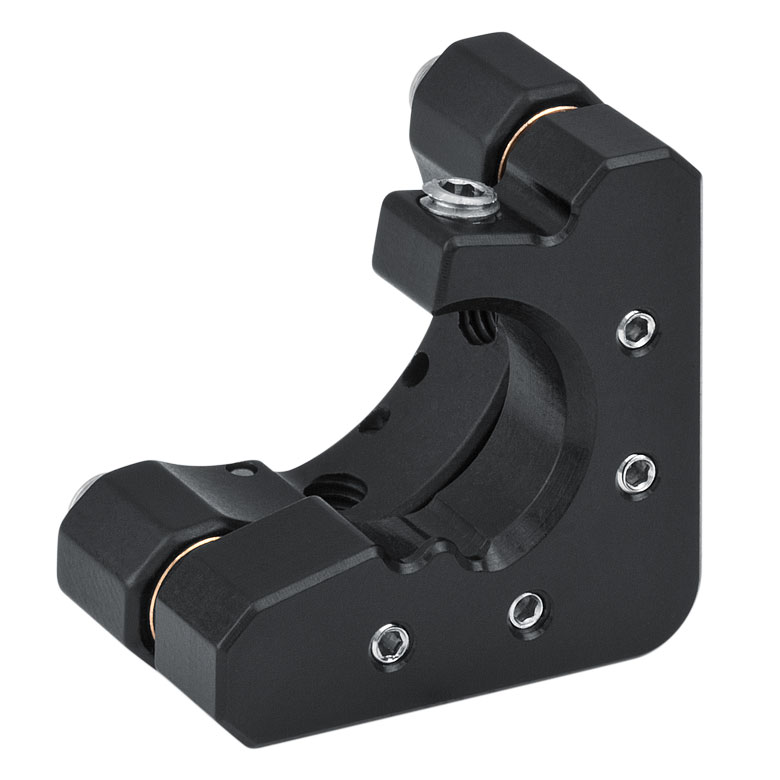

KM05FR (KM05FR/M)
Rear-Loaded Right-Handed Clear-Quadrant Mirror Mount
2" Stainless Steel Post
5
MK05 (MK05/M)
Mini-Series Kinematic Mirror Mount for Ø1/2" Optics, 4-40 (M3) Taps
2" Stainless Steel Post
5
KM05DR (KM05DR/M)
Right-Handed Kinematic Mount for Ø1/2" D-Shaped Mirrors, 8-32 (M4) Taps
3" Stainless Steel Post
3
KM05CP (KM05CP/M)
Kinematic Mirror Mount for Ø1/2" Optics with Post-Centered Front Plate, 8-32 (M4) Taps
4" Stainless Steel Post
5

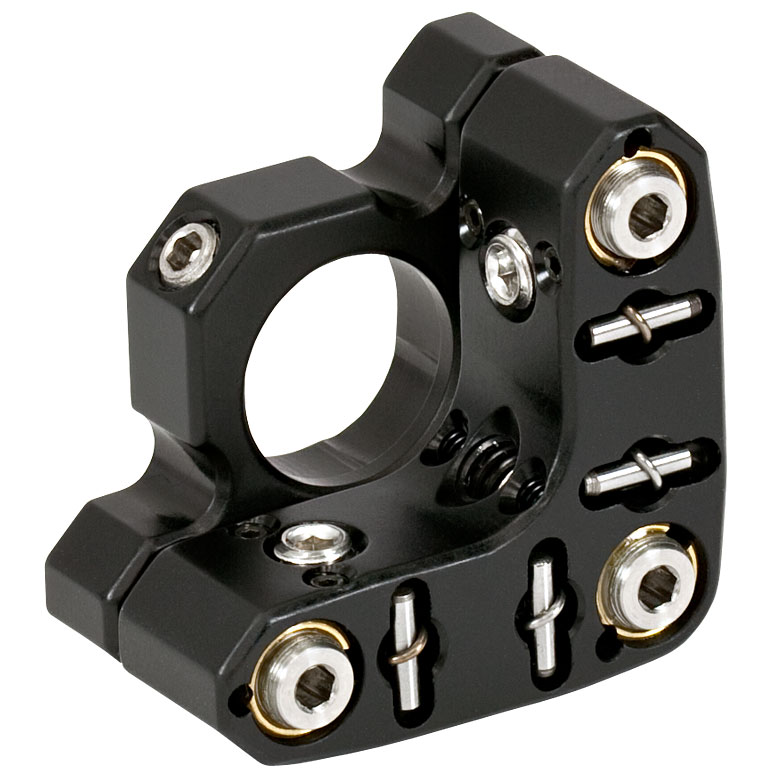

KS05 (KS05/M)
Ø1/2" Precision Kinematic Mirror Mount, 3 Adjusters, 8-32 (M4) Taps
6" Stainless Steel Post
4

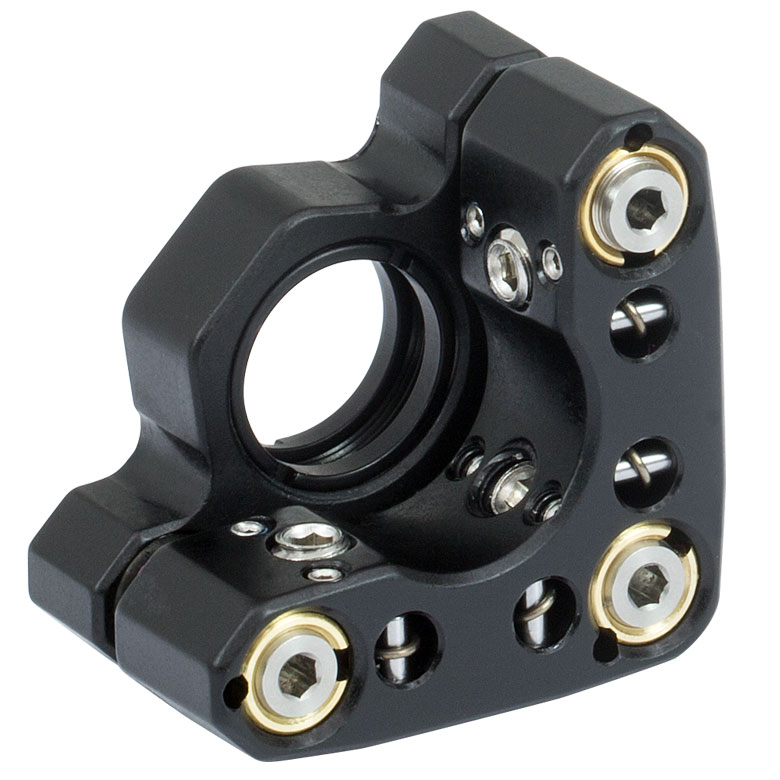

KS05T (KS05T/M)
SM05-Threaded Precision Kinematic Mirror Mount for Ø1/2" Optics, 3 Adjusters, 8-32 (M4) Taps
8" Stainless Steel Post
4
Fixed Mounts
Item # and Description Photo
(Click to
Enlarge)
Quantity
LMR05 (LMR05/M)
Lens Mount with Retaining Ring for Ø1/2" Optics, 8-32 (M4) Tap
1" Stainless Steel Post
5
FMP05 (FMP05/M)
Fixed Ø1/2" Mirror Mount, 8-32 (M4) Tap
1" Stainless Steel Post
5
H45A
45° Mirror Mount for Ø1/2" Optics
1" Stainless Steel Post
2
TR05F90 (TR05F90/M)
90° Flip Mount for Ø1/2" Filters and Optics, 8-32 (M4) Tap
2" Stainless Steel Post
3
DMM05 (DMM05/M)
Fixed Mount for Ø1/2" D-Shaped Mirrors
R2
3
Rotation and Translation Mounts
Item # and Description Photo
(Click to
Enlarge)
Quantity
KS05RS
Kinematic Rotation Mount for Ø1/2" Optics
1" Stainless Steel Post
2
PRM05 (PRM05/M)
High-Precision Rotation Mount for Ø1/2" (12.5 mm) Optics
R2
2
CXYZ05A (CXYZ05A/M)
XYZ Translation Mount for Ø1/2" Optics, 8-32 (M4) Taps
1" Stainless Steel Post
1
RSP05 (RSP05/M)
Rotation Mount for Ø1/2" (Ø12.7 mm) Optics, 8-32 (M4) Tap
1" Stainless Steel Post
2

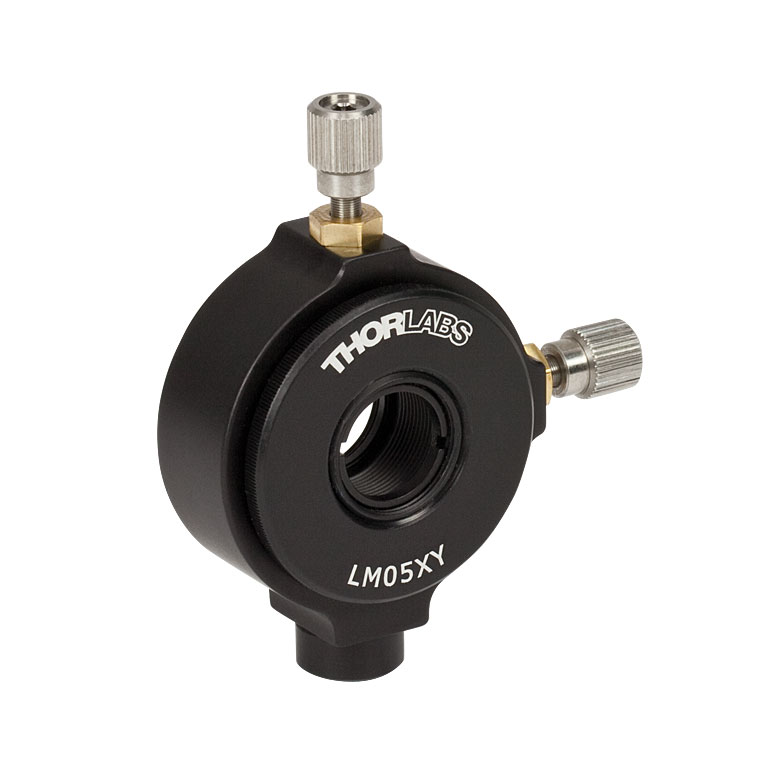

LM05XY (LM05XY/M)
Translating Lens Mount for Ø1/2" Optics, 1 Retaining Ring Included, 8-32 (M4) Tap
1" Stainless Steel Post
3
Accessories
Item # and Description Photo
(Click to
Enlarge)
Quantity
SS8N013
8-32 Stainless Steel Nylon-Tipped Setscrew, 1/8" Long, Pack of 10
1" Stainless Steel Post
1
HKTS-5/64
5/64" (2 mm) Hex Key Thumbscrew, Pack of 4
1" Stainless Steel Post
1
SPW603
Spanner Wrench for SM05-Threaded Retaining Rings, Length = 1.00"
1" Stainless Steel Post
1
AP8E4E (AP4M3M)
Adapter with External 8-32 (M4) Threads and External 4-40 (M3) Threads
1" Stainless Steel Post
5
