Polaris® Low Drift Kinematic Platform Mount


  • Nine 8-32 (M4) Tapped Holes for Securely Mounting Components
  • Matched Actuator Threading Minimizes Drift and Backlash
  • Heat Treating Minimizes Temperature-Dependent Hysteresis
  • Sapphire Seats Ensure Long-Term Stability

Application Idea

Polaris Platform Mount Shown with Stainless Steel Clamping Arm to Mount 1" Cube Beamsplitter





POLARIS-K1M4

Kinematic Platform Mount

Matched Actuator and Body Pairs

8-32 (M4) Mounting Taps

Sapphire Seats on All Adjusters

Heat-Treated Stainless Steel

Related Items


Please Wait

Mounts for OEMs

Thorlabs' Polaris Platform Mount was designed to meet the needs of OEM customers. To that end, we are equipped to manufacture these mounts in high volumes and with timed delivery. Additionally, we can design and manufacture modified versions of these mounts that have different tapped mounting holes, clearance holes or platform sizes. For example, we have produced similar platform mounts with a 2" x 2" platform size and a different 8-32 hole pattern. To find out more about our OEM capabilities, please contact Tech Support.

Features

  • Machined from Heat-Treated Stainless Steel with Low Coefficient of Thermal Expansion (CTE)
  • Mounting Platform with #8 (M4) Through Hole and Array of 8-32 (M4) Tapped Holes
  • Hardened Stainless Steel Ball Contacts with Sapphire Seats for Durability and Smooth Movement
  • Matched Actuator and Back Plate Provide Smooth Kinematic Adjustment
  • Extensive Testing Guarantees <2 μrad Deviation after 12.5 °C Temperature Cycling (See Test Data Tab for Details)
  • Passivated Stainless Steel Surface Ideal for Vacuum and High-Power Laser Cavity Applications
  • Custom Mounting Hole Patterns and Platform Sizes Available by Contacting Tech Support

The Polaris® Kinematic Platform Mount is the ultimate solution for applications requiring stringent long-term alignment stability. The platform surface features an array of nine 8-32 (M4) tapped holes and one #8 (M4) clearance hole for mounting optomechanical components. Alignment pin holes, located on either side of the clearance hole and two of the taps, allow for precise alignment of components mounted to the surface of the platform.

Design
Machined from heat-treated stainless steel, Polaris mounts utilize precision-matched adjusters with ball contacts and sapphire seats to provide smooth kinematic adjustment. As shown on the Test Data tab, the kinematic platform mount has undergone extensive testing to ensure high-quality performance. The Polaris design addresses all of the common causes of beam misalignment; please refer to the Design Features tab for detailed information.

Post Mounting
Polaris mirror mounts are equipped with #8 (M4) counterbores for post mounting. Select mounts also include Ø2 mm alignment pin holes around the mounting counterbore, allowing for precision alignments when paired with our Ø1" Posts for Polaris Mirror Mounts. See the Usage Tips tab for more recommendations about mounting configurations.

Cleanroom and Vacuum Compatibility
The Polaris kinematic platform mount is designed to be compatible with cleanroom and vacuum chamber applications. See the Specs tab and the Design Features tab for details.


Click to Enlarge

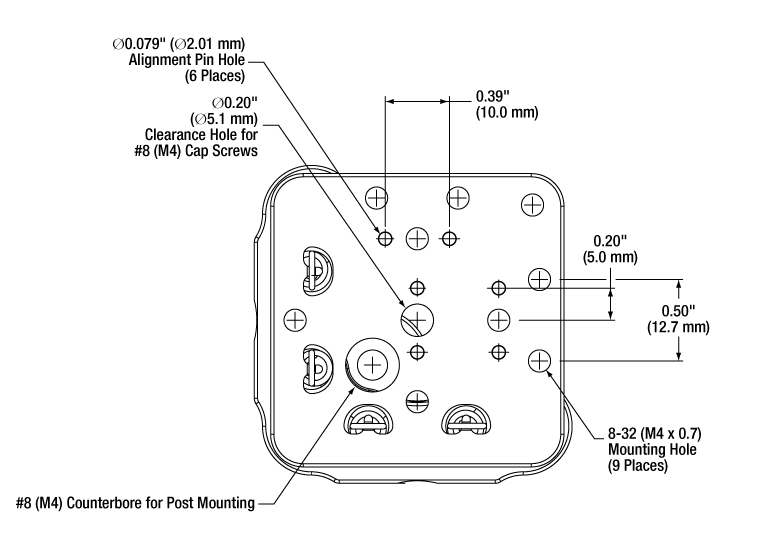

POLARIS-K1M4 Top Plate
Item # POLARIS-K1M4(/M)
Number of Adjusters Two
Adjuster Drive 5/64" Hex with Removable Knobs and
Ø0.07" Side Adjustment Holes
Adjuster Pitch 100 TPI Matched Actuator/Body Pairs
Measured Adjuster Lock Mechanical
Resolution per Adjustera
5 µrad (Typical); 2 µrad (Achievable)
Measured Point-to-Point  Mechanical
Resolution per Adjuster (Bidirectional Repeatability)
5 µrad (Typical); 2 µrad (Achievable)
Resolutionb ~7.7 mrad/rev
Mounting Holes on Mounting Platform Nine 8-32 (M4) Tapped Holes
Ø0.20" (Ø5.1 mm) Clearance Hole for #8 (M4) Cap Screws
Mechanical Angular Range (Nominal) ±4°
Beam Deviationc After Thermal Cycling <2 µrad
Maximum Front Plate Load Capacity
(Torque / Weight / Mass)
Horizontal Platform: 5.0 lb-in (0.56 N-m) / 6.50 lb / 2.95 kg
Vertical Platform: 3.5 lb-in (0.40 N-m) / 4.25 lb / 1.59 kg
Post Mountingd Vertical Mounting: Two #8 (M4) Counterbores
Horizontal Mounting: One #8 (M4) Counterbore
Alignment Pin Holese Two at Select Platform Mounting Holes (See Drawing to the Right)
Two at Each Post Mounting Counterbore
Vacuum Compatibilityf 10-9 Torr at 25 °C with Proper Bake Out;
10-5 Torr at 25 °C without Bake Out
Grease Vapor Pressure: 10-13 Torr at 20 °C ,10-5 Torr at 200 °C
Epoxy Meets Low Outgassing Standards
NASA ASTM E595,Telcordia GR-1221
Operating Temperature Range -30 to 200 °C
  • This is the measured beam drift when the POLARIS-LN1 Lock Nut is tightened while the adjuster is being counter held.
  • When the front plate is parallel to the back plate.
  • After 12.5 °C temperature cycle, the beam returns to within 2 µrad of its original position for a POLARIS-B1G fixed mount attached to this kinematic platform mount, which is then mounted on a Ø1" Polaris post that is clamped in place using a POLARIS-CA1 Clamping Arm.
  • The Kinematic Platform Mounts come with standard 8-32 and M4 cap screws for post mounting.
  • Standard Ø2 mm DIN 7-m6 ground dowel pins are recommended. The recommended tolerance for the location of the mating dowel pin holes and threaded mounting hole is ±0.003".
  • These mounts are vacuum compatible, assembled in a clean environment, chemically cleaned using the Carpenter AAA passivation method to remove sulfur, iron, and contaminants from the surface, and double vacuum bagged. The 8-32 and M4 cap screws included with the Polaris mounts are not rated for pressures below 10-5 Torr. Prior to placing any components in a sensitive vacuum system, a thorough pre-baking in a bake-out oven should be performed to remove all moisture and surface volatiles. Contact techsupport@thorlabs.com for details.

Polaris® Kinematic Mounts Test Data

The Polaris Platform Mounts have undergone extensive testing to ensure high-quality performance. A POLARIS-B1G fixed mount with a mirror glued in was attached to the POLARIS-K1M4 platform mount. This assembly was then mounted to a Ø1" stainless steel post, and then secured to a stainless steel optical table in a temperature-controlled environment. A beam from an independently temperature-stabilized laser diode was reflected by the mirror onto a position sensing detector

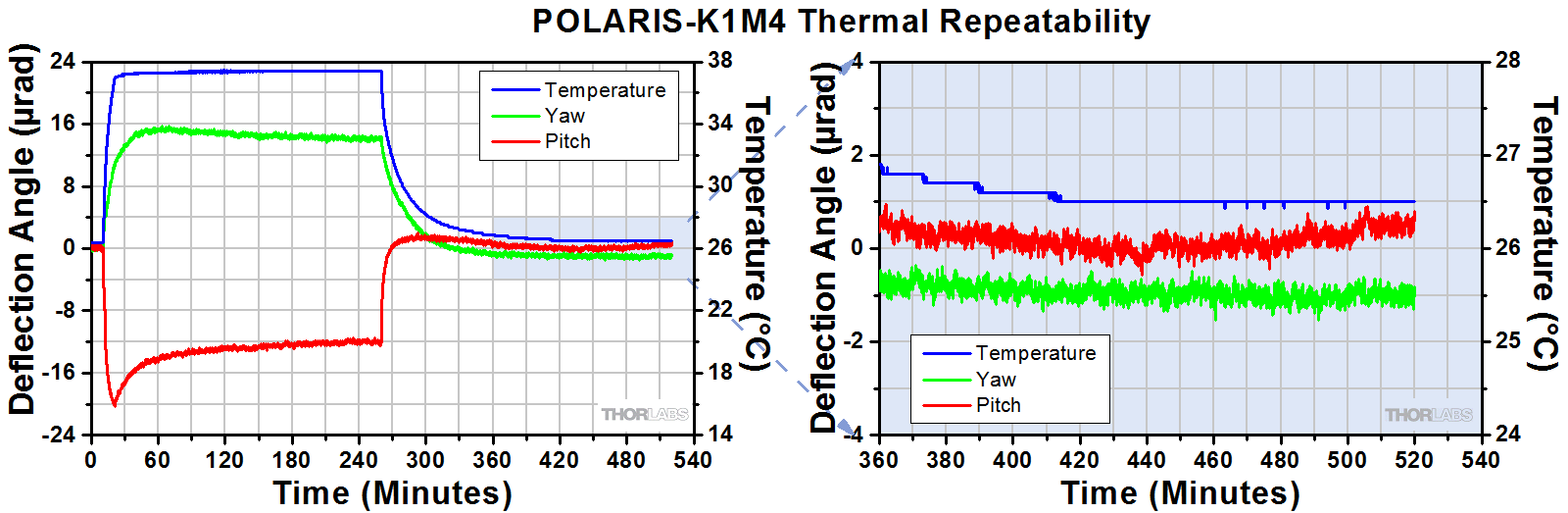

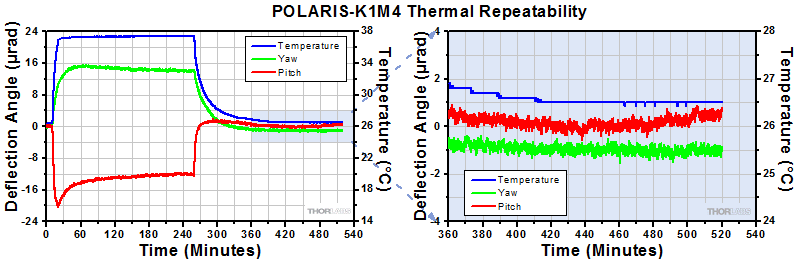

Positional Repeatability After Thermal Shock

Purpose: This testing was done to determine how reliably the mount returns the optic, without hysteresis, to its initial position. These measurements show that the alignment of the optical system is unaffected by the temperature shock.

Procedure: The temperature of each mount tested was raised to 37.5 °C and maintained for a given soak time. Then the temperature of the mirror mount was returned to the starting temperature. The results of these tests are shown below.

Results: As can be seen in the plots below, when the Polaris mounts were returned to their initial temperature, the angular position (both pitch and yaw) of the optics returned to within 2 µrad of its initial position. The performance of the Polaris was tested further by subjecting the mount to repeated temperature change cycles. After each cycle, the mirror’s position reliably returned to within 2 µrad of its initial position.

For Comparison: To get a 1 µrad change in the mount’s position, the 100 TPI adjuster on the Ø1" Polaris mounts needs to be rotated by only 0.05° (1/7200 of a turn). A highly skilled operator might be able to make an adjustment as small as 0.3° (1/1200 of a turn), which corresponds to 6 µrad.

Conclusions: The Polaris Mirror Mounts are high-quality, ultra-stable mounts that will reliably return a mirror to its original position after cycling through a temperature change. As a result, the Polaris mounts are ideal for use in applications that require long-term alignment stability.

Several common factors typically lead to beam misalignment in an optical setup. These include temperature-induced hysteresis of the optic's position, crosstalk, drift, and backlash. Polaris mounts are designed specifically to minimize these misalignment factors and thus provide extremely stable performance. Hours of extensive research, multiple design efforts using sophisticated design tools such as finite element analysis software, and months of rigorous testing went into choosing the best components to provide an ideal solution for experiments requiring ultra-stable performance from a kinematic mount.

Thermal Hysteresis
The temperature in most labs is not constant due to factors such as air conditioning, the number of people in the room, and the operating states of equipment. Thus, it is necessary that all mounts used in an alignment-sensitive optical setup be designed to minimize any thermally induced alignment effects. Thermal effects can be minimized by choosing materials with a low coefficient of thermal expansion (CTE), like stainless steel. However, even mounts made from a material with a low CTE do not typically return the optic to its initial position when the initial temperature is restored. All the critical components of the Polaris mounts are heat-treated prior to assembly since this process removes internal stresses that can cause a temperature-dependent hysteresis. As a result, the alignment of the optical system will be restored when the temperature of the mount is returned to the initial temperature.

Crosstalk
Crosstalk is minimized by carefully controlling the dimensional tolerances of the front and back plates of the mount so that the pitch and yaw actuators are orthogonal. In addition, sapphire seats are used at all three contact points. Standard metal-to-metal actuator contact points will wear down over time. The polished sapphire seats of the Polaris mounts, in conjunction with the hardened stainless steel actuator tips, maintain the integrity of the contact surfaces over time.

Drift and Backlash
In order to minimize the positional drift of the mount and backlash, it is necessary to limit the amount of play in the adjuster as well as the amount of lubricant used. When an adjustment is made to the actuator, the lubricant will be squeezed out of some spaces and built up in others. This non-equilibrium distribution of lubricant will slowly relax back into an equilibrium state. However, in doing so, this may cause the position of the front plate of the mount to move. The Polaris mounts use adjusters matched to the body that exceed all industry standards so that very little adjuster lubricant is needed. These adjusters have a smooth feel that allows the user to make small, repeatable adjustments.

Cleanroom and Vacuum Compatibility
The Polaris mounts sold on this page are designed to be compatible with cleanroom and vacuum chamber applications. They are chemically cleaned using the Carpenter AAA passivation method to remove sulfur, iron, and contaminants from the surface. After passivation, they are assembled in a clean environment and double vacuum bagged to eliminate contamination when transported into a cleanroom.

The sapphire contacts are bonded into place using a NASA-approved low outgassing procedure. In addition, DuPont Krytox® LVP High-Vacuum Grease, an ultra-high-vacuum-compatible, low outgassing PTFE grease, is applied to the adjusters. The 8-32 and M4 cap screws included with the Polaris mounts are not rated for pressures below 10-5 Torr.

Through thermal changes and vibrations, the Polaris kinematic mirror mounts are designed to provide years of use. Below are some usage tips to ensure that the mount provides optimal performance.

Match Materials
Due to its relatively low coefficient of thermal expansion, stainless steel was chosen as the material from which to fabricate the front and back plates of the Polaris mounts. When mounting, we recommend using components fabricated from the same material, such as our Ø1" Posts for Polaris Mirror Mounts and Polaris Clamping Arm.

Use a Wide Post
The Polaris' performance is optimized for use with our imperial or metric Ø1" Posts and our POLARIS-CA1 or POLARIS-CA25/M clamping arm. These posts are made of stainless steel and provide two lines of contact with the mount, which help confine the bottom of the mount during variations in the surrounding temperature, thereby minimizing potential alignment issues.

Front Plate’s Position
Polaris mounts are designed to allow adjustments of up to 8°. To achieve the best performance, it is recommended that the front plate be kept as parallel as possible to the back plate. This ensures the highest stability of the adjustments.

Mount as Close to the Table’s Surface as Possible
To minimize the impact of vibrations and temperature changes, it is recommended that your setup has as low of a profile as possible. Using short posts will reduce the Y-axis translation caused by temperature variations and will minimize any movements caused by vibrations. In the vertical orientation, the Polaris platform mount can be mounted directly onto a flat surface such as a breadboard using a 8-32 to 1/4"-20 thread adapter (Item # AE8E25E) or M4 x 0.7 to M6 x 1.0 adapter (Item # AE4M6M); the platform cannot be mounted directly to the table horizontally. Using this mounting method, the instability introduced by a post will be eliminated.

Lock nut installation demonstrated with the POLARIS-LN1 lock nut on one of our low-distortion Polaris mounts. To install a lock nut without cross threading, gently place the lock nut against the end of the adjuster. "Unscrew" the nut until the threads of the nut and the adjuster align; then thread the nut onto the adjuster.

Polish and Clean the Points of Contact
We highly recommend that the points of contact between the mount and the post, as well as the post and the table, are clean and free of scratches or defects. For best results, we recommend using a polishing stone to clean the table’s surface and a polishing pad (Item # LFG1P) for the top and bottom of the post as well as the bottom of the mount.

Not Recommended
We do not recommend taking the adjusters out of the body, as it can contaminate the threading. This can reduce the fine adjustment performance significantly. Also, do not pull the front plate away as it might stretch the springs beyond their operating range or crack the sapphire seats.

Adjuster Lock Nuts
The Polaris mounts below are compatible with the POLARIS-LN1 lock nuts for long-term stability or applications that are exposed to shock and vibration. The beam can be held on target with the adjuster thumbscrew or hex key while lightly tightening the lock nut by hand or with a thin-head wrench or cone wrench. For applications that require frequent tuning of the adjusters, the lock nuts only need to be lightly tightened by hand to a torque of approximately 4 to 8 oz-in (0.03 to 0.06 N·m). For long term stability, we recommend tightening to a torque of 32 oz-in, which can be achieved by using our TW13 preset torque wrench (sold below). The POLARIS-LN1 lock nuts have a 13 mm hex.

To avoid cross threading the POLARIS-LN1 during installation, place it against the adjuster and "unscrew" the lock nut until you feel a slight drop, then thread the lock nut onto the adjuster (see the animation to the right). Each lock nut is pre-greased with the same ultra-high-vacuum-compatible, low-outgassing PTFE grease as the Polaris mounts and has been tested for adjuster fit.


Posted Comments:
No Comments Posted
Polaris Mount Optic Retention Methods (Click Image to Enlarge)
Side Lock SM Threaded Low Distortion Glue In
Polaris Mount Adjuster Types (Click Image for Details)
Side Hole Hex Adjuster Knobs Adjuster
Lock Nuts
Piezo Adjusters

Thorlabs offers several different general varieties of Polaris mounts, including kinematic side optic retention, SM-threaded, low optic distortion, piezo-actuated, and glue-in optic mounts, as well as a fixed monolithic mirror mount and fixed optic mounts. Click to expand the tables below and see our complete line of Polaris mounts, listed by optic bore size, and then arranged by optic retention method and adjuster type. We also offer a line of accessories that have been specifically designed for use with our Polaris mounts; these are listed in the table immediately below.

If your application requires a mirror mount design that is not available below, please contact Tech Support.

Polaris Mounts for Ø1/2" Optics

Polaris Mounts for Ø19 mm (3/4") Optics

Polaris Mounts for Ø25 mm Optics

Polaris Mounts for Ø1" Optics

Polaris Mounts for Ø1.5" Optics

Polaris Mounts for Ø50 mm Optics

Polaris Mounts for Ø2" Optics

Polaris Mounts for Ø3" Optics

Polaris Kinematic Platform Mount

Polaris Kinematic Platform Mount


Click to Enlarge

Methods of Adjusting the Polaris Platform Mount:
A: 5/64" or 2.0 mm Hex Key in the End of the Adjuster
B: 1/16" or 1.5 mm Balldriver Through Adjuster Side Holes
C: HKTS-5/64 Hex Knobs in the Adjuster
D: Hex Knobs with Side Hole Fine Adjustment
  • 2-Adjuster, Hex-Driven Design
  • 100 TPI Matched Actuator/Body Pairs
  • ±4° Mechanical Angular Range
  • ~7.7 mrad/rev Resolution
  • <2 µrad Deviation after Temperature Cycling (See the Test Data Tab for Details)

The Polaris Kinematic Platform Mount provides a flat mounting surface with high-resolution angular adjustment. The mounting surface features an array of nine 8-32 (M4) tapped holes and one #8 (M4) clearance hole for mounting threaded components. The clearance hole and two of the tapped holes each include two alignment pin holes, which allow the user to precisely align components mounted on these holes using dowel pins. Standard Ø2 mm DIN 7-m6 ground dowel pins are recommended.

The POLARIS-K1M4(/M) includes two removable Ø0.60" adjuster knobs. The adjusters can be driven by a 5/64" (2 mm) hex key or the HKTS-5/64 hex key thumbscrew (sold below), and can be locked using our POLARIS-LN1 Lock Nuts (also sold below); see the image to the right for examples of adjustment methods. For applications that require frequent tuning of the adjusters, the lock nuts only need to be lightly tightened to a torque of approximately 4 to 8 oz-in (0.03 to 0.06 N·m). For long term stability, we recommend tightening to a torque of 32 oz-in, which can be achieved by using our TW13 preset torque wrench (sold below).

The platform mount can be mounted horizontally on a post using the #8 (M4) counterbore on the back plate of the mount. A clearance hole is provided on the top of the mount for a #8 (M4) cap screw. The platform mount can also be oriented vertically on a post using either of the two #8 (M4) counterbores on the sides of the back plate. Each of these holes for post-mounting includes two alignment pin holes for precise alignment in the larger optical assembly. Standard Ø2 mm DIN 7-m6 ground dowel pins are recommended. We recommend using this mount with a stainless steel post, such as our Ø1" Posts for Polaris Mirror Mounts.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
POLARIS-K1M4 Support Documentation
POLARIS-K1M4Customer Inspired! Polaris Kinematic Platform Mount, 2 Adjusters, 8-32 Mounting Holes
$248.89
Today
+1 Qty Docs Part Number - Metric Price Available
POLARIS-K1M4/M Support Documentation
POLARIS-K1M4/MCustomer Inspired! Polaris Kinematic Platform Mount, 2 Adjusters, M4 Mounting Holes
$248.89
Today

Stainless Steel Adjustable Clamping Arm


Click to Enlarge

View Imperial Product List
Item #QtyDescription
POLARIS-K1M41Polaris Kinematic Platform Mount, 2 Adjusters, 8-32 Mounting Holes
PM51Stainless Steel Adjustable Clamping Arm, 8-32 Threaded Post
PBS25111" Polarizing Beamsplitter Cube, 420 - 680 nm
PLS-P11Ø1" Post for Polaris Mirror Mounts, One 8-32 Tap, L = 1.00"
POLARIS-CA11Flexure Clamping Arm for Ø1" Posts, Non-Bridging, Stainless Steel, 1/4"-20 Clamping Screw
View Metric Product List
Item #QtyDescription
POLARIS-K1M4/M1Polaris Kinematic Platform Mount, 2 Adjusters, M4 Mounting Holes
PM5/M1Stainless Steel Adjustable Clamping Arm, M4 Threaded Post
PBS25111" Polarizing Beamsplitter Cube, 420 - 680 nm
PLS-P246/M1Ø25 mm Post for Polaris Mirror Mounts, One M4 Tap, L = 24.6 mm
POLARIS-CA25/M1Flexure Clamping Arm for Ø25 mm Posts, Non-Bridging, Stainless Steel, M6 Clamping Screw
1" Cube Beamsplitter Mounted on a Polaris Kinematic Platform Mount with a Stainless Steel Clamping Arm

Click for Details

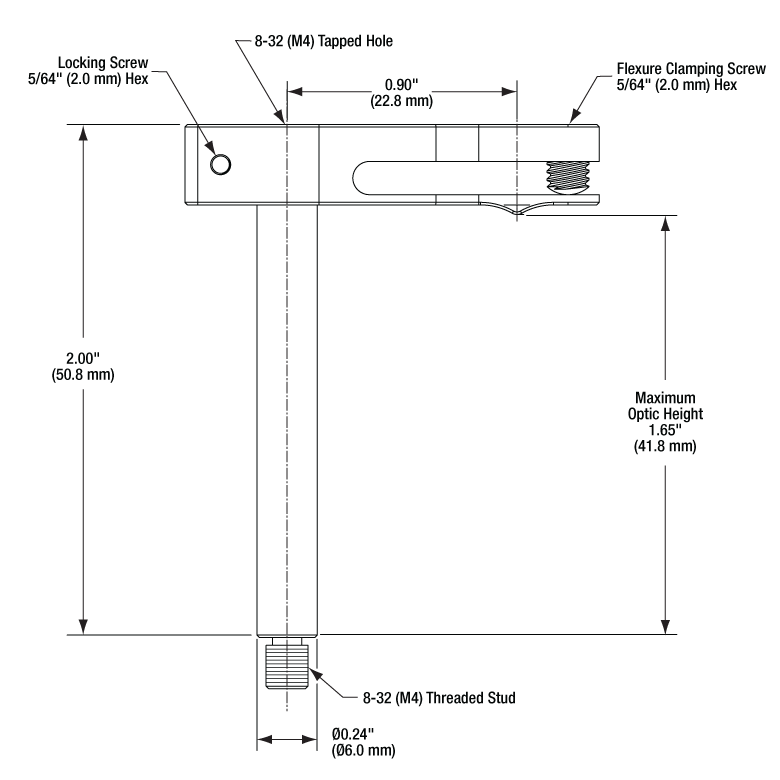

PM5 Mechanical Drawing
  • Provides Clamping Force for Our Platform Mounts
  • 8-32 (M4) Threads on Top and Bottom of Post
  • Holds Optics up to 1.65" (41.8 mm) Tall
  • Made from Heat-Treated Stainless Steel with Low Coefficient of Thermal Expansion (CTE)

The PM5(/M) Clamping Arm is designed to hold optics on the Polaris kinematic platform mount and Thorlabs' other platform mounts. The arm has an adjustable height and uses a flexure design to secure the optic. The locking screws for both adjusting the height and securing the optic can be tightened or loosened with a 5/64" (2.0 mm) hex key. The post features an 8-32 (M4) threaded stud on the bottom and an 8-32 (M4) internal thread on the top.

The all-stainless-steel design minimizes temperature-dependent hysteresis in environments with large thermal fluctuations, ensuring stable, long-term performance. The clamping arm is chemically cleaned using the Carpenter AAA passivation method to remove sulfur, iron, and contaminants from the surface. Unlike the POLARIS-K1M4(/M) sold above, the clamping arm is not assembled in a clean environment or double vacuum bagged; the user must clean the clamping arm to remove any dust or grease from the surface if it will be used in a clean environment.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
PM5 Support Documentation
PM5Stainless Steel Adjustable Clamping Arm, 8-32 Threaded Post
$60.47
Today
+1 Qty Docs Part Number - Metric Price Available
PM5/M Support Documentation
PM5/MStainless Steel Adjustable Clamping Arm, M4 Threaded Post
$60.47
Today

5/64" Hex Key Adjusters

POLARIS-K12AH with HKTS-5/64 Adjuster
Click for Details

POLARIS-K1-2AH with HKTS-5/64 Adjuster
  • For Convenient Adjustment of 5/64" and 2 mm Hex-Driven Actuators
  • Red Anodized Adjustment Knob with Engraved Hex Size
  • Replaceable Hex Tip
  • Sold in Packages of 4

These 5/64" Hex Key Adjuster Thumbscrews allow for quick adjustment of many 5/64" and 2 mm hex-driven actuators (or standard actuators with the knobs removed). These temporary knobs can be left in the screw's hex socket between adjustments for convenience (see photo to the right). An 8-32 setscrew (5/64" hex) secures the replaceable hex bit, which can be reversed if the tip is stripped. Contact Tech Support to order replacement hex key bits.

We offer hex key thumbscrews in sizes from 0.050" to 3/16" and 2 mm to 5 mm.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
HKTS-5/64 Support Documentation
HKTS-5/64Customer Inspired! 5/64" (2 mm) Hex Key Thumbscrew, 4 Pack
$25.13
Today

1/4"-100 Large Adjustment Knob

Large Polaris Knob
Click to Enlarge

The F25USK2 Knob is Compatible with our Polaris Mounts
  • Ø0.925" Knob for Additional Angular Resolution
  • Clearance Hole Allows Access to Hex Socket of the Adjuster

This removable adjustment knob is compatible with many of our 1/4"-100 adjusters, including those used in the Ø1" and Ø2" Polaris Kinematic Mounts and our Polaris Kinematic Platform Mount. The larger Ø0.925" size provides additional angular resolution over the standard Polaris knobs.

Please note that this knob is not compatible with the POLARIS-K1C4, POLARIS-K1G4, POLARIS-K1S5, and POLARIS-K1S4 mounts with side hole adjusters.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
F25USK2 Support Documentation
F25USK2Ø0.925" 1/4"-100 Removable Adjuster Knob
$9.09
Today

1/4"-100 Adjuster Lock Nuts for Polaris Mounts

To install a lock nut without cross threading, gently place the lock nut against the end of the adjuster. "Unscrew" the nut until the threads of the nut and the adjuster align before threading the nut onto the adjuster. This animation shows the installation of a POLARIS-LN1 lock nut on a POLARIS-K1F1 low distortion mount.

  • Provide Long Term Adjuster Stability
  • Compatible with Select Polaris Mounts

These lock nuts are designed for use with our Polaris mounts with 1/4"-100 adjusters. Designed for long-term adjuster stability or applications that are exposed to shock and vibration, these lock nuts are pre-greased with the same ultra-high-vacuum-compatible, low-outgassing PTFE grease as the Polaris mounts and have been tested for adjuster fit.

For applications that require frequent tuning of the adjusters, the lock nuts only need to be lightly tightened by hand to a torque of approximately 4 to 8 oz-in (0.03 to 0.06 N·m). For long term stability, we recommend tightening to a torque of 32 oz-in, which can be achieved by using our TW13 preset torque wrench (sold below). POLARIS-LN1 lock nuts have a 13 mm hex. To avoid cross threading the lock nut, place it against the adjuster and "unscrew" the lock nut until you feel a slight drop; then thread the lock nut onto the adjuster.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
POLARIS-LN1 Support Documentation
POLARIS-LN11/4"-100 Lock Nut, 13 mm Hex, Stainless Steel
$8.70
Today

Torque Wrench for Polaris Lock Nuts

Coaxial Connector Wrench
Click to Enlarge

TW13 Torque Wrench Used to Secure POLARIS-LN1 Lock Nut on POLARIS-K2S2 Mirror Mount
Coaxial Connector Wrench
Click to Enlarge

The TW13 wrench is engraved with its preset torque value and item #.
  • 13 mm Hex for Use with POLARIS-LN1 Lock Nut
  • Preset Torque Value of 32 oz-in (0.23 N•m)
  • Break-Over Design Ensures Proper Torque is Applied
  • Ideal for Applications Requiring Long-Term Locking

This torque wrench has a preset torque value of 32 oz-in for use with the POLARIS-LN1 lock nut used on Polaris® mounts. When the preset torque value has been achieved, the break-over design will cause the pivoting joint to "break," as shown to the right. The wrench's hex head will move back into place once the force is removed. This design prevents further force from being applied to the lock nut. Engraved guidelines indicate the angle the wrench should pivot in order to apply the specified torque; pivoting the handle past these guidelines will over-torque the lock nut. The wrench is also engraved with its preset torque value, torque direction, wrench size, and item # for easy identification in the field.

This wrench is designed to be compatible with cleanroom and vacuum chamber applications. It is chemically cleaned using the Carpenter AAA passivation method to remove sulfur, iron, and contaminants from the surface. After passivation, it is assembled in a clean environment and double vacuum bagged to eliminate contamination when transported into a cleanroom. The wrench has a bead blasted finish to minimize reflections when working with setups that include lasers.

Please note that these wrenches are not intended for use in applications where adjusters are frequently tuned, as these applications typically require torque values of 4 to 8 oz-in (0.03 to 0.06 N·m).

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
TW13 Support Documentation
TW13Customer Inspired! 13 mm Preset Torque Wrench for Polaris 1/4"-100 Lock Nuts
$117.72
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites: West Coast US | Europe | Asia | China | Japan
Copyright 1999-2019 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
