Variable Fiber Optical Attenuators, Single Mode


  • Single Mode, In-Line Variable Fiber Optic Attenuators
  • Up to 50 dB Attenuation
  • Narrowband or Dual-Band VOA Models for 630 - 1550 nm
  • Available With No Connectors, FC/PC Connectors, or FC/APC Connectors

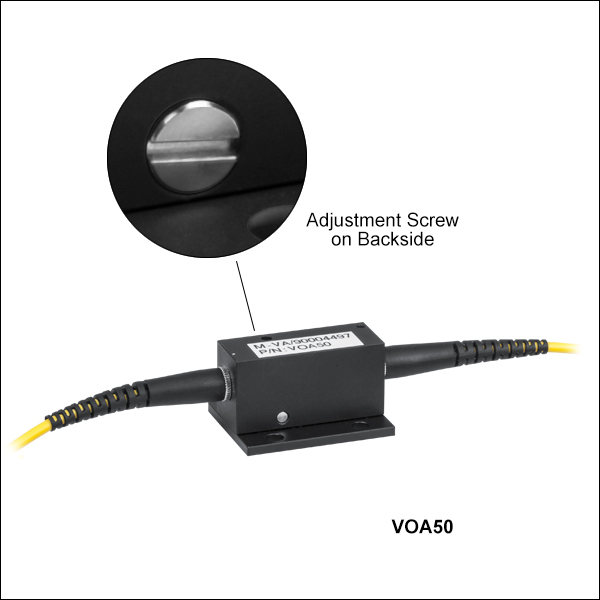

Adjustment Screw
Located on Backside

VOA50

Dual Band VOA

VOA850-APC

Narrowband VOA

Adjustment Screw
Located on Top

Related Items


Please Wait
Fiber Optic Attenuator Selection Guide
SM
 Electronic VOAs for System Integration
Digital VOAs
Tabletop EVOAs with Power Lock
Manually Variable Attenuators
Fixed-Value Attenuators
MM Fixed-Value Attenuators
Manually Variable Attenuators
PM
 Electronic VOAs for System Integration
Manually Variable Attenuators

Features

  • Bi-Directional, In-Line Variable Fiber Optical Attenuators (VOA)
  • Narrowband VOA Models for 630 nm, 780 nm, 850 nm, 980 nm, and 1064 nm Operating Wavelengths
  • Dual-Band VOA Models for 1310 / 1550 nm
  • Collimator-Based Manually Variable Attenuation
  • 1 m Long Single Mode Fiber Pigtail on Each Side

Thorlabs' Single Mode Variable Optical Attenuators allow the user to manually vary the attenuation of the signal in the fiber as it is transmitted through the device. These VOAs can be used to to precisely balance the signal strengths in fiber circuits or to balance an optical signal when evaluating the dynamic range of the measurement system. The maximum specified attenuation is achieved within 10 turns of the adjustment screw. Please see the Attenuation Data tab for more information.

All in-line VOAs have single mode fiber pigtails with a Ø3 mm jacket. The VOAs are offered unterminated or terminated with 2.0 mm narrow key FC/PC or FC/APC connectors. For other connector styles or custom requests, please contact Technical Support.

Each attenuator has a lens to collimate the light from the input fiber. A blocking device or window can be manually adjusted by a screw (see schematics below). Then, a second lens is used to couple light into the output fiber. Thus, the coupling efficiency is changed until the desired attenuation is obtained.

Narrowband VOAs

Schematic for Operation of a Variable Optical Attenuator
Click to Enlarge
For narrowband VOAs, turning the adjustment screw moves the blocking device up and down in order to achieve the desired attenuation.

Dual Band VOAs

Schematic for Operation of a Variable Optical Attenuator
Click to Enlarge

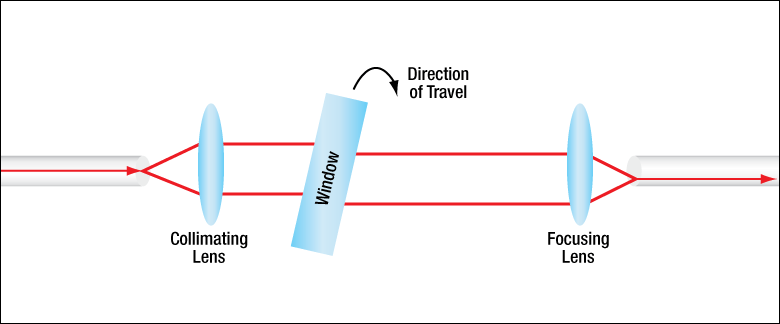

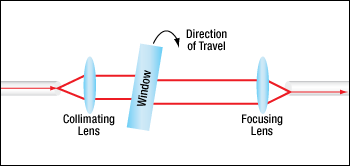

For dual band VOAs, turning the adjustment screw rotates the window, causing a beam path deviation that changes the coupling efficiency into the output fiber.

Attenuation Range

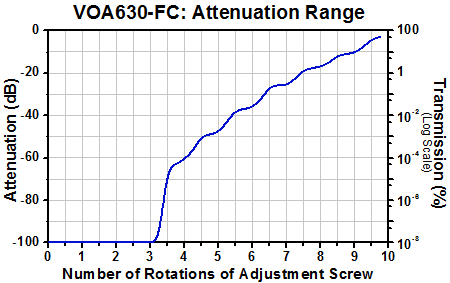

Shown below is a sample attenuation curve obtained by testing the VOA630-FC. The device was tested with the adjustment screw in the closed position (blocking the light). The screw was then turned counterclockwise in quarter turns until the attenuation spec was met. Please note: changes in turning direction may cause a small offset in attenuator position due to backlash.
