250/500 mA Laser Diode Drivers

IP500, 500 mA Laser Diode Driver
IP250-BV, 250 mA Blue Laser Diode Driver
IP500P, Mounting Plate

IP250-BV

Application Idea

IP500 with IP500P

Please Wait

Overview
IP250-BV Specs
IP500 Specs
Pin Diagrams
Smart Pack
Feedback
Selection Guide

IP250-BV

250 mA Blue Laser Diode Driver
Also Recommended for Driving LEDs
Input Power Requirements: ±12 VDC @ 275 mA
Control Range: 0 to ±250 mA (CC), 5 μA to 2 mA (CW)
0 to 10 V Analog Modulation Bandwidth: DC to 50 kHz
Optimized for Lasers with V_op Greater than 5 V

The IP250-BV is a 250 mA (medium power), board level laser diode controller optimized for the higher operating voltages of the blue and the blue-violet laser diodes. The driver is in the form of a PCB assembly with provisions for mounting into other higher level assemblies. It can accommodate only common cathode (cathode grounded) laser diode pin-out configurations, and it allows control of the laser by means of either constant current or constant power modes. The driver contains circuitry for complying with the various laser safety requirements, as well as protection circuitry for the laser diode.

The primary application for this product is to provide a method of precisely controlling a blue or blue-violet laser diode at the PCB board level or within the confines of a higher level assembly. In all cases, the end-user must provide DC power and the proper connections between the unit and the laser diode. In addition to this, the end-user is responsible for the proper limit settings needed for their particular laser diode and application.

IP500

Supports Pin Configurations A, B, C, and D (See IP500 Specs Tab for Details)
Also Recommended for Driving LEDs
Constant Current and Constant Power Operation
User Configurable Current and Power Limits
Laser Diode Inputs Shorted During Idle Operation to Protect the Device
Auto-alarm Shutdown When Laser Connection is Open or Reversed
Includes Input and Output Wires
Test Points for Laser Diode Current, Monitor Photo Diode Current, Current Limit and Power Limit Setpoints

The IP500 is a 500 mA, universal, board-level driver. This versatile device can easily and safely control laser diodes in 5.6 mm or 9 mm TO-Can packages. The driver is compatible with pin configuration styles A, B, C, and D that have a monitor photodiode (see the manual for details). Operating in either constant current or constant power mode, this driver can be enabled on the board itself or over a remote switch connection. Connections are provided for remote interlocks and remote monitoring. Wire harnesses for all required connections are provided with the unit.

IP500P

Both the IP250-BV and the IP500 can be secured to an optical table or breadboard with the IP500P Mounting Plate. This aluminum plate has a centered, slotted screw clearance on each end, with four 4-40 holes for mounting spacers, which allow 1/4 inch standoffs from the plate. In addition, the plate features two mounting holes (one 8-32 and one M4), thereby allowing the plate to be mounted to a standard post. The IP250-BV or IP500 can be secured on the standoffs while the plate is secured to the breadboard or table.

IP250-BV Specifications
Input Power Requirements	±12 VDC @ 275 mA
Constant Current Mode
Control Range	0 to ±250 mA
Setting Accuracy	±0.5 mA
Compliance Voltage	8.0 VDC (Max)
Ripple & Noise (10 Hz - 10 MHz)	<10 μA RMS
Short-Time Fluctuations	<50 μA
Temperature Coefficient	<100 ppm/°C
Drift (<10 Hz Over 30 minutes)	<100 μA
Limit Adjust Range	0 to 250 mA
Limit Accuracy	±1% of Limit Setpoint
Constant Power Mode
Control Range Photo Diode Current	5 μA to 2 mA
Setting Accuracy	±2 μA
Drift (<10 Hz Over 30 minutes)	<1 μA
Limit Adjust Range	0 to 2.5 mA
Limit Accuracy	±2 μA
Analog Modulation^a / Control Voltage
Input Resistance	10 kΩ
Bandwidth	DC to 50 kHz
Transfer Function (ACC Mode)	25 mA/V
Input Range	0 to 10 V
Analog Monitor Outputs^b
I_lim	0 to 250 mV = 0 to ±250 mA
I_LD	0 to 250 mV = 0 to ±250 mA
I_PD	0 to 2.0 V = 0 to 2.0 mA
P_lim	0 to 2.5 V = 0 to 2.5 mA
Physical Specifications
Dimensions (L x W x H)	5.0" x 2.5" x 0.8" (127 mm x 63.5 mm x 20.3 mm)
Weight	1.5 lbs (0.68 kg)

The driver for the IP250-BV can only be modulated with a sinusoidal waveform.
All outputs are single-ended with respect to ground.

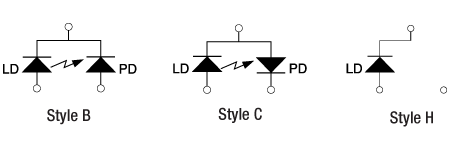

IP250-BV Pin Codes

IP250-BV Pin Codes

IP500 Specifications
Input Power Requirements	±5 VDC @ 600 mA (+4.75 to +5.25 V and -4.75 to -5.25 V)
Constant Current Mode
Control Range	0 to ±500 mA
Setting Accuracy	±0.5 mA
Compliance Voltage	>3.0 VDC
Ripple & Noise (10 Hz - 10 MHz)	<10 μA RMS
Short-Time Fluctuations	<50 μA
Temperature Coefficient	<100 ppm/°C
Drift (<10 Hz Over 30 minutes)	<100 μA
Limit Adjust Range	0 to 500 mA
Limit Accuracy	±1% of Limit Setpoint
Constant Power Mode
Control Range Photo Diode Current	5 μA to 2 mA
Setting Accuracy	±2 μA
Drift (<10 Hz Over 30 minutes)	<1 μA
Limit Adjust Range	0 to >2.5 mA
Limit Accuracy	±2 μA
Analog Modulation^a / Control Voltage
Input Resistance	10 kΩ
Bandwidth	DC to 50 kHz
Transfer Function (ACC Mode)	50 mA/V
Input Range	0 to 10 V

The driver for the IP500 can only be modulated with a sinusoidal waveform.

IP500 Pin Codes

IP250-BV/IP500 Connector Assignments

IP250-BV Connector Assignments

J5 Connector Type: Standard 0.1" Spaced Header
Pin	Designation
J5-1	TP Ground
J5-2	ILIM Test Point
J5-3	ILIM Adjust
J5-4	IALARM
J5-5	PLIM Test Point
J5-6	PLIM Adjust
J5-7	Alarm
J5-8	PMON Test Point
J5-9	P/I Adjust
J5-10	Enable
J5-11	IMON Test Point
J5-12	2.5 V_ref

J4 Connector Type: Molex 70543-0005
Pin	Designation
J4-1	Remote Enable Input
J4-2	Remote Enable Return (Common to Ground)
J4-3	Keylock Input
J4-4	Keylock Return (Common to Ground)
J4-5	Remote Interlock Input
J4-6	Remote Interlock Return (Common to Ground)

J1 Connector Type: Molex 70543-0002
Pin	Wire Color	Designation
J1-1	Red	IP250-BV: +12 VDC In IP500: +5 VDC In
J1-2	Black	Common
J1-3	Yellow	IP250-BV: -12 VDC In IP500: -5 VDC In

J2 Connector Type: Molex 70543-0003
Pin	Designation
J2-1	LDA (+) or LDC (-)
J2-2	Ground LDC (+) or LDA (-)
J2-3	Photodiode Cathode
J2-4	Photodiode Anode

J3 Connector Type: BNC
Pin	Designation
J3	0 - 10 VDC Modulate In

JMP3 Connector Type: Standard 0.1" Spaced Shorting Jumper (Supplied with Unit)
Pin	Designation
JMP3-1	Ground
JMP3-2	Photodiode Cathode

Click to Enlarge

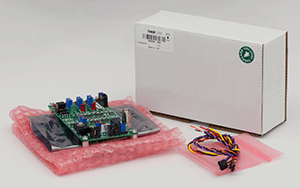

IP250-BV Packaging

Smart Pack

Reduce Weight of Packaging
Increase Usage of Recyclable Materials
Improve Packing Integrity
Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at minimizing waste while providing adequate protection for our products. By eliminating any unnecessary packaging, implementing design changes, and utilizing eco-friendly materials, this initiative seeks to reduce the environmental impact of our product packaging.

The updated IP250-BV and IP500 packaging primarily consists of recycled paper and cardboard and weighs 22.78% and 21.58% less than the original packaging, respectively. This weight change results in 1.50 kg and 2.14 kg respective reductions in travel-based CO₂ emissions per year, based on typical product sales.

As we move through our product line, we will indicate re-engineered, eco-friendly packaging with our Smart Pack logo, which can be seen above.
