Lean Bars for Optical Table Workstations


TFB12

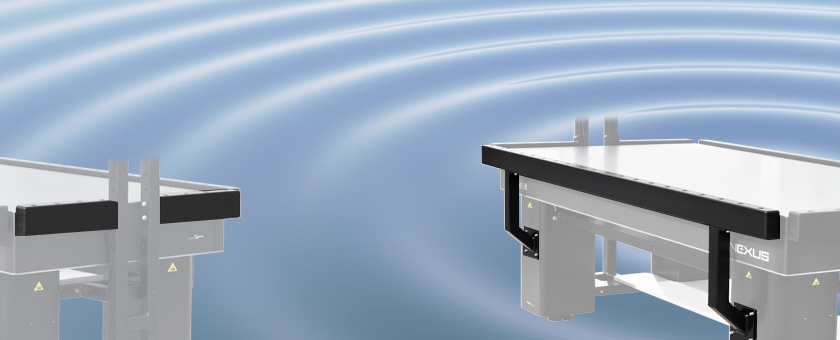

Side Lean Bars

TFB20

Front and Rear Lean Bars

  • Protect the Isolated Work Surface from Incidental Contact
  • Allows for the Attachment of Shelving, Storage, and Computer Accessories
  • Spans the Length or Width of the Work Surface
Related Items


Please Wait

Click to Enlarge

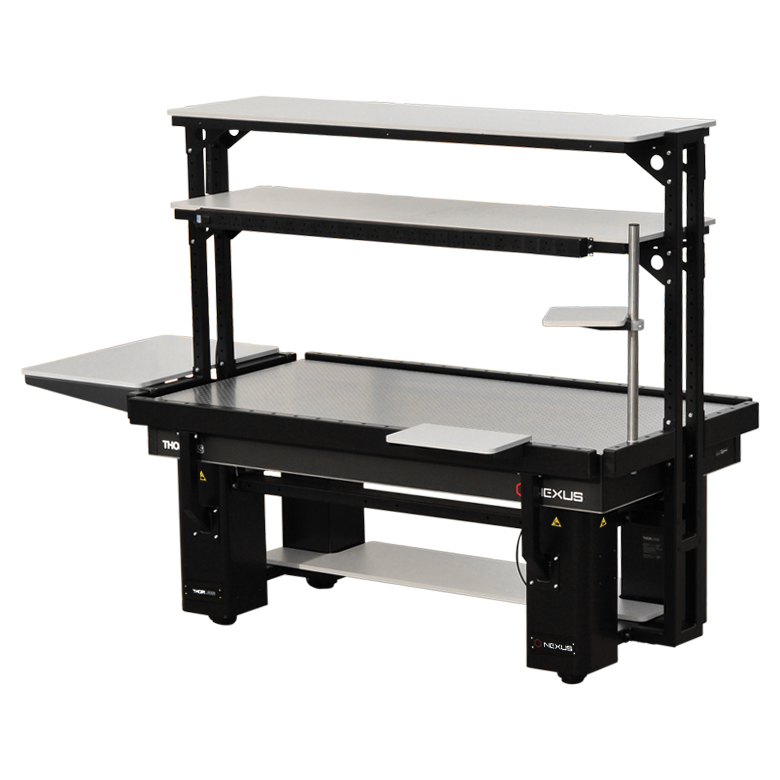

Optical Table Frame Equipped with Lean Bars and Various Shelving Options
Brochure of Thorlabs' Workstations

Features

  • Front and Rear Lean Bars Protect and Span the Length of the Work Surface
  • Side Lean Bars Protect and Span the Width of the Work Surface
  • Ø17 mm (Ø0.67") Through Holes Throughout for Post-Mounted Accessories

Thorlabs' Lean Bars are designed to protect all sides of the isolated work surface from accidental contact. Front and rear lean bars are available in two lengths, 2 m (6') or 2.5 m (8'), for attachment to the optical table frame, as shown in the image to the above right. Side lean bears are designed to attach directly to our overhead shelf units, as shown in the photo to the above left. When attached, the three different sized options span across a 1 m (3') wide, 1.2 m (4') wide, or 1.5 m (4.8') wide work surface.

Each lean bar contains a number of Ø17 mm (Ø0.67") through holes along the length of the bar for attaching Ø1.5" post-mounted accessories. The lean bar's width also accommodates shelving and storage accessories, such as our PSY157 Tool Caddy or PSY350 Side Shelf, that attach via a hook. The photo to the far right shows the lean bars being used to mount various accessory options. For a complete list of compatible accessory options, please see the table to the right.


Posted Comments:
No Comments Posted

Front and Rear Lean Bars

  • Fit to the Front or Rear of the Workstation
  • Span the Entire Length of the Chosen Optical Table
    • TFB20: For 2 m (6') Long Optical Tables
    • TFB25: For 2.5 m (8') Long Optical Tables
  • Protect the Work Area from Accidental Knocks
  • Allow Various Ø1.5" Post-Mounted or Hook-Mounted Accessories to be Used
  • Supplied Individually

Thorlabs' Lean Bars fit to either the front or rear of the optical table frame to form a barrier that shields the vibration-isolated tabletop and protects it from accidental contact. They also allow shelves and Ø1.5" post-mounted accessories to be used. Individually sold, each lean bar ships as three pieces that need to be assembled by the end user. The lean bar bolts to two supports arms, which in turn are bolted to the table frame, one to each of the facing isolators. All necessary mounting hardware is supplied.

If you are also interested in having your workstation equipped with side lean bars, please see the presentation immediately below this one.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
TFB20 Support Documentation
TFB202 m (6') Long Nexus Table Frame Lean Bar, Qty. 1
$320.31
Today
TFB25 Support Documentation
TFB252.5 m (8') Long Nexus Table Frame Lean Bar, Qty. 1
$398.22
Lead Time

Side Lean Bars

Overhead Shelving Unit Required
  • Fit to the Overhead Shelf Support Frame (As Shown to the Left)
  • Set of Two Span the Width of the Optical Table
    • TFB10: For 1 m (3') Wide Optical Tables
    • TFB12: For 1.2 m (4') Wide Optical Tables
  • Protect the Work Area from Accidental Knocks
  • Allow Various Ø1.5" Post-Mounted or Hook-Mounted Accessories to be Used
  • Supplied in Pairs to Fit One End of the Workstation

Thorlabs' Side Lean Bars span the entire width of the optical table on the right or left side. They are sold as a package of two to fit one end of the table. These bars bolt to the support struts of the overhead shelf described above and shield the vibration-isolated tabletop from accidental contact.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
TFB10 Support Documentation
TFB10Nexus Table Frame Side Lean Bars, 1 m (3') Wide, Set of 2 for One End of the Frame
$165.56
Today
TFB12 Support Documentation
TFB12Nexus Table Frame Side Lean Bars, 1.2 m (4') Wide, Set of 2 for One End of the Frame
$182.88
Today
