Lighting for Optical Table Workstation


PSX501

Mini LED Light

PSY240

LED Light Strip

  • LED Light Strips Mount to the Underside of the Overhead Shelf Unit for General Lab Lighting
  • Mini LED Light Illuminates a Target Area
Related Items


Please Wait

Click to Enlarge

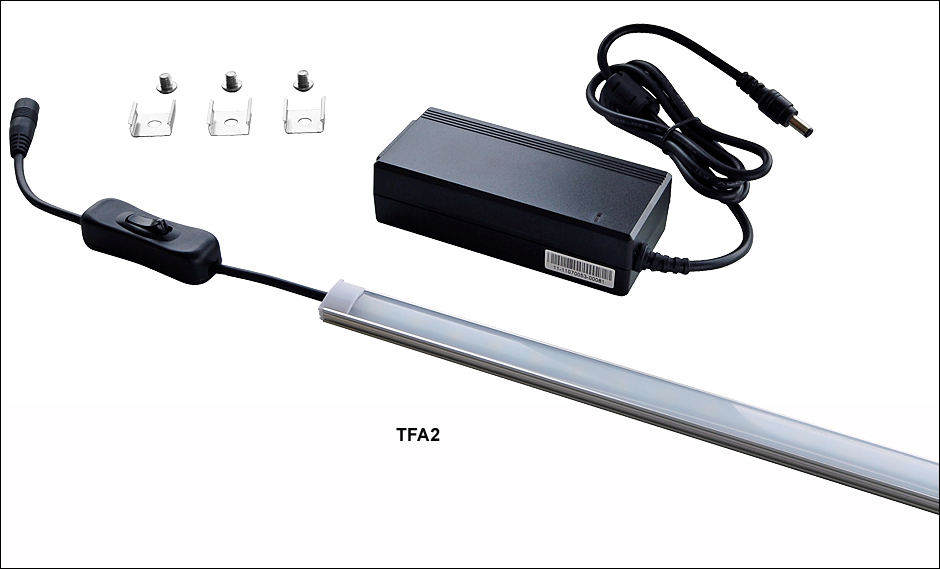

TFA2 Attached to the Bottom of an Overhead Shelf Unit
Brochure of Thorlabs' Workstations

Features

  • Light Strips:
    • Attach to the Bottom of Our Overhead Shelves
    • Ideal for Lighting the Entire Work Surface
  • Mini Light:
    • Attaches via a Clip or Magnet
    • Ideal for Directing Light to a Specific Area

Thorlabs offers two options for general lab lighting. The PSY240, PSY240E, and TFA2 LED light strips can be mounted underneath our Overhead Shelves and are ideal for illuminating a large work area. The PSY240 and PSY240E are 850 mm (33.46") long, while the TFA2 is 1828.5 mm (71.99") long. They are each held in place by three spring clips. The PSY240E also comes with a 4.3 m extension cable for compatibility with our Laminar Flow Enclosures. The PSX501 is a compact, battery-operated LED light source with a flexible neck for easy positioning and illumination of the target area.


Posted Comments:
No Comments Posted

LED Light Strips

Overhead Shelving Unit Required
Item # PSY240 PSY240E TFA2
Brightness 1530 Lumens 3600 Lumens
# of LEDs 51 120
Powera 15.3 W 36 W
Voltage 12 VDC (Power Supply Included)
Dimensions 850 mm x 17.4 mm x 8.2 mmb
(33.46" x 0.69" x 0.32")
1828.5 mm x 17.4 mm x 8.2 mm
(71.99" x 0.69" x 0.32")
  • Power usage per LED is 0.3 W.
  • A 4.3 m extension cable is included with the PSY240E.
  • Length:
    • PSY240 and PSY240E: 850.0 mm (33.46") Long
    • TFA2: 1828.5 mm (71.99") Long
  • ON/OFF Switch
  • Sturdy Aluminum Base Resists Warping
  • Frosted Plastic Cover Ensures Even Spread of Light
  • Shipped with 3 Spring Clips, 3 M6 Screws, and a Power Supply
    • The PSY240E Also Ships with 3 T-Nuts and a 4.3 m Extension Cord
  • Includes Region-Specific Power Cord

These rigid LED light strips are available in two lengths: 850 mm (33.46") or 1828.5 mm (71.99"). They are held in place by three spring clips that are easily fitted to the underside of our optical table frame overhead shelves

The light strips can also be mounted over a bench for general lab use or to our free-standing overhead shelf. The PSY240E comes with three T-Nuts, and a 4.3 m extension cable for use with our Laminar Flow Enclosures. The three M6 screws shipped with the PSY240E are 6 mm long, making it our only light strip compatible with the Laminar Flow Enclosures.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PSY240 Support Documentation
PSY240850 mm (33.46") LED Light Strip
$104.97
Today
PSY240E Support Documentation
PSY240ENEW!850 mm (33.46") LED Light Strip with 4.3 m Extension
$132.00
Today
TFA2 Support Documentation
TFA21828.5 mm (71.99") LED Light Strip
$110.37
Today

Mini Light

  • Bright, Long-Lasting LED Lamp
  • Lens Provides an Even Distribution of Light
  • Can be Mounted with the Clamp or Magnetic Base
  • Uses Three Standard AAA Batteries (Included)

This compact, battery-operated unit allows direct lighting onto almost any surface. The unit can be attached to the work surface via the clip fastener or the magnetic base. A flexible neck allows the light to be directed easily onto the area of interest. This bright LED source provides as much light as three standard LEDs and the lens ensures an even distribution of light over the work area. The unit folds for easy storage and is powered by three AAA batteries (included).

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PSX501 Support Documentation
PSX501Mini Light with Flexible Arm, Mounting Clip, and Magnetic Base
$46.54
Today
