Adapters for Cerna® Microscopes


  • Adapters for Epi-Illumination, Camera, Trinocular, Eyepiece, and Condenser Ports
  • Customize Cerna Microscopes Using Thorlabs' Optomechanical Components

SM1A58

Camera Port Adapter

CSA1003

Trinocular Port Adapter

SM2A56

Epi-Illumination
Module Adapter

LCPN1

Condenser Port
Adapter

SM2N2

Eyepiece Adapter

Application Idea

SM2A56 Epi-Illumination Module Adapter Used to Mount a Solis® High-Power LED to an Epi-Illumination Module on a Cerna Microscope

Related Items


Please Wait

Click on Each Port to View Available Adapters

Cerna Microscope Ports

Cerna Microscope
Eyepiece PortCamera PortTrinocular PortEpi-Illumination PortCondenser PortEyepiece PortCamera PortTrinocular PortEpi-Illumination PortCondenser Port

Features

Trinocular Port Adapters
These adapters integrate the Cerna platform with Thorlabs' 30 mm and 60 mm cage construction systems, making them ideal for creating custom widefield viewing and epi-illumination apparatuses.

Camera Port Adapter
The SM1A58 adapter is designed to allow components with SM1 threading, SM2 threading, or 30 mm cage system compatibility to be mounted to the camera port. This adapter is ideal for inserting custom optics, as well as our scientific cameras, into brightfield and fluorescence microscope systems.

Condenser Port Adapters

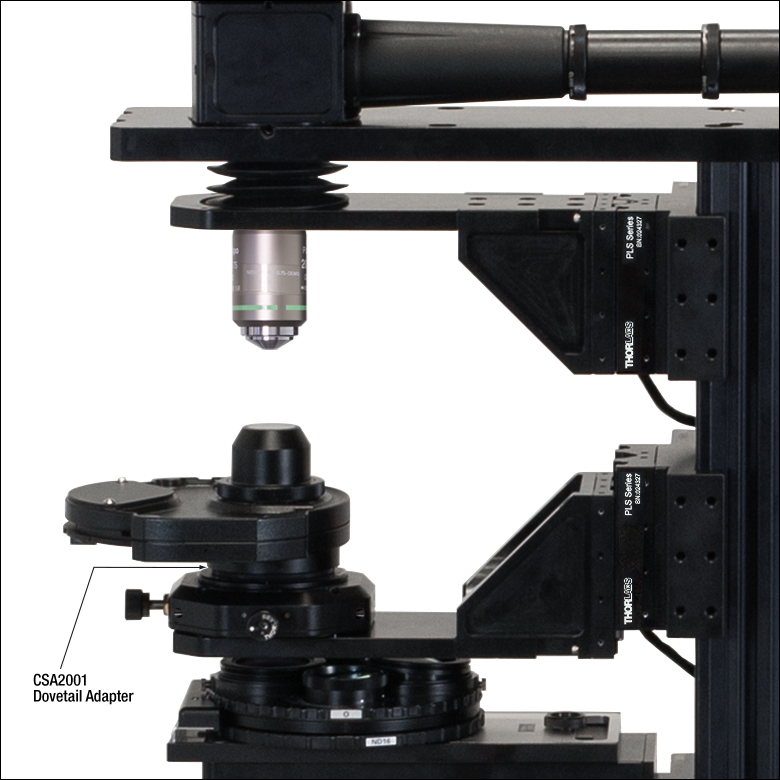

These condenser adapters connect to the condenser holder, allowing DIY light conditioning setups to be integrated into a Cerna microscope.

Epi-Illumination Module Adapter
The SM2A56 adapter allows a collimated illumination source to attach to the epi-illumination module of a Cerna microscope.

Eyepiece Adapter

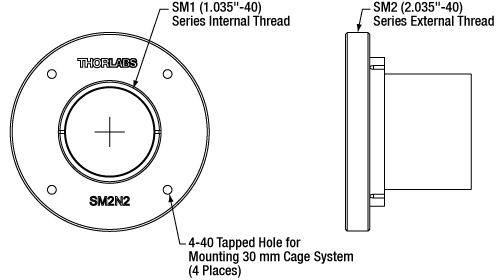

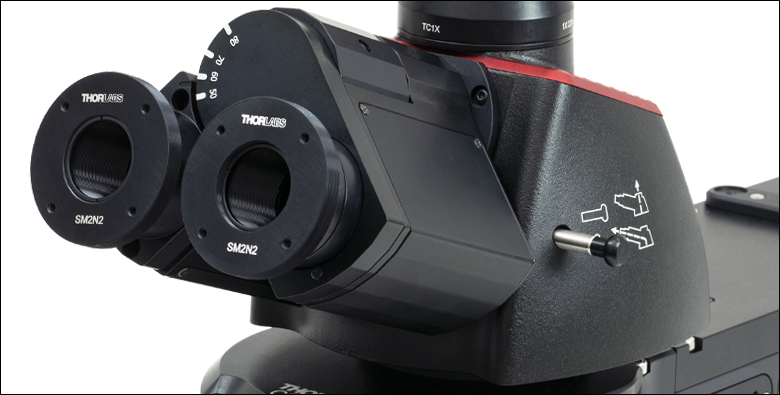

The SM2N2 adapter replaces the lens element on an eyepiece of the Cerna microscope's trinoculars, allowing custom-built optical detection systems to attach to either eyepiece on the trinoculars.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not mentioned on this wepage.

Thorlabs Dovetail Referencea
Type Shape Outer Dimension Angle
95 mm Linear 95 mm 45°
D1N Circular Ø2.018" 60°
D2Nb Circular Ø1.50" 90°
D2NBb Circular Ø1.50" 90°
D3N Circular Ø45 mm 70°
D5N Circular Ø1.58" 90°
D6N Circular Ø1.90" 90°
D7N Circular Ø2.05" 90°
D1T Circular Ø1.50" 60°
D3T Circular Ø1.65" 90°
D1Y Circular Ø107 mm 60°
D2Y Circular Ø2.32" 50°
D3Y Circular Ø1.75" 90°
D4Y Circular Ø56 mm 60°
D5Y Circular Ø46 mm 60°
D6Y Circular Ø41.9 mm 45°
D1Z Circular Ø54 mm 60°
D2Z Circular Ø57 mm 60°
D3Z Circular Ø54 mm 45°
  • These dovetail designations are specific to Thorlabs products and are not used by other microscope manufacturers.
  • D2N and D2NB dovetails have the same outer diameter and angle, as defined by the drawings below. The D2N designation does not specify a height. The D2NB designation specifies a dovetail height of 0.40" (10.2 mm).
Mating Circular Dovetails
Click to Enlarge

This photo shows the male D1N dovetail on the trinoculars next to the female D1N dovetail on the epi-illumination arm.
Mating Linear Dovetails
Click to Enlarge

This photo shows the male 95 mm dovetail on the microscope body and the female 95 mm dovetail on the CSA1002 Fixed Arm.

Introduction to Microscope Dovetails

Dovetails are used for mechanical mating and optical port alignment of microscope components. Components are connected by inserting one dovetail into another, then tightening one or more locking setscrews on the female dovetail. Dovetails come in two shapes: linear and circular. Linear dovetails allow the mating components to slide before being locked down, providing flexible positioning options while limiting unneeded degrees of freedom. Circular dovetails align optical ports on different components, maintaining a single optical axis with minimal user intervention.

Thorlabs manufactures many components which use dovetails to mate with our own components or those of other manufacturers. To make it easier to identify dovetail compatibility, we have developed a set of dovetail designations. The naming convention of these designations is used only by Thorlabs and not other microscope manufacturers. The table to the right lists all the dovetails Thorlabs makes, along with their key dimensions.

In the case of Thorlabs’ Cerna® microscopes, different dovetail types are used on different sections of the microscope to ensure that only compatible components can be mated. For example, our WFA2002 Epi-Illuminator Module has a male D1N dovetail that mates with the female D1N dovetail on the microscope body's epi-illumination arm, while the CSS2001 XY Microscopy Stage has a female D1Y dovetail that mates with the male D1Y dovetail on the CSA1051 Mounting Arm.

To learn which dovetail type(s) are on a particular component, consult its mechanical drawing, available by clicking on the red Docs icon (Docs Icon) below. For adapters with a female dovetail, the drawing also indicates the size of the hex key needed for the locking setscrew(s). It is important to note that mechanical compatibility does not ensure optical compatibility. Information on optical compatibility is available from Thorlabs' web presentations.

For customers interested in machining their own dovetails, the table to the right gives the outer diameter and angle (as defined by the drawings below) of each Thorlabs dovetail designation. However, the dovetail's height must be determined by the user, and for circular dovetails, the user must also determine the inner diameter and bore diameter. These quantities can vary for dovetails of the same type. One can use the intended mating part to verify compatibility.

In order to reduce wear and simplify connections, dovetails are often machined with chamfers, recesses, and other mechanical features. Some examples of these variations are shown by the drawings below.

Male Microscope Dovetails
Click to Enlarge

Two examples of how circular male dovetails can be manufactured.
Female Microscope Dovetails
Click to Enlarge

Two examples of how circular female dovetails can be manufactured.

Standard Mechanical Interfaces on DIY Cerna® Components

The table below gives the dovetail, optical component threads, and cage system interfaces that are present on each DIY Cerna component. If a DIY Cerna component does not have one of the standard interfaces in the table, it is not listed here. Please note that mechanical compatibility does not ensure optical compatibility. Information on optical compatibility is available from Thorlabs' web presentations.

Item # Microscope Dovetails Optical Component Threadsa Cage Systemsb
95 mm D1N D2N D2NB D3N D5N D1T D3T D1Y D5Y Internal External
2CM1 - - - - - - - - - - SM1c (1.035"-40) and SM2d (2.035"-40) SM1c (1.035"-40) 60 mmd
2CM2 - - - - - - - - - - SM1c (1.035"-40) and SM2d (2.035"-40) SM1c (1.035"-40) 30 mmc
BSA2000e - - - - Female - - - - - - - -
CEA1350 Male Female - - - - - - - - - - 60 mmd
CEA1400 Male Female - - - - - - - - - - 60 mmd
CEA1500 Male Female - - - - - - - - - - 60 mmd
CEA1600 Male Female - - - - - - - - - - 60 mmd
CFB1500 Male - - - - - - - - - - - -
CSA1000 Female - - - - - - - - - - - -
CSA1001 Female - - - - - - - - - SM1c (1.035"-40) - 30 mmc
CSA1002 Female - - - - - - - - - SM2d (2.035"-40) - 60 mmd
CSA1003 - Female - - - - - - - - - - 60 mmd
CSA1051 Female - - - - - - - Male - - - -
CSA1200e,f - - - - - - - - - - - - 60 mmd
CSA1400e - - - - - - Female - - - - - 60 mmd
CSA1500e,g - - - - - - - - - - - - -
CSA2000e - - - - Female - - - - - SM2d (2.035"-40) - 60 mmd
CSA2001 - - - - Female - - - - - - SM2d (2.035"-40) -
CSA2100e - - - - - - - - - - SM2d (2.035"-40) - 60 mmd
CSA3000(/M) - Male - - - - - - - - - - -
CSA3010(/M) - Male - - - - - - - - - - 30 mmc and 60 mmd
Item # 95 mm D1N D2N D2NB D3N D5N D1T D3T D1Y D5Y Internal External Cage Systems
CSC1001 - - - - Male - - - - - - - -
CSC1002 - - - - Male - - - - - - - -
CSC2001 - - - - Male - - - - - - - -
CSD1001 - Male & Female - Female - - - - - - - - -
CSD1002 - Male & Female - - - - - - - - - C-Mounth -
CSE2000 - Male & Female - - - - - - - - - - 60 mmd
CSE2100 - Male & Female - - - - - Female - - SM1c (1.035"-40) - 30 mmc and 60 mmd
CSE2200 - Male & Female - - - - - Female - - SM1c (1.035"-40) - 30 mmc and 60 mmd
CSN100e - - - - - - - - - - M32 x 0.75 - 60 mmd
CSNK10 - - - - - - - - - - M32 x 0.75 - 60 mmd
CSNK100e - - - - - - - - - - M32 x 0.75 - 60 mmd
CSN200 - - - - - - Male - - - M32 x 0.75 - -
CSN210 - - - - - - Male - - - M32 x 0.75 - -
CSN1201f - - - - - - - - - - M32 x 0.75 - -
CSN1202f - - - - - - - - - - M25 x 0.75 - -
CSS2001 - - - - - - - - Female - - - -
LAURE1 - Male Female - - - - - - - - - -
LAURE2 - Male Female - - - - - - - - - -
LCPN1 - - - - Male - - - - - SM30 (M30.5 x 0.5) - 30 mmc and 60 mmd
LCPN2 - Male - - - - - - - - SM30 (M30.5 x 0.5) - 30 mmc and 60 mmd
LCPN3 - Male - - - - - - - Female SM30 (M30.5 x 0.5) - 60 mmd
Item # 95 mm D1N D2N D2NB D3N D5N D1T D3T D1Y D5Y Internal External Cage Systems
OPX2400(/M) - Male & Female - - - - - - - - SM2d (2.035"-40) - 60 mmd
SM1A70 - - - - - - - - - - SM30 (M30.5 x 0.5) SM1c (1.035"-40) -
SM1A58 - - Male Male - - - - - - SM1c (1.035"-40) SM2d (2.035"-40) 30 mmc
SM2A56 - - - - - - - Male - - - SM2d (2.035"-40) -
TC1X - - Male - - - - - - - - - -
WFA0150 Female - - - - - - - - - - - -
WFA1000 - - - - - - - - - - - - 30 mmc
WFA1010 - - - - - - - - - - SM1c (1.035"-40) - 30 mmc
WFA1020 - - - - - - - - - - SM1c (1.035"-40) - 30 mmc
WFA1051 - - - - - - - - - - SM1c (1.035"-40) - 30 mmc
WFA1100 - - - - - - - - - - - - 30 mmc
WFA2001 - Male & Female - - - - - - - - SM1c (1.035"-40) SM1c (1.035"-40) -
WFA2002 - Male & Female - - - - - - - - SM1c (1.035"-40) - 30 mmc
WFA4100 - Male - - - - - - - - SM1c (1.035"-40) C-Mounth -
WFA4101 - Male - - - - - - - - SM1c (1.035"-40) C-Mounth -
WFA4102 - Male - - - - - - - - SM1c (1.035"-40) C-Mounth -
WFA4111 - Male - - - - - - - - - SM2d (2.035"-40) -
WFA4112 - - - Male - - - - - - - C-Mounth -
Item # 95 mm D1N D2N D2NB D3N D5N D1T D3T D1Y D5Y Internal External Cage Systems
XT95RC1(/M) Female - - - - - - - - - - - -
XT95RC2(/M) Female - - - - - - - - - - - -
XT95RC3(/M) Female - - - - - - - - - - - -
XT95RC4(/M) Female - - - - - - - - - - - -
XT95P12(/M) Female - - - - - - - - - - - -
ZFM1020 Female - - - - - - - - - - - -
ZFM1030 Female - - - - - - - - - - - -
ZFM2020 Female - - - - - - - - - - - -
ZFM2030 Female - - - - - - - - - - - -
  • Thorlabs' optical component thread adapters can be used to convert between C-Mount threads, SM1 threads, SM2 threads, and virtually every other optical thread standard.
  • Our cage system size adapters and drop-in adapter can be used to convert between 16 mm, 30 mm, and 60 mm cage systems.
  • Our 30 mm cage plates can convert between SM1 lens tubes and 30 mm cage systems.
  • Our 60 mm cage plates can convert between SM2 lens tubes and 60 mm cage systems.
  • Attach to a ZFM focusing module to add a female 95 mm dovetail.
  • The CSA1200 mounting arm is compatible with the CSN1201 and CSN1202 nosepieces.
  • This blank arm is designed for custom DIY machining for non-standard components, threads, and bores.
  • C-Mount and CS-Mount standards feature the same 1.00"-32 threads, but C-Mounts have a 5 mm longer flange-to-sensor distance.

Posted Comments:
No Comments Posted

Trinocular Port Adapters for Cerna and Nikon Eclipse (Ti, Ti2, or Upright) Microscopes

Epi-illumination Adapter
Click to Enlarge

Here, our WFA4111 D1N Adapter is being used to support an SM2 lens tube that contains user-selected optics for forming an image on a Scientific Camera.

Click for Details

In this photo, the CSA1003 D1N Adapter is connecting a 60 mm cage system to a WFA2002 Epi-Illuminator Module.
  • Extend Versatility of Thorlabs' Lens Tube and Cage Construction Systems to Cerna Systems
  • Compatible with Cerna Modules that Have D1N or D5Y Dovetails
  • LCPN2: Compatible with SM30 Lens Tube, 30 mm Cage, and 60 mm Cage Construction Systems
  • LCPN3: Compatible with SM30 Lens Tube and 60 mm Cage Construction Systems
  • WFA4111: Compatible with SM2 Lens Tubes
  • CSA1003: Compatible with 60 mm Cage Construction Systems

These adapters integrate the Cerna platform with our SM30 (M30.5 x 0.5) lens tube, SM2 (2.035"-40) lens tube,
30 mm cage, and 60 mm cage construction systems, making them ideal for creating custom widefield viewing and epi-illumination apparatuses. In particular, we offer the LCPN3 trinocular port adapter, designed to allow Olympus trinoculars that have a male D5Y dovetail to be used with Cerna systems. See the images to the right for application ideas and the table below for the adapters' mechanical features and microscope compatibility.

The dovetail designations are specific to Thorlabs products; see the Microscope Dovetails tab for details.

For specific compatibility between different adapters and DIY Cerna Components see the DIY Cerna Interfaces tab.

Item # LCPN2 LCPN3 WFA4111 CSA1003
(Click to Enlarge)

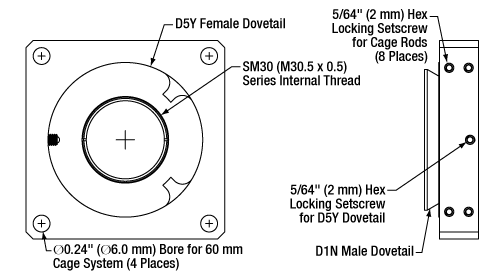

LCPN2 Cerna Microscope Trinocular Adapter LCPN3 Cerna Microscope Trinocular Adapter WFA4111 Dovetail Adapter CSA1003 Adapter
Dovetaila Male D1N Male D1N
Female D5Y
Male D1N Female D1N
Threading Internal SM30b
(M30.5 x 0.5)
Internal M38 x 0.5c
External SM2
(2.035"-40)
Noned
Cage Compatibility 30 mm Cage System
(4-40 Tape, 4 Places)
60 mm Cage System
(Ø6 mm Bore, 4 Places)
60 mm Cage System
(Ø6 mm Bore, 4 Places)
Noned 60 mm Cage System
(Ø6 mm Bore, 4 Places)
Microscope
Compatibility
Cerna, Upright Nikon Eclipse,
Nikon Eclipse Ti and Ti2
Cerna,
Upright Nikon Eclipse
Cerna
Clear Aperture Ø1.10" (27.9 mm) Ø1.47" (37.0 mm) Ø1.50" (38.1 mm)

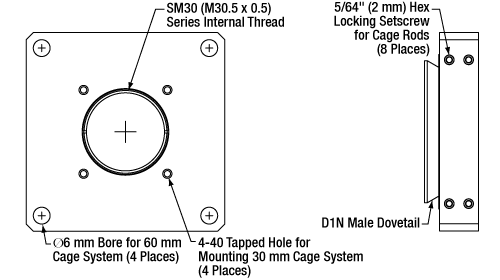

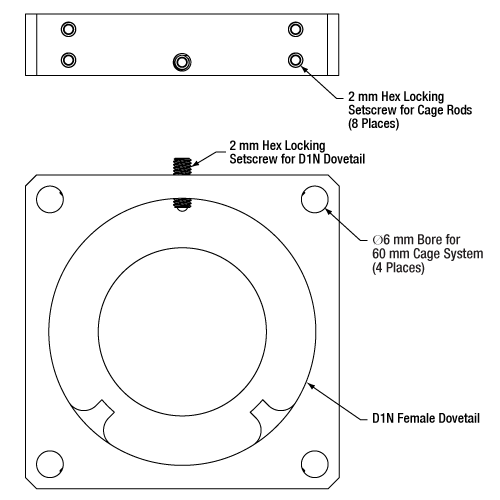

Adapter Profile
(Click for Drawing)
  • Additional information on dovetails is available in the Microscope Dovetails tab.
  • This internal SM30 threading is compatible with our SM30RR retaining rings. Two SM30RR retaining rings are included.
  • This internal M38 x 0.5 threading is compatible with our SM38RR retaining rings.
  • An SM2-threaded cage plate can be used to convert between SM2 lens tubes and 60 mm cage systems.
  • These tapped holes are on the side opposite the dovetail only.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LCPN2 Support Documentation
LCPN2Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscope Trinocular Adapter, Male D1N Dovetail, Internal SM30 Threads, 30 and 60 mm Cage Compatibility
$119.88
Today
LCPN3 Support Documentation
LCPN3Customer Inspired! Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscope Trinocular Adapter, Male D1N Dovetail, Female D5Y Dovetail, Internal SM30 Threads, 60 mm Cage Compatibility
$112.92
7-10 Days
WFA4111 Support Documentation
WFA4111Adapter with Male D1N Dovetail, External SM2 Threads, and Internal M38 x 0.5 Threads
$105.00
Today
CSA1003 Support Documentation

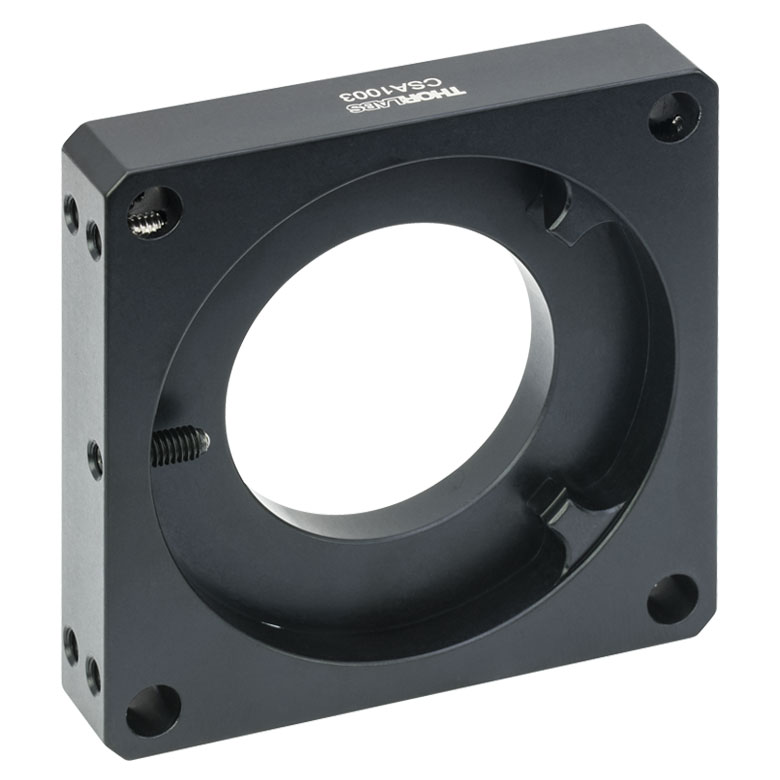

CSA1003Adapter with Female D1N Dovetail and Bores for 60 mm Cage System
$284.17
7-10 Days

Camera Port Adapter for Cerna and Nikon Upright Eclipse Microscopes

Item # SM1A58
(Click for Details)
Trinocular Eyepiece Adapter
Dovetaila Male D2N
Male D2NB
SM Threading Internal SM1b (1.035"-40)
External SM2 (2.035"-40)
Cage Compatibility 30 mm Cage System
(4-40 Tap, 4 Places)
Microscope
Compatibility
Cerna,
Upright Nikon Eclipse
Clear Aperture Ø1.008" (25.6 mm)
Adapter Profile
(Click for Drawing)
  • Additional information on dovetails is available in the Microscope Dovetails tab.
  • This internal SM1 threading is not deep enough for mounting optics.
  • Attach Custom-Built Optical Systems or Detectors to the Camera Port of Thorlabs' Cerna or Nikon Upright Eclipse Microscopes
  • Compatible with SM1, SM2, and 30 mm Cage Construction Systems

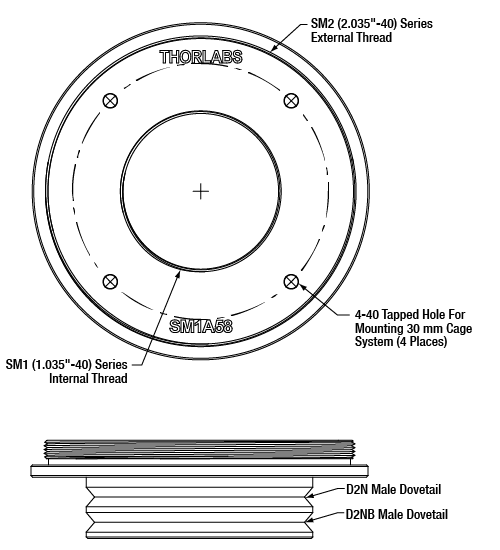

The SM1A58 is designed so that custom-built optical systems or detectors based on Thorlabs' components may be attached to the camera port of Thorlabs' Cerna Microscopes or Upright Nikon Eclipse Microscopes. This adapter utilizes a male D2N dovetail to secure the adapter to the port. It also features internal SM1 (1.035"-40) threading for Ø1" Lens Tubes, external SM2 (2.035"-40) threading for Ø2" Lens Tubes, and 4-40 tapped holes on 30 mm centers for attaching cage system rods.

Thorlabs' Scientific CMOS Cameras have options with industry standard C-mount adapters or SM1 internal threading. Industry-standard C-mount cameras can be attached directly to the internal SM1 threads of the SM1A58 adapter using the SM1A39 external C-Mount to external SM1 adapter, available separately. Internally threaded SM1 Cameras can be easily integrated into microscope systems by using an SM1 lens tube spacer or an SM1 lens tube coupler with external threads to connect the camera to the SM1A58 adapter. The external SM2 threads on the SM1A58 can also be connected to an internally SM1-threaded camera with an SM1A2 adapter, which has internal SM2 to external SM1 threads.

Our SM1 or SM2 lens tubes can be used to place the camera at the correct parfocal distance; the exact distance will depend upon the specific trinoculars or other camera ports present on your Cerna microscope.

In addition, an SM1-threaded dust cover (Item # SM1CP2) is included to keep the port closed when not in use.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM1A58 Support Documentation
SM1A58Upright Nikon Eclipse and Thorlabs Cerna Microscope Camera Port Adapter, Internal SM1 Threads, External SM2 Threads, 30 mm Cage Compatible
$87.93
Today

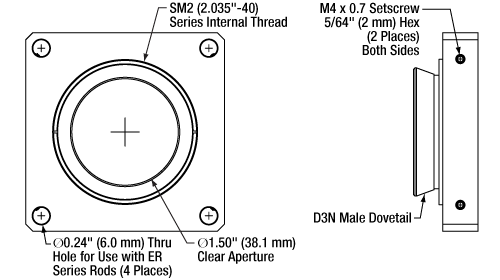

Condenser Port Adapters for Cerna and Nikon Eclipse (Ti, Ti2, or Upright) Microscopes

Item # CSA2001 LCPN1
(Click to Enlarge)
CSA2001 Adapter LCPN1 Cerna Microscope Condenser Adapter
Dovetaila Female D3N Male D3N
SM Threading External SM2
(2.035"-40)
Internal SM30b
(M30.5 x 0.5)
Cage
Compatibility
Nonec 30 mm Cage System
(4-40 Tapd, 4 Places)
60 mm Cage System
(Ø6 mm Bore, 4 Places)
Microscope
Compatibility
Cerna Cerna, Upright Nikon Eclipse, Nikon Eclipse Ti and Ti2
Clear Aperture Ø1.58" (40.0 mm) Ø1.10" (27.9 mm)
Adapter Profile
(Click for Drawing)
  • Additional information on dovetails is available in the Microscope Dovetails tab.
  • This internal SM30 threading is compatible with our SM30RR retaining rings. Two SM30RR retaining rings are included.
  • An SM2-threaded cage plate can be used to convert between SM2 lens tubes and 60 mm cage systems.
  • These tapped holes are on the side opposite the dovetail only.

The CSA2001 adapter is used to mount a condenser with a male D3N dovetail to an optical assembly that uses Thorlabs' SM2 lens tubes. A 2 mm hex setscrew is included to secure the dovetail of the adapter to the condenser.

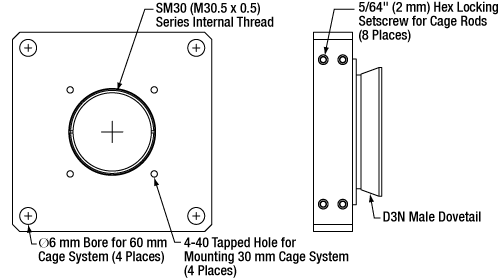

The LCPN1 adapter allows the user to attach a custom-built condenser or other light conditioning module to a Cerna, inverted Nikon Eclipse Ti, inverted Nikon Eclipse Ti2, or upright Nikon Eclipse microscope. It features internal SM30 (M30.5 x 0.5) threading for Ø30 mm lens tubes; two SM30RR retaining rings are included to secure an optic inside the adapter. Through holes with side-located locking 8-32 setscrews (5/64" [2 mm] hex) can be used to attach Ø6 mm cage rods for 60 mm cage systems. The side opposite the dovetail has 4-40 tapped holes on 30 mm centers for 30 mm cage systems.


Click to Enlarge

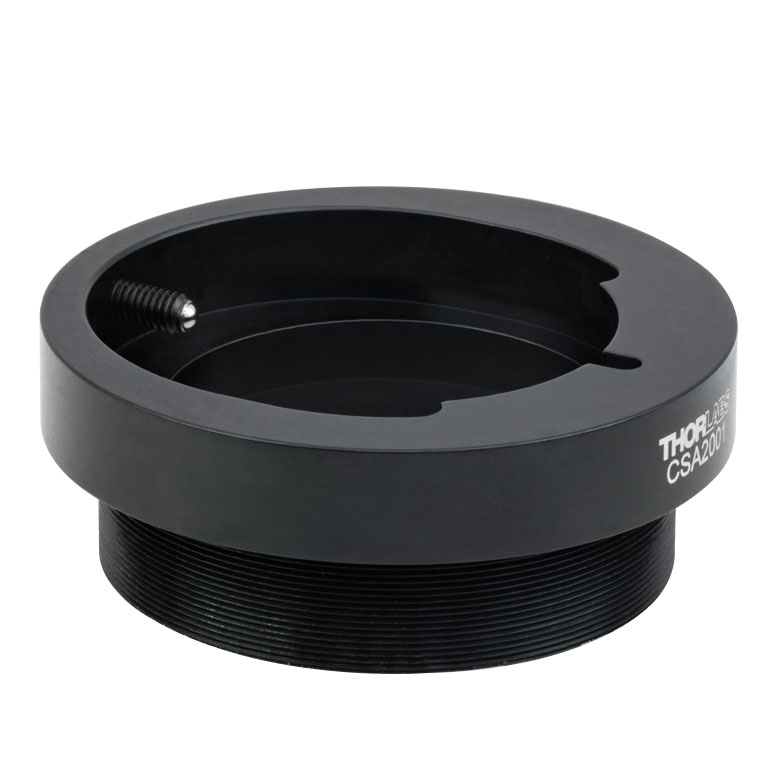

Our CSA2001 adapter has a female D3N dovetail that mates to the male D3N dovetail on a condenser. Here, the external SM2 threads on the adapter are threaded into our CXY2 mount.

Click to Enlarge

LCPN1 Adapter Attached to Inverted Nikon Eclipse Condenser Holder
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CSA2001 Support Documentation
CSA2001Adapter with Female D3N Dovetail and External SM2 Threads
$157.50
Today
LCPN1 Support Documentation
LCPN1Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscope Condenser Adapter, Male D3N Dovetail, Internal SM30 Threads, 30 and 60 mm Cage Compatibility
$114.18
Today

Epi-Illumination Module Adapter for Cerna Microscopes

Item # SM2A56
(Click for Details)
SM2A56 Adapter
Dovetaila Male D3T
SM Threading External SM2
(2.035"-40)
Cage Compatibility Noneb
Microscope Compatibility Cerna
Clear Aperture Ø1.40" (35.6 mm)

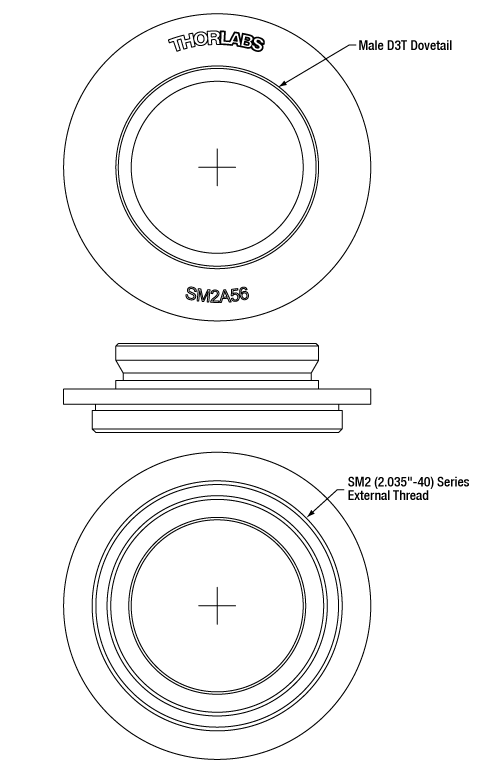

Adapter Profile
(Click for Drawing)
  • Additional information on dovetails is available in the Microscope Dovetails tab.
  • An SM2-threaded cage plate can be used to convert between SM2 lens tubes and 60 mm cage systems.

The SM2A56 adapter allows the user to mount a collimated illumination source to a Cerna epi-illumination module. The adapter uses a D3T dovetail to attach to the CSE2100 and CSE2200 epi-illuminator modules and uses external SM2 (2.035"-40) threading to attach collimated illumination sources, such as Thorlabs' Solis® LEDs. See the table to the left for adapter attachment compatibility.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM2A56 Support Documentation
SM2A56Adapter with Male D3T Dovetail and External SM2 Threads
$114.18
Today

Trinocular Eyepiece Adapter for Cerna and Nikon Eclipse (Ti, Ti2, or Upright) Microscopes

Item # SM2N2
(Click to Enlarge)
Cerna Microscope Eyepiece Adapter
Microscope Connection Ø1.18" Eyepiece Tube
(5 Built-In Alignment Slots)
SM Threading Internal SM1 (1.035"-40)
External SM2 (2.035"-40)
Cage Compatibility 30 mm Cage System
(4-40 Tap, One Side, 4 Places)
Microscope
Compatibility
Cerna, Upright Nikon Eclipse,
Nikon Eclipse Ti and Ti2
Clear Aperture Ø0.90" (22.9 mm)
Adapter Profile
(Click for Drawing)
Click to Enlarge
Two SM2N2 adapters attached to the trinocular eyepieces.
  • Replace Trinocular Eyepiece for DIY Construction
  • Compatible with SM1, SM2, and 30 mm Cage Construction Systems

The SM2N2 Eyepiece Adapter allows custom-built optical detection systems to attach to either eyepiece on the trinoculars of an Upright Nikon Eclipse, Nikon Eclipse Ti, Nikon Eclipse Ti2, or Cerna Microscope. This adapter replaces the lens element on the eyepiece that sets the image plane at the back of the eyes (see image to the right). Five built-in alignment slots ensure the adapter fits snugly inside the eyepiece without rotation; because of the drop-in nature of this adapter, take care the attached system does not overbalance the 40 g eyepiece adapter when it is inside the trinoculars.

This adapter features internal SM1 (1.035"-40) threading for Ø1" lens tubes; two SM1RR retaining rings are included to secure an optic inside the adapter. The adapter also has external SM2 (2.035"-40) threading for Ø2" lens tubes. The face with the item # engraving has 4-40 tapped holes for 30 mm cage systems.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM2N2 Support Documentation
SM2N2Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscope Eyepiece Adapter, Internal SM1 and External SM2 Threads, 30 mm Cage Compatibility
$154.14
Today
