Power Supplies


CPS1

5 VDC Battery Pack for CPS Laser Diodes

LDS9

9 VDC Regulated Power Supply

EC5PS

OEM-Style Power Supply

DS5

5 VDC, 2 A Power Supply with USB 2.0 Type-A Port

  • Output Voltages Ranging from 5 VDC to 24 VDC
  • Location-Specific Power Cord or Adapter Included

KCH601

USB Controller Hub and Power Supply for Six K-Cubes™ or T-Cubes™

Related Items


Please Wait

Thorlabs offers a variety of power supplies with output voltages ranging from 5 VDC to 24 VDC. Our OEM-style power modules are available in 15 W and 100 W units with three voltage outputs: +5 VDC, ±12 VDC, and ±15 VDC.

Power Supplies
Item # Output Voltage Output Current Connector Type Compatible Products
CPS1 5 VDC 2 A 2.5 mm Phono Plug & USB CPS Laser Modules
DS5 5 VDC 2 A USB Type-A Female DXM20AF with the USB-AB-72 USB cable,
LCC2415-VIS(/M) with the USB-AB-72 USB cable,
PM10x Series Power Meters with the USB-ABL-60 USB cable,
CPS Laser Modules with the CPSA Adapter Cable,
Any Product Requiring 5 V Power via USB
LDS9
LDS9-EC
9 VDC 220 mA 2.5 mm Phono Plug OEM Laser Diode Drivers
DS12 12 VDC 4 A M8 Connector PTC1
(PTC1/M)
LDS12B  ±12 VDC 250 mA LUMBERG RSMV3 Male Connector (3 Pins) PDA and PDB Amplified Photodetectors, PDA Series Silicon PhotomultipliersDET Biased Detectors, PMM Photomultiplier Modules, APD Avalanche Photodetectors, and FSAC
DS15 15 VDC 1.3 A Mini-XLR Nanosecond Pulsed Laser Systems
KPS201 15 VDC 2.66 A Female DC, 3.5 mm OD KBD101, KDC101, KIM101, KLS635, KLS1550, KPC101KSC101, KST201, LEDD1B, and TIA60
TPS002 ±15 VDC / 5 VDC 2.5 A @ 5 VDC
0.5 A @ +15 VDC
0.3 A @ -15 VDC
8-Pin Mini Din Plug (2 Places) KNA-VIS, KNA-IR, and KPA101
KCH301 15 VDC 10 A 26 Way 1.27 Pitch, ERNI Connector (6 Places) All K-Cubes™ and T-Cubes™
KCH601
EC2PSa ±12 VDC / 5 VDC 2 A @ 5 VDC
0.2 A @ ±12 VDC
 5 Available Output Connector Pins (Please Refer to the Manufacturing Spec Sheet for Pinout Table) For use in Custom Electronic Assemblies
EC3PSa ±15 VDC / 5 VDC 2 A @ 5 VDC
0.15 A @ ±15 VDC
EC4PSa ±12 VDC / 5 VDC 10 A @ 5 VDC
3 A @ +12 VDC
0.8 A @ -12 VDC
 12 Available Output Connector Pins (Please Refer to the Manufacturing Spec Sheet for Pinout Table)
EC5PSa ±15 VDC / 5 VDC 10 A @ 5 VDC
3 A @ +15 VDC
0.8 A @ -15 VDC
DS24 24 VDC 6.67 A KPPX-3P, 3-Pin Male MCM301 3-Axis Stepper Motor Controller for Microscopy
  • This power supply is designed to operate in a grounded enclosure which is protected against electrical and fire hazards. It is not intended for stand-alone or hands-on use under any circumstance.

Posted Comments:
Ilmars Celmins  (posted 2022-11-14 14:10:38.737)
I purchased the CPS1 battery pack and two PL202 laser modules, planning to plug both lasers into the battery pack. However, this doesn't work because the laser USB connectors are too wide to fit side by side (or the battery pack ports are too close together, depending on how you look at it). Not happy. I guess I'll need to buy some kind of USB extension cable or adapter, which will take months and hundreds of dollars due to government purchasing efficiency. Any other suggestions?
Back to Top

5 VDC External Battery Pack

  • Portable USB Battery Pack with 5 VDC and up to 2 A Output
  • Compatible with CPS Laser Modules and USB-Powered Devices
  • 10 000 mAh Capacity

Thorlabs offers the CPS1 Battery Pack for powering our CPS laser modules and other USB-powered devices. The CPS1 battery pack outputs 5 VDC at up to 2 A, and offers 10 000 mAh capacity. A fully charged CPS1 battery pack can power any CPS laser module for at least 36 hours of continuous operation. The pack includes a USB-to-Micro-USB cable for charging and a custom USB-to-Phono cable for powering the CPS laser module. To activate the battery, simply push the power button once. The pack may be charged using standard 5 V USB chargers for portable devices or using a computer USB port. While the battery pack is charging, it can still supply power to an attached laser module.

The CPS1 Battery Pack also includes an LED flashlight adjacent to the micro-USB port. The flashlight is activated and deactivated by holding the power for two seconds.

When connecting the CPS Diode Module, the module and adapter should be connected first. Then the adapter cable should be plugged into the isolated power supply to avoid a short circuit in the phono jack. Please note that the USB adapter included with this battery pack is not intended to be used with power supplies that are not current-limited or isolated from ground, such as some computers or laptops.

Please note: Due to shipping restrictions for lithium ion cells, the CPS1 battery pack is not available for purchase in certain countries. In countries where it is available, the battery pack must be shipped separately using specifically regulated shipping methods and may require special shipping and handling charges. Our sales team is available to answer additional questions concerning the shipment of this battery pack.

Close



Albania
Algeria
American Samoa
Angola
Argentina
Armenia
Azerbaijan
Bangladesh
Belarus
Belize
Benin
Bermuda
Bhutan
Bolivia
Bonaire, Sint Eustatius and Saba
Bosnia-Herzegovina
Botswana
British Virgin Islands
Brunei
Bulgaria
Burkina Faso
Burundi
Cambodia
Cameroon
Cape Verde
Central African Republic
Chad
Chile
Congo
Congo, Dem Rep of
Cook Islands
Curacao
Cyprus
Djibouti
East Timor

Ecuador
Egypt
Equatorial Guinea
Eritrea
Estonia
Ethiopia
Faeroe Islands
Fiji
French Guiana
French Polynesia
Gabon
Gambia
Georgia, Republic of
Ghana
Gibraltar
Greenland
Guinea
Guinea Bissau
Honduras
Iceland
India
Iran
Iraq
Ivory Coast
Jordan
Kazakhstan
Kenya
Kyrgystan
Laos
Latvia
Lebanon
Lesotho
Liberia
Libya Reunion
Macau

Macedonia
Madagascar
Malawi
Maldives, Republic of
Mali
Malta
Marshall Islands
Martinique
Mauritania
Mauritius
Micronesia
Moldova
Mongolia
Montenegro
Montserrat
Morocco
Mozambique
Myanmar
Namibia
Nepal
New Caledonia
New Zealand
Nicaragua
Niger
Nigeria
Northern Mariana Islands
Oman
Pakistan
Palau
Palestine Autonomous
Papua New Guinea
Paraguay
Peru
Romania
Russia

Rwanda
Saint Martin
Samoa
Saudi Arabia
Senegal
Serbia
Serbia-Montenegro
Serbia-Montenegro Old
Seychelles
Sierra Leone
Solomon Islands
Somalia
South Africa, Republic of
Sri Lanka
Sudan
Suriname
Swaziland
Tanzania
Togo
Tonga
Tunisia
Turkey
Turkmenistan, Republic of
Uganda
Ukraine
Uruguay
Uzbekistan
Vanuatu
Venezuela
Wallis & Futuna Islands
Zambia
Zimbabwe

This battery cannot be shipped to certain postal codes in and around Perth, Australia.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CPS1 Support Documentation
CPS1Customer Inspired! 5 VDC Battery Pack for CPS Laser Diodes, 10 000 mAh
$41.29
Today

* Ground or Air Shipments – Are required to ship separate from any other items in the order with a separate shipping charge.

Ground Shipments - have a limit of two CPS1’s and can ship with UPS or FedEx.

Back to Top

5 VDC Regulated Power Supply with USB Port

Photo of Power Supply Adapters
Click for Details

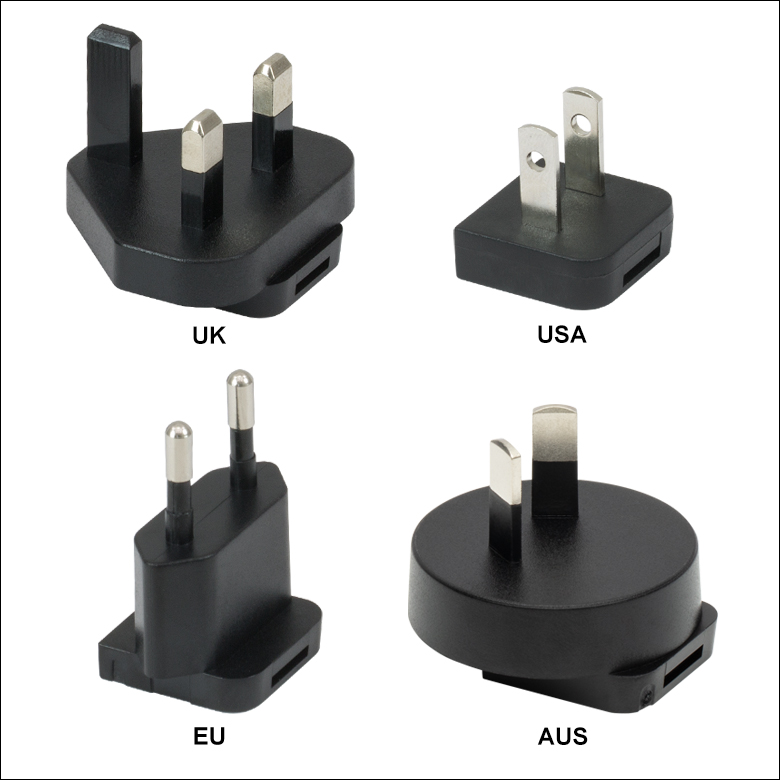

Region-Specific Adapters for DS5
USB Cord Ends
Click to Enlarge

DS5 Compatible Adapter Cables

The DS5 is a 5 V, 2 A regulated power supply with a USB 2.0 Type-A female port that can be used with any USB-compatible device that accepts a 5 VDC output. A region-specific adapter plug is shipped with the DS5 power supply unit based on your location.

This power supply is directly compatible with our ultrafast fiber optic detectors and our LCC2415-VIS(/M) Retarders when used with the USB-AB-72 USB cable, with our PM101, PM102, and PM103 series of power meters when used with the USB-ABL-60 USB cable with an M2.5 locking screw, and with our CPS Laser Diode Modules when used with the low-noise CPSA USB cable adapter (each cable sold separately). We also offer other USB 2.0 cables.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
DS5 Support Documentation
DS55 VDC, 2 A Regulated Power Supply with USB Type-A Port, 100/240 VAC
$23.56
Today
USB-AB-72 Support Documentation
USB-AB-72USB 2.0 Type-A to Mini-B Cable, 72" (1.83 m) Long
$9.73
Today
USB-ABL-60 Support Documentation
USB-ABL-60USB 2.0 Type-A to Mini-B Cable with Locking Screw, 60" (1.5 m) Long
$10.76
Today
CPSA Support Documentation
CPSANEW!USB 2.0 Type-A to 2.5 mm Phono Cable for CPS Laser Diodes, 70" (1.78 m) Long
$42.00
Lead Time
Back to Top

9 VDC Regulated Power Supply

The LDS9 is a 9 VDC power supply that is ideal for use with our OEM Laser Diode Drivers. A 6 ft (183 cm) cable with a 2.5 mm phono plug extends from the body of the power supply for connection to a 2.5 mm phono power socket.

The LDS9 power supply has a line voltage of 115 VAC, while the LDS9-EC has a line voltage of 230 VAC. A 120 VAC power cable is included with the LDS9 and the LDS9-EC comes with a 230 VAC power cable. To order this item with a different power cable, please contact Tech Support.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LDS9 Support Documentation
LDS99 VDC Regulated Power Supply, 2.5 mm Phono Plug, 120 VAC
$100.09
Today
+1 Qty Docs Part Number - Metric Price Available
LDS9-EC Support Documentation
LDS9-EC9 VDC Regulated Power Supply, 2.5 mm Phono Plug, 230 VAC
$100.09
Today
Back to Top

12 VDC Power Supply

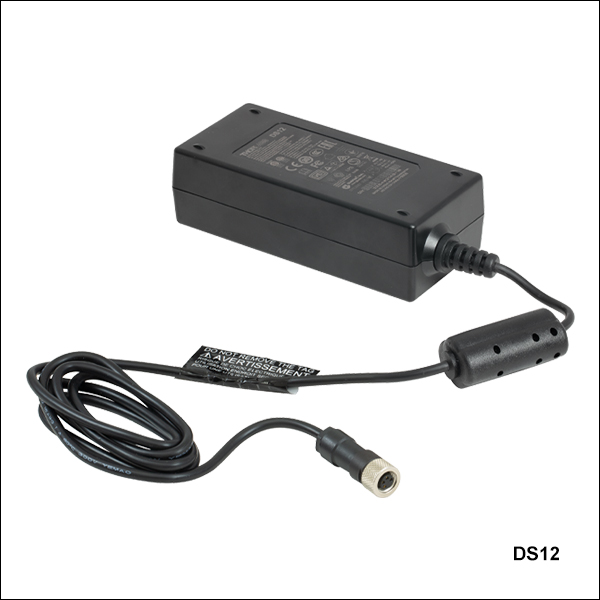

The DS12 is a 12 VDC power supply with a 1.23 m long cable and an M8, 4-pin female connector, and operates at an input voltage of 100 - 240 VAC. It is compatible with any male M8, 4-pin device that accepts a 12 VDC output. The DS12 ships with a region-specific AC cable.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
DS12 Support Documentation
DS1212 VDC, 4 A Regulated Power Supply with M8 Connector, 100 - 240 VAC
$62.19
Today
Back to Top

±12 VDC Regulated Linear Power Supply

The LDS12B is a ±12 VDC regulated linear power supply specifically for use with our PDA and PDB amplified photodetectors, PMM photomultiplier modules, APD avalanche photodetectors, and the FSAC autocorrelator for femtosecond lasers. In addition, it can be used with our DET biased photodetectors in conjunction with a DET2A power adapter. Note that we offer a bundle of the LDS12B and DET2A (Item # DET2B). Additionally, the LDS12B power supply can be purchased bundled with a cable for connecting to the LD1255R Laser Diode Driver or PDAPC Series Photodetectors (Bundle Item # LD1255-SUPPLY).

The LDS12B regulated power supply incorporates a current limit, enabling short circuit and overload protection; an on/off switch with LED indicator; and a switchable AC input voltage (100, 120, or
230 VAC). The 2 m (6.6 ft) long cord has three pins: one for ground, one for +12 V and one for -12 V (see diagram to the right). A region-specific power cord is shipped with the LDS12B power supply based on your location.

The LDS12B is fully compatible with Thorlabs products that used the previous generation power supply, the LDS1212.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LDS12B Support Documentation
LDS12B±12 VDC Regulated Linear Power Supply, 6 W, 100/120/230 VAC
$93.55
Today
Back to Top

15 VDC Regulated Power Supply

Photo of Power Supply Adapters
Click for Details

Region-Specific Adapters for DS15
  • Compatible with Our Nanosecond Pulsed Laser Systems
  • 15 VDC Regulated Power Supply
  • Mini-XLR Connector

The DS15 is a 15 V, 1.2 A regulated power supply with a 1.53 m (60.24") long cable and a Mini-XLR connector. It is suitable for any Mini-XLR-compatible device that requires a 15 VDC output, and is directly compatible with our nanosecond pulsed laser systems. A region-specific adapter plug is shipped with the DS15 power supply based on your location.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
DS15 Support Documentation
DS1515 VDC, 1.2 A Regulated Power Supply with Mini-XLR Connector, 100/240 VAC
$52.48
Today
Back to Top

K-Cube™ and T-Cube™ Power Supplies

Power Supply Adapters
Click for Details

Region-Specific Adapters for KPS201
Input Specifications
Item # Mains Voltage Requirements
KPS201 100 - 240 V, 1 A Max, 47 - 63 Hz
TPS002 90 - 264 V, 0.8 A Max, 47 - 63 Hz
  • Individual Power Supplies for One K-Cube or T-Cube
    • KPS201: For K-Cubes or T-Cubes with 3.5 mm Jacks
  • Power Supply for up to Two K-Cubes or T-Cubes
    • TPS002: For K-Cubes or T-Cubes with Mini-DIN Input

The KPS201 offers a simple power supply for select individual K-Cubes or T-Cubes, while the TPS002 supplies power for one or two select K-Cubes or T-Cubes. Please refer to the compatibility information in the list or table above. The TPS002 can only support one KNA-VIS or KNA-IR controller and should not be used to power any additional units due to potentially exceeding the current limit.

The cubes need to be hooked up individually to a computer via a USB cable to use them with the motion control software. One region-specific plug adapter, selectable at checkout, is included with each power supply. The adapter plugs for the KPS201 are shown to the right.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
KPS201 Support Documentation
KPS20115 V, 2.66 A Power Supply Unit with 3.5 mm Jack Connector for One K- or T-Cube
$40.33
Today
TPS002 Support Documentation
TPS002±15 V/5 V Power Supply Unit with Mini-DIN Connectors for up to Two K- or T-Cubes
$128.29
Today
Back to Top

USB Controller Hubs for K-Cubes™ and T-Cubes™


Click to Enlarge

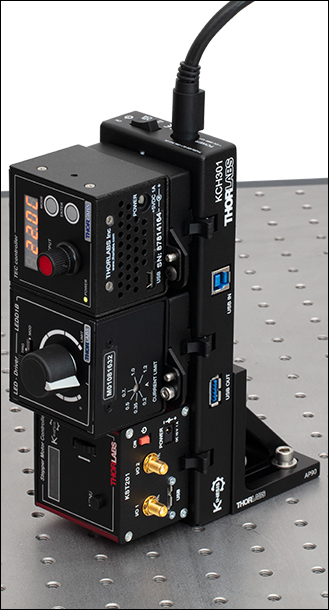

KCH301 USB Controller Hub with Installed
K-Cube Modules
Input Specifications
Item # Mains Voltage Requirements
KCH301
KCH601
80 - 264 V, 1.8 A Max, 47 - 63 Hz
  • USB Controller Hubs for up to Three or Six K-Cubes or
    T-Cubes
  • Provide Power and Communication with a Single USB Cable and a Single Power Connection
  • Adapter Plate Connects T-Cube to Hub

These USB Controller Hubs have been designed specifically with multiple K-Cube and T-Cube operation in mind. The hub vastly reduces the number of USB and power cables required when operating multiple K-Cubes or T-Cubes. Furthermore, a USB output connector can be connected to the USB input on another unit, allowing multiple Controller Hubs to be connected together while still only using a single USB cable from the host control PC.

The hub draws a maximum current of 10 A; please verify that the cubes being used do not require a total current of more than 10 A.

The KCH301 and KCH601 Controller Hubs are compatible with all K-Cube and T-Cube modules. A KAP101 or KAP102 Adapter Plate (sold separately) is required for each T-Cube to operate on the controller hub. The KAP101 is designed to adapt 60 mm wide T-Cubes to the hubs, while the KAP102 is designed to adapt 120 mm wide T-Cubes to the hubs.

For more information on the USB Controller Hubs, see the full web presentation.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
KCH301 Support Documentation
KCH301USB Controller Hub and Power Supply for Three K-Cubes or T-Cubes
$598.63
7-10 Days
KCH601 Support Documentation
KCH601USB Controller Hub and Power Supply for Six K-Cubes or T-Cubes
$724.52
7-10 Days
KAP101 Support Documentation
KAP101Adapter Plate for KCH Series Hubs and 60 mm Wide T-Cubes
$69.43
Today
KAP102 Support Documentation
KAP102Adapter Plate for KCH Series Hubs and 120 mm Wide T-Cubes
$75.60
Today
Back to Top

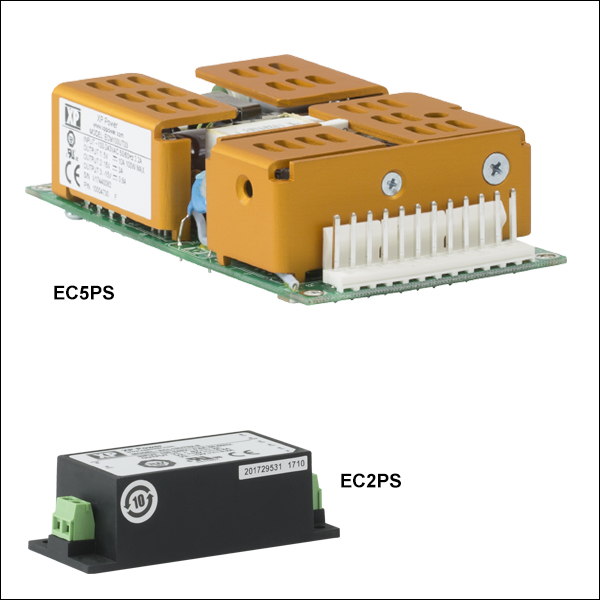

OEM Power Supplies

These power supply modules are intended to be integrated into custom electronics assemblies. The power supplies can deliver 15 W or 100 W of power to the setup. Each module has three possible voltage outputs; see the table below and the spec sheets for details. Mounting taps or through holes on the base of each unit allow it to be mounted to a surface inside an enclosure. See our custom enclosure configurator to design and order an aluminum enclosure to fit the needs of your system.

Please note that these power supplies are designed to operate in grounded enclosures which are protected against electrical and fire hazards. They are not intended for stand-alone or hands-on use under any circumstance.

Key Specificationsa
Item # EC2PS EC3PS EC4PS EC5PS
Manufacturer Item # ECL15UT02-S ECL15UT03-S ECM100UT31 ECM100UT33
Output Voltage +5 VDC / ±12 VDC +5 VDC / ±15 VDC +5 VDC / ±12 VDC +5 VDC / ±15 VDC
Output Current 2 A @ 5 VDC
0.2 A @ ±12 VDC
2 A @ 5 VDC
0.15 A @ ±15 VDC
10 A @ 5 VDC
3 A @ +12 VDC
0.8 A @ -12 VDC
10 A @ 5 VDC
3 A @ +15 VDC
0.8 A @ -15 VDC
Output Power 15 W 100 Wb
Input Voltage 85 - 264 VAC (120 - 370 VDC) 90 - 264 VAC (120 - 370 VDC)
Inrush Current 20 A (at 115 VAC) 40 A (Max at 230 VAC)
Operating Temperature -20 to +70 °C 0 to 70 °C
Mounting Holes Two Ø0.14" (Ø3.5 mm) Through Holes Four Ø0.16" (Ø4.0 mm) Through Holes
Dimensionsc 3.31" x 1.36" x 1.04"
(84.0 mm x 34.5 mm x 26.4 mm)
4.50" x 2.50" x 1.20"
(114.3 mm x 63.5 mm x 30.5 mm)
  • See the spec sheets by clicking on the red Docs icons below () for complete specifications, including pin diagrams.
  • 100 W output power only available when forced-air cooled at 5 CFM. When convection cooled, the EC4PS can provide 75 W while the EC5PS can provide 80 W.
  • Including Chassis/Cover
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
EC2PS Support Documentation
EC2PS15 W, +5 V / ±12 V Power Supply Module for Custom Electronics Assemblies
$125.78
Today
EC3PS Support Documentation
EC3PS15 W, +5 V / ±15 V Power Supply Module for Custom Electronics Assemblies
$125.78
Today
EC4PS Support Documentation
EC4PS100 W, +5 V / ±12 V Power Supply Module for Custom Electronics Assemblies
$246.90
Today
EC5PS Support Documentation
EC5PS100 W, +5 V / ±15 V Power Supply Module for Custom Electronics Assemblies
$246.90
Today
Back to Top

24 VDC Regulated Power Supply

  • Compatible with Our MCM301 3-Axis Controller for Microscopy
  • 24 VDC Power Output
  • Input Voltage of 85 - 264 VAC
  • 3.9 ft (120 cm) Cable with KPPX-3P, 3-Pin Male Connector

The DS24 24 VDC regulated power supply has a 1.20 m long cable and a KPPX-3P, 3-pin male connector. It accepts input voltages from 85 to 264 VAC. This power supply is compatible with the MCM301 3-axis controller for microscopy. The DS24 ships with a region-specific AC cable.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
DS24 Support Documentation
DS2424 VDC Regulated Power Supply with KPPX-3P Connector, 85 - 264 VAC
$159.78
Today
