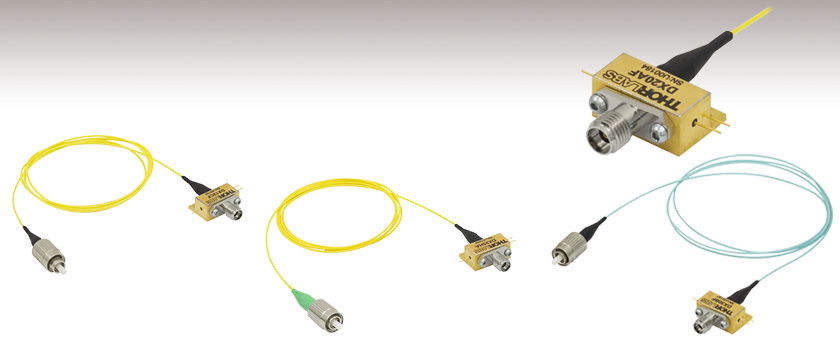

Ultrafast Fiber Optic Photodetector Modules, OEM Package

Nine Models Cover Wavelengths from 700 nm to 1650 nm
High-Fidelity Impulse Responses Down to 11 ps FWHM
Bandwidths from 12 GHz to 50 GHz
High-Power 25 GHz Model for Up to 100 mW (20 dBm)

DX50AF

SM, 50 GHz,
1250 - 1650 nm

DX25HA

SM, 25 GHz,
980 - 1625 nm,
Input ≤100 mW

DX30BF

MM, 30 GHz,
750 - 1650 nm

Compact, Hermetically Sealed Package for OEM Applications

Please Wait

Overview
Graphs
Operation
Custom Capabilities
Pulse Calculations
Feedback

Click to Enlarge

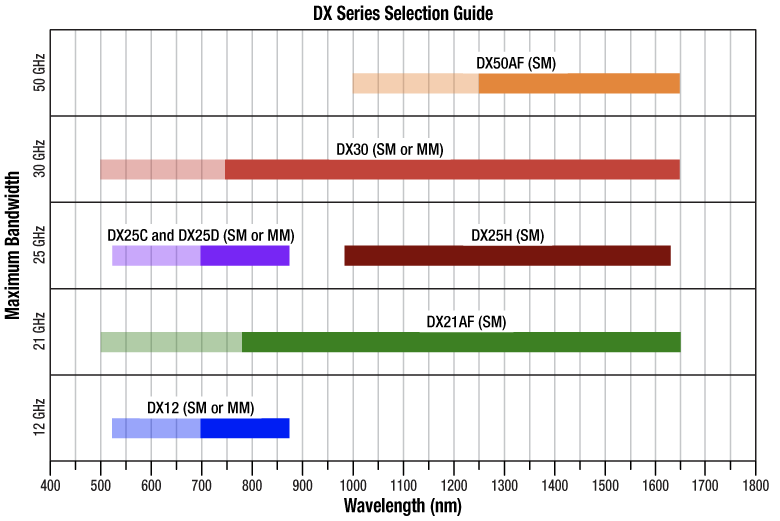

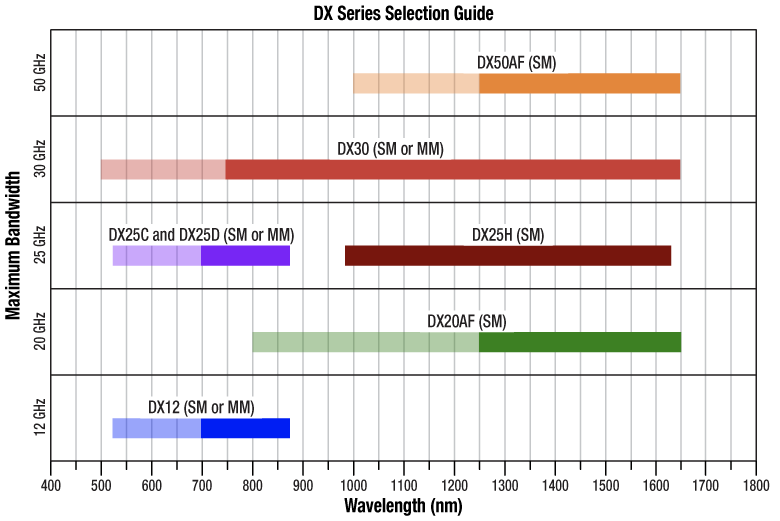

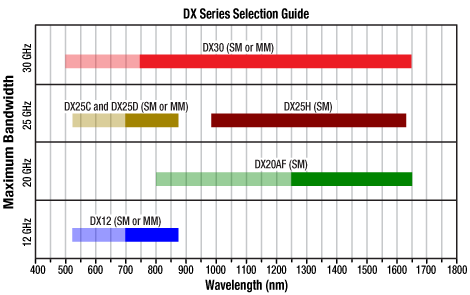

Figure 1.1 While each DX Series model is designed and intended for operation over the specified wavelength range shown by the solid colored regions above, each will respond with reduced performance to optical inputs at shorter wavelengths, as shown by the partially transparent regions. See the plots in the Graphs tab for details. Please contact Tech Support for more information.

Adam Knapp
Ultrafast Optoelectronics
General Manager

Got Questions?

Our engineers and expertise are here for you!

If you are not sure whether our catalog items meet your needs, we invite you to contact us. Or ask about a loan, so you can try them out for yourself, in your own lab. We can also support custom or OEM requirements you may have.

Just press the button, and we'll get back to you within the next business day.

Features

Fiber-Coupled Detectors with Bandwidths Up to 50 GHz
Compact Hermetic Modules for OEM Applications
Visible, Near-Infrared, or Broadband Wavelength Ranges
DC-Coupled Output
Single Mode (SMF-28) and Multimode (OM4) Versions
Available from Stock with FC/PC Connectors; Contact Tech Support for FC/APC Versions
Discounts for High-Volume Purchases Available; Contact OEM Sales with Inquiries
Available Packaged in Ultrafast Photodetector Instruments

Thorlabs' DX Series Ultrafast Fiber Optic Photodetector Modules provide high-fidelity optical detection with a clean impulse response as fast as 11 ps. Their compact hermetic packaging makes them ideal for OEM applications (see the Operation tab for details). They are available with single mode (Ø9 µm, SMF-28) or multimode (Ø50 µm, OM4) fiber pigtails, with options sensitive to a wide range of wavelengths, as shown in Figure 1.1.

The DXM Series Instruments offer these detectors within a rugged aluminum housing. Other features include a rechargeable battery with 500 mA·h capacity, current monitor circuitry, and a digital DC photocurrent display (click here for the full web presentation).

The performance of each DX series detector is factory tested and a test result summary is included with each detector shipped (sample). The test results and tabular data for detectors purchased after January 16^th, 2020 can be downloaded by clicking on the red Docs icon () next to the Item # and entering your device's serial number under "Download Serial Item Data." Please contact Tech Support if you would like to receive test results for devices purchased before January 16^th, 2020.

Thorlabs offers an enhanced calibration service for our DX Series photodetectors. This service includes a NIST-traceable S-parameter file with a frequency response up to 40 GHz at 850 nm, and up to 70 GHz at 1310 and 1550 nm. Please contact Tech Support for details.

These detectors use FC/PC connectors by default, but FC/APC connectors are available upon request; please contact Tech Support with inquiries. The RF signal outputs via a female 1.85 mm connector (Item # DX50AF) or an SMA-compatible 2.92 mm RF connector (all other detectors), which may be connected to an external instrument using suitable microwave cables or adapters.

Ideally, these items should be mounted to a printed circuit board (PCB) that supplies an electrical bias free of noise and spikes. An internal biasing network eliminates the need for an external bias tee. The output is designed for a 50-Ω coaxial cable and should be terminated into 50-Ω equipment to prevent electrical reflections. Because these detector modules are ESD sensitive, observe proper storage and handling procedures (see the Operation tab for details).

Webpage Features
	Clicking this icon below opens a window that contains full specifications and performance graphs for each item.
	Clicking this icon below allows you to download our standard support documentation for each item.

Click to Enlarge

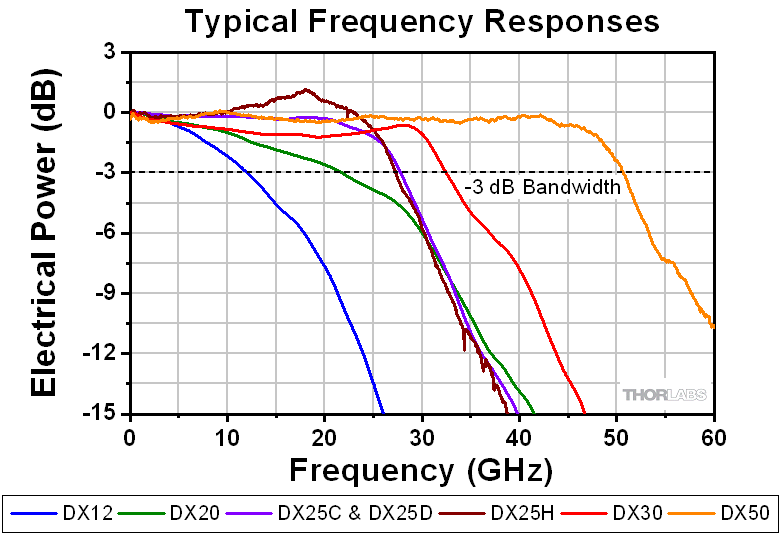

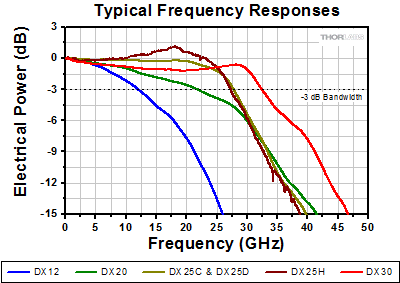

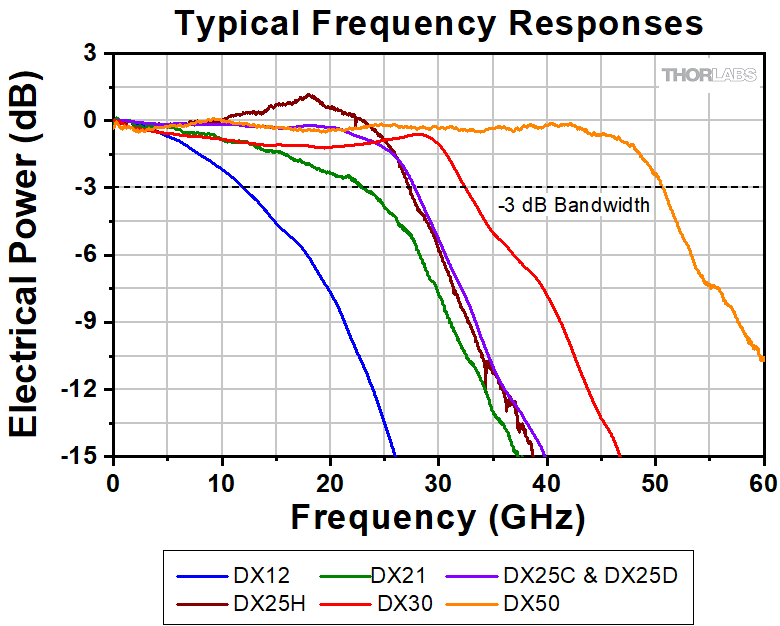

Typical Frequency Responses for the DX Series Ultrafast Detectors
Please see the blue info icons below (

) for individual plots.

Click to Enlarge

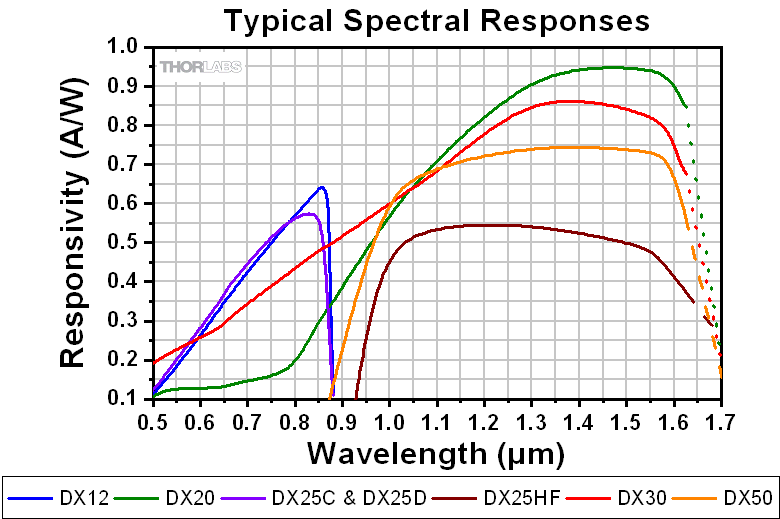

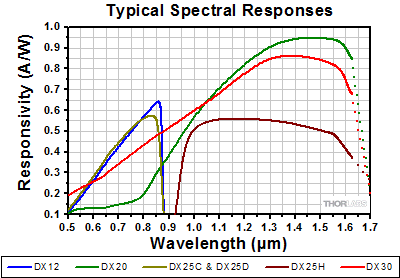

Typical Spectral Responses for the DX Series Ultrafast Detectors
Measured data is shown by the solid line, while theoretical data is shown by the dotted line. Please see the blue info icons below (

) for individual plots.

Click to Enlarge

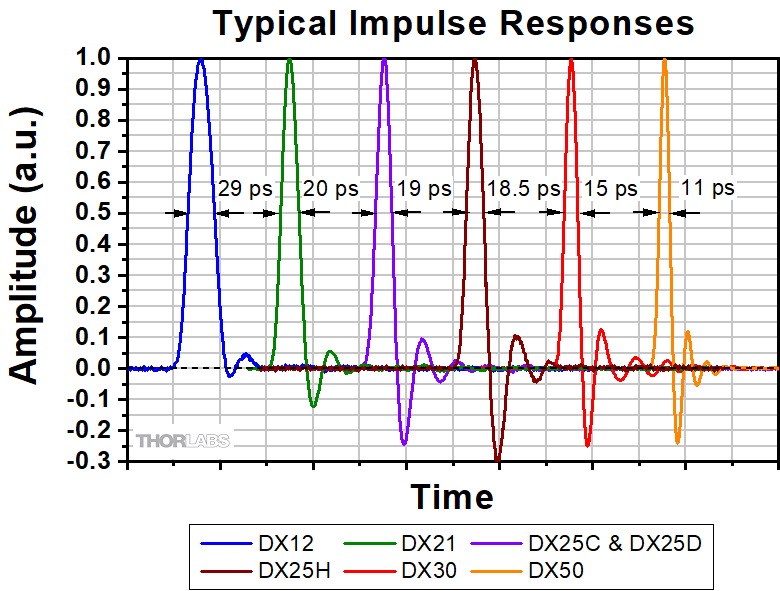

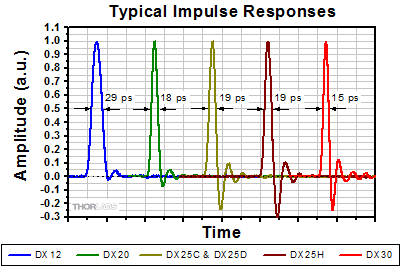

Typical Impulse Responses for the DX Series Ultrafast Detectors
Please see the blue info icons below (

) for individual plots.

Click to Enlarge

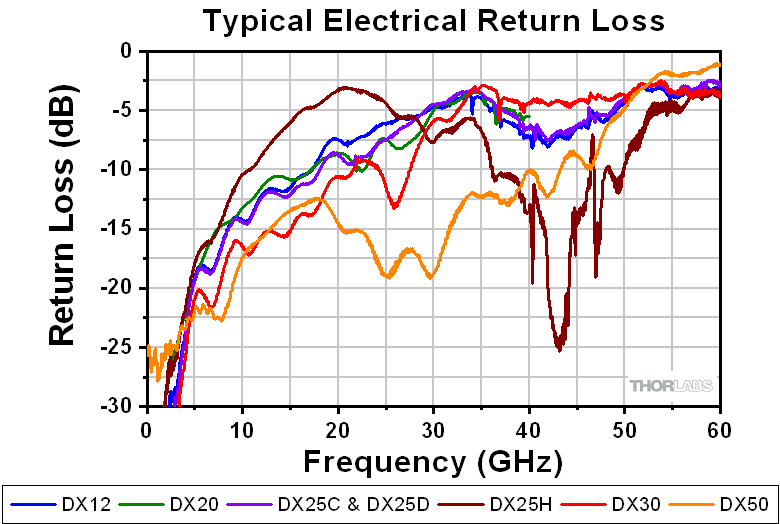

Typical Electrical Return Loss for the DX Series Ultrafast Detectors
Please see the blue info icons below (

) for individual plots.

Table 3.2 Photodetector Connectors
Item #	Fiber Conn.	RF Conn.
DX12CF DX12DF	FC/PC	2.92 mm
DX21AF
DX25CF DX25DF
DX25HF
DX25HA	FC/APC
DX30AF DX30BF	FC/PC
DX50AF	FC/PC	1.85 mm

Click to Enlarge
Figure 3.1 Schematic of Pins and Connectors

Operation Guide

Please reference Table 3.2 and Figure 3.1 for connection options. Unpack the unit carefully, making sure to take ESD precautions.

Mount the unit using the through hole mounting features.
Connect the RF output of the unit to the measurement instrument using suitable cables or adapters. The measurement instrument must have a 50 Ω input and adequate bandwidth to resolve the high-speed signal from the ultrafast detector.
Apply a 4 VDC voltage between the bias and ground pins.
Couple the optical input signal to the detector via the fiber connector. Ensure the average input optical power does not exceed 10 dBm.
The DC photocurrent can be monitored using a resistor in series with the bias pin and a voltmeter across the resistor. Make sure that the voltage drop across the resistor does not reduce the bias on the module below its operating voltage.

ESD Sensitive Components: Please note that the components inside the DX series units are ESD sensitive. Take all appropriate precautions to discharge personnel and equipment before making any electrical connections to the unit. This especially applies to coaxial connecting cables that can accumulate capacitive charge.

Adam Knapp
Ultrafast Optoelectronics
General Manager

Custom and OEM Options

When your application requirements are not met by our range of catalog products or their variety of user-configurable features, please contact me to discuss how we may serve your custom or OEM needs.

Request a Demo Unit

Explore the benefits of using a Thorlabs high-speed instrument in your setup and under your test conditions with a demo unit. Contact me for details.

Click to Enlarge
Figure 162A The MX40B Digital Reference Transmitter

Design, Manufacturing, and Testing Capabilities

Thorlabs' Ultrafast Optoelectronics Team designs, develops, and manufactures high-speed components and instrumentation for a variety of photonics applications having frequency responses up to 110 GHz. Our extensive experience in high-speed photonics is supported by core expertise in RF/microwave design, optics, fiber optics, optomechanical design, and mixed-signal electronics. As a division of Thorlabs, a company with deep vertical integration and a portfolio of over 20,000 products, we are able to provide and support a wide selection of equipment and continually expand our offerings.

Our catalog and custom products include a range of integrated fiber-optic transmitters, modulator drivers and controllers, detectors, receivers, pulsed lasers, variable optical attenuators, and a variety of accessories. Beyond these products, we welcome opportunities to design and produce custom and OEM products that fall within our range of capabilities and expertise. Some of our key capabilities are:

Detector and Receiver Design, to 70 GHz
Fiber-Optic Transmitter Design, to 110 GHz
RF & Microwave Design and Simulation
Design of Fiber-Optic and Photonics Sub-Assemblies
High-Speed Testing, to 110 GHz

Micro-Assembly and Wire Bonding
Hermetic Sealing of Microwave Modules
Fiber Splicing of Assemblies
Custom Laser Engraving
Qualification Testing

Overview of Custom and Catalog Products

Our catalog product line includes a range of integrated fiber-optic transmitters, modulator drivers and controllers, detectors, pulsed lasers, and accessories. In addition to these, we offer related items, such as receivers and customized catalog products. The following sections give an overview of our spectrum of custom and catalog products, from fully integrated instruments to component-level modules.

Fiber-Optic Instruments

To meet a range of requirements, our fiber-optic instruments span a variety integration levels. Each complete transmitter includes a tunable laser, a modulator with driver amplifier and bias controller, full control of optical output power, and an intuitive touchscreen interface. The tunable lasers, modulator drivers, and modulator bias controllers are also available separately. These instruments have full remote control capability and can be addressed using serial commands sent from a PC.

Fiber-Optic Transmitters, to 110 GHz
Linear and Digital Transmitters
Electrical-to-Optical Converters, to 110 GHz

Modulator Drivers
Modulator Bias Controllers
C- and L-Band Tunable Lasers

Customization options include internal laser sources, operating wavelength ranges, optical fiber types, and amplifier types.

Fiber-Optic Components

Our component-level, custom and catalog fiber-optic products take advantage of our module design and hermetic sealing capability. Products include detectors with frequency responses up to 50 GHz, and we also specialize in developing fiber-optic receivers, operating up to and beyond 40 GHz, for instrumentation markets. Closely related products include our amplifier modules, which we offer upon request, variable optical attenuators, microwave cables, and cable accessories.

Hermetically-Sealed Detectors, to 50 GHz
Fiber-Optic Receivers, to 40 GHz
Amplifier Modules

Electronic Variable Optical Attenuators
Microwave Cables and Accessories

Customization options include single mode and multimode optical fiber options, where applicable, and detectors optimized for time or frequency domain operation.

Free-Space Instruments

Our free-space instruments include detectors with frequency responses around 1 GHz and pulsed lasers. Our pulsed lasers generate variable-width, nanosecond-duration pulses, and a range of models with different wavelengths and optical output powers are offered. User-adjustable repetition rates and trigger in/out signals provide additional flexibility, and electronic delay-line products enable experimental synchronization of multiple lasers. We can also adapt our pulsed laser catalog offerings to provide gain-switching capability for the generation of pulses in the 100 ps range.

Pulsed Lasers with Fixed 10 ns Pulse Duration
Pulsed Lasers with Variable Pulse Width and Repetition Rates
Electronic Delay Units to Synchronize NPL Series Pulsed Lasers
Amplified Detectors

Customization options for the pulsed lasers include emission wavelength, optical output powers, and sub-nanosecond pulse widths.

Pulsed Laser Emission: Power and Energy Calculations

Click above to download the full report.

Determining whether emission from a pulsed laser is compatible with a device or application can require referencing parameters that are not supplied by the laser's manufacturer. When this is the case, the necessary parameters can typically be calculated from the available information. Calculating peak pulse power, average power, pulse energy, and related parameters can be necessary to achieve desired outcomes including:

Protecting biological samples from harm.
Measuring the pulsed laser emission without damaging photodetectors and other sensors.
Exciting fluorescence and non-linear effects in materials.

Pulsed laser radiation parameters are illustrated in Figure 170A and described in Table 170B. For quick reference, a list of equations is provided below. The document available for download provides this information, as well as an introduction to pulsed laser emission, an overview of relationships among the different parameters, and guidance for applying the calculations.

Equations:
Period and repetition rate are reciprocal:		and
Pulse energy calculated from average power:
Average power calculated from pulse energy:
Peak pulse power estimated from pulse energy:
Peak power and average power calculated from each other:
	and
Peak power calculated from average power and duty cycle*:
	*Duty cycle () is the fraction of time during which there is laser pulse emission.

Click to Enlarge

Figure 170A Parameters used to describe pulsed laser emission are indicated in this plot and described in Table 170B. Pulse energy (E) is the shaded area under the pulse curve. Pulse energy is, equivalently, the area of the diagonally hashed region.

Table 170B Pulse Parameters
Parameter	Symbol	Units	Description
Pulse Energy	E	Joules [J]		A measure of one pulse's total emission, which is the only light emitted by the laser over the entire period. The pulse energy equals the shaded area, which is equivalent to the area covered by diagonal hash marks.
Period	Δt	Seconds [s]		The amount of time between the start of one pulse and the start of the next.
Average Power	P_avg	Watts [W]		The height on the optical power axis, if the energy emitted by the pulse were uniformly spread over the entire period.
Instantaneous Power	P	Watts [W]		The optical power at a single, specific point in time.
Peak Power	P_peak	Watts [W]		The maximum instantaneous optical power output by the laser.
Pulse Width		Seconds [s]		A measure of the time between the beginning and end of the pulse, typically based on the full width half maximum (FWHM) of the pulse shape. Also called pulse duration.
Repetition Rate	f_rep	Hertz [Hz]		The frequency with which pulses are emitted. Equal to the reciprocal of the period.

Example Calculation:

Is it safe to use a detector with a specified maximum peak optical input power of 75 mW to measure the following pulsed laser emission?

Average Power: 1 mW
Repetition Rate: 85 MHz
Pulse Width: 10 fs

The energy per pulse:

seems low, but the peak pulse power is:

It is not safe to use the detector to measure this pulsed laser emission, since the peak power of the pulses is >5 orders of magnitude higher than the detector's maximum peak optical input power.
