Lithium Niobate Electro-Optic Modulators, Fiber-Coupled (830 nm - 1090 nm)

- Up to 40 GHz Lithium Niobate (LiNbO3) Intensity Modulators
- 850 nm or 1060 nm Wavelength Operation
- Annealed Proton-Exchange Waveguides
- Fiber-Coupled, High-Speed Modulation

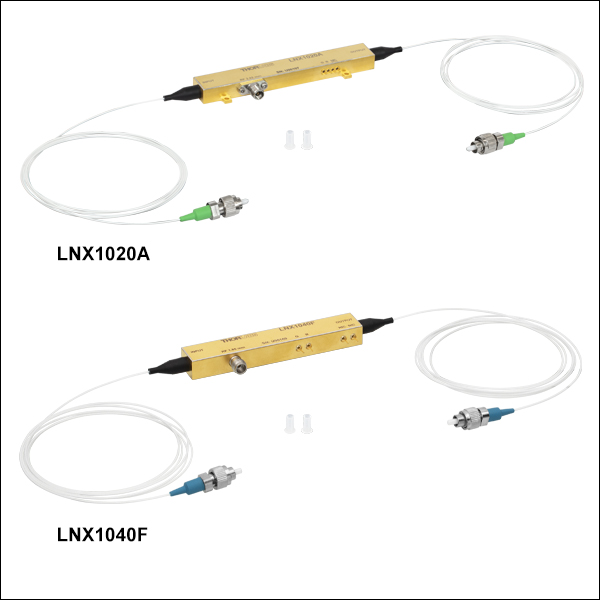

LNX1020F
1060 nm 20 GHz Intensity Modulator, FC/PC Connectors
LNX8540A
850 nm 40 GHz Intensity Modulator, FC/APC Connectors

Please Wait

Click to Enlarge
The cross-section of an X-Cut LiNbO3 intensity modulator with annealed proton-exchange waveguide technology. The transverse electric (TE)-polarized mode is shown in the upper right.

Click to Enlarge
This operational diagram of an intensity modulator shows the waveguide (blue lines) splitting into two paths embedded in the surface of the LiNbO3 (green). The input light is first affected by the modulating RF drive voltage and then the DC bias voltage, as shown by the boxed yellow regions.
APE Waveguide Technology
APE waveguides are formed by exchanging lithium ions with a proton source such as H+. This is accomplished by submerging LiNbO3 in an acid melt rich in H+ ions, resulting in a change in the material's refractive index. Following this, the waveguides are annealed at high temperature to remove excess hydrogen from the exchanged region, leading to a stable waveguide. This annealing stage also transforms the step-index waveguides to gradient-index waveguides with greatly reduced single-mode propagation loss.
The APE process causes an increase in the extraordinary refractive index, but a decrease in the ordinary refractive index, meaning only the transverse electric (TE)-polarized mode is allowed to propagate. APE waveguides have significantly reduced photorefractive sensitivity compared to titanium-indiffused waveguides, enabling high-speed modulation at shorter wavelengths.
Features
- 850 nm or 1060 nm Wavelength Operation
- Annealed Proton-Exchange Waveguides
- X-Cut Lithium Niobate (LiNbO3)
- Low Optical Insertion Loss: ≤5 dB
- Long-Term Bias Stability
- Reduced Photorefractive Sensitivity Compared to Titanium-Indiffused Waveguides
- Polarization-Maintaining (PM) Input and Output Fiber Pigtails
- FC/PC or FC/APC Fiber Connectors
Common Applications
- Quantum Optics
- High-Speed Telecommunications
- Test and Measurement
Thorlabs offers lithium niobate (LiNbO3) intensity modulators for 850 nm or 1060 nm wavelength applications. These high-performance devices are based on annealed proton-exchange (APE) waveguide technology, offer low optical insertion loss of ≤5 dB, and are ideal for developing high-speed modulation systems.
The modulators on this page are fabricated from X-cut LiNbO3 (see the example diagram to the top right). A symmetrical design is employed to minimize frequency-chirp in the modulated signal in X-cut intensity modulators. A Mach-Zehnder interferometer structure is used to allow modulation of the optical output power of the LiNbO3 optical intensity modulators, as shown by the operational diagram to the right. The devices include electrical connections for the modulation driving signal and for biasing the modulator.
The input and output fiber pigtails of the modulators come with polarization-maintaining (PM) fiber that are terminated with FC/PC or FC/APC connectors. The narrow key of the fiber connector is aligned to the slow axis of the modulator. Please note that mixed FC/PC and FC/APC connectors can be provided upon request. For more information on custom configurations (e.g., connectors, wavelengths) and quotes, please contact Tech Support.
The performance of each modulator is factory tested, and a test result summary is included with each device. The test results and tabular data can be downloaded by clicking on the red Docs icon () next to the Item # and entering your modulator's serial number under "Download Serial Item Data".
Our MX40G-850 fiber-optic, calibrated electrical-to-optical converter incorporates the LNX8540x modulators. For more information on custom integrated solutions and quotes for configurations that combine modulators with lasers, bias controllers, and amplifiers, please contact us.

Click to Enlarge

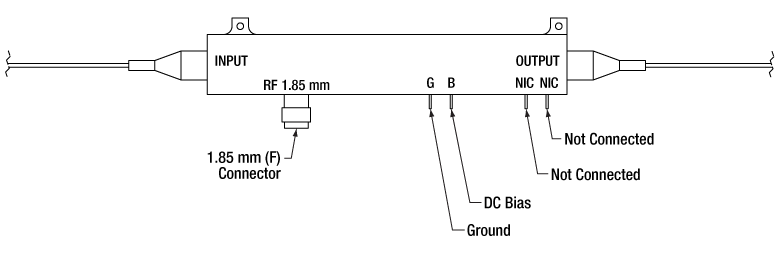

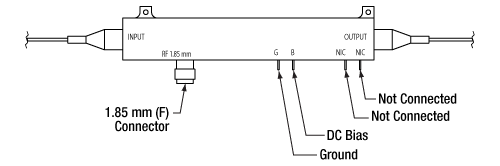

LNX8540F and LNX8540A Intensity Modulators Pin Diagram

Click to Enlarge
LNX1020F and LNX1020A Intensity Modulators Pin Diagram
Posted Comments: | |
No Comments Posted |

Applications
- Analog Modulation Up to 40 GHz
- WDM Transmission
- Quantum Optics
- High-Speed Telecommunications
- Test and Measurement
The LNX8540F and LNX8540A high-speed intensity modulators have FC/PC or FC/APC connectors, respectively, and provide up to 40 GHz of modulation over the 830 nm to 870 nm operating range. The RF port input connector is a 1.85 mm female connector.

Applications
- Analog Modulation Up to 20 GHz
- RF-Over-Fiber (RFOF) and Microwave Photonics
- Pulse Generation for Ytterbium-Doped Fiber Amplifiers (YDFA)
- Quantum Optics
- High-Speed Telecommunications
- Test and Measurement
The LNX1020F and LNX1020A high-speed intensity modulators have FC/PC or FC/APC connectors, respectively, and provide up to 20 GHz of modulation over the 1030 nm to 1090 nm operating range. The RF port input connector is a field-replaceable 2.92 mm female connector.
