SYNC100 Repetition Rate Synchronization The SYNC100 allows for tuning of the cavity length by 330 kHz (full range). It includes a stepper motor and piezo setup integrated in the laser head. This option can not be retrofitted.

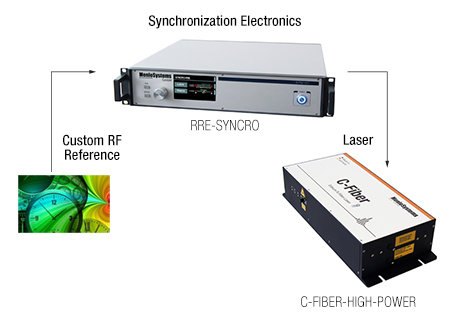

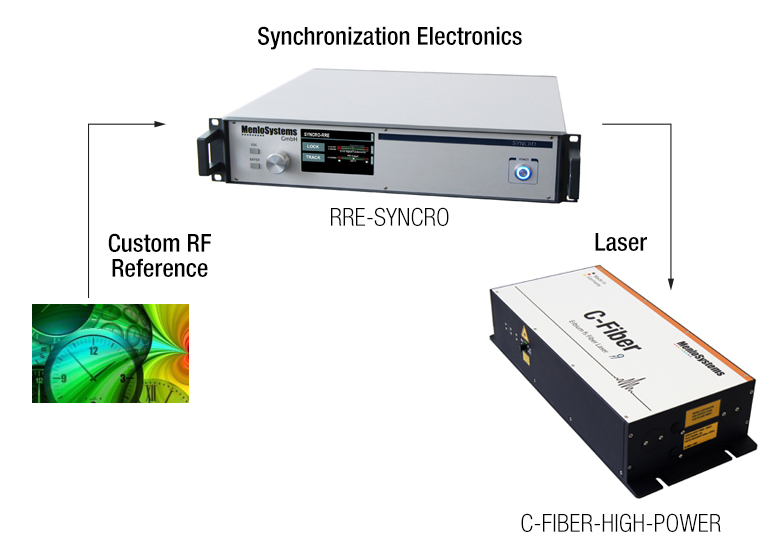

RRE-SYNCRO Repetition Rate Stabilization Electronics Feedback Electronics to Phase Lock Pulses to an External Clock
VARIO User-Defined Repetition Rate Factory-Set Value Selectable in the 50-100 MHz Range
MULTIBRANCH Additional Seed Ports Seeding of Multiple Amplifiers with Optional Subsequent Frequency Conversion to Cover Multiple Wavelengths
High Stability with Low Amplitude and Phase Noise
All-PM Fiber Solutions
Single Mode-Lock State
Menlo Systems' Figure 9® Technology
Laser Output in Less than 60 Seconds
Repetition Rate from 50 MHz to 250 MHz
Excellent Price/Performance Ratio
Menlo Systems' fiber-based femtosecond laser sources integrate the latest achievements in fiber technology into easy-to-use products. Menlo Systems' unique Figure 9® cavity design results in reproducible and long-term stable operation. It is based on the well-established nonlinear optical loop mirror (NOLM) mode locking mechanism.
Both oscillator and amplifier use polarization maintaining (PM) fiber components only, ensuring excellent stability and low-noise operation. The laser is maintenance free, user installed, and ready to use at the press of a single button. Customize your laser with the available options, listed to the right, to match the requirements of your application.

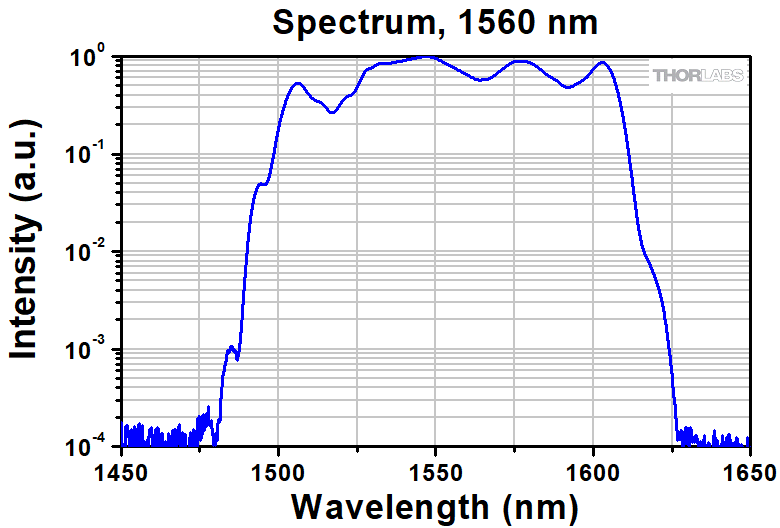

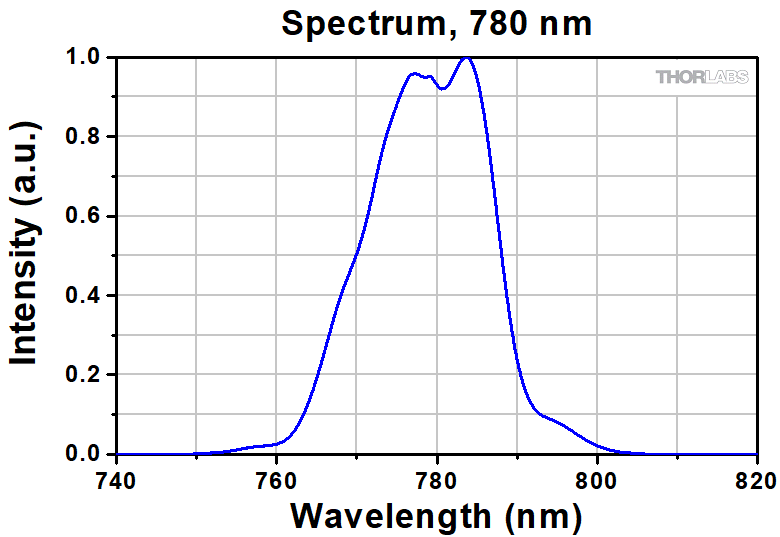

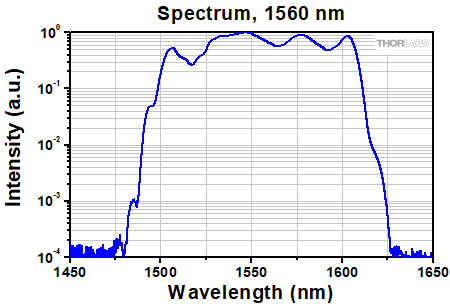

780 ± 10 nm
1560 ± 20 nm
Average Output Power

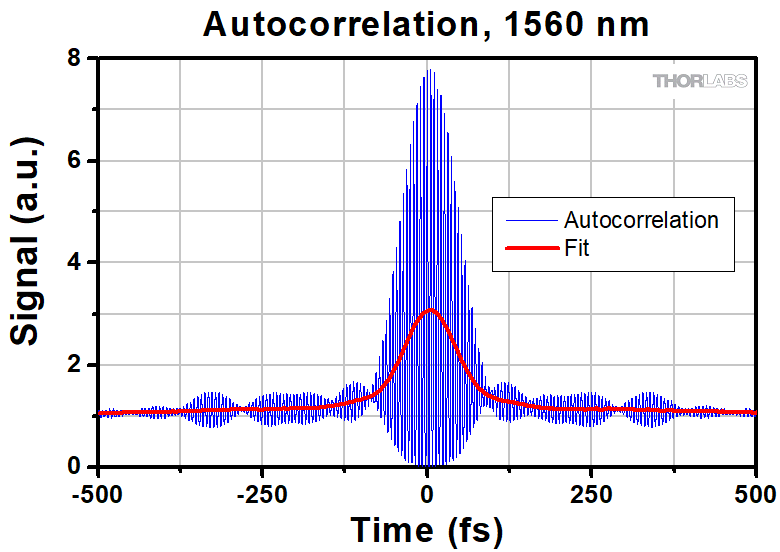

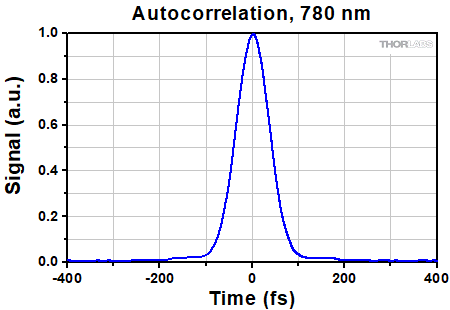

<100 fs (<70 fs with FEMTOSCALE)
100 MHz (50-250 MHz with VARIO)
Repetition Rate Instability
<1 ppm Over 20 Hours at Constant Temperature
<2 fs (rms, 10 kHz, 10 MHz)
Auxiliary Output Portb
Free Space, 1560 nm, >250 mW
Free Space, 1560 nm, >380 mW
Additional Fiber- Coupled Seed Port
1 (up to 4 with MULTIBRANCH)
Linear, PM Fiber
Please inquire with Menlo Systems for your specific combinations of average power, pulse duration, and repetition rate.
User can switch between the 780 nm and 1560 nm ports.
Simon Kocur Menlo Systems
