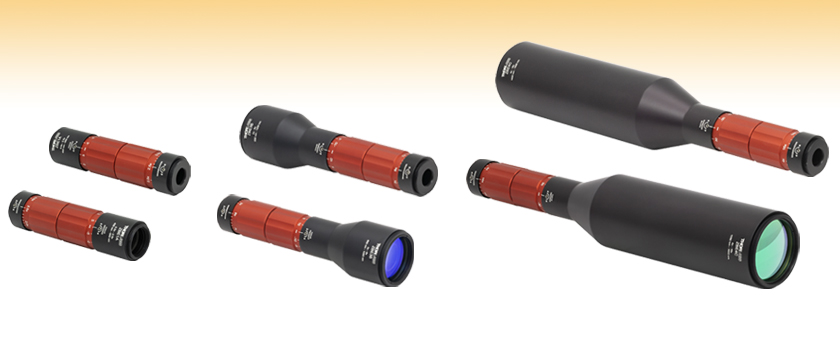

Zoom Beam Expanders: Achromatic
 0.5X  2.5X, 1X  4X, 2X  8X, or 4X  16X Continuous Beam Expansion
 Sliding Lens Design Minimizes Beam WalkOff
 Three AR Coatings Available
ZBE1A
0.5X  2.5X Magnification,
400  650 nm AR Coating
Input
Output
ZBE3B
2X  8X Magnification,
650  1050 nm AR Coating
Output
Input
ZBE4C
4X  16X Magnification,
1050  1650 nm AR Coating
Output
Input
Please Wait
Click for Details
The 1X  4X and 2X  8X magnification beam expanders have an externally M43 x 0.5threaded output. The input is internally SM05threaded and externally SM1threaded.
Click for Details

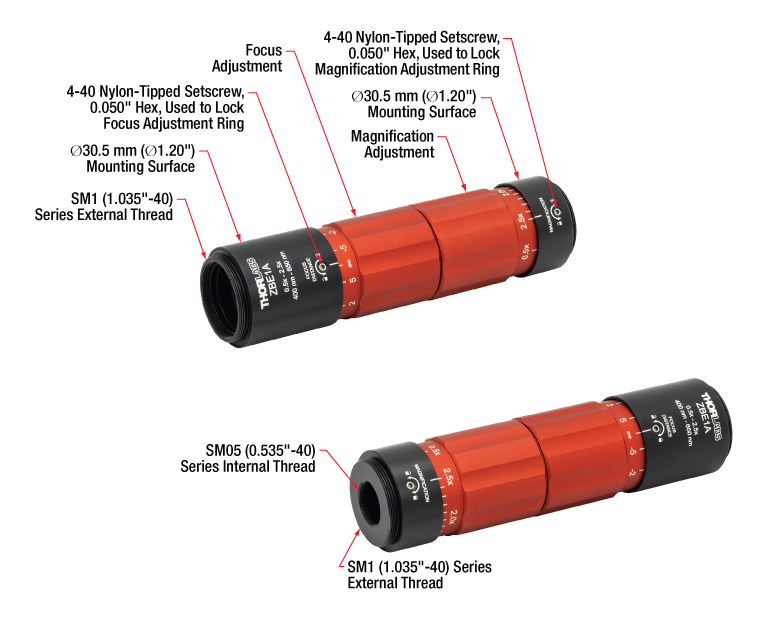

The 0.5X  2.5X magnification beam expanders have an externally SM1threaded output. The input is internally SM05threaded and externally
SM1threaded.
Click for Details

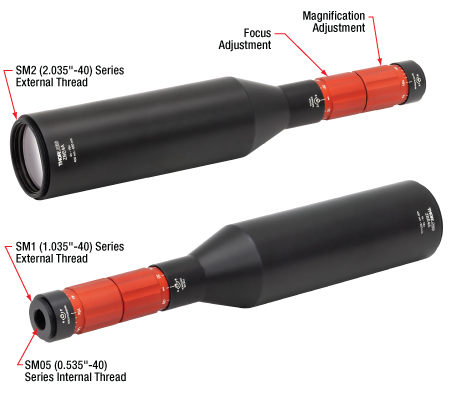

The 4X  16X magnification beam expanders have an externally SM2threaded output. The input is internally SM05threaded and externally SM1threaded.
Features
 0.5X  2.5X, 1X  4X, 2X  8X, or 4X  16X Continuous Beam Expansion
 Collimation Remains Constant During Magnification Change
 Three Broadband AR Coating Wavelength Ranges:
 A: 400  650 nm
 B: 650  1050 nm
 C: 1050  1650 nm
 Sliding Lenses Minimize Beam WalkOff
 Housing with Fixed Mechanical Length and NonRotating Ends
 Engraved Magnification and Focusing Distance Scales
 Magnification and Collimation Adjustment Rings can be Locked with Included Hex Key
Thorlabs' Achromatic Zoom Beam Expanders can continuously expand or reduce the diameter of a collimated beam over the specified magnification range (0.5X  2.5X, 1X  4X, 2X  8X, or 4X  16X). The lowaberration, sliding lens, achromatic design contains three cemented doublets optimized to provide diffractionlimited performance and minimize the impact on the M^{2} value of the expanded beam. Unlike our other variable beam expanders, zoom beam expanders do not need to be refocused when the magnification is adjusted since the collimation remains constant.
The sliding lens design allows for the magnification and focusing distance to be adjusted while minimizing the beam walkoff effect that is inherent to lens adjustments. The red rings, shown in the photos to the right, are used to adjust the magnification and focus distance of the output beam; once the desired beam size and collimation is obtained, the rings can be locked by tightening the locking screws using the included 0.050" hex key.
For a collimated input beam, the output beam remains collimated when the magnification is changed using the adjustment ring, marked by engravings denoting the expansion ratio. An expanded beam can be focused or adjusted to a divergent beam using the focusing distance adjustment ring. The closest focusing distance for the 0.5X  2.5X expanders is ±0.7 m, for the 1X  4X and 2X  8X expanders is ±2 m, and for the 4X  16X expanders is ±7 m. The scale of the focusing distance ring is engraved with increments from the closest focusing distance to infinity, measured from the mounting plane of the front thread of the housing.
The optics used in each beam expanders have one of three broadband AR coatings to minimize reflections at the airtoglass interfaces. Zoom beam expanders with Item #s ending in A feature a broadband AR coating designed for 400  650 nm, the Item #s ending in B feature a broadband AR coating designed for 650  1050 nm, and the Item #s ending in C feature a broadband AR coating designed for 1050  1650 nm. The AR coatings reduce the maximum reflectance per surface to <0.5% over the specified coating ranges, compared to a typical reflectance of 4% per surface for an uncoated optic. See the Specs and AR Coatings tabs for more information on the coating performance.
Mounting Options

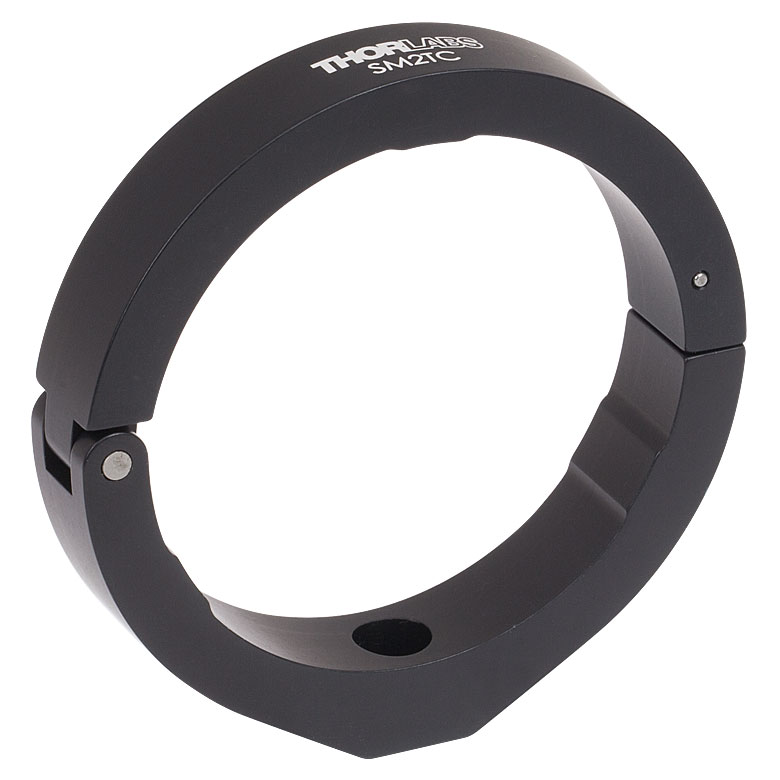

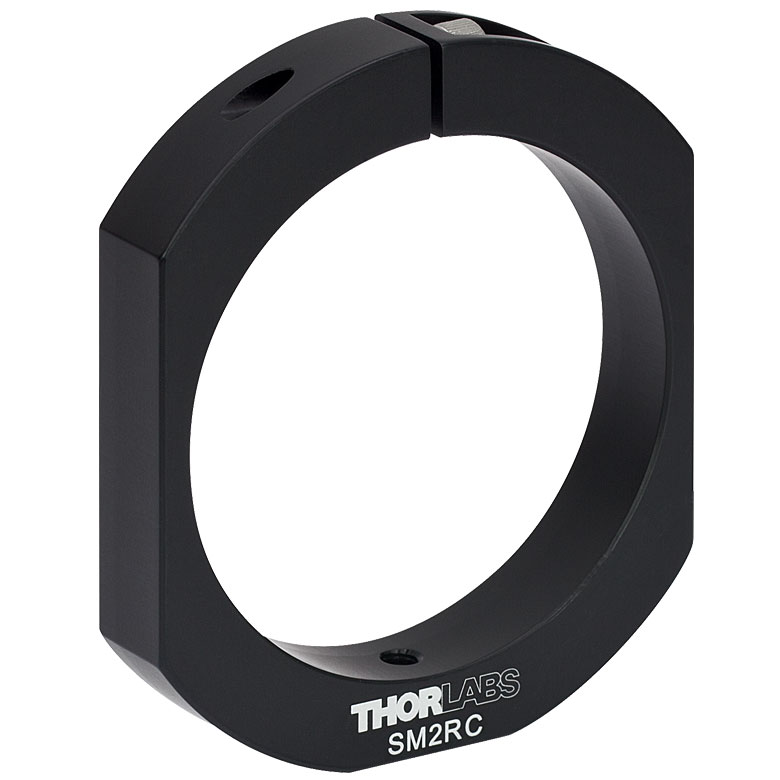

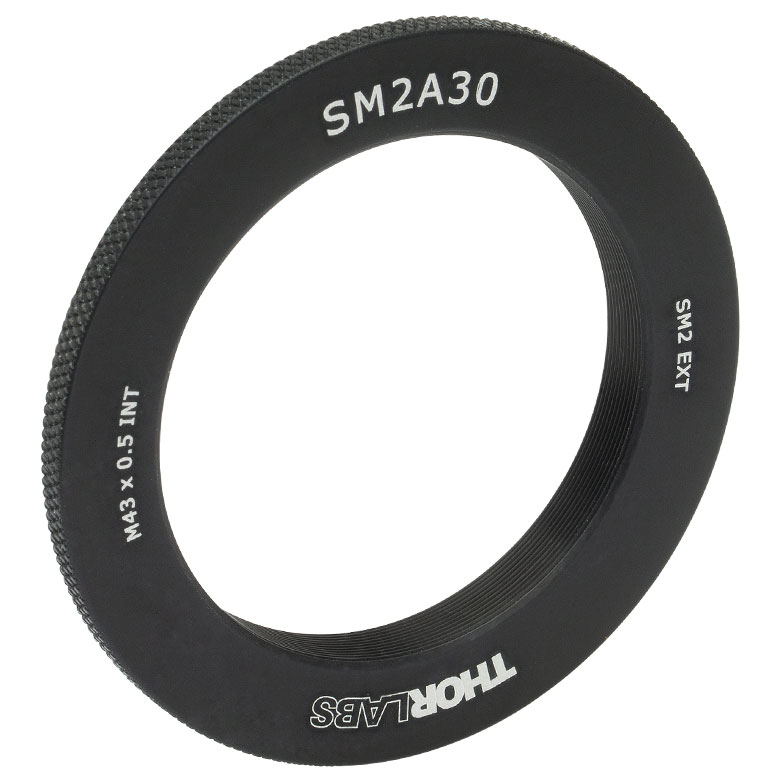

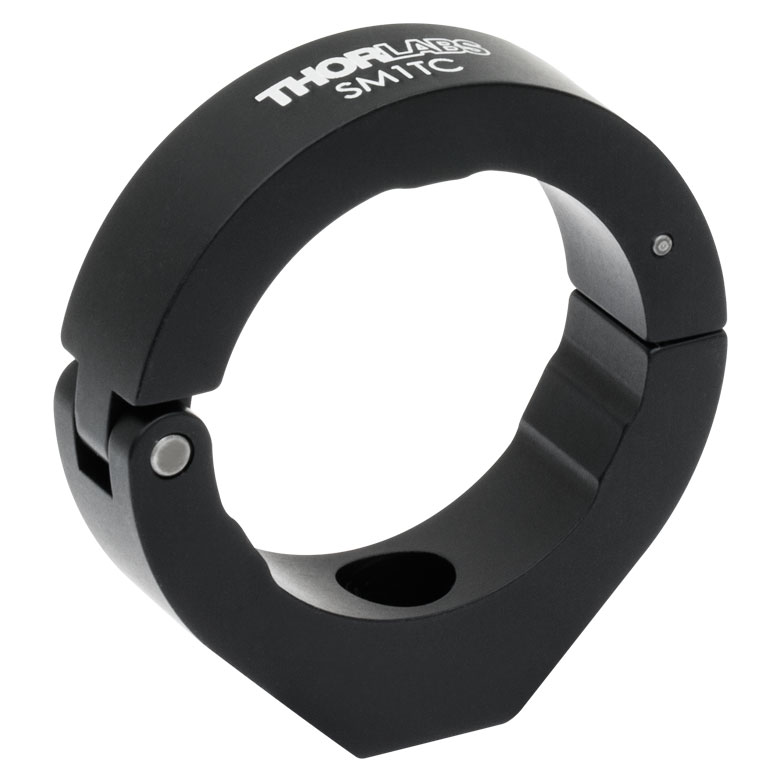

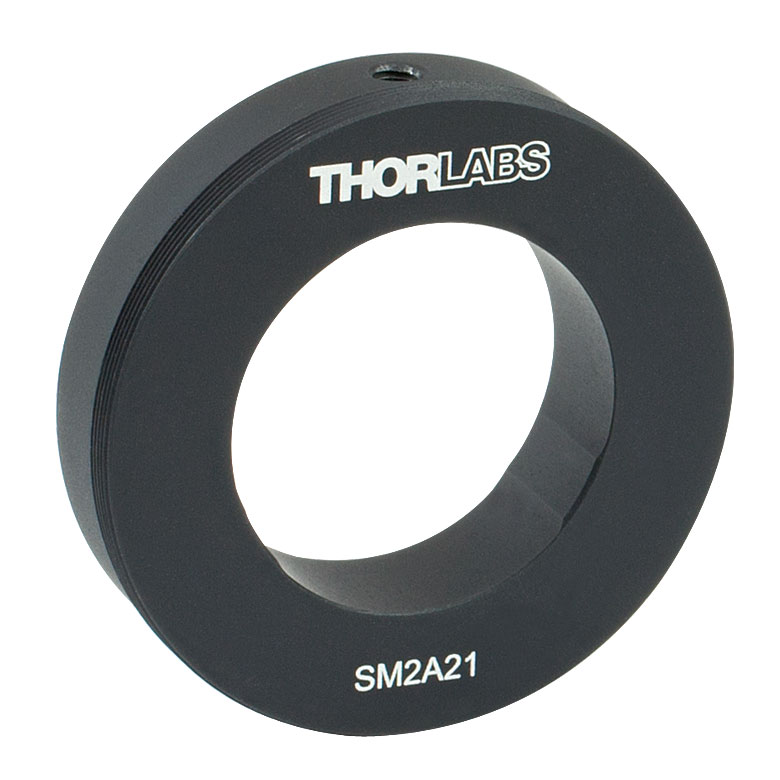

All of these Zoom Beam Expanders have a smooth mounting surface with the same 1.2" outer diameter as our Ø1" lens tubes, providing compatibility with post mounting accessories such as the SM1RC(/M) Ø1" Lens Tube Slip Ring and SM1TC Ø1" Lens Tube Clamp and 30 mm cage system mounting accessories such as the CP36 Cage Plate. For the ZBE4x beam expanders, we recommend mounting using the larger Ø2.20" section of the housing; as this is the same diameter as our Ø2" lens tubes, these beam expanders can be post mounted using the SM2RC(/M) Ø2" Lens Tube Slip Ring or SM2TC Ø2" Lens Tube Clamp or integrated directly with a 60 mm cage system using the LCP36 Cage Plate.
Other optomechanical and optical components, such as lens tubes, additional lenses, and filters, can be installed along the optical axis of each beam expander using the threads at the input and output. The inputs of all of the beam expanders feature external SM1 threads and internal SM05 threads. The outputs of the ZB1Ex beam expanders are also externally SM1 threaded. The ZBE2x and ZBE3x beam expanders have M43 x 0.5 threads at the output, but these can be converted to external SM2 threads using the SM2A30 Thread Adapter. Each ZBE4x beam expander output has external SM2 threads.
All housings are designed so that the mounting surface and threaded ends do not rotate when turning either the Magnification or the Focusing Distance adjustment ring, allowing the user to adjust the magnification and the divergence without disturbing any attached optics and maintain pointing stability.
Additional Beam Expanders
Thorlabs offers UV fused silica zoom beam expanders for narrowband and broadband UV applications. Other beam expander options available are our UV fused silica, achromatic, and ZnSe fixed beam expanders, and our reflective beam expanders. For more information on our extensive line of beam expanders, please see the Beam Expanders tab.
Item # Prefix  ZBE1  ZBE2  ZBE3  ZBE4

Expansion  0.5X  2.5X  1X  4X  2X  8X  4X  16X
Max Input Beam Diameter^{a}  10.9 mm @ 0.5X 8.0 mm @ 2.5X
10.9 mm @ 1X 8.8 mm @ 4X
6.0 mm @ 2X 4.4 mm @ 8X
6.0 mm @ 4X 2.7 mm @ 16X
DiffractionLimited Input Beam Diameter^{a,b}
10.0 mm @ 0.5X 7.0 mm @ 2.5X
10.0 mm @ 1X 7.5 mm @ 4X
5.5 mm @ 2X 3.4 mm @ 8X
5.5 mm @ 4X 2.5 mm @ 16X
Closest Focusing Distance  ±0.7 m  ±2 m  ±2 m  ±7 m
Pointing Stability^{c}  <1 mrad
Input Thread  Internal: SM05 (0.535"40) External: SM1 (1.035"40)

Output Thread  External SM1 (1.035"40)  External M43 x 0.5^{d}  External SM2 (2.035"40)
Surface Quality  2010 ScratchDig
Housing Dimensions
Input Housing Diameter  30.5 mm (1.20")^{e}
Output Housing Diameter  30.5 mm (1.20")^{e}  45.0 mm (1.77")  55.9 mm (2.20")^{f}
Housing Length  119.9 mm (4.72")  170.8 mm (6.72")  303.2 mm (11.94")

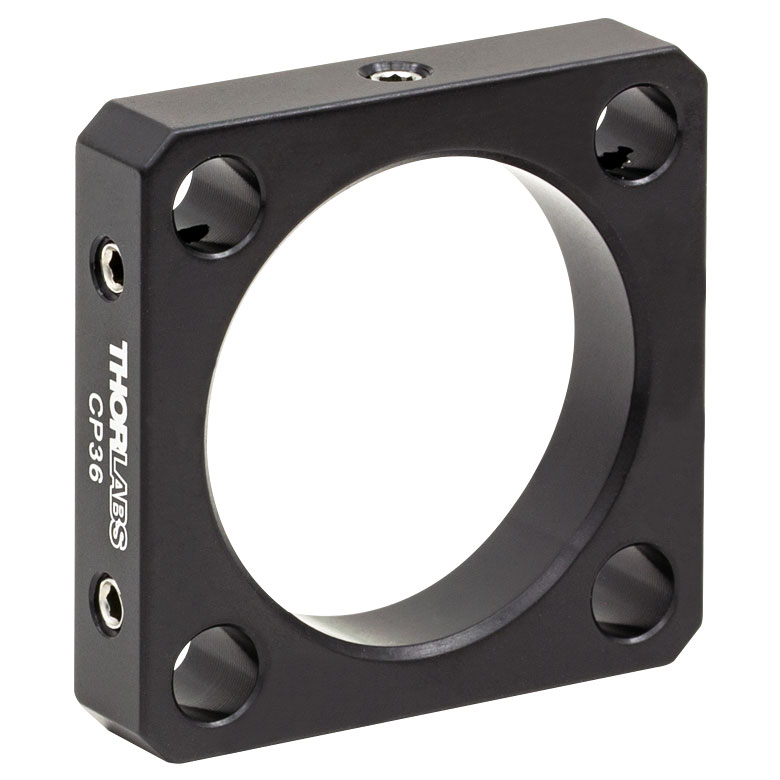

Mounting Options^{g}  SM1RC(/M), SM1TC, CP36, SM2A21  SM1RC(/M), SM1TC, CP36, SM2A21, SM2A30  SM2RC(/M), SM2TC, LCP36, SM2A21
AR Coating Specifications

Item # Suffix  A  B  C
AR Coating Type  Broadband Antireflection
AR Coating Range  400  650 nm  650  1050 nm  1050  1650 nm
Max Reflectance^{a}  <0.5%
Typical Transmission^{b}  >93% @ 405 nm >94% @ 543 nm >93% @ 633 nm
>93% @ 780 nm >92% @ 850 nm >94% @ 980 nm
>93% @ 1064 nm >93% @ 1310 nm >93% @ 1550 nm
Damage Threshold  Pulsed: 0.5 J/cm² (532 nm, 10 ns Pulse, 10 Hz, Ø0.566 mm) CW^{c}: 600 W/cm (532 nm, Ø0.020 mm)
Pulsed: 5.0 J/cm² (810 nm, 10 ns Pulse, 10 Hz, Ø0.155 mm) CW^{c}: 9000 W/cm (1064 nm, Ø0.025 mm)
5.0 J/cm² (1542 nm, 10 ns Pulse, 10 Hz, Ø0.181 mm) CW^{c}: 350 W/cm (1550 nm, Ø0.194 mm)
The lenses in the achromatic zoom beam expanders have one of three AR coatings deposited on both sides of each optic in the beam expanders to minimize reflections at the airtoglass interfaces. The graphs below show the reflectance per surface as a function of wavelength over an extended wavelength range. Each blue shaded region indicates the specified operating range of the coating; performance outside of this region is not guaranteed. The table below provides the specifications for each coating.
Click to Enlarge

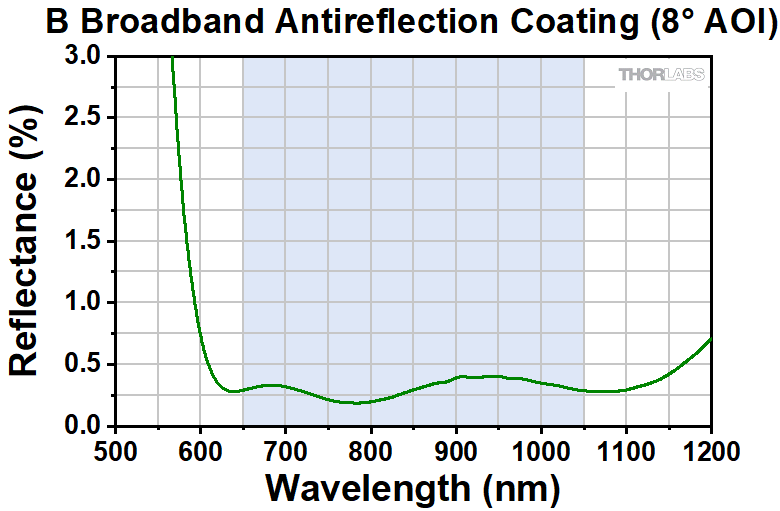

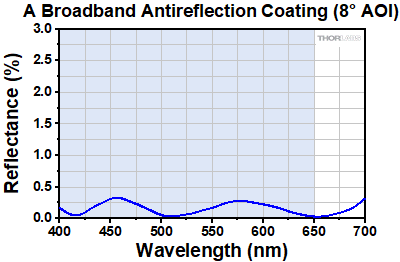

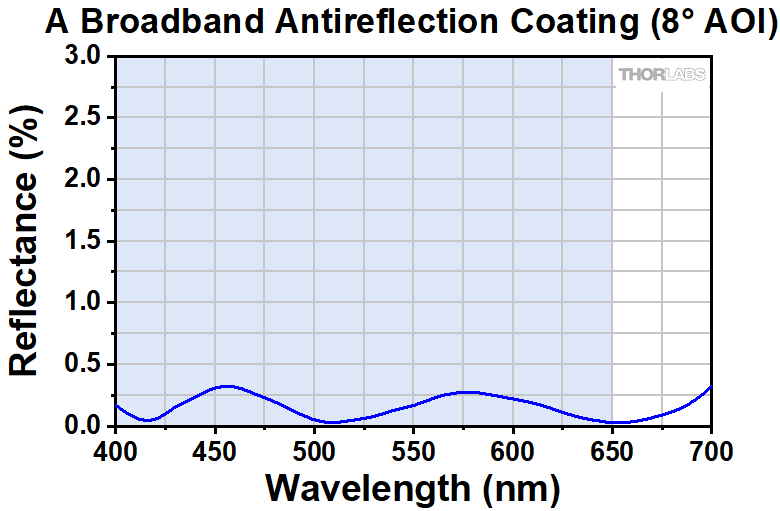

The blue shaded region indicates the specified operating wavlength range for the coating. Performance outside of this region is not guaranteed.
Click to Enlarge

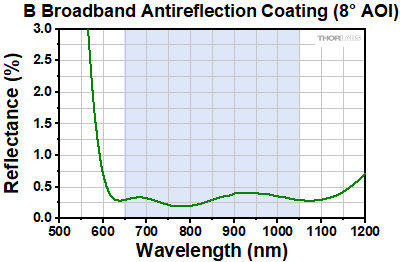

The blue shaded region indicates the specified operating wavlength range for the coating. Performance outside of this region is not guaranteed.
Click to Enlarge

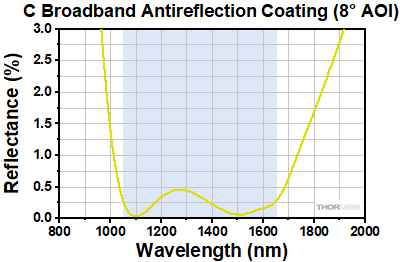

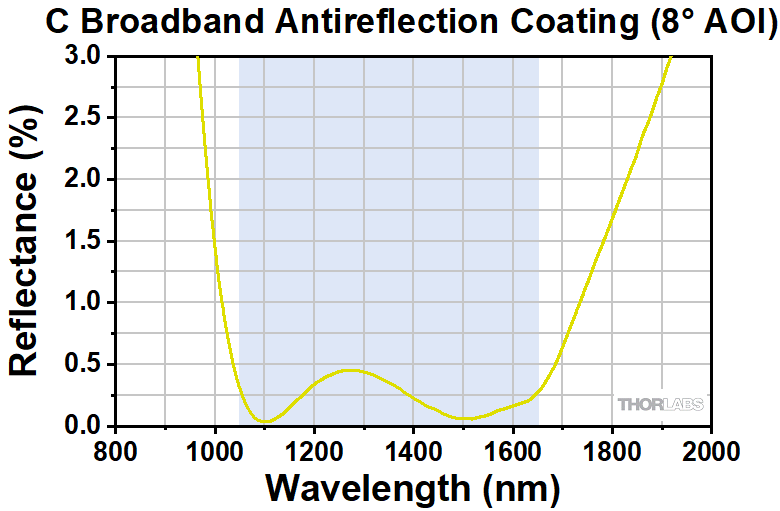

The blue shaded region indicates the specified operating wavlength range for the coating. Performance outside of this region is not guaranteed.
Antireflection Coatings

Item # Suffix  Wavelength Range  Reflectance per Surface
A  400  650 nm  R_{Max} < 0.5%
B  650  1050 nm  R_{Max} < 0.5%
C  1050  1650 nm  R_{Max} < 0.5%
The interference fringes produced by the SI100 Shearing Interferometer (with a mounted SIVS Viewing Screen) remain parallel to the reference line as the size of the beam changes by adjusting the magnification of the zoom beam expander (Item # ZBE2A). For more information on how a shearing interferometer works, please see our full presentation here.
Collimation
Thorlabs' Shearing Interferometers can be used to determine if a coherent beam of light is collimated. The design consists of a wedged optical flat mounted at 45° and a diffuser plate with a ruled reference line down the middle. These interferometers are designed to provide qualitative analysis of a beam's collimation.
The diffuser plate is used to view the interference fringes created by Fresnel reflections from the front and back surfaces of the optical flat. If the beam is collimated, the resulting fringe pattern will be parallel to the ruled reference line. In addition to the degree of collimation, the fringes will also be sensitive to spherical aberration, coma, and astigmatism.
The video to the right shows the output of a shearing interferometer (Item # SI100) with the Magnified View Screen System (Item # SIVS) as the magnification is adjusted on a Zoom Beam Expander (Item # ZBE2A). The fringes remain parallel to the reference line, meaning that the beam remains collimated as the size of the beam is adjusted (see images below for a reference).
Pointing Stability
The lenses in these Zoom Beam Expanders slide within the housings rather than rotating, which results in superior pointing stability of <1 mrad during magnification adjustments.
Adjustment
Thorlabs' Zoom Beam Expanders provide a variable magnification between 0.5X  2.5X (ZBE1x), 1X  4X (ZBE2x), 2X  8X (ZBE3x), or 4X  16X (ZBE4x) while maintaining the collimation of the output beam. In addition, the divergence of the collimated beam can be finely adjusted, or the beam can be focused between ±0.7 m (ZBE1x), ±2 m (ZBE2x and ZBE3x), or ±7 m (ZBE4x) measured from the mounting plane of the front thread of the housing.

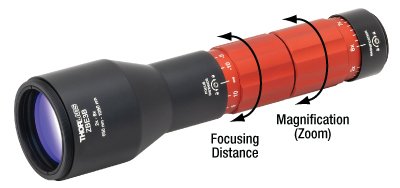

The image to the right illustrates the two ways to adjust the zoom beam expander. To adjust the focusing distance, rotate the red section of the housing farthest from the input side. This will effectively alter the focus of the beam. To adjust the magnification, rotate the red section closest to the input side. This will effectively alter the size of the beam. The scale of the focusing distance ring is engraved with increments from the closest focusing distance to infinity, measured from the mounting plane of the front thread of the housing.
Each adjustment ring can be locked in place by tightening a setscrew with the included 0.05" hex key.
Imaging and Projection Applications
Thorlabs’ Zoom Beam Expanders are also excellent for any imaging or projection application where a small field of view needs to be enlarged with minimal aberration. The video to the right shows light from an MNWHL4 neutral white LED light source collimated using an ACL2520UA molded asphere passing through an R1DS1N USAF target. This is imaged into infinity by an AC254100A 100 mm focal length achromat before entering the ZBE1A Zoom Beam Expander. The Zoom Beam Expander images the USAF target onto a wall that is ~1 m from its output. The video shows the magnification being varied through the entire range (0.5X to 2.5X) and back. The focal plane remains constant, and the zoom beam expander always produces a sharp image of the USAF target throughout this adjustment. A schematic of the full setup is shown below.
Please note that the ratio of the output to the input angle for an offaxis ray will be equal to the inverted engraved magnification. Therefore, a projected image will be larger for the magnification of 0.5X and smaller for the engraved magnification of 2.5X.

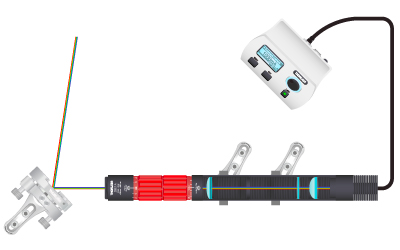

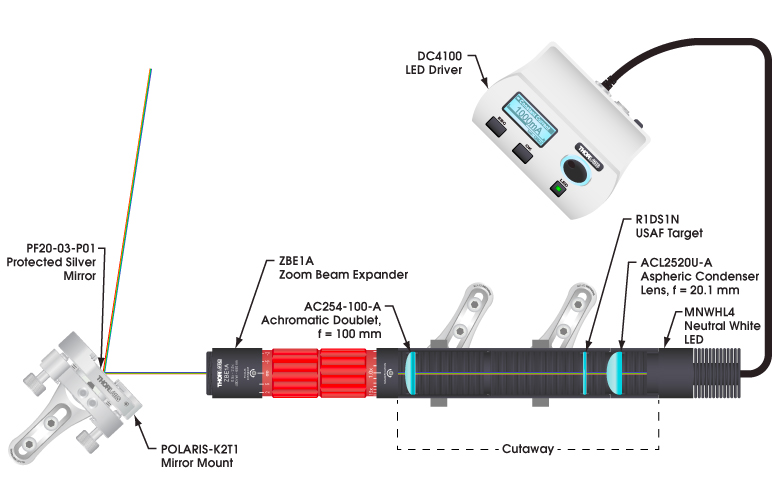

Click for Details USAF Target Projected on a Wall Using a ZBE1A Zoom Beam Expander
Damage Threshold Specifications

Item # Suffix  Laser Type  Damage Threshold
A  Pulsed  0.5 J/cm^{2} (532 nm, 10 ns Pulse, 10 Hz, Ø0.566 mm)
CW^{a}  600 W/cm (532 nm, Ø0.020 mm)
B  Pulsed  5.0 J/cm^{2} (810 nm, 10 ns Pulse, 10 Hz, Ø0.155 mm)
CW^{a}  9,000 W/cm (1064 nm, Ø0.025 mm)
C  Pulsed  5.0 J/cm^{2} (1542 nm, 10 ns Pulse, 10 Hz, Ø0.181 mm)
CW^{a}  350 W/cm (1550 nm, Ø0.194 mm)
Damage Threshold Data for Thorlabs' Achromatic Zoom Beam Expanders
The specifications to the right are the damage thresholds for Thorlabs' achromatic zoom beam expanders.
nbsp;
Laser Induced Damage Threshold Tutorial
The following is a general overview of how laser induced damage thresholds are measured and how the values may be utilized in determining the appropriateness of an optic for a given application. When choosing optics, it is important to understand the Laser Induced Damage Threshold (LIDT) of the optics being used. The LIDT for an optic greatly depends on the type of laser you are using. Continuous wave (CW) lasers typically cause damage from thermal effects (absorption either in the coating or in the substrate). Pulsed lasers, on the other hand, often strip electrons from the lattice structure of an optic before causing thermal damage. Note that the guideline presented here assumes room temperature operation and optics in new condition (i.e., within scratchdig spec, surface free of contamination, etc.). Because dust or other particles on the surface of an optic can cause damage at lower thresholds, we recommend keeping surfaces clean and free of debris. For more information on cleaning optics, please see our Optics Cleaning tutorial.
Testing Method
Thorlabs' LIDT testing is done in compliance with ISO/DIS 11254 and ISO 21254 specifications.
First, a lowpower/energy beam is directed to the optic under test. The optic is exposed in 10 locations to this laser beam for 30 seconds (CW) or for a number of pulses (pulse repetition frequency specified). After exposure, the optic is examined by a microscope (~100X magnification) for any visible damage. The number of locations that are damaged at a particular power/energy level is recorded. Next, the power/energy is either increased or decreased and the optic is exposed at 10 new locations. This process is repeated until damage is observed. The damage threshold is then assigned to be the highest power/energy that the optic can withstand without causing damage. A histogram such as that below represents the testing of one BB1E02 mirror.
The photograph above is a protected aluminumcoated mirror after LIDT testing. In this particular test, it handled 0.43 J/cm^{2} (1064 nm, 10 ns pulse, 10 Hz, Ø1.000 mm) before damage.
Example Test Data

Fluence  # of Tested Locations  Locations with Damage  Locations Without Damage
1.50 J/cm^{2}  10  0  10
1.75 J/cm^{2}  10  0  10
2.00 J/cm^{2}  10  0  10
2.25 J/cm^{2}  10  1  9
3.00 J/cm^{2}  10  1  9
5.00 J/cm^{2}  10  9  1
According to the test, the damage threshold of the mirror was 2.00 J/cm^{2} (532 nm, 10 ns pulse, 10 Hz, Ø0.803 mm). Please keep in mind that these tests are performed on clean optics, as dirt and contamination can significantly lower the damage threshold of a component. While the test results are only representative of one coating run, Thorlabs specifies damage threshold values that account for coating variances.
Continuous Wave and LongPulse Lasers
When an optic is damaged by a continuous wave (CW) laser, it is usually due to the melting of the surface as a result of absorbing the laser's energy or damage to the optical coating (antireflection) [1]. Pulsed lasers with pulse lengths longer than 1 µs can be treated as CW lasers for LIDT discussions.
When pulse lengths are between 1 ns and 1 µs, laserinduced damage can occur either because of absorption or a dielectric breakdown (therefore, a user must check both CW and pulsed LIDT). Absorption is either due to an intrinsic property of the optic or due to surface irregularities; thus LIDT values are only valid for optics meeting or exceeding the surface quality specifications given by a manufacturer. While many optics can handle high power CW lasers, cemented (e.g., achromatic doublets) or highly absorptive (e.g., ND filters) optics tend to have lower CW damage thresholds. These lower thresholds are due to absorption or scattering in the cement or metal coating.
Pulsed lasers with high pulse repetition frequencies (PRF) may behave similarly to CW beams. Unfortunately, this is highly dependent on factors such as absorption and thermal diffusivity, so there is no reliable method for determining when a high PRF laser will damage an optic due to thermal effects. For beams with a high PRF both the average and peak powers must be compared to the equivalent CW power. Additionally, for highly transparent materials, there is little to no drop in the LIDT with increasing PRF.
In order to use the specified CW damage threshold of an optic, it is necessary to know the following:
 Wavelength of your laser
 Beam diameter of your beam (1/e^{2})
 Approximate intensity profile of your beam (e.g., Gaussian)
 Linear power density of your beam (total power divided by 1/e^{2} beam diameter)
Thorlabs expresses LIDT for CW lasers as a linear power density measured in W/cm. In this regime, the LIDT given as a linear power density can be applied to any beam diameter; one does not need to compute an adjusted LIDT to adjust for changes in spot size, as demonstrated by the graph to the right. Average linear power density can be calculated using the equation below.
The calculation above assumes a uniform beam intensity profile. You must now consider hotspots in the beam or other nonuniform intensity profiles and roughly calculate a maximum power density. For reference, a Gaussian beam typically has a maximum power density that is twice that of the uniform beam (see lower right).
Now compare the maximum power density to that which is specified as the LIDT for the optic. If the optic was tested at a wavelength other than your operating wavelength, the damage threshold must be scaled appropriately. A good rule of thumb is that the damage threshold has a linear relationship with wavelength such that as you move to shorter wavelengths, the damage threshold decreases (i.e., a LIDT of 10 W/cm at 1310 nm scales to 5 W/cm at 655 nm):
While this rule of thumb provides a general trend, it is not a quantitative analysis of LIDT vs wavelength. In CW applications, for instance, damage scales more strongly with absorption in the coating and substrate, which does not necessarily scale well with wavelength. While the above procedure provides a good rule of thumb for LIDT values, please contact Tech Support if your wavelength is different from the specified LIDT wavelength. If your power density is less than the adjusted LIDT of the optic, then the optic should work for your application.
Please note that we have a buffer built in between the specified damage thresholds online and the tests which we have done, which accommodates variation between batches. Upon request, we can provide individual test information and a testing certificate. The damage analysis will be carried out on a similar optic (customer's optic will not be damaged). Testing may result in additional costs or lead times. Contact Tech Support for more information.
Pulsed Lasers
As previously stated, pulsed lasers typically induce a different type of damage to the optic than CW lasers. Pulsed lasers often do not heat the optic enough to damage it; instead, pulsed lasers produce strong electric fields capable of inducing dielectric breakdown in the material. Unfortunately, it can be very difficult to compare the LIDT specification of an optic to your laser. There are multiple regimes in which a pulsed laser can damage an optic and this is based on the laser's pulse length. The highlighted columns in the table below outline the relevant pulse lengths for our specified LIDT values.
Pulses shorter than 10^{9} s cannot be compared to our specified LIDT values with much reliability. In this ultrashortpulse regime various mechanics, such as multiphotonavalanche ionization, take over as the predominate damage mechanism [2]. In contrast, pulses between 10^{7} s and 10^{4} s may cause damage to an optic either because of dielectric breakdown or thermal effects. This means that both CW and pulsed damage thresholds must be compared to the laser beam to determine whether the optic is suitable for your application.
Pulse Duration  t < 10^{9} s  10^{9} < t < 10^{7} s  10^{7} < t < 10^{4} s  t > 10^{4} s

Damage Mechanism  Avalanche Ionization  Dielectric Breakdown  Dielectric Breakdown or Thermal  Thermal
Relevant Damage Specification  No Comparison (See Above)  Pulsed  Pulsed and CW  CW
When comparing an LIDT specified for a pulsed laser to your laser, it is essential to know the following:
 Wavelength of your laser
 Energy density of your beam (total energy divided by 1/e^{2} area)
 Pulse length of your laser
 Pulse repetition frequency (prf) of your laser
 Beam diameter of your laser (1/e^{2} )
 Approximate intensity profile of your beam (e.g., Gaussian)
The energy density of your beam should be calculated in terms of J/cm^{2}. The graph to the right shows why expressing the LIDT as an energy density provides the best metric for short pulse sources. In this regime, the LIDT given as an energy density can be applied to any beam diameter; one does not need to compute an adjusted LIDT to adjust for changes in spot size. This calculation assumes a uniform beam intensity profile. You must now adjust this energy density to account for hotspots or other nonuniform intensity profiles and roughly calculate a maximum energy density. For reference a Gaussian beam typically has a maximum energy density that is twice that of the 1/e^{2} beam.
Now compare the maximum energy density to that which is specified as the LIDT for the optic. If the optic was tested at a wavelength other than your operating wavelength, the damage threshold must be scaled appropriately [3]. A good rule of thumb is that the damage threshold has an inverse square root relationship with wavelength such that as you move to shorter wavelengths, the damage threshold decreases (i.e., a LIDT of 1 J/cm^{2} at 1064 nm scales to 0.7 J/cm^{2} at 532 nm):
You now have a wavelengthadjusted energy density, which you will use in the following step.
Beam diameter is also important to know when comparing damage thresholds. While the LIDT, when expressed in units of J/cm², scales independently of spot size; large beam sizes are more likely to illuminate a larger number of defects which can lead to greater variances in the LIDT [4]. For data presented here, a <1 mm beam size was used to measure the LIDT. For beams sizes greater than 5 mm, the LIDT (J/cm2) will not scale independently of beam diameter due to the larger size beam exposing more defects.
The pulse length must now be compensated for. The longer the pulse duration, the more energy the optic can handle. For pulse widths between 1  100 ns, an approximation is as follows:
Use this formula to calculate the Adjusted LIDT for an optic based on your pulse length. If your maximum energy density is less than this adjusted LIDT maximum energy density, then the optic should be suitable for your application. Keep in mind that this calculation is only used for pulses between 10^{9} s and 10^{7} s. For pulses between 10^{7} s and 10^{4} s, the CW LIDT must also be checked before deeming the optic appropriate for your application.
Please note that we have a buffer built in between the specified damage thresholds online and the tests which we have done, which accommodates variation between batches. Upon request, we can provide individual test information and a testing certificate. Contact Tech Support for more information.
[1] R. M. Wood, Optics and Laser Tech. 29, 517 (1998).
[2] Roger M. Wood, LaserInduced Damage of Optical Materials (Institute of Physics Publishing, Philadelphia, PA, 2003).
[3] C. W. Carr et al., Phys. Rev. Lett. 91, 127402 (2003).
[4] N. Bloembergen, Appl. Opt. 12, 661 (1973).
In order to illustrate the process of determining whether a given laser system will damage an optic, a number of example calculations of laser induced damage threshold are given below. For assistance with performing similar calculations, we provide a spreadsheet calculator that can be downloaded by clicking the button to the right. To use the calculator, enter the specified LIDT value of the optic under consideration and the relevant parameters of your laser system in the green boxes. The spreadsheet will then calculate a linear power density for CW and pulsed systems, as well as an energy density value for pulsed systems. These values are used to calculate adjusted, scaled LIDT values for the optics based on accepted scaling laws. This calculator assumes a Gaussian beam profile, so a correction factor must be introduced for other beam shapes (uniform, etc.). The LIDT scaling laws are determined from empirical relationships; their accuracy is not guaranteed. Remember that absorption by optics or coatings can significantly reduce LIDT in some spectral regions. These LIDT values are not valid for ultrashort pulses less than one nanosecond in duration.
A Gaussian beam profile has about twice the maximum intensity of a uniform beam profile.
CW Laser Example
Suppose that a CW laser system at 1319 nm produces a 0.5 W Gaussian beam that has a 1/e^{2} diameter of 10 mm. A naive calculation of the average linear power density of this beam would yield a value of 0.5 W/cm, given by the total power divided by the beam diameter:
However, the maximum power density of a Gaussian beam is about twice the maximum power density of a uniform beam, as shown in the graph to the right. Therefore, a more accurate determination of the maximum linear power density of the system is 1 W/cm.
An AC127030C achromatic doublet lens has a specified CW LIDT of 350 W/cm, as tested at 1550 nm. CW damage threshold values typically scale directly with the wavelength of the laser source, so this yields an adjusted LIDT value:
The adjusted LIDT value of 350 W/cm x (1319 nm / 1550 nm) = 298 W/cm is significantly higher than the calculated maximum linear power density of the laser system, so it would be safe to use this doublet lens for this application.
Pulsed Nanosecond Laser Example: Scaling for Different Pulse Durations
Suppose that a pulsed Nd:YAG laser system is frequency tripled to produce a 10 Hz output, consisting of 2 ns output pulses at 355 nm, each with 1 J of energy, in a Gaussian beam with a 1.9 cm beam diameter (1/e^{2}). The average energy density of each pulse is found by dividing the pulse energy by the beam area:
As described above, the maximum energy density of a Gaussian beam is about twice the average energy density. So, the maximum energy density of this beam is ~0.7 J/cm^{2}.
The energy density of the beam can be compared to the LIDT values of 1 J/cm^{2} and 3.5 J/cm^{2} for a BB1E01 broadband dielectric mirror and an NB1K08 Nd:YAG laser line mirror, respectively. Both of these LIDT values, while measured at 355 nm, were determined with a 10 ns pulsed laser at 10 Hz. Therefore, an adjustment must be applied for the shorter pulse duration of the system under consideration. As described on the previous tab, LIDT values in the nanosecond pulse regime scale with the square root of the laser pulse duration:
This adjustment factor results in LIDT values of 0.45 J/cm^{2} for the BB1E01 broadband mirror and 1.6 J/cm^{2} for the Nd:YAG laser line mirror, which are to be compared with the 0.7 J/cm^{2} maximum energy density of the beam. While the broadband mirror would likely be damaged by the laser, the more specialized laser line mirror is appropriate for use with this system.
Pulsed Nanosecond Laser Example: Scaling for Different Wavelengths
Suppose that a pulsed laser system emits 10 ns pulses at 2.5 Hz, each with 100 mJ of energy at 1064 nm in a 16 mm diameter beam (1/e^{2}) that must be attenuated with a neutral density filter. For a Gaussian output, these specifications result in a maximum energy density of 0.1 J/cm^{2}. The damage threshold of an NDUV10A Ø25 mm, OD 1.0, reflective neutral density filter is 0.05 J/cm^{2} for 10 ns pulses at 355 nm, while the damage threshold of the similar NE10A absorptive filter is 10 J/cm^{2} for 10 ns pulses at 532 nm. As described on the previous tab, the LIDT value of an optic scales with the square root of the wavelength in the nanosecond pulse regime:
This scaling gives adjusted LIDT values of 0.08 J/cm^{2} for the reflective filter and 14 J/cm^{2} for the absorptive filter. In this case, the absorptive filter is the best choice in order to avoid optical damage.
Pulsed Microsecond Laser Example
Consider a laser system that produces 1 µs pulses, each containing 150 µJ of energy at a repetition rate of 50 kHz, resulting in a relatively high duty cycle of 5%. This system falls somewhere between the regimes of CW and pulsed laser induced damage, and could potentially damage an optic by mechanisms associated with either regime. As a result, both CW and pulsed LIDT values must be compared to the properties of the laser system to ensure safe operation.
If this relatively longpulse laser emits a Gaussian 12.7 mm diameter beam (1/e^{2}) at 980 nm, then the resulting output has a linear power density of 5.9 W/cm and an energy density of 1.2 x 10^{4} J/cm^{2} per pulse. This can be compared to the LIDT values for a WPQ10E980 polymer zeroorder quarterwave plate, which are 5 W/cm for CW radiation at 810 nm and 5 J/cm^{2} for a 10 ns pulse at 810 nm. As before, the CW LIDT of the optic scales linearly with the laser wavelength, resulting in an adjusted CW value of 6 W/cm at 980 nm. On the other hand, the pulsed LIDT scales with the square root of the laser wavelength and the square root of the pulse duration, resulting in an adjusted value of 55 J/cm^{2} for a 1 µs pulse at 980 nm. The pulsed LIDT of the optic is significantly greater than the energy density of the laser pulse, so individual pulses will not damage the wave plate. However, the large average linear power density of the laser system may cause thermal damage to the optic, much like a highpower CW beam.
Posted Comments:
Martin Gersing
(posted 20230912 08:00:14.45) Hello Thorlabs Team,
could you please provide information about the diametertolerances of the mounting surface for the ZBE2B beam expander? tberg
(posted 20230913 05:16:26.0) Dear Martin,
Thanks for contacting Thorlabs! I have reached out to you directly with tolerance info for the mounting surface of the ZBE2B Beam Expander.
Thorlabs offers fixed magnification beam expanders, as well as zoom beam expanders that do not need to be refocused when the magnification is adjusted since the collimation remains constant. The table below provides a direct comparison of the options we offer. Please contact Tech Support if you would like help choosing the best beam expander for your specific application.
Beam Expander Description
Fixed Magnification UVFS Laser Line, Sliding Lens
Fixed Magnification Achromatic, Sliding Lens
Fixed Magnification MidInfrared, Sliding Lens

Expansions Available  2X, 3X, 5X, 10X, 20X^{a}  2X, 3X, 5X, 10X, 15X, 20X
2X, 5X, 10X
AR Coating Range(s) (Item # Suffix)
240  360 nm (UVB) 248  287 nm (266) 325  380 nm (355) 488  580 nm (532) 960  1064 nm (1064)
400  650 nm (A) 650  1050 nm (B) 1050  1650 nm (C)
7  12 μm (E3)
Mirror Coating (Range)  N/A
Reflectance (per Surface)  R_{max} < 1.5% (UVB) R_{avg} < 0.2% (All Others)
R_{max} < 0.5%  R_{avg} < 1.0%
Max Input Beam Diameter  2X: 8.5 mm 3X: 9.0 mm 5X: 4.3 mm 10X: 2.8 mm 20X: 2.0 mm
2X: 8.5 mm 3X: 9.0 mm 5X: 5.0 mm 10X: 3.0 mm 15X: 2.5 mm 20X: 2.0 mm
2X: 9.5 mm 5X: 6.7 mm 10X: 3.5 mm
Wavefront Error  <λ/4 (Peak to Valley)
Surface Quality  105 ScratchDig  2010 ScratchDig  8050 ScratchDig
Beam Expander Description
Zoom UVFS, Sliding Lens
Zoom Achromatic, Sliding Lens
Reflective Beam Expander Fixed Magnification

Expansions Available  0.5X  2.5X, 1X  4X, 2X  8X, 4X  16X
0.5X  2.5X, 1X  4X, 2X  8X, 4X  16X
2X, 4X, 6X
AR Coating Range(s) (Item # Suffix)
240  360 nm (UVB) 330  370 nm (3) 495  570 nm (2) 980  1130 nm (1)
400  650 nm (A) 650  1050 nm (B) 1050  1650 nm (C)
N/A
Mirror Coating (Range)  N/A  Protected Silver (450 nm  20 μm)

R_{max} < 1.5% for (UVB) R_{avg} < 0.2% (All Others)
R_{max} < 0.5%  R_{avg} > 96%
Max Input Beam Diameter  0.5X  2.5X: 10.9 to 8.0 mm 1X  4X: 10.9 to 8.8 mm 2X  8X: 6.0 to 4.4 mm 4X  16X: 6.0 to 2.7 mm
0.5X  2.5X: 10.9 to 8.0 mm 1X  4X: 10.9 to 8.8 mm 2X  8X: 6.0 to 4.4 mm 4X  16X: 6.0 to 2.7 mm
3 mm
Wavefront Error  <λ/4 (Peak to Valley)  <λ/10^{a} (RMS)
Surface Quality  105 ScratchDig  2010 ScratchDig  4020 ScratchDig
Item #  Expansion  Max Input Beam Diameter^{a}
DiffractionLimited Input Beam Diameter^{a,b}
Input Thread  Output Thread (External)
AR Coating Max Reflectance^{c}
Typical Transmission^{d}
Damage Threshold^{e}

ZBE1A  0.5X  2.5X  10.9 mm @ 0.5X 8.0 mm @ 2.5X
10.0 mm @ 0.5X 7.0 mm @ 2.5X
Internal: SM05 External: SM1
SM1  <0.5% (400  650 nm)  >93% @ 405 nm >94% @ 543 nm >93% @ 633 nm
Pulsed: 0.5 J/cm² (532 nm, 10 ns Pulse, 10 Hz, Ø0.566 mm) CW^{f}: 600 W/cm (532 nm, Ø0.020 mm)
ZBE2A  1X  4X  10.9 mm @ 1X 8.8 mm @ 4X
10.0 mm @ 1X 7.0 mm @ 4X
M43 x 0.5^{g}
ZBE3A  2X  8X  6.0 mm @ 2X 4.4 mm @ 8X
5.5 mm @ 2X 3.4 mm @ 8X

ZBE4A  4X  16X  6.0 mm @ 4X 2.7 mm @ 16X
5.5 mm @ 4X 2.5 mm @ 16X
SM2
Item #  Expansion  Max Input Beam Diameter^{a}
DiffractionLimited Input Beam Diameter^{a,b}
Input Thread  Output Thread (External)
AR Coating Max Reflectance^{c}
Typical Transmission^{d}
Damage Threshold^{e}

ZBE1B  0.5X  2.5X  10.9 mm @ 0.5X 8.0 mm @ 2.5X
10.0 mm @ 0.5X 7.0 mm @ 2.5X
Internal: SM05 External: SM1
SM1  <0.5% (650  1050 nm)  >93% @ 780 nm >92% @ 850 nm >94% @ 980 nm
Pulsed: 5.0 J/cm² (810 nm, 10 ns Pulse, 10 Hz, Ø0.155 mm CW^{f}: 9,000 W/cm (1064 nm, Ø0.025 mm)
ZBE2B  1X  4X  10.9 mm @ 1X 8.8 mm @ 4X
10.0 mm @ 1X 7.0 mm @ 4X
M43 x 0.5^{g}
ZBE3B  2X  8X  6.0 mm @ 2X 4.4 mm @ 8X
5.5 mm @ 2X 3.4 mm @ 8X

ZBE4B  4X  16X  6.0 mm @ 4X 2.7 mm @ 16X
5.5 mm @ 4X 2.5 mm @ 16X
SM2
Item #  Expansion  Max Input Beam Diameter^{a}
DiffractionLimited Input Beam Diameter^{a,b}
Input Thread  Output Thread (External)
AR Coating Max Reflectance^{c}
Typical Transmission^{d}
Damage Threshold^{e}

ZBE1C  0.5X  2.5X  10.9 mm @ 0.5X 8.0 mm @ 2.5X
10.0 mm @ 0.5X 7.0 mm @ 2.5X
Internal: SM05 External: SM1
SM1  <0.5% (1050  1650 nm)  >93% @ 1064 nm >93% @ 1310 nm >93% @ 1550 nm
Pulsed: 5.0 J/cm² (1542 nm, 10 ns Pulse, 10 Hz, Ø0.181 mm) CW^{f}: 350 W/cm (1550 nm, Ø0.194 mm)
ZBE2C  1X  4X  10.9 mm @ 1X 8.8 mm @ 4X
10.0 mm @ 1X 7.0 mm @ 4X
M43 x 0.5^{g}
ZBE3C  2X  8X  6.0 mm @ 2X 4.4 mm @ 8X
5.5 mm @ 2X 3.4 mm @ 8X

ZBE4C  4X  16X  6.0 mm @ 4X 2.7 mm @ 16X
5.5 mm @ 4X 2.5 mm @ 16X
SM2
Several mounting options for the Achromatic Zoom Beam Expanders are provided in the table below. For our complete selection of thread adapters, see our Optical Component Thread Adapters selection guide.
Item #  SM1RC(/M)  SM2RC(/M)  SM1TC  SM2TC  CP36  LCP36  SM2A21  SM2A30

Photo (Click to Enlarge)

Application  Slip Ring for Post Mounting  Clamp for Post Mounting  30 mm Cage Mount for Ø1.2" Housing  60 mm Cage Mount for Ø2.2" Housing  Mount Beam Expander in Ø2" or SM2Threaded Optic Mounts
Integrate Beam Expander with SM2Threaded Components
Compatible Achromatic Zoom Beam Expanders (Item # Prefix)  ZBE1 ZBE2 ZBE3 ZBE4
ZBE4  ZBE1 ZBE2 ZBE3 ZBE4
ZBE4  ZBE1 ZBE2^{a} ZBE3^{a} ZBE4^{a}
ZBE4  ZBE1 ZBE2 ZBE3 ZBE4
ZBE2 ZBE3
Internal Bore / Threads
Ø1.2" Bore  Ø2.2" Bore  Ø1.2" Bore  Ø2.2" Bore  Ø1.2" Bore  Ø2.2" Bore  Ø1.2" Bore  M43 x 0.5 Threads
            SM2 Threads and Ø2" Smooth Surface
SM2 Threads
Mounting Holes  832 (M4) Tap  #8 (M4) Counterbore  Compatible with 30 mm Cage Systems
Compatible with 60 mm Cage Systems
