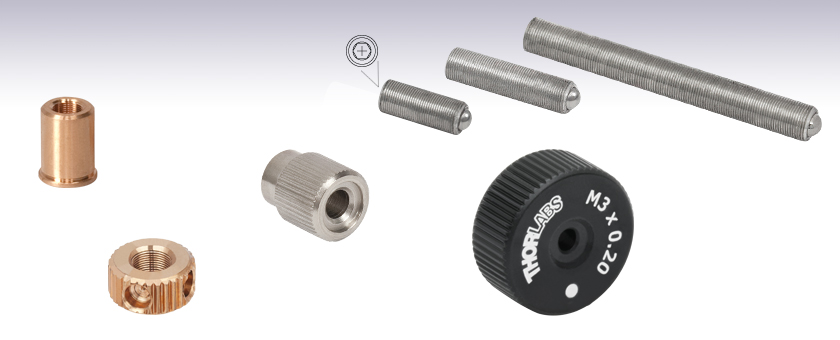

Hex Adjusters, M3 x 0.20 Extremely Fine


  • Extremely Fine Adjustment
  • 200 µm Travel per Revolution

F3ESN1P

LN3M20

1.5 mm
Hex Socket

F3ES8

F3ES12

F3ES25

F3ESK1

F3ESK1L

Related Items


Please Wait

Features

  • Hex Adjusters Feature a 1.5 mm Hex Socket
  • Removable Adjustment Knobs Available for Hex Adjusters
  • Threaded Bushings and Lock Nuts for Threading Integration

These M3 x 0.20 hex adjustment screws are manufactured from 303 Stainless Steel and come lubricated for smooth mating with compatible components. The F3ESK1 removable adjustment knob threads on to an M3 x 0.20 threaded adjuster and provides a means to make fine adjustment without a hex key. Threaded bushings and lock nuts are available to further aid the incorporation of fine adjustment in your application.

Threaded Bushing Application

Integrating Fine Adjustment Screws Into Optomechanical Systems

The assembly process begins by producing the appropriately sized mating hole for the threaded bushing. Given the close fit between the threaded bushing and the mating adjuster screw, we caution against using a press fit to assemble these products. For our own production needs, we use a permanent anaerobic adhesive that provides excellent long-term performance.

We recommend using Loctite Anaerobic Adhesive product number 680 or equivalent. In order to ensure maximum strength between the bonded parts, we strongly urge the user to follow carefully the instructions provided by Loctite, which specify the amount of clearance between the threaded bushing and the mounting plate. The most common source of failure is not allowing for the proper clearance between the parts being bonded since this clearance provides for the proper volume of adhesive.

When assembling, apply a small amount of the Loctite adhesive to the threaded bushing only. Rotate the bushing as it is installed to ensure a uniform distribution of the adhesive. After insertion, remove any excess adhesive from around the part.

As shown in the figure to the right, the flange on the mating bushing is designed to support the axial load of the screw and bushing assembly.

Volume Pricing Discount
Contact Thorlabs

OEM & Custom Precision Screws

Thorlabs manufactures custom and high volume OEM precision screws and bushings with various diameters, lengths, and threads. To inquire about custom or OEM precision screws, please contact Technical Support or use the "Contact Us" form to the right. A specialist will contact you within 24 hours or the next business day.

Precision Screw Capabilities

Thorlabs' in-house machine shop, located in Newton, NJ, gives us the ability to quickly produce large quantities of precision screws and bushings. We are equipped to manufacture screw diameters ranging from 2.5 mm to 20 mm with lengths up to 165 mm and a maximum thread pitch of 200 TPI. Our standard adjuster screw design has a hardened steel ball tip to provide a single point of contact; for other applications we are able to provide adjusters without the steel ball. Custom orders can be achieved on a case-by-case basis. For large orders of an item, Thorlabs passes on to the customer the cost savings associated with planned production of high volumes of that item. For more information on Thorlabs' discount pricing policy, click the "V" link to the right. We also offer a large variety of stock precision screws, which are available here.

Fast Turn-Around Times
Our experienced, highly skilled machinists are running our five on-site Citizen Swiss Screw Machines 24 hours a day, allowing us to produce high-volume custom and OEM orders. Each machine is capable of running unattended, producing one screw every 30 to 120 seconds. This flexibility allows us to fulfill multiple orders at once without sacrificing quality.

High Quality
Thorlabs inspects all of our fabricated precision screws and bushings after the initial fabrication process and right before packaging. All inspections adhere to the ANSI AQL1.5 acceptable quality level, which states that if a certain percentage, based upon the amount of product in a certain lot, does not meet specification, then the entire lot is not sold. This ensures that all customers recieve the highest quality product every time and that all items will be of equal performance.

Precision Screw Production


Please Give Us Your Feedback

Email Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?   Little Use  1234Very Useful

Enter Comments Below:

Characters remaining  8000
Posted Comments:
Poster:dhaarhoff
Posted Date:2008-07-15 18:16:18.0
I would like to inquire about the maximum axial load that the M3x0.2 adjusters can withstand. In my aplication I will be using the adjuster in connection with the threaded bush - F3ESN1. If posible, I would like to know what a save working load is and also what the maximum load is. Thanks

M3 x 0.20 Hex Adjusters

  • Six Lengths Available
  • 1.5 mm Hex Key Compatible
  • Max Load: 8.5 kg (18.75 lbs)

Our high precision M3 x 0.20 Fine Hex Adjusters can be adjusted with a 1.5 mm hex key or M3 x 0.20 removable adjustment knob (sold below). The F3ES series hex adjusters has a maximum load of 18.75 lbs (8.5 kg) to maintain smooth adjustment.

These adjuster screws are designed to be used with M3 x 0.20 threaded bushings, available below. Alternatively, for more compact applications, an M3 x 0.20 plug tap can create M3 x 0.20 tapped holes in optomechanical components.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Metric Price Available / Ships
F3ES8 Support Documentation
F3ES8Extremely Fine Hex Adjuster, M3 x 0.20, 8 mm Long
$3.99
Today
F3ES10 Support Documentation
F3ES10Extremely Fine Hex Adjuster, M3 x 0.20, 10 mm Long
$4.20
Today
F3ES12 Support Documentation
F3ES12Extremely Fine Hex Adjuster, M3 x 0.20, 12 mm Long
$4.39
3-5 Days
F3ES15 Support Documentation
F3ES15Extremely Fine Hex Adjuster, M3 x 0.20, 15 mm Long
$4.59
Today
F3ES20 Support Documentation
F3ES20Extremely Fine Hex Adjuster, M3 x 0.20, 20 mm Long
$4.79
3-5 Days
F3ES25 Support Documentation
F3ES25Extremely Fine Hex Adjuster, M3 x 0.20, 25 mm Long
$4.99
Today

M3 x 0.20 Removable Adjustment Knobs

  • Use with M3 x 0.20 Hex Adjusters
  • Clearance Hole Allows Access to Adjuster's Hex Socket
  • Available in 2 Sizes
  • Knurled Knob Increases Adjustment Sensitivity

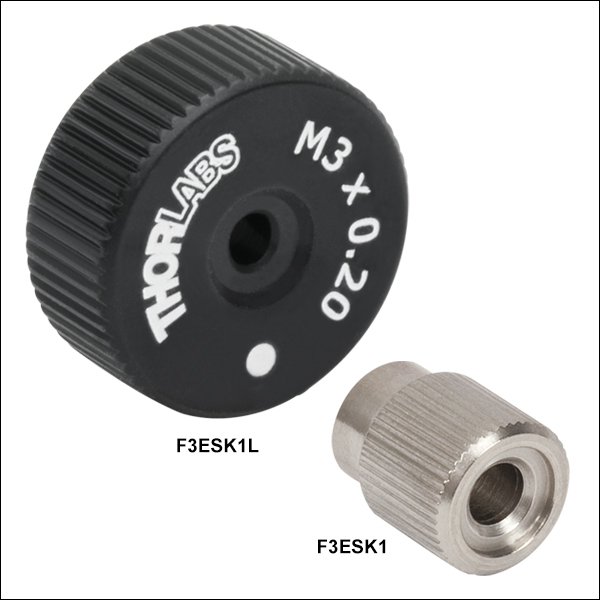

The F3ESK1 and F3ESK1L Removable Adjustment Knobs thread onto our M3 x 0.20 F3ES series hex adjusters to allow adjustment without the use of a hex key. This provides quick and easy adjustments for a broad range of applications. The adjuster knobs are available in two sizes: standard (Ø7.1 mm) and large (Ø14.7 mm).

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Metric Price Available / Ships
F3ESK1 Support Documentation
F3ESK1M3 x 0.20 Removable Adjuster Knob
$5.90
Today
F3ESK1L Support Documentation
F3ESK1LLarge-Diameter M3 x 0.20 Removable Adjuster Knob
$7.75
Today

M3 x 0.20 Threaded Bushing

  • Ideal for Slip Fit Integration
  • Material: 510 Phosphor Bronze (Vacuum Rated for 10-6 Torr)
  • Recommended Bore Diameter: 5.03 mm +0.03/-0.00 mm

Our M3 x 0.20 Threaded Bushing is commonly used in slip fit applications where fine adjusters are needed. Due to the tolerances of our fine adjusters, we discourage press fitting these bushings. The recommended bore diameter for our M3 x 0.20 bushings is 5.03 mm +0.03/-0.00 mm (0.198" +0.001"/-0.000"). For vacuum applications, we recommend a thorough ultrasonic cleaning to remove any grease or particulates prior to use. To learn more about the use of fine adjustment screws and bushings in optomechanical systems, please see the Integration tab above.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Metric Price Available / Ships
F3ESN1P Support Documentation
F3ESN1PThreaded Bushing, Phosphor Bronze, M3 x 0.20, 7 mm Long
$3.78
Today

M3 x 0.20 Lock Nut

  • Knurled Outside Diameter for Easy Tightening
  • Material: 510 Phosphor Bronze
  • Vacuum Compatible: 10-6 Torr

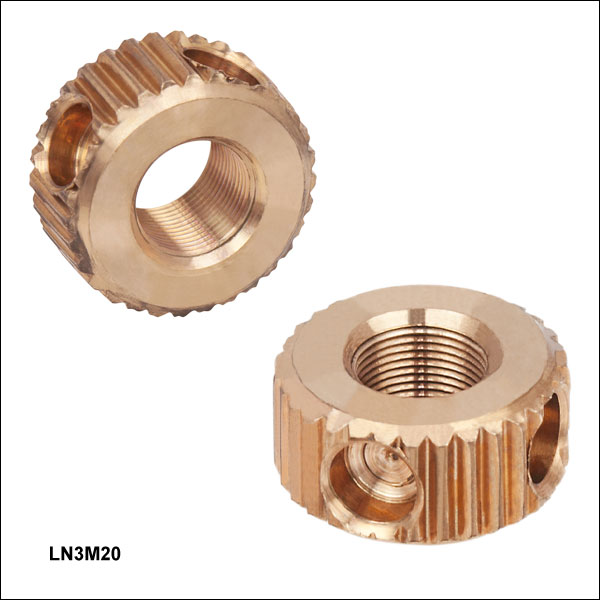

The LN3M20 lock nut features a knurled outside diameter to make gripping the nut easier when loosening or tightening. The lock nut is made from 510 Phosphor Bronze, which is vacuum rated for 10-6 Torr. Each nut features blind holes that allow a hex key to be used to help tighten the lock nut.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Metric Price Available / Ships
LN3M20 Support Documentation
LN3M20M3 x 0.20 Lock Nut
$8.40
Today
