Optical Component Threading Adapters with M32 x 0.75 Threads


  • Integrate M32 x 0.75 Threaded Components with Other Industry-Standard Threads
  • Adapters Available with Either Internal or External
    M32 x 0.75 Threads

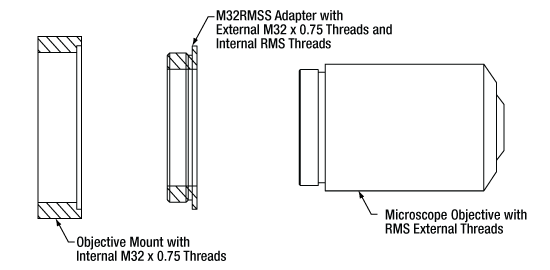

M32RMSS

Brass Microscope Adapter, External M32 x 0.75 Threads and Internal RMS Threads

SM1A34

External SM1 Threads and Internal M32 x 0.75 Threads

CSN100

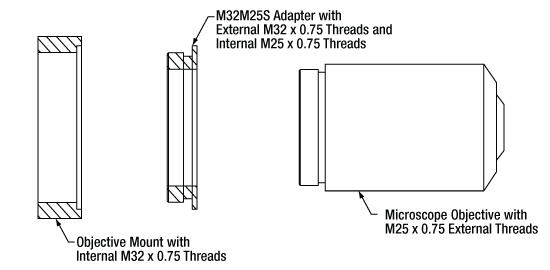

M32M25S

N40X-PF

M32M25S Adapter Connecting a Nikon Objective to a Cerna® Nosepiece

Related Items


Please Wait
Interactive Selection Guide

M32 x 0.75-Threaded Optical Component Adapters

This page contains all of our Optical Component Thread Adapters that feature M32 x 0.75 threading. Adapters that have both internal and external threads are available.

The brass microscope adapters below are ideal for use in our Bergamo® and Cerna® imaging systems. They feature a lip to prevent the microscope objective from being threaded too far onto the mount, and their brass construction is harder than aluminum and less likely to bind to and damage the objective threading.

These M32 x 0.75 adapters are a subset of our entire line of optical component thread adapters. To view the entire line, please see our Interactive Adapters Selection Guide.

Adapters with Internal M32 x 0.75 and External Industry-Standard Threads
Item # Typical Application External Threads Internal Threads

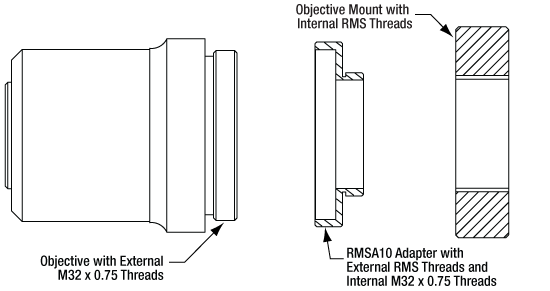

RMSA10 info Attach M32 x 0.75 Objective to RMS Mount RMS (0.800"-36) M32 x 0.75

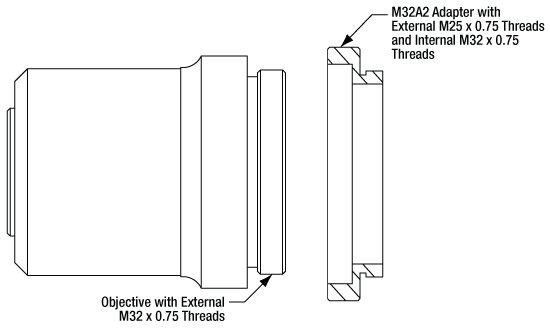

M32A2 info Integrate M32 x 0.75 Objective with M25 x 0.75 Mount M25 x 0.75 M32 x 0.75
SM1A34 info Attach M32 x 0.75 Objective to SM1 Lens Tube SM1 (1.035"-40) M32 x 0.75

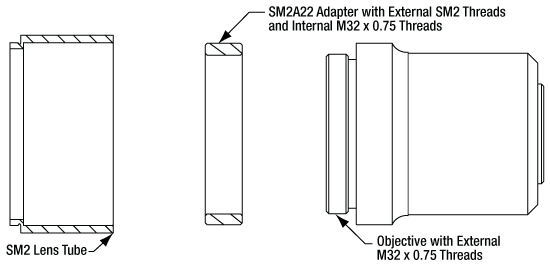

SM2A22 info Integrate M32 x 0.75 Objective into
SM2 Lens Tube
SM2 (2.035"-40) M32 x 0.75

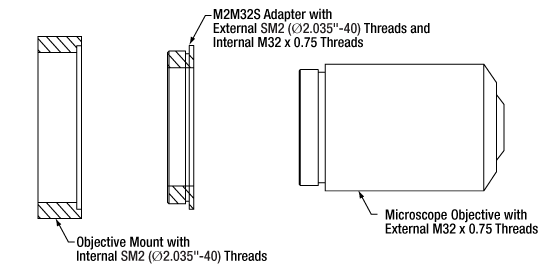

M2M32Sa info Integrate M32 x 0.75 Objective with SM2 Mount SM2 (2.035"-40) M32 x 0.75
  • This brass adapter has a flange to prevent overthreading the adapter or the objective into a microscope nosepiece. Brass is harder than aluminum which reduces thread binding.
Adapter with Internal and External M32 x 0.75 Threads
Item # Typical Application External Threads Internal Threads

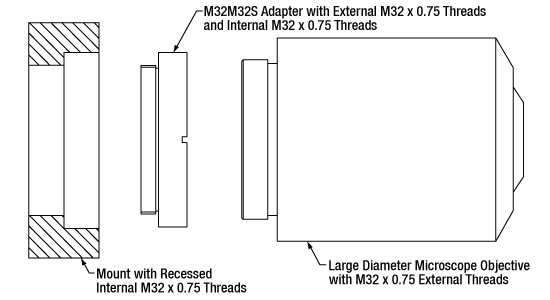

M32M32Sa info Integrate Large Diameter M32 x 0.75 Objective with Recessed M32 x 0.75 Mount M32 x 0.75 M32 x 0.75
  • This adapter was created since many M32 x 0.75 threaded nosepieces have recessed threads. Due to the large diameter of some objectives, a smaller diameter mount is needed to properly load in certain mating pieces. This brass adapter has a flange to prevent overthreading the adapter or the objective into a microscope nosepiece. Brass is harder than aluminum which reduces thread binding.
Adapters with External M32 x 0.75 and Internal Industry-Standard Threads
Item # Typical Application External Threads Internal Threads
RMSA9 info Integrate RMS Objective with
M32 x 0.75 Mount
M32 x 0.75 RMS (0.800"-36)
M32RMSSa info Integrate RMS Objective with
M32 x 0.75 Mount
M32 x 0.75 RMS (0.800"-36)

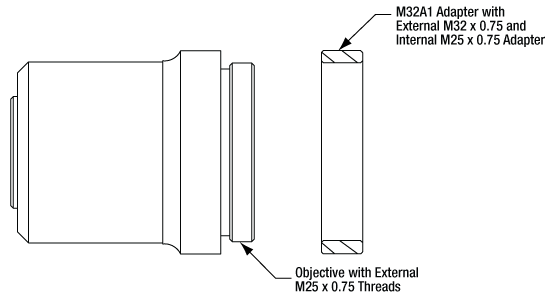

M32A1 info Integrate M25 x 0.75 Objective with
M32 x 0.75 Mount
M32 x 0.75 M25 x 0.75
M32M25Sa info Integrate M25 x 0.75 Objective with
M32 x 0.75 Mount
M32 x 0.75 M25 x 0.75
SM1A33 info Integrate SM1 Lens Tube with
M32 x 0.75 Mount
M32 x 0.75 SM1 (1.035"-40)
M32SM1Sa info Integrate SM1 Lens Tube with
M32 x 0.75 Mount
M32 x 0.75 SM1 (1.035"-40)
M32W26Sa
info
Integrate W26 x 0.706 Objective with
M32 x 0.75 Mount
M32 x 0.75 W26 x 0.706b

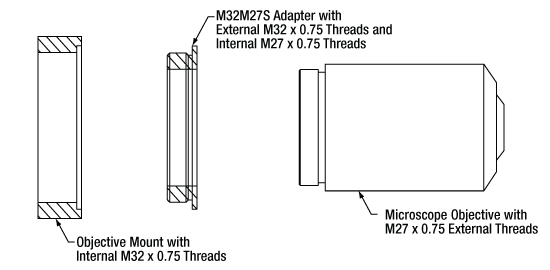

M32M27Sa info Integrate M27 x 0.75 Objective with
M32 x 0.75 Mount
M32 x 0.75 M27 x 0.75

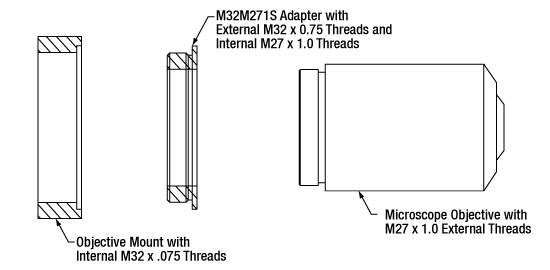

M32M271Sa info Integrate M27 x 1.0 Objective with
M32 x 0.75 Mount
M32 x 0.75 M27 x 1.0

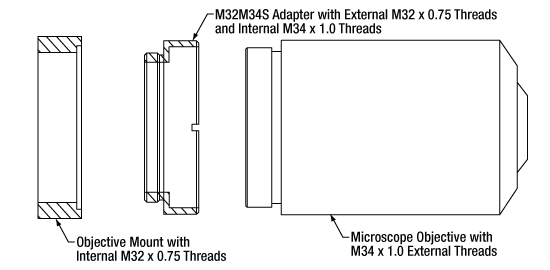

M32M34Sa info Integrate M34 x 1.0 Objective with
M32 x 0.75 Mount
M32 x 0.75 M34 x 1.0

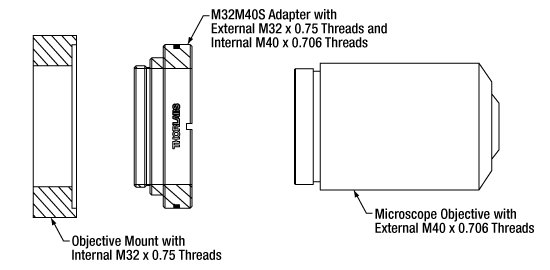

M32M40Sa info Integrate M40 x 0.706 Objective with
M32 x 0.75 Mount
M32 x 0.75 M40 x 0.706

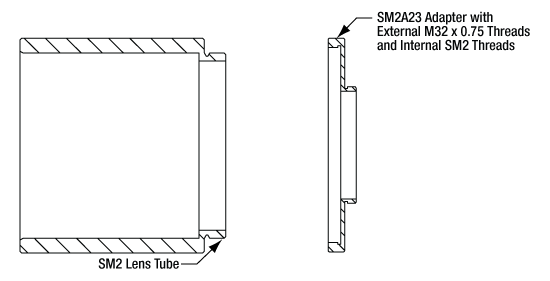

SM2A23 info Integrate SM2 Lens Tube into
M32 x 0.75 Mount
M32 x 0.75 SM2 (2.035"-40)
  • This brass adapter has a flange to prevent overthreading the adapter or the objective into a microscope nosepiece. Brass is harder than aluminum which reduces thread binding.
  • W26-threaded objectives are sometimes referred to as M26-threaded, but as long as the objective conforms to ISO 9345:2019 or JIS B 7141:2012, it will be compatible with our W26 adapters.

Threading Specifications

The following is a general overview of screw threading. For more details regarding specifications and dimensions, please consult the Machinery's Handbook, available for purchase at many bookstores.

Features of a Thread
A thread consists of three repeating features: a crest, flank, and root (see drawing to the right). Except in special cases, threads have symmetrical sides inclined at equal angles when a vertical line is drawn through the center of a crest or root. The distance between corresponding points on adjacent threads is known as the pitch of the thread. The flank angle is defined as the angle the flank makes with a perpendicular ray drawn from the screw axis. Unless otherwise stated, threads have a flank angle of 30°, resulting in a total angle between flanks of 60°. Each feature is shown in the diagram to the right.

The major diameter is taken from the crests of a thread while the minor diameter is taken from the roots. For most screws, crests and roots do not terminate at a sharp point, so crest and root truncation values are included in the definitions of major and minor diameter. The pitch diameter is approximately halfway between the major and minor diameters.

Thread Form
A thread form is a set of rules that define the features' scale relative to one another. Common thread forms include the Unified Screw Thread Form, used in the United States of America and measured in imperial units, and the ISO Metric Screw Thread Form, used in many parts of the world and measured with the International System of Units. There are many thread forms in the Unified screw thread standard designated by either UN, which defines a flat root contour, or UNR, which defines a round root contour. These can be further described by appending more letters. For example, an extremely fine thread with a flat root contour is designated UNEF. Those forms which are not standardized by the Unified screw thread system are designated UNS.

Thread Series
Most screws are identified by their thread series. Thread series are denoted by the major diameter and density of threads. Unified threads specify density in threads per inch, while Metric threads specify the thread pitch. For example, in the Unified nomenclature, a 1/4"-20 cap screw has a 1/4" diameter barrel and the pitch is 20 threads per inch (TPI). In metric nomenclature, an M4 x 0.7 cap screw has a 4 mm barrel and the pitch is 1 thread per 0.7 mm. The term M4 x 0.7 is often shortened to just M4.

Unified Thread Class Tolerancing
Location Loose Optimal Strict
Internal 1B 2B 3B
External 1A 2A 3A
Metric Thread Tolerance Positions
Location Loose Optimal Strict
Internal - G H
External e or f g h
Metric Thread Tolerance Grades
Dimension Location Tolerance Gradesa
Minor Diameter Internal 4, 5, 6, 7, 8
Major Diameter External 4, 6, 8
Pitch Diameter Internal 4, 5, 6, 7, 8
External 3, 4, 5, 6, 7, 8, 9
  • The tolerance becomes looser as the grade increases. The underlined grades are used with normal lengths of thread engagement.

Thread Class
The tolerances and allowances on a thread series are given by a thread class. Unified thread classes are alphanumeric identifiers starting with a number from 1 through 3, where 1 is the loosest tolerance and 3 is the tightest, and either A for external threading or B for internal threading.

Metric threads have a slightly more complex tolerancing method that uses tolerancing grades, designated by a number 3 through 9; and tolerancing positions, which use letters e through h. Grades provide a measure of the tolerance itself: the smaller the number, the tighter the tolerance. Positions denote the distance of the tolerance from the pitch diameter. Uppercase positioning letters indicate internal threads while lowercase positioning letters indicate external threads.

Quoting from the Machinery's Handbook, 29th Edition, p. 1885: "To designate the tolerance class, the grade and position of the pitch diameter is shown first followed by that for the major diameter in the case of the external thread or that for the minor diameter in the case of the internal thread, thus 4g6g for an external thread and 5H6H for an internal thread. If the two grades and positions are identical, it is not necessary to repeat the symbols, thus 4g, alone, stands for 4g4g and 5H, alone, stands for 5H5H."

Thorlabs' SM Series Threads
Threading specifications for our SM threads, utilized in our lens tube and cage system components, are given below so that you can machine mating components to suit your application. Most SM series threads utilize a non-standard Unified thread form, indicated by the letters UNS, with a 30° flank angle and a thread class of 2A and 2B. The exception is our SM30 series thread, which is a Metric thread form with a 30° flank angle and a tolerance of 6H/6g. We also offer products with C-Mount and RMS threads, and the specifications for these threads are given below for reference. Please note that other manufacturers may have different tolerances for C-Mount and RMS threads. For other thread specifications that are not listed here, please contact Tech Support.

SM05 Threading: Ø1/2" Lens Tubes, 16 mm Cage Systems
External Thread, 0.535"-40.0 UNS-2A Internal Thread, 0.535"-40.0 UNS-2B
Max Major Diameter 0.5340" Min Major Diameter 0.5350"
Min Major Diameter 0.5289" Min Pitch Diameter 0.5188"
Max Pitch Diameter 0.5178" Max Pitch Diameter 0.5230"
Min Pitch Diameter 0.5146" Min Minor Diameter (and 83.3% of Thread) 0.508"
Max Minor Diameter 0.5069" Max Minor Diameter (and 64.9% of Thread) 0.514"
RMS Threading: Objective, Scan, and Tube Lenses
External Thread, 0.800"-36.0 UNS-2A Internal Thread, 0.800"-36.0 UNS-2B
Max Major Diameter 0.7989" Min Major Diameter 0.8000"
Min Major Diameter 0.7934" Min Pitch Diameter 0.7820"
Max Pitch Diameter 0.7809" Max Pitch Diameter 0.7866"
Min Pitch Diameter 0.7774" Min Minor Diameter (and 83.3% of Thread) 0.770"
Max Minor Diameter 0.7688" Max Minor Diameter (and 64.9% of Thread) 0.777"
C-Mount Threading: Machine Vision Lenses, CCD/CMOS Cameras
External Thread, 1.000"-32.0 UN-2A Internal Thread, 1.000"-32.0 UN-2B
Max Major Diameter 0.9989" Min Major Diameter 1.0000"
Min Major Diameter 0.9929" Min Pitch Diameter 0.9797"
Max Pitch Diameter 0.9786" Max Pitch Diameter 0.9846"
Min Pitch Diameter 0.9748" Min Minor Diameter (and 83.3% of Thread) 0.966"
Max Minor Diameter 0.9651" Max Minor Diameter (and 64.9% of Thread) 0.974"
SM1 Threading: Ø1" Lens Tubes, 30 mm Cage Systems
External Thread, 1.035"-40.0 UNS-2A Internal Thread, 1.035"-40.0 UNS-2B
Max Major Diameter 1.0339" Min Major Diameter 1.0350"
Min Major Diameter 1.0288" Min Pitch Diameter 1.0188"
Max Pitch Diameter 1.0177" Max Pitch Diameter 1.0234"
Min Pitch Diameter 1.0142" Min Minor Diameter (and 83.3% of Thread) 1.008"
Max Minor Diameter 1.0068" Max Minor Diameter (and 64.9% of Thread) 1.014"
SM30 Threading: Ø30 mm Lens Tubes
External Thread, M30.5 x 0.5 – 6H/6g Internal Thread, M30.5 x 0.5 – 6H/6g
Max Major Diameter 30.480 mm Min Major Diameter 30.500 mm
Min Major Diameter 30.371 mm Min Pitch Diameter 30.175 mm
Max Pitch Diameter 30.155 mm Max Pitch Diameter 30.302 mm
Min Pitch Diameter 30.059 mm Min Minor Diameter (and 83.3% of Thread) 29.959 mm
Max Minor Diameter 29.938 mm Max Minor Diameter (and 64.9% of Thread) 30.094 mm
SM1.5 Threading: Ø1.5" Lens Tubes
External Thread, 1.535"-40 UNS-2A Internal Thread, 1.535"-40 UNS-2B
Max Major Diameter 1.5339" Min Major Diameter 1.535"
Min Major Diameter 1.5288" Min Pitch Diameter 1.5188"
Max Pitch Diameter 1.5177" Max Pitch Diameter 1.5236"
Min Pitch Diameter 1.5140" Min Minor Diameter (and 83.3% of Thread) 1.508"
Max Minor Diameter 1.5068" Max Minor Diameter (and 64.9% of Thread) 1.514"
SM2 Threading: Ø2" Lens Tubes, 60 mm Cage Systems
External Thread, 2.035"-40.0 UNS-2A Internal Thread, 2.035"-40.0 UNS-2B
Max Major Diameter 2.0338" Min Major Diameter 2.0350"
Min Major Diameter 2.0287" Min Pitch Diameter 2.0188"
Max Pitch Diameter 2.0176" Max Pitch Diameter 2.0239"
Min Pitch Diameter 2.0137" Min Minor Diameter (and 83.3% of Thread) 2.008"
Max Minor Diameter 2.0067" Max Minor Diameter (and 64.9% of Thread) 2.014"
SM3 Threading: Ø3" Lens Tubes
External Thread, 3.035"-40.0 UNS-2A Internal Thread, 3.035"-40.0 UNS-2B
Max Major Diameter 3.0337" Min Major Diameter 3.0350"
Min Major Diameter 3.0286" Min Pitch Diameter 3.0188"
Max Pitch Diameter 3.0175" Max Pitch Diameter 3.0242"
Min Pitch Diameter 3.0133" Min Minor Diameter (and 83.3% of Thread) 3.008"
Max Minor Diameter 3.0066" Max Minor Diameter (and 64.9% of Thread) 3.014"
SM4 Threading: Ø4" Lens Tubes
External Thread, 4.035"-40 UNS-2A Internal Thread, 4.035"-40.0 UNS-2B
Max Major Diameter 4.0337" Min Major Diameter 4.0350"
Min Major Diameter 4.0286" Min Pitch Diameter 4.0188"
Max Pitch Diameter 4.0175" Max Pitch Diameter 4.0245"
Min Pitch Diameter 4.0131" Min Minor Diameter (and 83.3% of Thread) 4.008"
Max Minor Diameter 4.0066" Max Minor Diameter (and 64.9% of Thread) 4.014"

Posted Comments:
No Comments Posted
Back to Top

Adapter with External and Internal M32 x 0.75 Threads

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
M32M32S Support Documentation
M32M32S Brass Microscope Adapter with External and Internal M32 x 0.75 Threads
$52.19
Today
Back to Top

Adapters with External M32 x 0.75 and Internal Industry-Standard Threads

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
RMSA9 Support Documentation
RMSA9Customer Inspired! Adapter with External M32 x 0.75 Threads and Internal RMS Threads
$26.73
Today
M32RMSS Support Documentation
M32RMSSCustomer Inspired! Brass Microscope Adapter with External M32 x 0.75 Threads and Internal RMS Threads
$27.81
Today
M32A1 Support Documentation
M32A1Customer Inspired! Adapter with External M32 x 0.75 Threads and Internal M25 x 0.75 Threads
$26.73
Today
M32M25S Support Documentation
M32M25SCustomer Inspired! Brass Microscope Adapter with External M32 x 0.75 Threads and Internal M25 x 0.75 Threads
$23.30
Today
SM1A33 Support Documentation
SM1A33Customer Inspired! Adapter with External M32 x 0.75 Threads and Internal SM1 Threads
$26.08
Today
M32SM1S Support Documentation
M32SM1SCustomer Inspired! Brass Microscope Adapter with External M32 x 0.75 Threads and Internal SM1 Threads
$37.89
Today
M32W26S Support Documentation
M32W26SNEW!Brass Microscope Adapter with External M32 x 0.75 Threads and Internal W26 x 0.706 Threads
$30.00
Today
M32M27S Support Documentation
M32M27SCustomer Inspired! Brass Microscope Adapter with External M32 x 0.75 Threads and Internal M27 x 0.75 Threads
$30.08
Today
M32M271S Support Documentation
M32M271SBrass Microscope Adapter with External M32 x 0.75 Threads and Internal M27 x 1.0 Threads
$23.30
Today
M32M34S Support Documentation
M32M34SCustomer Inspired! Brass Microscope Adapter with External M32 x 0.75 Threads and Internal M34 x 1.0 Threads
$44.26
Today
M32M40S Support Documentation
M32M40SCustomer Inspired! Brass Microscope Adapter with External M32 x 0.75 Threads and Internal M40 x 0.706 Threads
$46.59
Today
SM2A23 Support Documentation
SM2A23Customer Inspired! Adapter with External M32 x 0.75 Threads and Internal SM2 Threads
$26.73
Today
Back to Top

Adapters with Internal M32 x 0.75 and External Industry-Standard Threads

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
RMSA10 Support Documentation
RMSA10Customer Inspired! Adapter with External RMS Threads and Internal M32 x 0.75 Threads
$26.73
Today
M32A2 Support Documentation
M32A2Customer Inspired! Adapter with External M25 x 0.75 Threads and Internal M32 x 0.75 Threads
$26.73
Today
SM1A34 Support Documentation
SM1A34Customer Inspired! Adapter with External SM1 Threads and Internal M32 x 0.75 Threads
$26.08
Today
SM2A22 Support Documentation
SM2A22Customer Inspired! Adapter with External SM2 Threads and Internal M32 x 0.75 Threads
$26.73
Today
M2M32S Support Documentation
M2M32SCustomer Inspired! Brass Microscope Adapter with External SM2 Threads and Internal M32 x 0.75 Threads
$69.62
Today
