EF-Mount Adapter Rings

Female or Male Adapter Ring for Canon's EF-Mount Lenses or Cameras
Directly Compatible with SM2-Threaded (2.035"-40) Components
Great for Custom Imaging Applications

Application Idea

SM2CEFM EF-Mount Adapter Ring Shown with Post, Base, Lens Tube, EF-Mount Lens and SM2RC Mount.

SM2CEFM

Female EF-Mount
External SM2 (2.035"-40) Threading

SM2CEFM2

Male EF-Mount
External SM2 (2.035"-40) Threading

SM2CEFM

Related Items

Please Wait

Overview
Feedback

Click to Enlarge

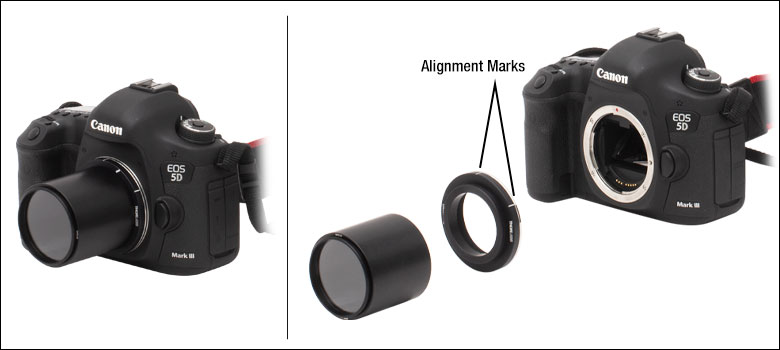

The SM2CEFM2 easily secures a Ø2" lens tube and lens to an EF-Mount-compatible Canon camera. Lens and lens tube are sold separately. Canon cameras are not available from Thorlabs.

Features

Female EF-Mount Connects to Canon Lens
Male EF-Mount Connects to Canon Camera
External SM2 (2.035"-40) Threading for Compatibility with Ø2" Lens Tubes and Components

Thorlabs' EF-Mount Adapter Rings allow for easy integration of Canon EF-Mount lenses and cameras into experimental setups using Thorlabs' optomechanical components. The SM2CEFM adapter features female EF-Mounting, making it ideal for integrating Canon EF-mount-compatible lenses into Thorlabs cage systems and DIY Cerna setups. The SM2CEFM2 adapter features male EF-Mounting, giving the option to combine Canon EF-mount-compatible cameras with Thorlabs optics, as shown in the image below. On the side opposite of the EF-mounting hardware, both adapters feature SM2 (2.035"-40) external threading, and thus are directly compatible with Thorlabs' internally SM2-threaded components, such as our Ø2" lens tubes.

Posted Comments:

Songyun Gu (posted 2024-10-17 23:32:03.38)

Now there are many new camera lens came out with new mounts. For example, EF-M mount for Canon, which is very different from the EF mount. I am wondering if there are plans to include those lens mounts with SM system? Thank you

EGies (posted 2024-10-21 03:49:12.0)

Thank you for contacting Thorlabs. While we do not currently have an adapter for the EF-M type mount for Canon lenses/cameras, I have posted this idea to our internal engineering forum for future consideration. I have also reached out to you directly regarding this.
