Bandpass Filter Kits


  • 10 Mounted Bandpass Filters in Each Kit
  • Visible 10 nm Bandpass: Cut-Offs from 350 nm to 800 nm
  • Visible 40 nm Bandpass: Cut-Offs from 400 nm to 850 nm
  • IR 10 nm Bandpass: Cut-Offs from 850 nm to 1600 nm

FKB-VIS-10

FB550-40

FB600-40

FKB-VIS-40

Each Lens is
Clearly Marked

Related Items


Please Wait

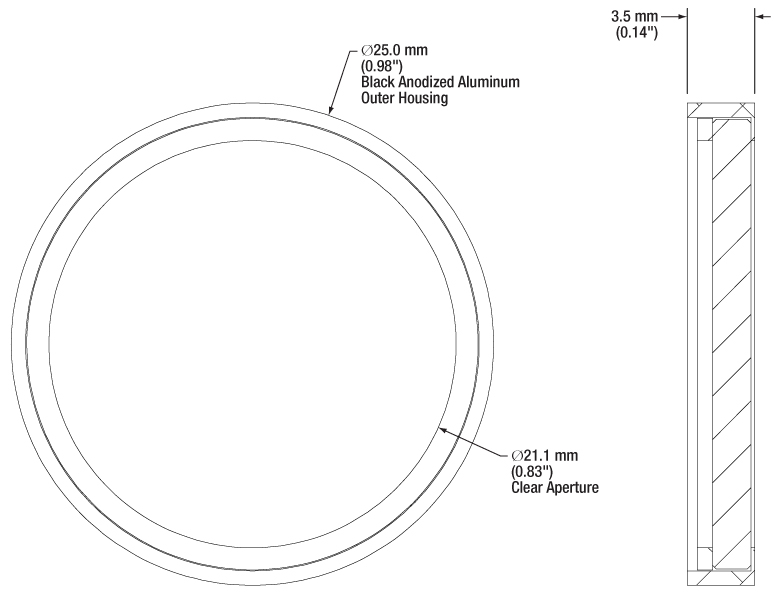

filter diagram
bandpass filter engraving schematic
IR Filter Mounted in Filter Mount
Click to Enlarge

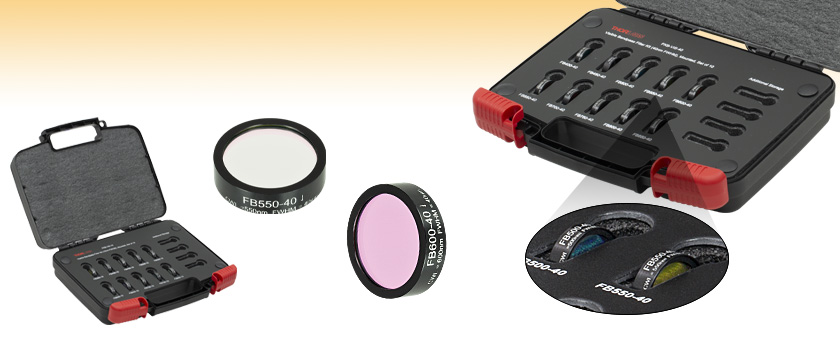

FB550-40 Filter Mounted in a TRF90 Flip Mount Using a Retaining Ring

Features

  • Central Wavelengths from 350 nm to 1600 nm
  • 10 nm and 40 nm Bandpass Regions
  • Edge-Scribed for Superb Long Term Stability
  • Engraved Filter Mount with 1" Outer Diameter
  • Clear Aperture is 21 mm

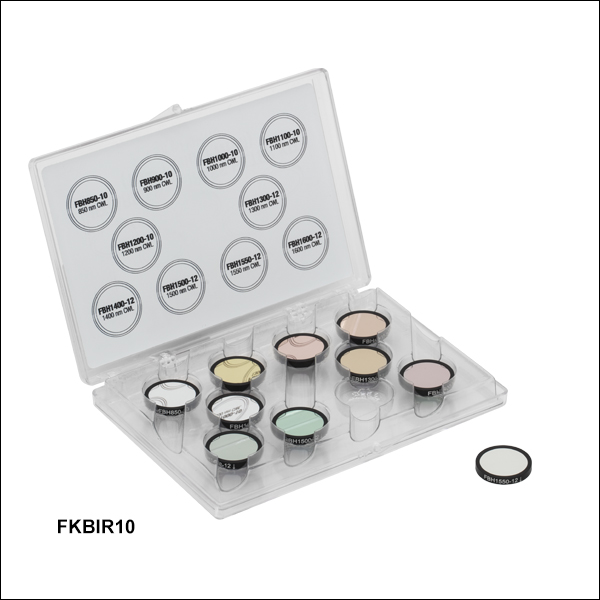

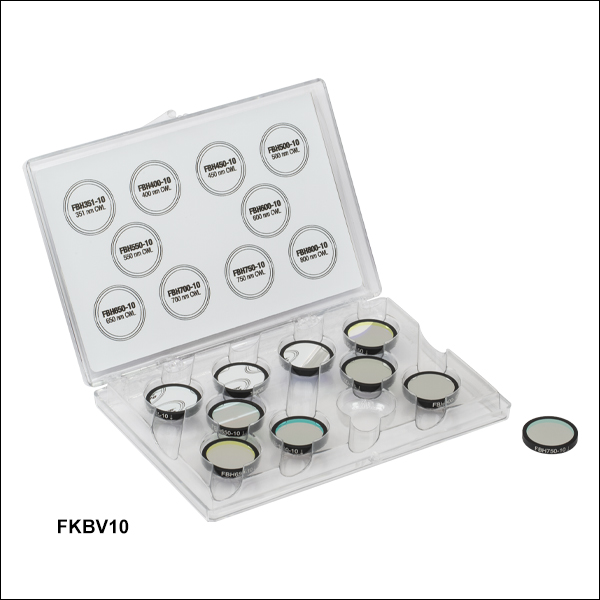

Thorlabs' Bandpass Filter Kits each contain 10 mounted bandpass filters that can be used to transmit a well-defined wavelength band in the visible or IR, while rejecting other unwanted radiation. Each filter is mounted in an unthreaded Ø1" black anodized aluminum ring that can be placed into our selection of Ø1" lens tubes and filter mounts using retaining rings, as shown to the right. The filter kit comes in a convenient plastic box for storage and transportation purposes. Please see the Tutorial tab for more information about the structure of the filter and the transmission direction arrow.

Thorlabs also offers a wide range of individually sold bandpass filters. To inquire about our custom bandpass filter options, including the possibility of alternative central wavelengths or bandwidths, please contact Tech Support. Please note that there is a significant lead time and tooling cost associated with custom filters that makes the purchase of only
a few pieces fairly costly.

Additional Bandpass Filters
UV/Visible Bandpass Filters
340 - 694.3 nm CWLs
NIR Bandpass Filters
700 - 1650 nm CWLs
MIR Bandpass Filters
1750 - 9500 nm CWLs
Premium Bandpass Filters
355 - 1550 nm CWLs
Bandpass Filter Kits
We also offer custom bandpass filters with other central wavelengths or FWHM. To request a quote, contact Tech Support.
Specifications
Out of Band Transmission<0.01% from 200 nm to 3.0 µm (10 nm and 12 nm)
<0.01% from 200 nm to 1150 nm (40 nm)
Minimum Clear ApertureØ21 mm
Thickness<6.3 mm
Optimum Operating Temperature23°C
Edge TreatmentMounted in Black Anodized Aluminum Ring
Edge MarkingsCenter Wavelength, FWHM, Lot Number, Arrow (↑) Indicating the Transmission Direction
Surface/Coating Quality80/50 Per Mil-0-13830A
Operating Temperature-50°C to +80°C
SubstratesSchott Borofloat & Soda Lime

Bandpas Filter Layers
Click to Enlarge

The number of layers shown in this schematic is not indicative of the number of layers in an actual bandpass filter. Also the drawing is not to scale.

Bandpass Filter Structure

A bandpass filter is created by depositing layers of material on the surface of the substrate. Typically, there are several dielectric stacks separated by spacer layers. The dielectric stack is composed of a large number of alternating layers of low-index and high-index dielectric material. The thickness of each layer in the dielectric stack is λ/4, where λ is the central wavelength of the bandpass filter (i.e. the wavelength with the highest transmittance through the filter). The spacer layers are placed in between the dielectric stacks and have a thickness of (nλ)/2, where n is an integer. The spacer layers can be formed from colored glass, epoxy, dyes, metallic, or dielectric layers. A Fabry-Perot cavity is formed by each spacer layer sandwiched between dielectric stacks. The filter is mounted in an engraved metal ring for protection and ease of handling.

Filter Operation Overview

The constructive interference conditions of a Fabry-Perot cavity allow light at the central wavelength, and a small band of wavelengths to either side, to be transmitted efficiently, while destructive interference prevents the light outside the passband from being transmitted. However, the band of blocked wavelengths on either side of the central wavelength is small. In order increase the blocking range of the filter, materials with broad blocking ranges are used for or coated onto the spacer layers and the substrate. Although these materials effectively block out of band transmission of incident radiation they also decrease the transmission through the filter in the passband.

bandpass filter, forward versus backward transmission

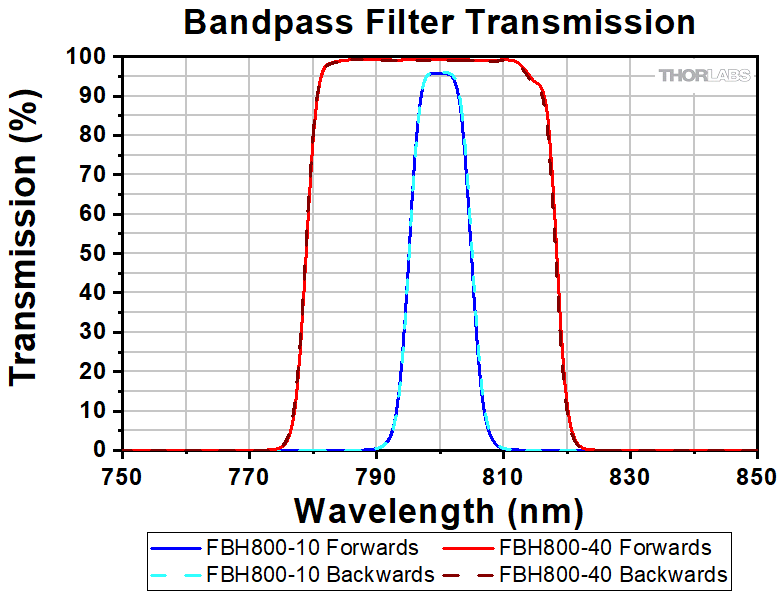

FB800-10 and FB800-40 filters were used to make the measurement that resulted in the plot above.

Filter Orientation

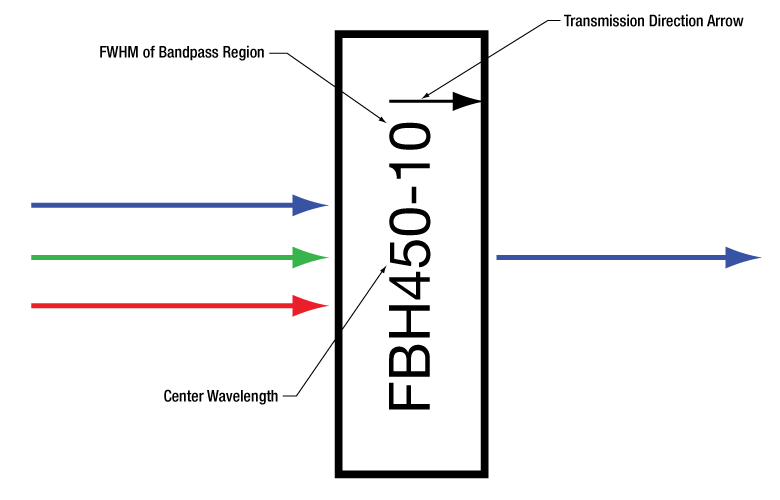

An engraved arrow on the edge of the filter is used to indicate the recommended direction for the transmission of light through the filter. Although the filter will function with either side facing the source it is better to place the coated side toward the source. This will minimize any thermal effects or possible thermal damage that blocking intense out-of-band radiation might caused due to the absorption of the out-of-band radiation by the substrate or colored glass filter layers. The plot to the right was made by illuminating the filter with a low intensity broadband light and measuring the transmission as a function of wavelength. The plot shows that the transmission direction through the filter has very little effect on the intensity and the spectrum of the light transmitted through the filter. The minimal variation between the forward and backward traces is most likely due to a small shift in the incident angle of the light on the filter introduced when the filter was removed, flipped over, and replaced in the jig.

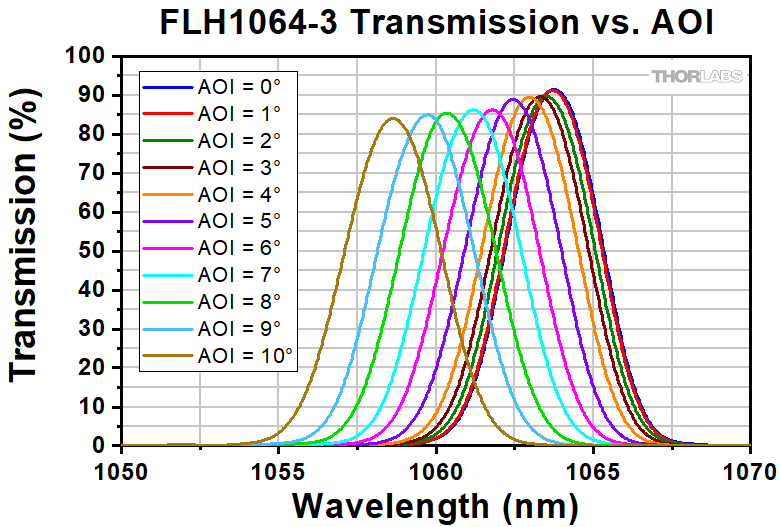

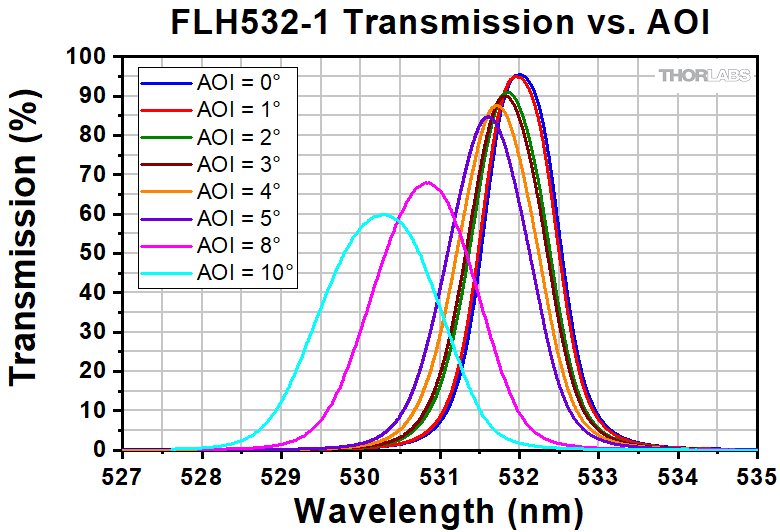

The filter is intended to be used with collimated light normally incident on the surface of the filter. For uncollimated light or light striking the surface and an angle not normally incident to the surface the central wavelength (wavelength corresponding to peak transmission) will shift toward lower wavelengths and the shape of the transmission region (passband) will change. Varying the angle of incidence by a small amount can be used to effectively tune the passband over a narrow range. Large changes in the incident angle will cause larger shifts in the central wavelength but will also significantly distort the shape of the passband and, more importantly, cause a significant decrease in the transmittance of the passband.

Filter Temperature

The central wavelength of the bandpass filter can be tuned slightly (~1 nm over the operating range of the filter) by changing the temperature of the filter. This is primarily due to the slight thermal expansion or contraction of the layers.


Posted Comments:
tebeech  (posted 2014-03-05 04:53:36.227)
Despite the fact that a filter wheel is displayed as a "related item" along the sidebar, the mounted bandpass filters are too thick to be mounted in such a device. Specifically, we purchased the visible bandpass filter kit FKB-VIS-10 and attempted to mount the filters in a FW1A. The thickness of the filters exceeds the thickness of the filter wheel mount and as such there is no way of affixing the filters in place. It is remarkable to me that a thorlabs filter cannot be mounted in a thorlabs filter wheel. Such basic must have been tested and as yet I am forced to purchase additional items to achieve basic functionality.
jlow  (posted 2014-03-05 10:48:15.0)
Response from Jeremy at Thorlabs: I apologize for this mistake on our website. We have removed the thin filter wheels from the related items. To mount the filters to FW1A, you would need to get SM1L05. I will contact you directly about this.

Visible Bandpass Filter Kit, 10 nm FWHM

Item # Central
Wavelength
FWHM Transmission
Dataa
FB350-10 350 ± 2 nm 10 ± 2 nm More Info Icon
FB400-10 400 ± 2 nm 10 ± 2 nm More Info Icon
FB450-10 450 ± 2 nm 10 ± 2 nm More Info Icon
FB500-10 500 ± 2 nm 10 ± 2 nm More Info Icon
FB550-10 550 ± 2 nm 10± 2 nm More Info Icon
Item # Central
Wavelength
FWHM Transmission
Dataa
FB600-10 600 ± 2 nm 10 ± 2 nm More Info Icon
FB650-10 650 ± 2 nm 10 ± 2 nm More Info Icon
FB700-10 700 ± 2 nm 10 ± 2 nm More Info Icon
FB750-10 750 ± 2 nm 10 ± 2 nm More Info Icon
FB800-10 800 ± 2 nm 10 ± 2 nm More Info Icon
  • Please keep in mind that the data given is typical, and performance may vary from lot to lot, particularly outside of the specified region for each filter.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
FKB-VIS-10 Support Documentation
FKB-VIS-10Visible Bandpass Filter Kit (10 nm FWHM), Mounted, Set of 10
$970.02
Today

Visible Bandpass Filter Kit, 40 nm FWHM

Item # Central
Wavelength
FWHM Transmission
Dataa
FB400-40 400 ± 8 nm 40 ± 8 nm More Info Icon
FB450-40 450 ± 8 nm 40 ± 8 nm More Info Icon
FB500-40 500 ± 8 nm 40 ± 8 nm More Info Icon
FB550-40 550 ± 8 nm 40 ± 8 nm More Info Icon
FB600-40 600 ± 8 nm 40 ± 8 nm More Info Icon
Item # Central
Wavelength
FWHM Transmission
Dataa
FB650-40 650 ± 8 nm 40 ± 8 nm More Info Icon
FB700-40 700 ± 8 nm 40 ± 8 nm More Info Icon
FB750-40 750 ± 8 nm 40 ± 8 nm More Info Icon
FB800-40 800 ± 8 nm 40 ± 8 nm More Info Icon
FB850-40 850 ± 8 nm 40 ± 8 nm More Info Icon
  • Please keep in mind that the data given is typical, and performance may vary from lot to lot, particularly outside of the specified region for each filter.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
FKB-VIS-40 Support Documentation
FKB-VIS-40Visible Bandpass Filter Kit (40 nm FWHM), Mounted, Set of 10
$1,002.66
Today

IR Bandpass Filter Kit

Item # Central
Wavelength
FWHM Transmission
Dataa
FB850-10 850 ± 2 nm 10 ± 2 nm More Info Icon
FB900-10 900 ± 2 nm 10 ± 2 nm More Info Icon
FB1000-10 1000 ± 2 nm 10 ± 2 nm More Info Icon
FB1100-10 1100 ± 2 nm 10 ± 2 nm More Info Icon
FB1200-10 1200 ± 2 nm 10 ± 2 nm More Info Icon
Item # Central
Wavelength
FWHM Transmission
Dataa
FB1300-12 1300 ± 2.4 nm 12 ± 2.4 nm More Info Icon
FB1400-12 1400 ± 2.4 nm 12 ± 2.4 nm More Info Icon
FB1500-12 1500 ± 2.4 nm 12 ± 2.4 nm More Info Icon
FB1550-12 1550 ± 2.4 nm 12 ± 2.4 nm More Info Icon
FB1600-12 1600 ± 2.4 nm 12 ± 2.4 nm More Info Icon
  • Please keep in mind that the data given is typical, and performance may vary from lot to lot, particularly outside of the specified region for each filter.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
FKB-IR-10 Support Documentation
FKB-IR-10IR Bandpass Filter Kit (10 nm FWHM), Mounted, Set of 10
$943.50
Today
