SM3-Threaded Irises


  • Lever or Ring Actuated
  • Ø50 mm (Ø1.97") Maximum Aperture
  • SM3 Threading for Lens Tube Compatibility

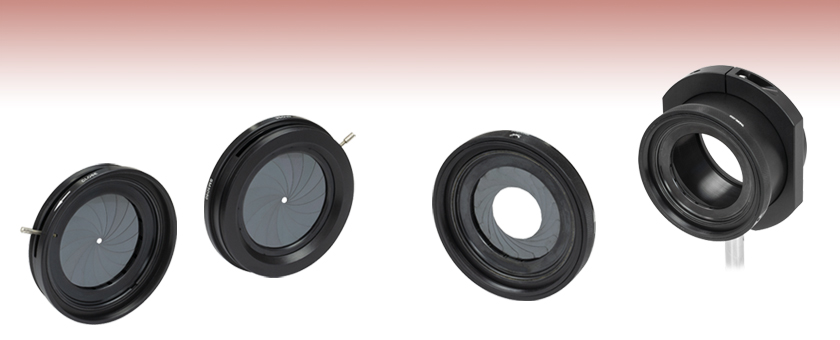

Application Idea

SM3D50D Iris Shown Threaded into
SM3L20 Lens Tube and Mounted in
SM3RC Slip Ring on Ø1/2" Post

SM3D50

Lever-Actuated Iris

SM3D50D

Ring-Actuated Iris

Front
(Internal SM3 Threads)

Back
(External SM3 Threads)

Related Items


Please Wait
SM3D50D Diagram
Click to Enlarge

SM3D50D Mechanical Diagram
SM3D50 Diagram
Click to Enlarge

SM3D50 Mechanical Diagram
SM-Threaded Irises
SM05
SM1
SM2
SM3

Features

  • Lever or Ring Aperture Control
  • SM3 (3.035"-40) Internally and Externally Threaded
  • Minimum Aperture: Ø2 mm (Ø0.08")
  • Maximum Aperture: Ø50 mm (Ø1.97")

Our SM3 (3.035"-40) threaded irises are compatible with our Ø3" lens tubes and other SM3-threaded components. Each iris has internal SM threading on one side and external SM threading on the other side. The individual black spring steel leaves pivot within the outer ring of the iris and are designed for long-lasting performance over several thousand cycles.

The SM3D50D ring-actuated iris is designed for integration into confined setups, where the movement of a lever-actuated iris might be obstructed by other components. This iris also features a locking setscrew with a 0.05" (1.3 mm) hex for locking the ring during installation or removal.

Thorlabs' Threading Specifications

Thorlabs' lens tubes utilize a series of non-standard threadings. Threading specifications are given below for our SM threadings utilized in our lens tube and cage system components so that you can machine mating components to suit your application. We also offer products with C-Mount and RMS threadings, and the specifications for these threadings are also given below. Please note that other manufacturers may have different tolerances for these threads. For other thread specifications that are not listed here, please contact Tech Support.

SM05 Threading: Ø1/2" Lens Tubes, 16 mm Cage Systems
External Thread, 0.535"-40.0, UNS-2A Internal Thread, 0.535"-40.0, UNS-2B
Max Major Diameter 0.5340" Min Major Diameter 0.5350"
Min Major Diameter 0.5289" Min Pitch Diameter 0.5188"
Max Pitch Diameter 0.5178" Max Pitch Diameter 0.5230"
Min Pitch Diameter 0.5146" Min Minor Diameter (and 83.3% of thread) 0.508"
Max Minor Diameter 0.5069" Max Minor Diameter (and 64.9% of thread) 0.514"
RMS Threading: Objective, Scan, and Tube Lenses
External Thread, 0.800"-36.0, UNS-2A Internal Thread, 0.800"-36.0, UNS-2B
Max Major Diameter 0.7989" Min Major Diameter 0.8000"
Min Major Diameter 0.7934" Min Pitch Diameter 0.7820"
Max Pitch Diameter 0.7809" Max Pitch Diameter 0.7866"
Min Pitch Diameter 0.7774" Min Minor Diameter (and 83.3% of thread) 0.770"
Max Minor Diameter 0.7688" Max Minor Diameter (and 64.9% of thread) 0.777"
C-Mount Threading: Machine Vision LensesCCD/CMOS Cameras
External Thread, 1.000"-32.0, UN-2A Internal Thread, 1.000"-32.0, UN-2B
Max Major Diameter 0.9989" Min Major Diameter 1.0000"
Min Major Diameter 0.9929" Min Pitch Diameter 0.9797"
Max Pitch Diameter 0.9786" Max Pitch Diameter 0.9846"
Min Pitch Diameter 0.9748" Min Minor Diameter (and 83.3% of thread) 0.966"
Max Minor Diameter 0.9651" Max Minor Diameter (and 64.9% of thread) 0.974"
SM1 Threading: Ø1" Lens Tubes, 30 mm Cage Systems
External Thread, 1.035"-40.0, UNS-2A Internal Thread, 1.035"-40.0, UNS-2B
Max Major Diameter 1.0339" Min Major Diameter 1.0350"
Min Major Diameter 1.0288" Min Pitch Diameter 1.0188"
Max Pitch Diameter 1.0177" Max Pitch Diameter 1.0234"
Min Pitch Diameter 1.0142" Min Minor Diameter (and 83.3% of thread) 1.008"
Max Minor Diameter 1.0068" Max Minor Diameter (and 64.9% of thread) 1.014"
SM30 Threading: Ø30 mm Lens Tubes
External Thread, M30.5x0.5 Internal Thread, M30.5x0.5
Max Major Diameter 30.480 mm Min Major Diameter 30.500 mm
Min Major Diameter 30.371 mm Min Pitch Diameter 30.175 mm
Max Pitch Diameter 30.155 mm Max Pitch Diameter 30.302 mm
Min Pitch Diameter 30.059 mm Min Minor Diameter (and 83.3% of thread) 29.959 mm
Max Minor Diameter 29.938 mm Max Minor Diameter (and 64.9% of thread) 30.094 mm
SM1.5 Threading: Ø1.5" Lens Tubes
External Thread, 1.535"-40, UNS-2A Internal Thread, 1.535"-40, UNS-2B
Max Major Diameter 1.5339" Min Major Diameter 1.535"
Min Major Diameter 1.5288" Min Pitch Diameter 1.5188"
Max Pitch Diameter 1.5177" Max Pitch Diameter 1.5236"
Min Pitch Diameter 1.5140" Min Minor Diameter (and 83.3% of thread) 1.508"
Max Minor Diameter 1.5068" Max Minor Diameter (and 64.9% of thread) 1.514"
SM2 Threading: Ø2" Lens Tubes, 60 mm Cage Systems
External Thread, 2.035"-40.0, UNS-2A Internal Thread, 2.035"-40.0, UNS-2B
Max Major Diameter 2.0338" Min Major Diameter 2.0350"
Min Major Diameter 2.0287" Min Pitch Diameter 2.0188"
Max Pitch Diameter 2.0176" Max Pitch Diameter 2.0239"
Min Pitch Diameter 2.0137" Min Minor Diameter (and 83.3% of thread) 2.008"
Max Minor Diameter 2.0067" Max Minor Diameter (and 64.9% of thread) 2.014"
SM3 Threading: Ø3" Lens Tubes
External Thread, 3.035"-40.0, UNS-2A Internal Thread, 3.035"-40.0, UNS-2B
Max Major Diameter 3.0337" Min Major Diameter 3.0350"
Min Major Diameter 3.0286" Min Pitch Diameter 3.0188"
Max Pitch Diameter 3.0175" Max Pitch Diameter 3.0242"
Min Pitch Diameter 3.0133" Min Minor Diameter (and 83.3% of thread) 3.008"
Max Minor Diameter 3.0066" Max Minor Diameter (and 64.9% of thread) 3.014"

Posted Comments:
yuqin.zong  (posted 2016-06-17 16:49:57.31)
Hi Design team, Can you make a 3" ring-activated iris version of SM3D50? It is much better than lever activated iris SM3D50 because a lever activated iris is not light-tight when it is used to construct a tube system. Thank you Yuqin Zong NIST (301) 975-2332
shallwig  (posted 2016-06-20 11:22:51.0)
This is a response from Stefan at Thorlabs. Thank you very much for your inquiry. I will contact you directly to check if we can offer a special here.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM3D50 Support Documentation
SM3D50SM3 Lever-Actuated Iris Diaphragm (Ø2 - Ø50 mm)
$194.78
Today
SM3D50D Support Documentation
SM3D50DSM3 Ring-Actuated Iris Diaphragm (Ø2 - Ø50 mm)
$130.00
