Thermal Imaging Lenses


  • Lenses for Thermal Imaging Cameras
  • Focus Infrared Light without Introducing Spherical Aberration
  • Horizontal Field of View (FOV) Options from 18° to 56°

TIL4

4.0 mm Focal Length

TIL8

7.7 mm Focal Length

TIL15

15 mm Focal Length

TIL20

20 mm Focal Length

TIL24

24 mm Focal Length

Related Items


Please Wait
Common Specifications
Lens Substrate Black Diamond-6a
AR Coating Range 8 - 12 µm
Reflectance over Coating Range (Avg.)b <0.75% at 0° AOI

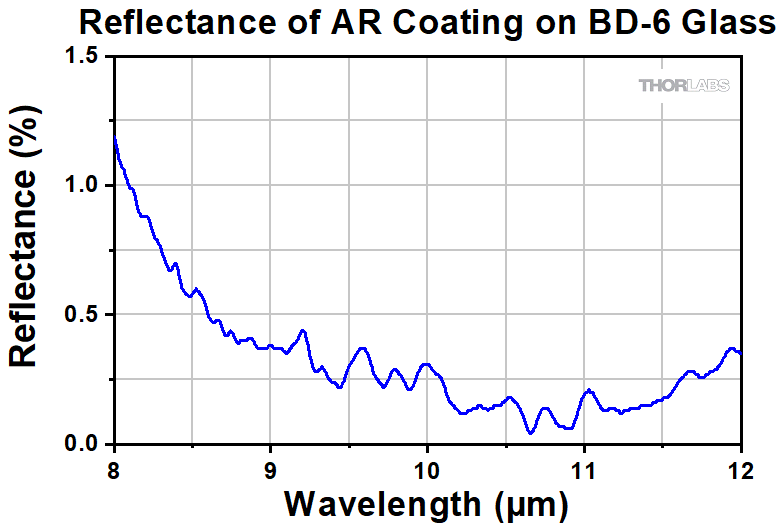

AR Coating Reflectance
(Click Icon for Plot)
icon
Transmission
(Click Icon for Plot)
icon
Substrate Properties
Refractive Index 2.7867 at 8 µmc
Coefficient of
Thermal Expansion
22.5 x 10-6 / °C
Thermooptic Coefficient (Δn / ΔT) 30.5 x 10-6 / °C
  • Click link for detailed specifications on the substrate.
  • Per Surface.
  • See the Refractive Index tab for the wavelength-dependent refractive index.
Zemax Files
Click on the red Document icon next to the item numbers below to access the Zemax file download. Our entire Zemax Catalog is also available.
Webpage Features
info icon Clicking this info icon below will open a window that contains specifications, a reference drawing, and horizontal field of views for various detector sizes.

Features

  • Focus Infrared Light without Introducing Spherical Aberration
  • 8 - 12 µm AR Coating for Long-Wave Infrared (LWIR) Applications
  • Black Diamond Substrate Provides Stable Operation Up to 110 °C
  • Horizontal Field of View (FOV) Options from 18° to 56°
  • Focal Lengths of 4.0 to 24 mm Available
  • Mounted in Threaded, Engraved Black Anodized Aluminum Housings
  • Internally Sealed to IP67 Standard
  • Threaded Adapters Available to Adapt to C-Mount or SM1 Threads

Thorlabs offers Thermal Imaging Lenses that are ideal for focusing long-wave infrared (LWIR) sources onto detectors or image sensors. The lenses, manufactured by LightPath Technologies, are mounted in threaded, black anodized aluminum housings engraved with the focal length and f/# (see Table G1.1 for details). Designed using Black Diamond-6 glass, their aspheric geometry allows them to focus light without introducing spherical aberration. The TIL4 and TIL8 lenses feature singlet designs, while the TIL15, TIL20, and TIL24 are doublets.

M19 x 0.5-threaded (Item #s CMA1 and SM1A72) and M25 x 0.5-threaded (Item #s CMA2 and SM1A73) adapters are available to mount the TIL8, TIL15, TIL20, and TIL24 lenses. The CMA1 and CMA2 adapters provide compatibility with C-mount threads, while the SM1A72 and SM1A73 adapters provide compatibility with SM1 threads.

Black Diamond
Black Diamond-6 (BD-6), a chalcogenide made of an amorphous mixture of arsenic (40%) and selenium (60%), has several advantages over germanium, which is traditionally used to fabricate IR optics. BD-6's thermally stable refractive index (see the Refractive Index tab) and low coefficient of thermal expansion (22.5 x 10-6 / °C) result in a smaller change in focal length as a function of temperature than for germanium. Additionally, germanium suffers from transmission loss as temperature increases, while BD-6 aspheric lenses can be used in environments up to 110 °C. This material performs particularly well over the 2 - 12 µm spectral range (click here for the transmission of an uncoated 1 mm thick sample).

Refractive Index of Black Diamond-2
Click to Enlarge

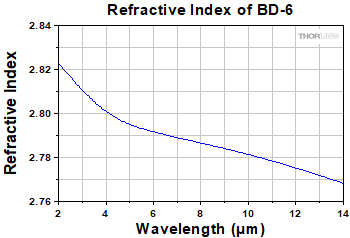

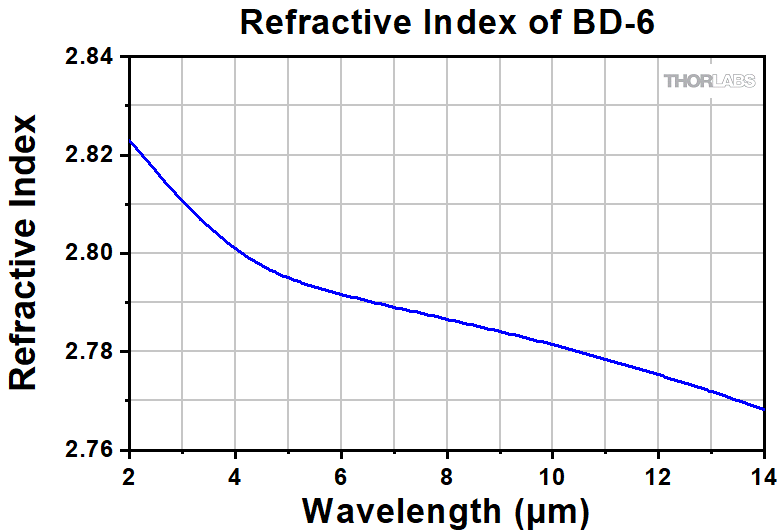

Figure 2.1  The Refractive Index (n) of
the Black Diamond-6 (BD-6) Substrate

Table 2.2
Herzberger Coefficient
Values for BD-6
Herzberger
Coefficient
Value
A 2.787
B 1.194 x 10-1
C 1.760 x 10-2
D -1.161 x 10-4
E -3.870 x 10-8
F -6.037 x 10-11

The refractive index, n, of Black Diamond-6 (BD-6) as a function of wavelength, shown in Figure 2.1, was calculated using the Herzberger Equation, an infrared-specific analog of the Sellmeier Equation. The Herzberger coefficients for BD-6 are given in Table 2.2.

Herzberger Equation (for λ in µm)

Herzberger Equation

Posted Comments:
Michael Mentink  (posted 2024-11-20 09:47:31.637)
How do you mount the TIL8 to a 30mm cage system?
EGies  (posted 2024-11-21 01:37:49.0)
Thank you for contacting Thorlabs. While we do not currently offer adapters for the M19 x 0.5 threading on the TIL8, I have added this request to our internal engineering forum for future consideration. I have also reached out to you directly to discuss your specific application.
YURII SLINCHENKO  (posted 2023-06-17 01:28:56.24)
Hello, im student of Kyiv Polytechnic Institute.I am writing a thesis and I want to use your lens in my work. can you provide detailed drawing?
cdolbashian  (posted 2023-06-23 02:02:04.0)
Thank you for reaching out to us with this inquiry. I have contacted you directly to discuss the specific dimensions that you would be interested in.
user  (posted 2023-01-25 17:22:55.35)
You might want to link to a MSDS sheet for these items or the substrate data. Amorphous 40% arsenic and 60% selenium is arsenic selenide glass (As_2Se_3). Arsenic selenide probably has the highest potential toxicity of any substrate you sell. It is a 4 on the health part of the MSDS diamond. While nominally inert, if exposed to acids it will release hydrogen selenide, a very toxic gas. It is fairly brittle and leaves many small pieces when it breaks. Ingestion or inhalation of dust can be lethal. Takes a few grams.
ksosnowski  (posted 2023-01-26 11:57:58.0)
Thanks for reaching out to Thorlabs. These materials can be quite harmful if handled improperly. We do provide the MSDS for each of these thermal imaging lenses which you can access under the red document icon next to each product listing.
user  (posted 2022-03-18 09:58:27.483)
Hi These lenses have threads of 0.5mm pitch. Do you have any adapters for your mounts?
jdelia  (posted 2022-03-18 03:56:05.0)
Thank you for contacting Thorlabs. While we do not currently offer adapters for the M25 x 0.5 threads of the TIL24, or our M19 x 0.5 threaded lenses. I can certainly pass along your feedback to our internal suggestion forum. We do have the S1TM10 adapter to adapt the M10 x 0.5 threads of the TIL4 to our SM1 components. I have also contacted you directly to discuss your application.

Thermal Imaging Lenses

Table G1.1  General Specifications
Item # Info EFLa WDb HFOVc VFOVc Ideal Detector Formatd Surface Quality Aperture Height f/#e Design Thread
TIL4 info 4.0 mm 5.33 mm 56° 42° 320 x 240 / 12 µm 80-60 Scratch-Dig Ø3.33 mm 6.50 mm 1.2 Singlet M10 x 0.5 - 6g
TIL8 info 7.7 mm 10.06 mm 41° 31° 320 x 240 / 17 µm 100-60 Scratch-Dig Ø5.80 mm 11.50 mm 1.3 Singlet M19 x 0.5 - 6g
TIL15 info 15 mm 10.07 mm 25° 18° 640 x 480 / 10 µm 80-50 Scratch-Dig Ø12.46 mm 17.00 mm 1.2 Doublet M19 x 0.5 - 6g
TIL20 info 20 mm 7.96 mm 18° 14° 640 x 480 / 10 µm 80-50 Scratch-Dig Ø16.60 mm 21.42 mm 1.2 Doublet M19 x 0.5 - 6g
TIL24 info 24 mm 10.00 mm 26° 19° 640 x 480 / 17 µm 100-60 Scratch-Dig Ø19.90 mm 26.50 mm 1.2 Doublet M25 x 0.5 - 6g
  • EFL is magnification-based.
  • Assumes 0.76 mm Si Window, Nominal Focus at Infinity
  • Given for Ideal Detector Format
  • Given in Resolution (H x V) / Pixel Size
  • Obtained by dividing the effective focal length of the lens by its aperture.

EFL = Effective Focal Length
WD = Working Distance

HFOV = Horizontal Field of View
VFOV = Vertical Field of View

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
TIL4 Support Documentation
TIL4Lightpath Thermal Imaging Lens Assembly, 4.0 mm Focal Length, f/1.2, M10 x 0.5
$105.72
Today
TIL8 Support Documentation
TIL8Lightpath Thermal Imaging Lens Assembly, 7.7 mm Focal Length, f/1.3, M19 x 0.5
$193.82
Today
TIL15 Support Documentation
TIL15Lightpath Thermal Imaging Lens Assembly, 15 mm Focal Length, f/1.2, M19 x 0.5
$323.02
Today
TIL20 Support Documentation
TIL20Lightpath Thermal Imaging Lens Assembly, 20 mm Focal Length, f/1.2, M19 x 0.5
$328.90
Today
TIL24 Support Documentation
TIL24Lightpath Thermal Imaging Lens Assembly, 24 mm Focal Length, f/1.2, M25 x 0.5
$446.36
Today

Threaded Adapters

Thorlabs' Threaded Adapters enable compatibility between parts with different industry-standard threads. The CMA1 and CMA2 adapters offer compatibility with C-Mount (1.00"-32) threads for M19 x 0.5- and M25 x 0.5-threaded parts, respectively, while the SM1A72 and SM1A73 adapters offer compatibility with SM1 (1.035"-40) threads for M19 x 0.5- and M25 x 0.5-threaded parts, respectively.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CMA1 Support Documentation
CMA1NEW!Adapter with External C-Mount Threads and Internal M19 x 0.5 Threads
$38.52
Today
CMA2 Support Documentation
CMA2NEW!Adapter with External C-Mount Threads and Internal M25 x 0.5 Threads
$38.52
Today
SM1A72 Support Documentation
SM1A72NEW!Customer Inspired! Adapter with External SM1 Threads and Internal M19 x 0.5 Threads
$38.52
Today
SM1A73 Support Documentation
SM1A73NEW!Adapter with External SM1 Threads and Internal M25 x 0.5 Threads
$38.52
