Manual Micrometer Heads, 1/2" (13 mm) Travel


  • 1/2" (13 mm) Travel Range
  • 0.001" (10 µm) of Travel per Division
  • Spherical Tip
  • Available With or Without a 5/64" (2 mm) Hex on the End

148-811ST-H

5/64" Hex

Application Idea

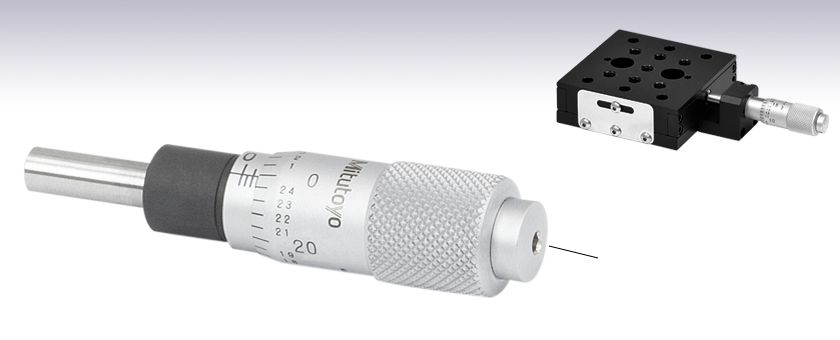

The MT1 Translation Stage
Utilizes the 148-811ST

Related Items


Please Wait
Item Number148-811ST148-811ST-H148-801ST148-801ST-H
Travel Range0.500"13.00 mm
Graduation0.001" per Division10 µm per Division
Distance per Rev0.025"0.5 mm
HexN/A5/64"N/A2 mm
Load Capacity2 kg (Max)
Scale SurfaceHard-Chrome Plating

Features

  • Chrome-Plated Polished Spindle Improves Accuracy
  • Knurled Adjustment Knob for Grip
  • Standard Ø3/8" (9.5 mm) Mounting Barrel
  • Engraved Graduations for Accurate Alignment
  • Versions with 5/64" (2 mm) Hex Available

The 148-811ST and 148-811ST-H micrometers provide a travel range of 0.500" and feature engraved graduations every 0.001", while the 148-801ST and 148-801ST-H micrometers provide a travel range of 13.00 mm with 10 µm spacing between graduations. Item numbers ending in -H incorporate a 5/64" (2 mm) hex, allowing them to be actuated in space-constrained environments.

The spherical spindle tip provides a single point of contact, which minimizes positioning alignment errors. Thorlabs can integrate these micrometers into many of our standard products; please contact Tech Support for details.

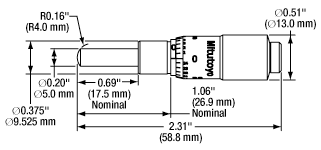

0.5 inch Micrometer Drawing
Click to Enlarge

148-811ST(-H)
13 mm Micrometer Drawing
Click to Enlarge

148-801ST(-H)

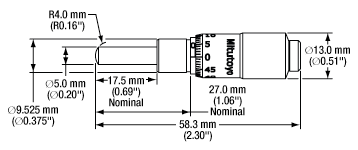

13 mm Micrometer Drawing
Click to Enlarge

Hex on Micrometers with Item Numbers Ending in -H
