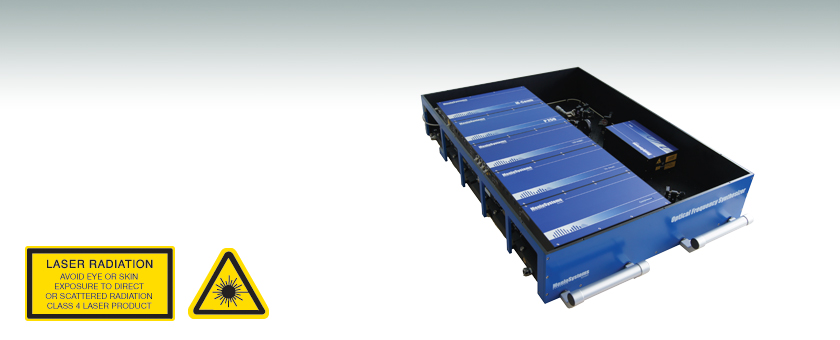

Optical Frequency Comb, Mid-IR


  • Fully Automated Turnkey Metrology System
  • Easy Access to Molecular Fingerprint Region (3 - 13 µm)
  • Repetition Rate: 100 MHz or 250 MHz

MID-IR-COMB



Related Items


Please Wait
Simon Kocur
Simon Kocur
Menlo Systems
Feedback?
Questions?
Need a Quote?


Please note that the MID-IR-COMB is available directly from Menlo Systems, Inc. within the United States and from Menlo Systems GmbH outside the United States.
United States
Phone: +1-973-300-4490
Email: ussales@menlosystems.com
Outside United States
Phone: +49-89-189166-0
Email: sales@menlosystems.com

Applications

  • Fourier-Transform Spectroscopy in Mid-IR Range
  • Calibration of Lasers
  • High-Resolution Spectroscopy
  • Trace Gas Detection, Atmospheric Chemistry
  • Chemical and Biomolecular Sensing

Optional Package

EOM-Phase Electro-Optic Phase Modulator
Integrated into the laser cavity. Allows high-performance phase locking to an optical reference using a high bandwidth repetition rate actuator. With this EOM option, sub-Hz linewidths can be achieved.

Features

  • High Output Power up to 120 mW at 3 µm
  • Spectral Bandwidth >100 nm
  • Carrier-Envelope Offset Free Frequency Comb
  • Femtosecond Laser Pulses in the Mid-IR Range
  • Repetition Rate Can Be Phase Locked to RF or Optical Reference
  • Click Here to View Menlo Systems' Frequency Comb Brochure

Frequency comb technology makes direct measurement of absolute optical frequencies possible. Menlo Systems' Optical Frequency Comb technology is now extended into the mid-IR spectral region. Taking advantage of Menlo Systems’ proprietary figure 9® technology for the oscillator, the MID-IR-COMB is a robust and reliable optical synthesizer. The mode frequencies are completely defined by its repetition rate, as the carrier-envelope offset frequency vanishes in a difference-frequency generation process. The turnkey MIR comb enables high-accuracy spectroscopy in important molecular fingerprint regions. Configurations for different wavelength ranges are available, including 3.0 - 3.4 µm, 3.8 - 4.8 µm, 4.8 - 8 µm, and 8 - 13 µm. Further output information is available on request.

Performance Specifications
Comb Spacing 100 or 250 MHz
Accuracy 10-14 in 120 sa
Stability 5 x 10-13 in 1 sa
Laser Output Free Space
Central Wavelength 3.2 µm or 7 µm
Spectral Range >200 nm
Average Output Power Up to 120 mW
  • Or same as reference, whichever applies first
Environmental Specifications
Input Requirements 10 MHz Frequency Reference,
Power Level +7 dBm
Operating Voltage 100/115/230 VAC
Frequency 50 to 60 Hz
Operating Temperature 22 ± 5 °C
Optical Unit Dimensions / Weight 706 mm x 976 mm x 175 mm / 105 kg
(27.8" x 38.4" x 6.9" / 231 lbs)
Control Electronics Dimensions / Weight 448 mm x 437 mm x 484 mm / 50 kg
(17.6" x 17.2" x 19.1" / 110 lbs)

Laser Safety and Classification
