FiberPort Mounts


  • HCP for Post Mounting FiberPorts
  • HCL and HCL2 Attach FiberPorts to HeNe Lasers
  • CP08FP(/M) Centers Any FiberPort in a 30 mm Cage System

CP08FP

HCL

HCL2

HCP

CP08FP

Application Idea

Related Items


Please Wait

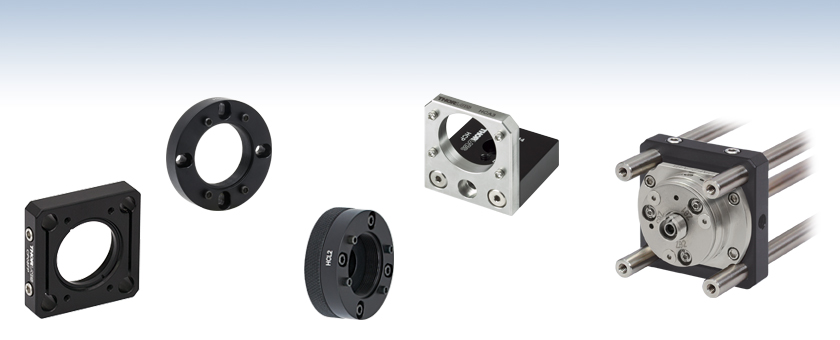

Thorlabs offers adapters to mount our FiberPorts on Ø1/2" posts, within 30 mm cage systems, or directly to HeNe Lasers. Here you will find the HCP Post Mounting Adapter, the HCL and HCL2 HeNe to FiberPort Adapters, and the CP08FP 30 mm Cage System Adapter. For more FiberPort accessories, explore our FiberBenches.
