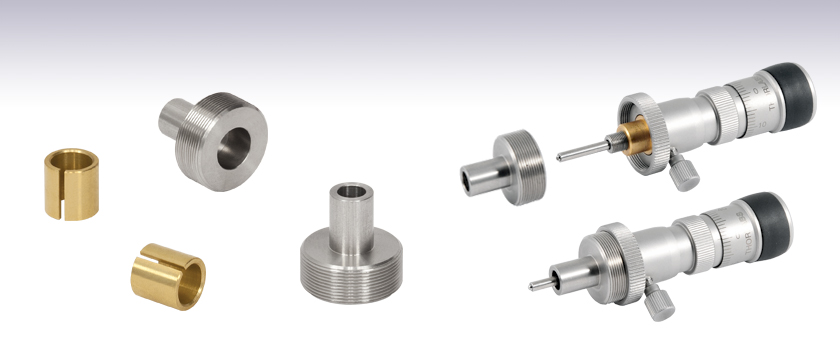

Manual Drives, Adapters


  • Adapt Standard Micrometer to Ø0.5" Mounting Barrels
  • Adapt Modular Drives to Standard Ø3/8", Ø9.5 mm, and Ø10 mm Mounting Barrels
  • Installs in Seconds

Assembly of DRV3
with MCA1

MCA1

RBA1

Related Items


Please Wait

Click to Enlarge

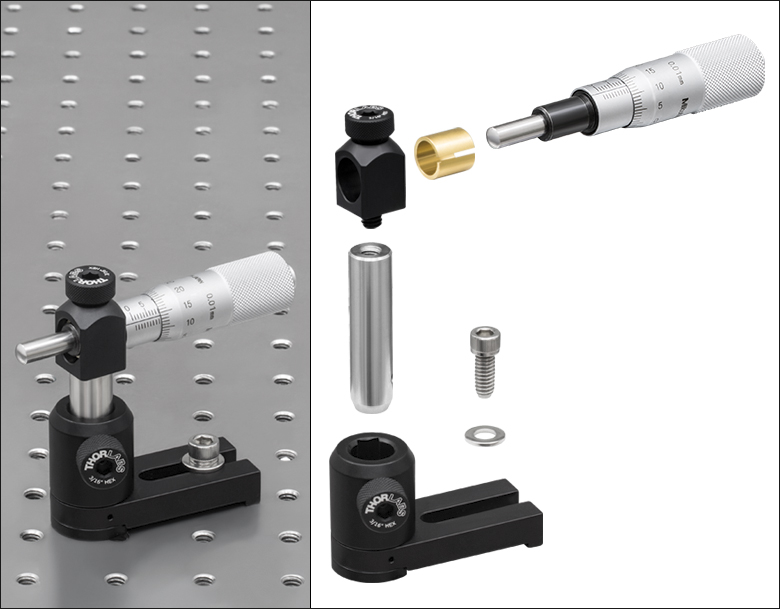

Micrometer Head Mounted in
Right-Angle Post Clamp using
Mounting Barrel Adapter

Modular Quick Connect Adapters allow modular actuators to be fitted to stages with standard mounting clamps as shown above. See the Solutions tab for an overview of how the modular connections system works.

Barrel adapters allow actuators with Ø3/8", Ø9.5 mm, and Ø10 mm mounting barrels to be fitted to stages designed to accept Ø1/2" barrels. These are ideal when fitting actuators such as the DC servo motor actuators to the LNR Series Stages. They may also be used to adapt micrometer heads for use with Ø1/2" optical post accessories, as shown in the photo to the right.

Actuators Compatible with Modular Quick-Connect Adapter
Item # Description
DRV004 Thumbscrew
DRV3 Differential Micrometer
DRV208 Stepper Motor Actuator

How the Modular Connections System Works:

  • Connect Multiple Actuators Together for Additive Effects
  • Quick Connect/ Disconnect Makes Assembly Fast and Accurate; No Special Alignment Required
  • Connect Piezo to Piezo Actuator, Differential to Piezo Actuator and Many Other Combinations
  • Ø10 mm Mounting Barrel Compatible with Conventional Fastening Techniques

How the Modular Quick Connect Adapters are Used:

Modular Micrometer Adapter

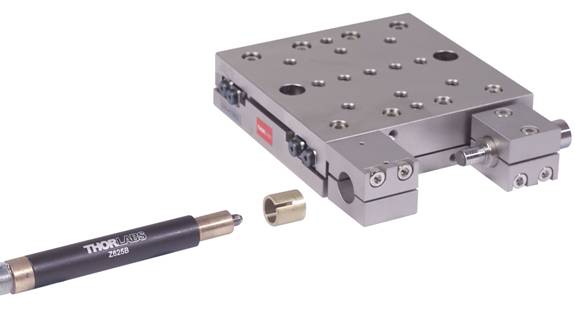

How the Mounting Barrel Adapters are Used:

Micrometer Barrel Adapter
Micrometer Barrel Adapter

Posted Comments:
No Comments Posted
Back to Top

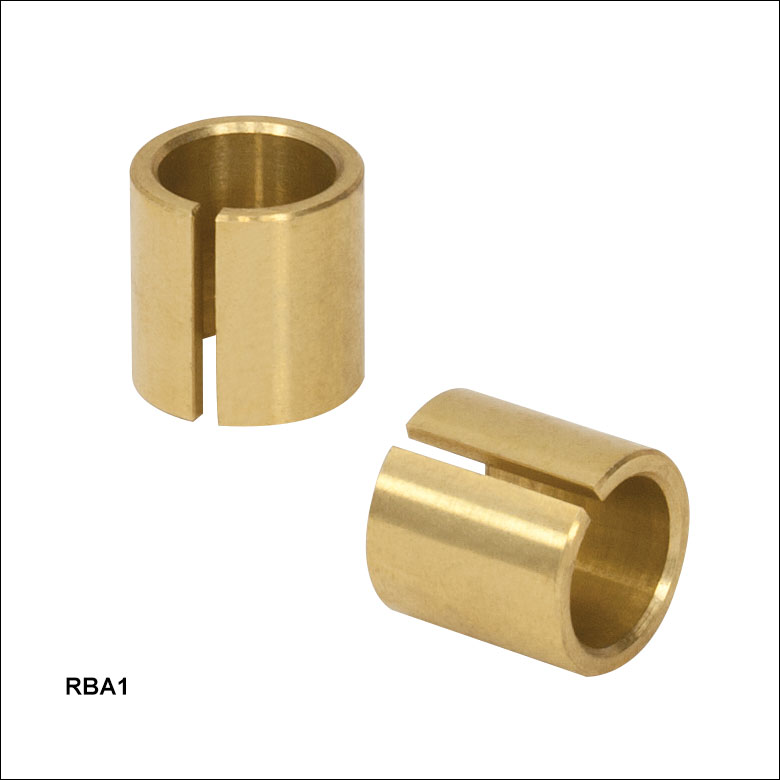

Mounting Barrel Adapters for Manual Drives

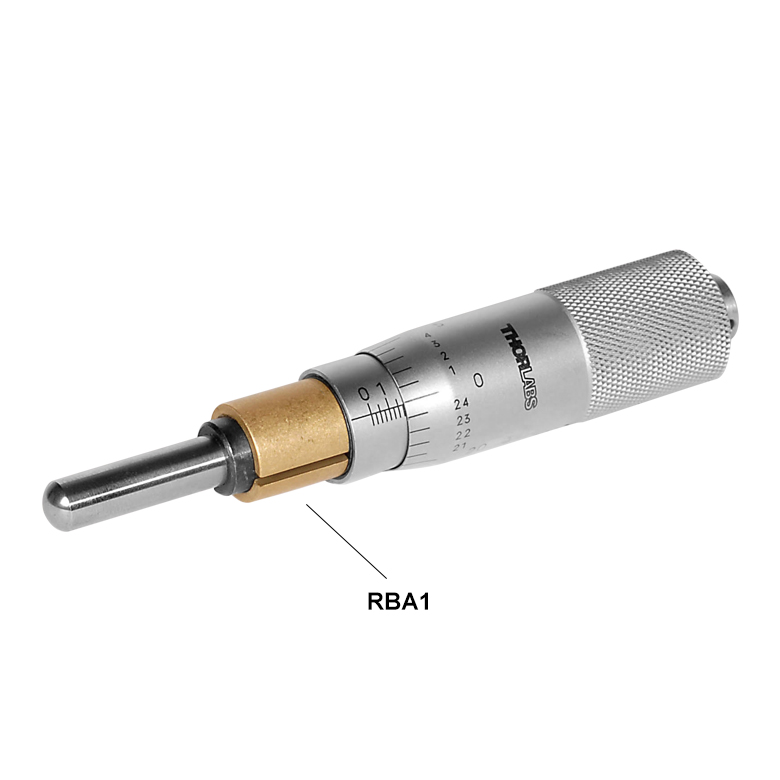

RBA1 on Manual Micrometer
Click to Enlarge
RBA1 Secured to a Manual Micrometer
  • Ideal Solution for Securing Ø3/8" (Ø9.525 mm) and Ø10 mm Mounting Barrels in Ø1/2" Bores
  • Brass Barrel Adapters
  • Slotted Sleeve Design

These slotted brass sleeves are an ideal solution for securing Ø3/8" (Ø9.525 mm) and Ø10 mm mounting barrels into components designed for Ø1/2" barrels. The slotted sleeve allows externally applied clamping force to be transferred to the mounting barrel.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
RBA1 Support Documentation
RBA1Mounting Barrel Adapter, Ø3/8" (Ø9.525 mm) to Ø1/2"
$10.82
Today
RBA2 Support Documentation
RBA2Mounting Barrel Adapter, Ø10 mm to Ø1/2"
$10.82
Today
Back to Top

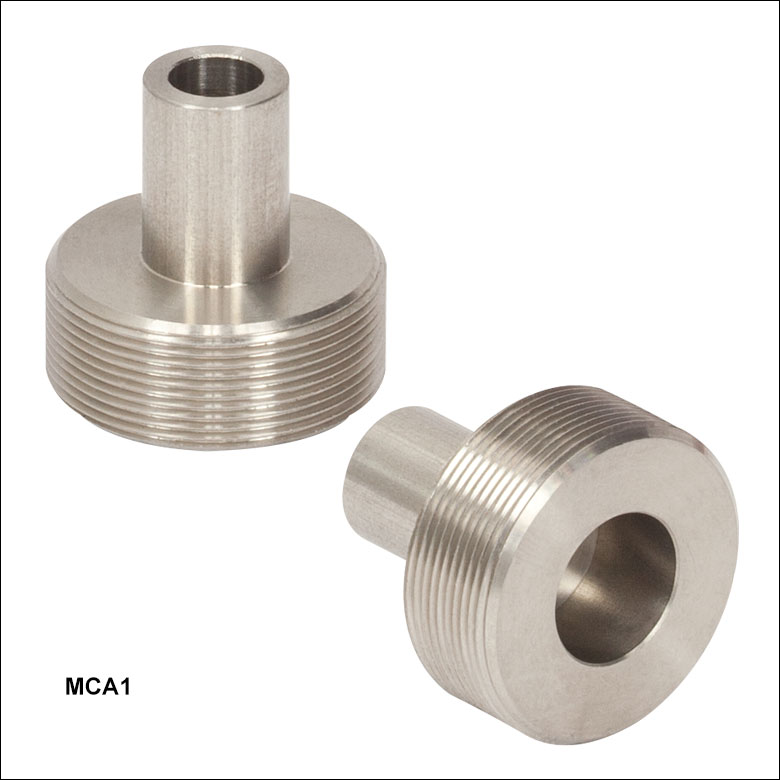

Modular Quick Connect Adapters for Manual Drives

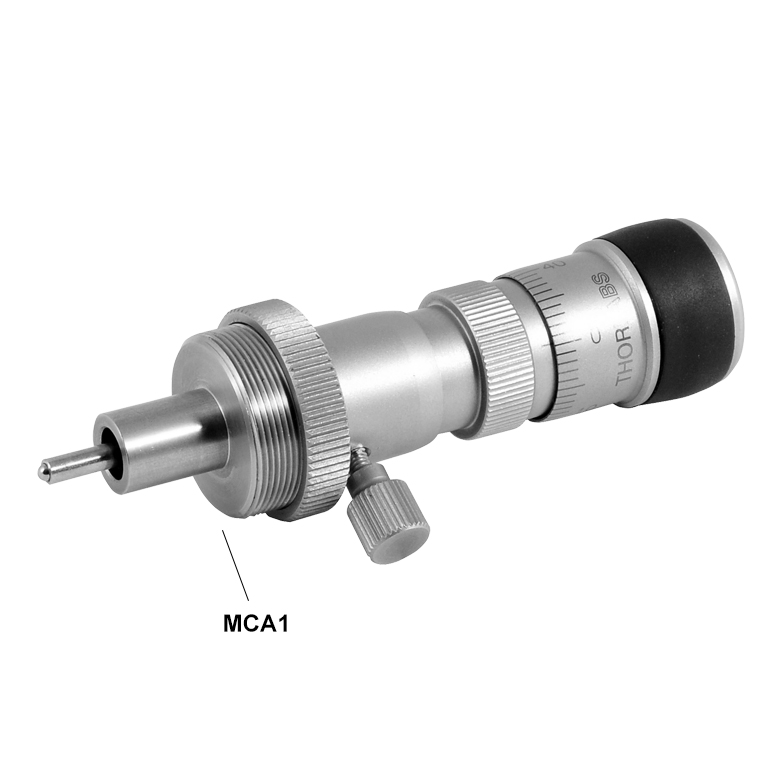

MCA1 on Manual Micrometer
Click to Enlarge
MCA1 Secured on the DRV3 Micrometer Creates a Ø3/8" Mounting Barrel
  • Adapts Modular Actuators to Standard Mounting Holes
  • Ø10 mm Mounting Barrel Compatible with Conventional Fastening Techniques

Modular quick connect adapters allow modular actuators to be fitted to stages with standard mounting clamps as shown above. See the Solutions tab for an overview on how the modular connections system works.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
MCA1 Support Documentation
MCA1Modular Quick-Connect Adapter, Ø9.525 mm (Ø3/8") Mounting
$22.37
Today
MCA2 Support Documentation
MCA2Modular Quick-Connect Adapter, Ø10 mm Mounting
$22.37
