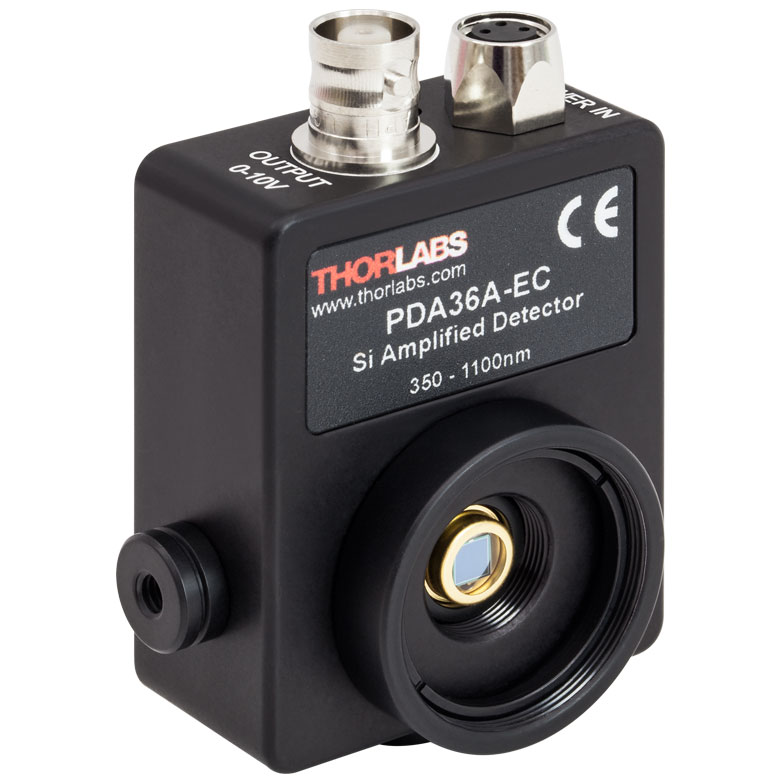

PDA36A-EC - Si Switchable Gain Detector, 350-1100 nm, 10 MHz BW, 13 mm²,
230 VAC

PDA36A-EC - Si Switchable Gain Detector, 350-1100 nm, 10 MHz BW, 13 mm<sup>2</sup>,<br /> 230 VAC

Zoom

PDA36A-EC
Si Switchable Gain Detector, 350-1100 nm, 10 MHz BW, 13 mm²,
230 VAC

Part Number:	PDA36A-EC - Ask a technical question Ask a technical question.
Weight:	2.24 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$299.00
Add To Cart:	Qty :

PDA36A-EC Support Documentation

Manual:
Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

Detetor Types: Si
Wavelength Ranges from 350 to 1100 nm
Low-Noise, Wide Band Amplifiers
Switchable Gain
0 to 10 V Output
Compatible with SM1 and Some SM05 Series Products
Threaded Mount for Ø1" (Ø25 mm) Optics Included
Power Supply Included

The PDA36A-EC Amplified Photodetector is housed in a compact, low profile package and is designed for the detection of light in the UV to NIR spectrum. The module has a thin profile to allow access to light paths with a minimal footprint. All connections and controls are located perpendicular to the light path, providing increased accessibility. Amplification is provided by low noise transimpedance or voltage amplifiers that are capable of driving 50 Ohm loads. Signal output is via a BNC connector.

Specifications

Sensor: Si (UV-NIR)
Active Area: 13 mm² (3.6 × 3.6 mm)
Wavelength Range: 350 – 1100 nm
Peak Response: 0.65 A/W @ 970 nm
Bandwidth DC-10 MHz
NEP Range (W/Hz^1/2): 2.1 × 10 ^-12 - 7.7 × 10 ^-11
Rise Time: 20.6 ns
