*Much like surface flatness for flat optics, spherical surface power is a measure of the deviation between the surface of the curved optic and a calibrated reference gauge, typically for a 633 nm source, unless otherwise stated. This specification is also commonly referred to as surface fit.
Features
Vacuum-Grade Calcium Fluoride Substrate
Ø1/2" and Ø1" Versions Available
Uncoated for 0.18 - 8.0 µm Transmission
Focal Lengths from -40.0 to -1000.0 mm
Thorlabs' Ø1/2" and Ø1" Calcium Fluoride (CaF2) Negative Meniscus Lenses offer high transmission from 180 nm to 8.0 μm. The lenses on this page are offered uncoated, while broadband AR-coated versions for the 3 - 5 μm spectral range are also available.
CaF2 is commonly used for applications requiring high transmission in the infrared and ultraviolet spectral ranges. Its extremely high laser damage threshold makes it useful for use with excimer lasers. The material exhibits a low refractive index, varying from 1.35 to 1.51 within its usage range of 180 nm to 8.0 μm. Calcium fluoride is also fairly chemically inert and offers superior hardness compared to its barium fluoride, magnesium fluoride, and lithium fluoride cousins.
Negative meniscus (convex-concave) lenses, which are thinner in the middle than at the edges and cause light rays to diverge, are designed to minimize third-order spherical aberration. When used to diverge light, the convex surface should face the beam to minimize spherical aberration. They are often used in conjunction with other lenses to increase the focal length, and therefore decrease the numerical aperture (NA), of an optical assembly.
Total Transmission of Optic (CaF2 Substrate, Uncoated)
The table below gives the approximate theoretical transmission of these uncoated optics for a few select wavelengths in the 0.18 - 8.0 μm range. To see an excel file that lists all measured transmission values for this wavelength range, please click here.
Wavelength (μm)
Total Transmission
0.2
0.910
0.4
0.929
0.6
0.935
0.8
0.937
1.0
0.938
1.2
0.938
1.4
0.938
1.6
0.938
1.8
0.939
2.0
0.939
Wavelength (μm)
Total Transmission
2.2
0.939
2.4
0.939
2.6
0.940
2.8
0.940
3.0
0.940
3.2
0.941
3.4
0.941
3.6
0.941
3.8
0.942
4.0
0.942
Wavelength (μm)
Total Transmission
4.2
0.943
4.4
0.943
4.6
0.943
4.8
0.944
5.0
0.945
5.2
0.945
5.4
0.945
5.6
0.946
5.8
0.946
6.0
0.947
Wavelength (μm)
Total Transmission
6.2
0.947
6.4
0.947
6.6
0.948
6.8
0.949
7.0
0.949
7.2
0.948
7.4
0.947
7.6
0.946
7.8
0.945
8.0
0.944

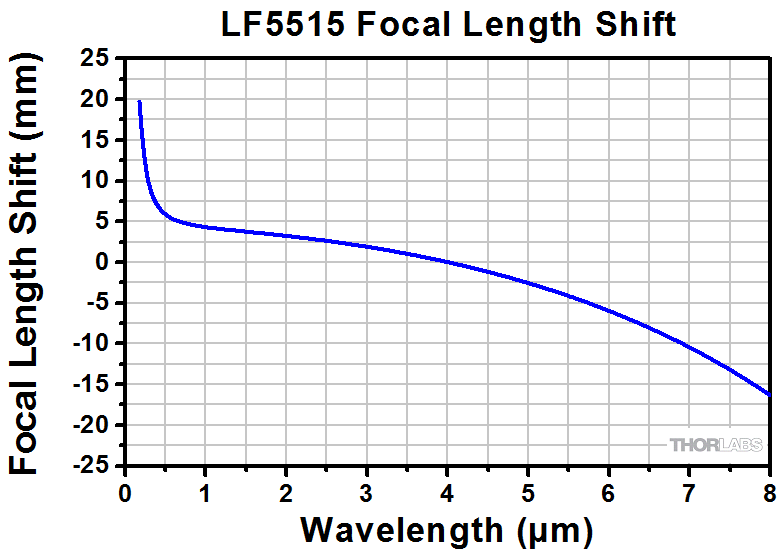

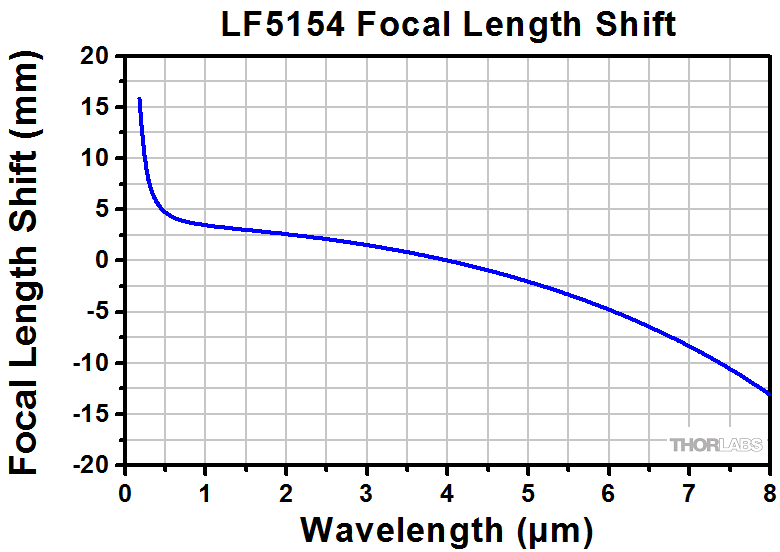

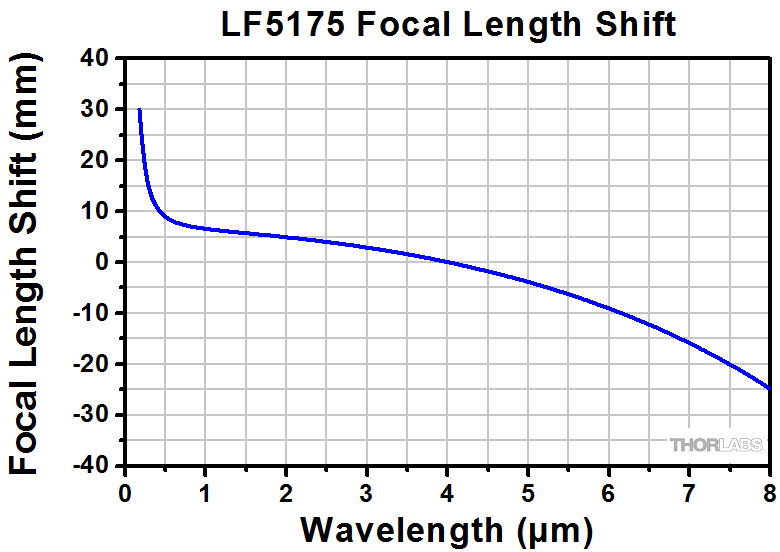

Wavelength-Dependent Focal Length Shift The paraxial focal length of a lens is wavelength dependent. The focal length listed under the Specs tab for a given lens corresponds to the value at the design wavelength (i.e., the focal length at 4 μm). Since CaF2 offers high transmission from 0.18 - 8.0 μm, users may wish to use these lenses at other popular wavelengths. Below is a table that gives the focal length (in millimeters) for each lens at fifteen popular wavelengths within the 0.18 - 8.0 μm range.
The first column lists the fifteen wavelengths for which the focal length was calculated. The first row lists the item numbers. Trace across the row of choice to the column of choice to find the focal length corresponding to that lens and that wavelength. For example, the focal length of an LF5067-E negative meniscus lens when used with 488 nm light is -18.76 mm. Note that the row denoting the focal lengths at the design wavelength is highlighted in orange.
Ø1/2" Negative Meniscus Lenses
LF5067
LF5847-
LF5154
248 nm
-17.52 mm
-44.14 mm
-70.38 mm
405 nm
-18.56 mm
-46.62 mm
-74.44 mm
488 nm
-18.76 mm
-47.07 mm
-75.18 mm
532 nm
-18.82 mm
-47.23 mm
-75.45 mm
588 nm
-18.89 mm
-47.38 mm
-75.70 mm
633 nm
-18.93 mm
-47.48 mm
-75.86 mm
780 nm
-19.02 mm
-47.70 mm
-76.22 mm
850 nm
-19.06 mm
-47.78 mm
-76.34 mm
1064 nm
-19.12 mm
-47.94 mm
-76.61 mm
1310 nm
-19.18 mm
-48.08 mm
-76.84 mm
1550 nm
-19.23 mm
-48.20 mm
-77.04 mm
3000 nm
-19.61 mm
-49.08 mm
-78.49 mm
4000 nm
-20.00 mm
-50.00 mm
-80.00 mm
5000 nm
-20.53 mm
-51.25 mm
-82.06 mm
8000 nm
-23.40 mm
-57.99 mm
-93.15 mm
Ø1" Negative Meniscus Lenses
LF5469
LF5414
LF5895
LF5515
LF5175
248 nm
-35.02 mm
-43.86 mm
-66.15 mm
-88.00 mm
-131.75 mm
405 nm
-37.12 mm
-46.45 mm
-69.89 mm
-93.07 mm
-139.45 mm
488 nm
-37.51 mm
-46.92 mm
-70.57 mm
-94.00 mm
-140.86 mm
532 nm
-37.64 mm
-47.09 mm
-70.81 mm
-94.32 mm
-141.36 mm
588 nm
-37.77 mm
-47.25 mm
-71.04 mm
-94.64 mm
-141.84 mm
633 nm
-37.86 mm
-47.36 mm
-71.19 mm
-94.84 mm
-142.15 mm
780 nm
-38.05 mm
-47.59 mm
-71.53 mm
-95.29 mm
-142.84 mm
850 nm
-38.11 mm
-47.67 mm
-71.64 mm
-95.44 mm
-143.06 mm
1064 nm
-38.25 mm
-47.84 mm
-71.88 mm
-95.78 mm
-143.57 mm
1310 nm
-38.36 mm
-47.98 mm
-72.09 mm
-96.06 mm
-144.00 mm
1550 nm
-38.47 mm
-48.11 mm
-72.27 mm
-96.31 mm
-144.38 mm
3000 nm
-39.22 mm
-49.03 mm
-73.61 mm
-98.11 mm
-147.13 mm
4000 nm
-40.00 mm
-50.00 mm
-75.00 mm
-100.00 mm
-150.00 mm
5000 nm
-41.07 mm
-51.32 mm
-76.90 mm
-102.57 mm
-153.91 mm
8000 nm
-46.82 mm
-58.41 mm
-87.08 mm
-116.39 mm
-174.96 mm
LF5961
LF5048
LF5807
LF5394
248 nm
-175.50 mm
-438.06 mm
-656.87 mm
-875.68 mm
405 nm
-185.84 mm
-464.20 mm
-696.16 mm
-928.13 mm
488 nm
-187.73 mm
-468.98 mm
-703.35 mm
-937.73 mm
532 nm
-188.40 mm
-470.67 mm
-705.89 mm
-941.12 mm
588 nm
-189.05 mm
-472.30 mm
-708.35 mm
-944.40 mm
633 nm
-189.46 mm
-473.35 mm
-709.92 mm
-946.50 mm
780 nm
-190.38 mm
-475.68 mm
-713.43 mm
-951.18 mm
850 nm
-190.69 mm
-476.45 mm
-714.59 mm
-952.73 mm
1064 nm
-191.37 mm
-478.18 mm
-717.19 mm
-956.19 mm
1310 nm
-191.95 mm
-479.64 mm
-719.38 mm
-959.13 mm
1550 nm
-192.45 mm
-480.91 mm
-721.30 mm
-961.68 mm
mm 3000 nm
-196.14 mm
-490.25 mm
-735.33 mm
-980.42 mm
4000 nm
-200.00 mm
-500.00 mm
-750.00 mm
-1000.00 mm
5000 nm
-205.25 mm
-513.29 mm
-769.98 mm
-1026.68 mm
8000 nm
-233.51 mm
-584.81 mm
-877.55 mm
-1170.28 mm
Loading...
Posted Comments:
No Comments Posted
Click on any phrase below to search our site using our new Search Engine:
a Edge thickness given before 0.2 mm at 45o typical chamfer. b Measured at the design wavelength, 4 µm. c Suggested Fixed Lens Mount: SM05L03 d Suggested Fixed Lens Mount: LMR05
Ø1" CaF2 Negative Meniscus Lenses
Item #
Diameter
Focal Length
Radius of Curvature 1
Radius of Curvature 2
Center Thickness
Edge Thicknessa
Back Focal Lengthb
Reference Drawing
LF5469c
1"
-40.0 mm
308.3 mm
15.5 mm
4.0 mm
10.4 mm
-39.8 mm
LF5414c
1"
-50.0 mm
68.5 mm
15.5 mm
4.0 mm
9.4 mm
-49.2 mm
LF5895c
1"
-75.0 mm
30.8 mm
14.8 mm
4.0 mm
8.5 mm
-72.2 mm
LF5515d
1"
-100.0 mm
42.0 mm
20.2 mm
4.0 mm
6.5 mm
-97.2 mm
LF5175d
1"
-150.0 mm
64.1 mm
30.8 mm
4.0 mm
5.5 mm
-147.3 mm
LF5961d
1"
-200.0 mm
86.2 mm
41.4 mm
4.0 mm
5.1 mm
-197.3 mm
LF5048d
1"
-500.0 mm
218.3 mm
105.1 mm
4.0 mm
4.4 mm
-497.3 mm
LF5807d
1"
-750.0 mm
328.2 mm
158.1 mm
4.0 mm
4.3 mm
-747.3 mm
LF5394d
1"
-1000.0 mm
438.1 mm
211.1 mm
4.0 mm
4.2 mm
-997.3 mm
a Edge thickness given before 0.2 mm at 45o typical chamfer. b Measured at the design wavelength, 4 µm. c Suggested Fixed Lens Mount: SM1L05 d Suggested Fixed Lens Mount: LMR1
