Monitor & Tablet Mounts, Ø1.5" Post Mountable

Click to Enlarge

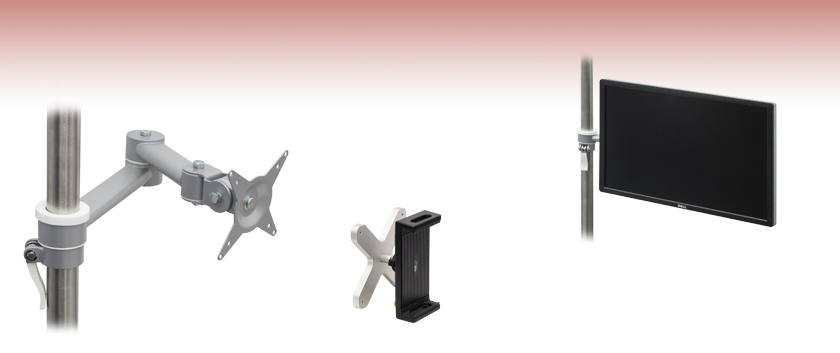

PSY122 Tablet Adapter Attached to
PSY121 Monitor Mount and Ø1.5" Post

Features

• PSY121 Monitor Mount:
  • Compatible with 75 mm x 75 mm (2.95" x 2.95") and 100 mm x 100 mm (3.94" x 3.94") VESA Patterns
  • 10 kg (22 lbs) Max Load Capacity
  • Mounts to a Standard or ScienceDesk Ø1.5" Posts (Not Included)
• PSY122 Tablet Adapter:
  • Attaches to PSY121 Monitor Mount (Sold Separately)
  • Spring-Loaded Clamp Fits Devices from 5.5" to 8.7" (140 to 220 mm) Wide and ≤0.67" (17 mm) Thick
  • 40° Adjustment Cone with Lockable Ball Joint

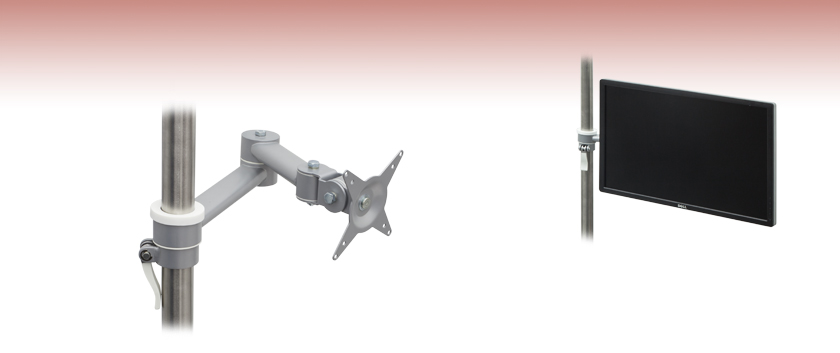

The PSY121 Flat Screen Monitor Support Bracket is compatible with 75 mm x 75 mm and 100 mm x 100 mm VESA mounting patterns. These mounting patterns are typically used on small to medium LCD monitor displays. The monitor mount features an articulated arm that allow flexible positioning and has a load capacity of 10 kg (22 lbs).

The PSY122 Tablet Mounting Adapter attaches directly to the PSY121 Monitor Mount (sold separately) and is compatible with tablets from 5.5" to 8.7" (140 to 220 mm) wide and ≤0.67" (17 mm) thick. The tablet is held by a spring-loaded clamp with a yellow strap on each end, designed to aid in pulling the clamp arms apart. The locknut on the back of the holder can be loosened to change the angle of the holder. For Ø1/2" post mounting, we also offer the PSX123 Tablet Mount.

A Ø1.5" post (standard lab post, Item # PSY161, or PSY162) is required to secure the PSY121 mount to an optical table or breadboard. Alternatively, a post from an Overhead Shelf/Instrument Shelf could also be used.
