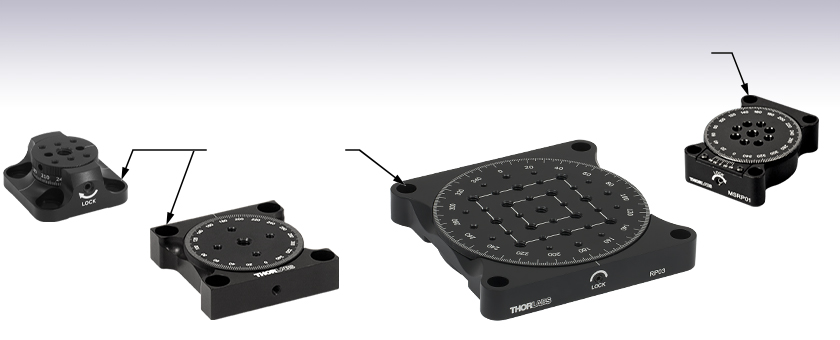

Manual Rotation Stages

Continuous 360° Rotation
Ø1", Ø1.4", Ø2", or Ø4.3" Rotating Platform
Backlash-Free, Low-Profile Design

RP01

Ø2" Manual
Rotation Stage

MSRP01

Ø1.4" Manual
Rotation Stage

RP005

Ø1" Manual
Rotation Stage

1/4" (M6) Counterbores for Mounting to an Optical Table or Breadboard

#4 (M3) Counterbores for Mounting to a Mini-Series Breadboard

RP03

Ø4.3" Manual
Rotation Stage

Please Wait

Overview
Feedback
Rotation Mounts and Stages

Rotation Stage Comparison
Item #	RP005(/M)	MSRP01(/M)	RP01(/M)	RP03(/M)
Rotating Platform Size	Ø1.00" (25.4 mm)	Ø1.40" (35.6 mm)	Ø2.07" (52.8 mm)	Ø4.29" (109.0 mm)
Component Mounting Taps	Six 4-40 (M3) One 1/4"-20 (M6)	Four 4-40 (M3) One 8-32 (M4)	Four 8-32 (M4) One 1/4"-20 (M6)	Eight 6-32 (M4) Sixteen 8-32 (M4) Thirteen 1/4"-20 (M6)
Side Tap for Post Mounting	No	Yes; 4-40 (M3)	Yes; 8-32 (M4)	Yes; 8-32 (M4)
Stage Height	0.67" (17.0 mm)	0.51" (13.1 mm)	0.63" (16.1 mm)	0.70" (17.8 mm)
Stage Dimensions	1.50" x 1.50" (38.1 x 38.1 mm)	1.78" x 1.40" (45.2 x 35.6 mm)	2.45" x 2.45" (62.2 x 62.2 mm)	4.65" x 4.65" (118.1 x 118.1 mm)

Features

Continuous 360° Rotation
Laser-Engraved Graduation Marks
Ø1", Ø1.4", Ø2", or Ø4.3" Mounting Platform
1/4" (M6) or #4 (M3) Counterbores for Breadboard Mounting
Lockable via Side-Located Setscrew

Thorlabs' Manual Rotation Stages are cost effective platforms for an optomechanical component requiring smooth, backlash-free rotation. Each stage offers 360º of continuous rotation with a Ø1", Ø1.4", Ø2", or Ø4.3" mounting platform and utilizes needle roller thrust bearings for higher load capacities. An engraved angular scale along the edge of each stage's rotating platform allows the user to set the angular orientation of the stage. Rotation of the platform can be locked by tightening the side-located setscrew. Four corner-located counterbored holes are spaced for direct fastening to an optical table or breadboard.

Tholabs also offers a selection of other manual stages that are micrometer driven, have central through holes, or have built-in hard stops. For our entire selection of rotation stages, please see the Rotation Mounts and Stages tab.

Posted Comments:

SHASHIDHAR UPPIN (posted 2022-12-01 22:14:52.113)

Hi, is it possible to set the rotation angle at 0.5 deg interval by RP01.

jdelia (posted 2022-12-02 04:08:35.0)

Thank you for contacting Thorlabs. The angle at which you can reliably move the stage is entirely reliant on the dexterity of the end user as this is strictly a hand-rotated device. That being said, 0.5 degree is quite small and it would be considerably easier to achieve this by using a rotation stage with a precision micrometer, such as PR01 for example. If by setting an interval you meant through some sort of software, then I would suggest looking at our selection of motorized rotation stages.

andrew krajecki (posted 2022-11-08 12:24:27.19)

This is a rotation stage that I would like to purchase, I am wondering how well this stage holds its angle and whether or not a small jolt to this device would significantly alter the set angle. i.e. does this stage have mechanism to lock the set angle?

ksosnowski (posted 2022-11-08 02:23:58.0)

Hello Andrew, thanks for reaching out to Thorlabs. For RP01, rotation can be locked by tightening the side-located Locking Screw using a 5/64" (2.0 mm) balldriver or hex key. We have not tested stability for specific jolts however this mechanism will help eliminate unwanted adjustments.

Maxime Joos (posted 2021-04-30 22:07:02.43)

Dear, We are implementing the stage RP03 in magnetic sensitive environments and are wondering if it would be possible to have a custom RP03 without any magnetic metals components. Thank you, Maxime Joos

YLohia (posted 2021-05-03 01:39:56.0)

Hello Maxime, thank you for contacting Thorlabs. Custom items can be requested by clicking on the "Request Quote" button above. I have reached out to you directly to discuss the possibility of offering this.

Maxime Joos (posted 2020-12-10 14:14:15.257)

Dear, would it be possible to drill a clearance hole through RP03? What would be the maximum diameter of this hole? Maxime

llamb (posted 2020-12-11 10:49:26.0)

Hi Maxime, thank you for contacting Thorlabs. The main rotating platform component of the RP03 is indeed the only component that takes up the middle space of the product as a whole. If you are ok with getting rid of the mounting holes with a clearance hole, you could ALMOST reach a Ø3" diameter thru hole before interfering with the next mating component, though of course eliminating all mounting features if doing so. Alternatively, perhaps our PR01 stage with a central thru hole could be useful. I have reached out to you directly to discuss your options further.

Jonathan Twichell (posted 2020-05-21 19:54:39.983)

No specs on wobble, or stiffness, especially when mounted vertically. The load limits must be a torque, and a weight. Vertically I am allowed 22 kg. If I put 20 kg on a 1 (or 10) meter carbon fiber tube I'll break it for sure. Load limits are two torques and 3 forces on the Cartesian axis. The bearing accuracy is specified by wobble, flatness and eccentricity. These are mostly missing on the description of the rotary mounts.

llamb (posted 2020-05-26 10:04:01.0)

Thank you for your feedback. We will certainly consider improving the spec presentation for clarity. The 50 lbs (22 kg) load for the RP03's vertical load spec was placed at approximately 6" away from the mounting surface during initial testing. I have reached out to you directly to discuss these specs and your application further.

Graig Moore (posted 2019-08-20 06:21:55.91)

I am using the 2" RP01 manual rotation stage and I had to tighten the set screw all the way but when I took the set screw out I can barely turn the stage. Any ideas on how to fix this?

llamb (posted 2019-08-20 02:15:57.0)

Thank you for contacting Thorlabs. This appears to have damaged the stage, so we have reached out to you directly to set up an RMA.

Patrick.Rappersberger (posted 2017-07-06 11:06:22.34)

Is it acceptable to mount a horizontal one sided setup on RP01 and RP03? I expect less than 10Nm torque and 2kg, but the center of gravity will be about 0.5m away from the rotation axis.

tfrisch (posted 2017-09-01 12:02:30.0)

Hello, thank you for contacting Thorlabs. 0.5m is a much longer lever arm than we use to test the vertical specs. I will reach out to you directly to discuss your application and how to reduce that torque.

user (posted 2016-11-10 05:24:52.8)

This product completly meet my need, however I think it would be usefull to add in the product description the size of the balldriver neeed to lock the platform. I had a bad surprise when I discivered that I had to make a second comand to get a balldriver of the correct size.

tfrisch (posted 2016-11-10 04:02:33.0)

Hello, thank you for your feedback. I'll ask our Marketing team to add the 5/64" size of the ball driver to the web presentation.

Rotation Mount and Stage Selection Guide

Thorlabs offers a wide variety of manual and motorized rotation mounts and stages. Rotation mounts are designed with an inner bore to mount a Ø1/2", Ø1", or Ø2" optic, while rotation stages are designed with mounting taps to attach a variety of components or systems. Motorized options are powered by a DC Servo motor, 2 phase stepper motor, piezo inertia motor, or an Elliptec™ resonant piezo motor. Each offers 360° of continuous rotation.

Manual Rotation Mounts

Rotation Mounts for Ø1/2" Optics
Item #	MRM05(/M)	RSP05(/M)	CRM05	PRM05(/M)^a	SRM05	KS05RS	CT104
Click Photo to Enlarge
Features	Mini Series	Standard	External SM1 (1.035"-40) Threads	Micrometer	16 mm Cage-Compatible	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Compatible with 30 mm Cage Translation Stages and 1/4" Translation Stages^b
Additional Details

This mount is available in the PRM05GL5 bundle, which includes the PRM05 rotation mount with the SM05PM5 polarizing prism mount.
The CT104 is complatible with the 1/4" translation stages using our MS103(/M) adapter plate.
The CT104 is compatible with the CT1A(/M) cage translation stage, which is designed for use with 30 mm cage systems.

Rotation Mounts for Ø1" Optics
Item #	RSP1(/M)	LRM1	RSP1D(/M)	DLM1(/M)	CLR1(/M)	RSP1X15(/M)	RSP1X225(/M)	PRM1(/M)^a
Click Photo to Enlarge
Features	Standard	External SM1 (1.035"-40) Threads	Adjustable Zero	Two Independently Rotating Carriages	Rotates Optic Within Fixed Lens Tube System	Continuous 360° Rotation or 15° Increments	Continuous 360° Rotation or 22.5° Increments	Micrometer
Additional Details

This mount is available in the PRM1GL10 bundle, which includes the PRM1 rotation mount with the SM1PM10 polarizing prism mount.

Rotation Mounts for Ø1" Optics
Item #	LM1-A & LM1-B(/M)	CRM1T(/M)	CRM1LT(/M)	CRM1PT(/M)	KS1RS	K6XS
Click Photo to Enlarge
Features	Optic Carriage Rotates Within Mounting Ring	30 mm Cage-Compatible^a	30 mm Cage-Compatible for Thick Optics^a	30 mm Cage-Compatible with Micrometer^a	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Six-Axis Kinematic Mount^a
Additional Details

This mount also features four 4-40 (M3) holes on the rotation dial for use with the K6A1(/M) prism platform.

Rotation Mounts for Ø2" Optics
Item #	RSP2(/M)	RSP2D(/M)	PRM2(/M)	LM2-A & LM2-B(/M)	LCRM2(/M)	KS2RS	K6X2
Click Photo to Enlarge
Features	Standard	Adjustable Zero	Micrometer	Optic Carriage Rotates Within Mounting Ring	60 mm Cage-Compatible	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Six-Axis Kinematic Mount
Additional Details

Manual Rotation Stages

Manual Rotation Stages
Item #	RP005(/M)	PR005(/M)	MSRP01(/M)	RP01(/M)	RP03(/M)	QRP02(/M)
Click Photo to Enlarge
Features	Standard					Two Hard Stops
Additional Details

Manual Rotation Stages
Item #	XRNR1(/M)	XRR1(/M)	PR01(/M)	CR1(/M)	XYR1(/M)	OCT-XYR1(/M)
Click Photo to Enlarge
Features	Fine Rotation Adjuster and 2" Wide Dovetail Quick Connect	Fine Rotation Adjuster and 3" Wide Dovetail Quick Connect	Fine Rotation Adjuster and SM1-Threaded Central Aperture	Fine Pitch Worm Gear	Rotation and 1/2" Linear XY Translation
Additional Details

The stage profile is higher when it is mounted using the screw slots rather than stacked on another stage or accessory with mating dovetails.
The OCT-XYR1(/M) stage includes the XYR1A solid sample plate. This plate can be detached from the stage to reveal the same mounting features present on the XYR1(/M) stage.

Motorized Rotation Mounts and Stages

Motorized Rotation Mounts and Stages with Central Clear Apertures
Item #	DDR25(/M)	PDR1C(/M)	PDR1(/M)	PDR1V(/M)
Click Photo to Enlarge
Features	Compatible with SM05 Lens Tubes, 16 mm Cage System, & 30 mm Cage System	Compatible with 16 mm Cage System	Compatible with SM05 Lens Tubes & 30 mm Cage System	Vacuum-Compatible; Also Compatible with SM05 Lens Tubes & 30 mm Cage System
Additional Details

Motorized Rotation Mounts and Stages with Central Clear Apertures
Item #	K10CR1(/M)	PRM1Z8(/M)^a	DDR100(/M)	ELL14	HDR50(/M)
Click Photo to Enlarge
Features	Compatible with SM1 Lens Tubes & 30 mm Cage System		Compatible with SM1 Lens Tubes, 16 mm Cage System, 30 mm Cage System	Compatible with SM1 Lens Tubes, Open Frame Design for OEM Applications	Compatible with SM2 Lens Tubes
Additional Details

This stage is available in the KPRMTE(/M), which includes the PRMTZ8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.

Motorized Rotation Mounts and Stages with Tapped Platforms
Item #	PRMTZ8(/M)^a	ELL18(/M)^b
Click Photo to Enlarge
Features	Tapped Mounting Platform for Mounting Prisms or Other Optics	Tapped Mounting Platform, Open Frame Design for OEM Applications
Additional Details

This stage is available in the KPRM1E(/M), which includes the PRMT1Z8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.
This stage is available in the ELL18K(/M), which includes an interface board, mounting brackets, and connectors for PC control.

Ø1" Manual Rotation Stage

Zoom

Click for Details
RP005(/M) Mechanical Diagram

Click to Enlarge

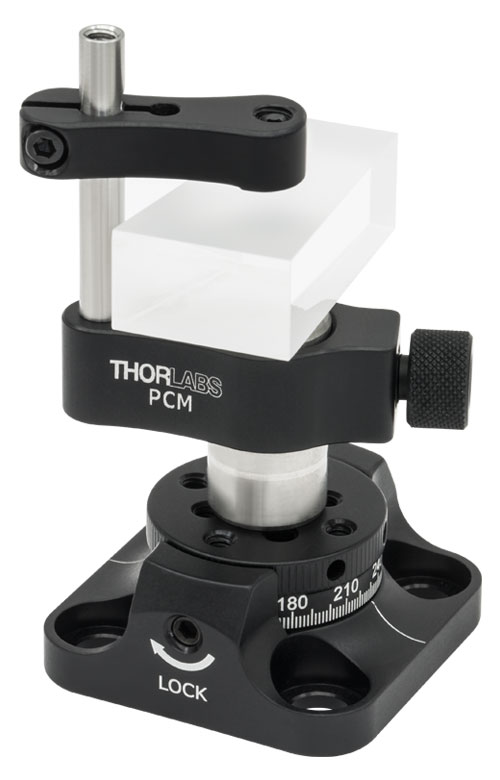

PCM Mount Holding a Pellin Broca Prism

Click to Enlarge
H1C FiberBench Isolator Mount Holding a Free-Space Isolator

360° Continuous Rotation
Laser-Engraved Graduation Marks at 2° Increments and Witness Line
Mounting Platform Height: 0.67"
Platform Mounting Taps: 4-40 (M3) and 1/4"-20 (M6)
Load Capacity: 40 lbs (18 kg) with Stage Mounted on a Horizontal Surface
Four 1/4" (M6) Clearance Holes to Mount to Optical Tables or Breadboards

Thorlabs' RP005(/M) Manual Rotation Stage has a Ø1" rotating platform and is ideal for smaller optomechnical components requiring smooth, backlash-free rotation. The stage offers 360º of continuous rotation with a scale that is engraved in 2° increments along the side of the rotating platform. The scale is marked every 30° by a number directly under its corresponding tick mark. Rotation can be locked by tightening the side-located setscrew using a 5/64" (2.0 mm) balldriver or hex key. Do not remove the locking setscrew from the stage; doing so can permanently reduce locking performance.

The rotating platform contains six 4-40 (M3) taps, for smaller components such as cage cube optic mounts or mini-series posts, and one, central 1/4"-20 (M6) tap for larger components such as Ø1/2" or Ø1" post assemblies. Additionally, the top platform includes two Ø0.13" holes for mounting Thorlabs' FiberBench optic mounts, wave plate modules, polarization modules, and alignment tools. A setscrew with a 0.05" (1.5 mm) hex on the side of the rotating platform locks the FiberBench accessory in place.

Four 1/4" (M6) clearance holes are included in the base to mount the stage to an optical table or breadboard. When mounted on a horizontal surface, the stage can support a load up to 40 lbs (18 kg).

Ø1.4" Manual Rotation Stage

Zoom

Click for Details
MSRP01(/M) Mechanical Diagram

Click to Enlarge
MSRP01 Shown with a Miniature Dovetail Stage

360° Continuous Rotation
Laser-Engraved Graduation Marks at 2° Increments and 20 arcmin Vernier Scale
Mounting Platform Height: 0.51"
Platform Mounting Taps: 4-40 (M3) and 8-32 (M4)
Load Capacity:
- 50 lbs (22 kg) with Stage Mounted on Horizontal Surface
- 1.3 N·m Maximum Horizontal Torque
Four #4 (M3) Clearance Holes to Mount to Optical Tables or Breadboards

Thorlabs' MSRP01(/M) Manual Mini-Series Rotation Stage has a Ø1.4" rotating platform and provides smooth, backlash-free rotation utilizing two precision bearings. The stage offers 360º of continuous rotation with a scale that is engraved in 2° increments along the outer circumference of the rotating platform. It is marked every 20° by a number directly under its corresponding tick mark and includes a 20 arcmin Vernier scale. Rotation can be locked by tightening the side-located setscrew using a 0.05" (1.3 mm) balldriver or hex key.

The rotating platform contains four 4-40 (M3) taps and one central 8-32 (M4) tap for mini-series posts and accessories or our miniature dovetail stages, as shown in the image above.

Four #4 (M3) clearance holes are included in the base to mount the stage to a mini-series breadboard. A side-located 4-40 (M3) mounting hole is included to mount the stage vertically. It has a maximum torque capacity of 1.3 N·m when mounted in this configuration. When mounted on a horizontal surface, the stage can support a load up to 50 lbs (22 kg).

Ø2" Manual Rotation Stage

Zoom

Click for Details

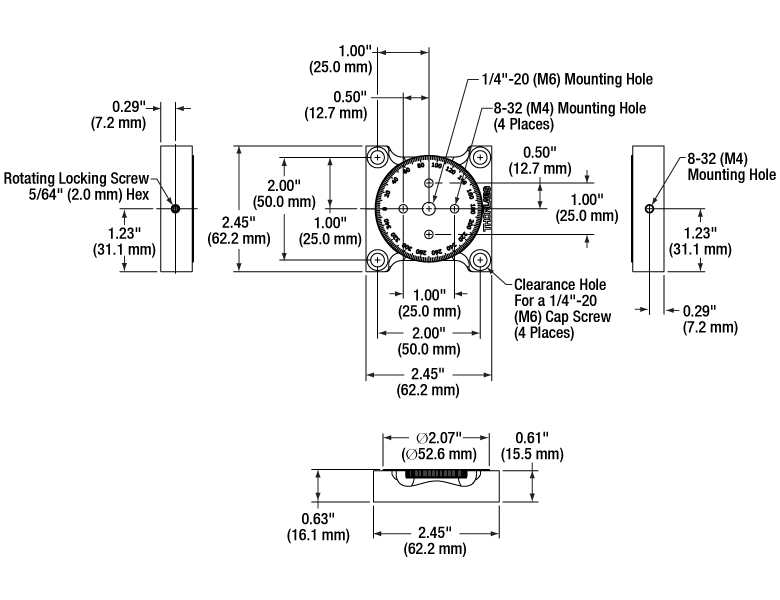

RP01(/M) Mechanical Diagram

Click to Enlarge
RP01 Used to Rotate a KM100 Mirror Mount

360° Continuous Rotation
Laser-Engraved Graduation Marks at 2° Increments and Witness Line
Mounting Platform Height: 0.63"
Platform Mounting Taps: 8-32 (M4) and 1/4"-20 (M6)
Load Capacity:
- 110 lbs (50 kg) with Stage Mounted on Horizontal Surface
- 9 lbs (4 kg) with Stage Mounted on Vertical Surface
Four 1/4" (M6) Clearance Holes to Mount to Optical Tables or Breadboards

Thorlabs' RP01(/M) Manual Rotation Stage has a Ø2" rotating platform and is ideal for larger optomechnical components requiring smooth, backlash-free rotation. The stage offers 360º of continuous rotation with a scale that is engraved in 2° increments along the outer circumference of the rotating platform. It is marked every 20° by a number directly under its corresponding tick mark. Rotation can be locked by tightening the side-located setscrew using a 5/64" (2.0 mm) balldriver or hex key.

The rotating platform contains four 8-32 (M4) taps and one central 1/4"-20 (M6) tap for larger assemblies such as Ø1/2" or Ø1" post assemblies and optomechanical mounts, as shown in the image to the right.

Four 1/4" (M6) clearance holes are included in the base to mount the stage to an optical table or breadboard. A side-located 8-32 (M4) mounting hole is included to mount the stage vertically. It has a maximum load capacity of 9 lbs (4 kg) when mounted in this configuration. When mounted on a horizontal surface, the stage can support a load up to 110 lbs (50 kg).

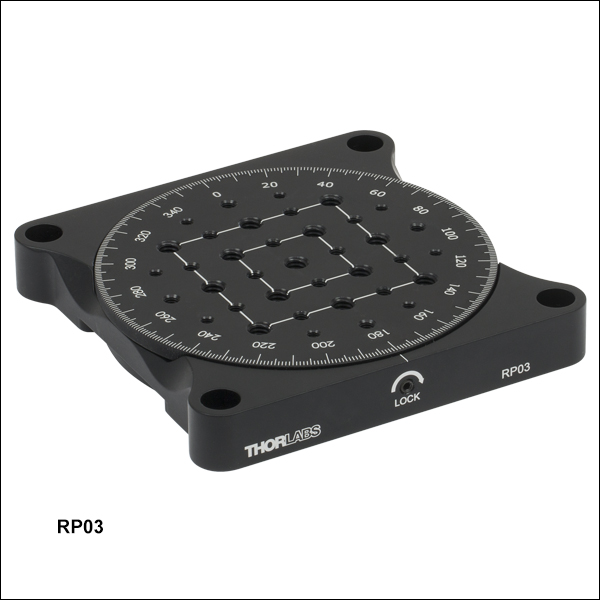

Ø4.3" Manual Rotation Stage

Zoom

Click for Details

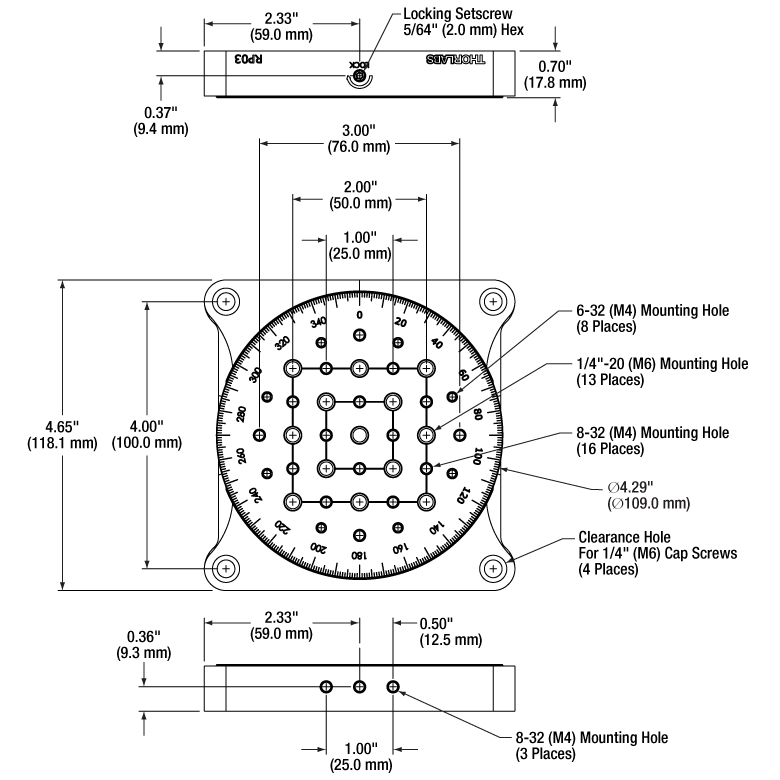

RP03(/M) Mechanical Diagram
(The RP03/M will have M4 taps in place of the 6-32 taps shown in the above diagram.)

Click to Enlarge
PM4 Clamping Arm and PM4SP Extension Used to Mount a PS934 Penta Prism on an RP03

360° Continuous Rotation
Laser-Engraved Graduation Marks at 1° Increments and Witness Line
Mounting Platform Height: 0.70" (17.8 mm)
Platform Mounting Taps:
- RP03: 6-32, 8-32 and 1/4"-20
- RP03/M: M4 and M6
Load Capacity:
- 175 lbs (80 kg) with Stage Mounted on Horizontal Surface
- 50 lbs (22 kg) with Stage Mounted on Vertical Surface
Four 1/4" (M6) Clearance Holes to Mount to Optical Tables or Breadboards

Thorlabs' RP03(/M) Manual Rotation Stage has a Ø4.3" rotating platform and is ideal for larger optomechnical components requiring smooth, backlash-free rotation. The stage offers 360º of continuous rotation with a scale that is engraved in 1° increments along the outer circumference of the rotating platform. It is marked every 20° by a number directly under its corresponding tick mark. Rotation can be locked by tightening the side-located setscrew using a 5/64" (2.0 mm) balldriver or hex key.

The imperial RP03 rotating platform contains eight 6-32, sixteen 8-32, and thirteen 1/4"-20 taps. The metric RP03/M rotating platform contains twenty-four M4 and thirteen M6 taps. The 6-32 taps can be used with our PM3 and PM4 Clamping Arms, while the M4 taps can be used with our PM3/M and PM4/M Clamping Arms. This allows you to clamp small to large componens onto the rotating platform, as shown in the image above and to the right. The 8-32, M4, 1/4"-20, and M6 taps can all be used to secure larger systems, such as a manual or motorized translation stage or post assembly.

Four 1/4" (M6) clearance holes are included in the base to mount the stage to an optical table or breadboard. Three side-located 8-32 (M4) mounting holes are included to mount the stage vertically. It has a maximum load capacity of 50 lbs (22 kg) when mounted in this configuration. When mounted on a horizontal surface, the stage can support a load up to 175 lbs (79 kg).

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous			Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°	Manual, 360° Continuous
Optic Mounting	Internally SM05-Threaded Carriage
Maximum Accepted Optic Thickness	0.23" (5.8 mm)	0.23" (5.8 mm)	0.26" (6.5 mm)	0.23" (5.9 mm)	0.24" (6.0 mm)	0.41" (10.4 mm)	0.29" (7.3 mm)
Post Mounting	4-40 (M3) Stud	8-32 (M4) Tap	None	8-32 (M4) Tap	None	Two Counterbores for 8-32 (M4) Cap Screws	Two Counterbores for 4-40 (M3) Cap Screws
Cage System Compatibility	N/A				Four Bores for ∅4 mm Cage Rods with 16 mm Spacing	N/A	N/A^c

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous					Manual, Continuous: 360°; Discrete: 15°	Manual, Continuous: 360°; Discrete: 22.5°	Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°
Optic Mounting	Internally SM1-Threaded Carriage
Maximum Accepted Optic Thickness	0.47" (11.9 mm)	0.34" (8.6 mm)	0.51" (12.9 mm)	0.25" (6.4 mm)	0.27" (6.8 mm)	0.50" (12.7 mm)	0.50" (12.7 mm)	0.50" (12.7 mm)
Post Mounting	8-32 (M4) Tap	N/A	8-32 (M4) Tap
Cage System Compatibility	N/A							Four 4-40 (M3) Taps on Rotation Dial with 30 mm Spacing

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous			Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°	Manual, 360° Continuous
Optic Mounting	Internal SM1 Threads in LM1-A	Internally SM1-Threaded Carriage	Double-Bore with Setscrew	Internally SM1-Threaded Carriage
Accepted Optic Thickness	Max: 0.37" (9.4 mm)	Max: 0.37" (9.4 mm)	Min: 0.31" (7.9 mm)	Max: 0.37" (9.4 mm)	Max: 0.47" (11.9 mm)	Max: 0.55" (14 mm)
Post Mounting	8-32 (M4) Tap in LM1-B	8-32 (M4) Tap			Six Counterbores for 8-32 (M4) Cap Screws
Cage System Compatibility	N/A	Four Bores for ∅6 mm Cage Rods with 30 mm Spacing			N/A

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous		Coarse: Manual, 360° Continuous; Fine: ±7° Micrometer	Manual, 360° Continuous
Optic Mounting	Internally SM2-Threaded Carriage			Internal SM2 Threads in LM2-A	Internally SM2-Threaded Carriage
Maximum Accepted Optic Thickness	0.51" (13 mm)	0.54" (13.7 mm)	0.48" (12.2 mm)	0.46" (11.7 mm)	0.51" (13 mm)	0.47" (12 mm)	0.53" (13.4 mm)
Post Mounting	8-32 (M4) Tap			8-32 (M4) Tap in LM2-B	8-32 (M4) Tap	Four Counterbores for 8-32 (M4) Cap Screws	Six Counterbores for 8-32 (M4) Cap Screws
Cage System Compatibility	N/A		Four 4-40 (M3) Taps on Rotation Dial with 60 mm Spacing	N/A	Four Bores for Ø6 mm Cage Rods with 60 mm Spacing	N/A	N/A

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous
Mounting Platform
Diameter	Ø1.00" (Ø25.4 mm)	Ø1.00" (Ø25.4 mm)	Ø1.40" (Ø35.6 mm)	Ø2.07" (Ø52.8 mm)	Ø4.29" (Ø109.0 mm)	Ø2.00" (Ø50.8 mm)
Height	0.67" (17.0 mm)	0.75" (19.1 mm)	0.51" (13.1 mm)	0.63" (16.1 mm)	0.70" (17.8 mm)	1.00" (25.4 mm)
Taps	Six 4-40 (M3) One 1/4"-20 (M6)	One 8-32 (M4) Eight 4-40 (M3)	Four 4-40 (M3) One 8-32 (M4)	Four 8-32 (M4) One 1/4"-20 (M6)	Eight 6-32 (M4) Sixteen 8-32 (M4) Thirteen 1/4"-20 (M6)	Four 6-32 (M4) Four 8-32 (M4) Five 1/4"-20 (M6)
Additional Holes	Two Ø0.13" (Ø3.2 mm) Holes for FiberBench Accessories	-	Four Clearance Holes for 4-40 (M3) Cap Screws	-	-	-
Platform Adapter Plate(s)	-	-	-	-	-	-
Base
Dimensions	1.50" x 1.50" (38.1 x 38.1 mm)	1.50" x 1.50" (38.1 x 38.1 mm)	1.78" x 1.40" (45.2 x 35.6 mm)	2.45" x 2.45" (62.2 x 62.2 mm)	4.65" x 4.65" (118.1 x 118.1 mm)	2.55" x 2.55" (64.8 x 64.8 mm)
Mounting Holes	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 4-40 (M3) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Counterbores for 1/4"-20 (M6) Cap Screws
Side Taps for Vertical Mounting	-	-	One 4-40 (M3)	One 8-32 (M4)	Three 8-32 (M4)	-
Cage System Compatibility	N/A

Rotation Drive Mechanism and Adjustment Range	Manual: 360° Continuous; Fine: Adjuster Screw, ±5°	Manual: 360° Continuous; Fine: Adjuster Screw, ±5°	Manual: 360° Continuous; Fine: Micrometer, ±5°	Worm Gear, 360° Continuous	Manual, 360° Continuous with 1/2" (13 mm) Linear Travel Along X and Y Axes with Micrometer
Mounting Platform
Diameter	Ø2.21" (Ø56.0 mm)	Ø3.19" (Ø81.0 mm)	Ø2.70" (Ø68.6 mm)	Ø1.70" (Ø43.2 mm)	Ø4.18" (Ø106.0 mm)	Ø4.04" (Ø102.5 mm)
Height	On Breadboard: 0.91" (23.0 mm)^a Dovetail Stacked: 0.83" (21.0 mm)	On Breadboard: 0.91" (23.0 mm)^a Dovetail Stacked: 0.83" (21.1 mm)	1.00" (25.3 mm)	1.00" (25.4 mm)	1.00" (25.4 mm)	1.65" (41.8 mm)
Taps	Thirteen 1/4"-20 (M6) Four 8-32 (M4) Four 6-32 (M4)	Thirteen 1/4"-20 (M6) Four 8-32 (M4) Four 6-32 (M4)	Four 4-40 (M3) Ten 6-32 (M4) Six 1/4"-20 (M6)	Four 4-40 (M3) Eight 6-32 (M4) Four 8-32 (M4)	Eight 4-40 (M3) Twelve 8-32 (M4) Sixteen 1/4"-20 (M6)	-^b
Additional Holes	-	-	Ø0.94" (Ø23.9 mm) Clear Aperture with SM1 Threading	-	Ø0.90" (Ø22.9 mm) Clear Aperture with SM1 Threading	-^b
Platform Adapter Plate(s)	-	-	PR01A(/M) CRA30(/M)	CR1A(/M)	XYR1A	-^b
Base
Dimensions	3.35" x 2.52" (85.0 mm x 63.9 mm)	4.33" x 3.58" (110.0 mm x 91.0 mm)	2.75" x 3.50" (69.9 x 88.9 mm)	2.76" x 2.10" (70.1 x 53.4 mm)	5.50" x 4.42" (139.7 x 112.3 mm) (Not Including Micrometers)
Mounting Holes	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Two Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws
Side Taps for Vertical Mounting	-	-	Two 1/4"-20 (M6)	-	-
Cage System Compatibility	-	N/A	Four 4-40 Taps on Top Surface for 30 mm Cage System	N/A	Four 4-40 Taps on Top Surface for 30 mm Cage System Four 4-40 Taps on Top Surface for 60 mm Cage System Four 4-40 Taps on Bottom Surface for 60 mm Cage System	-^b

Motor Type	Brushless DC Servo	Piezo Inertia Drive
Rotation Adjustment Range	360° Continuous
Rotating Platform/Carriage
Diameter	1.14" (29.0 mm)	1.10" (28.0 mm)	1.34" (34.0 mm)
Height	1.12" (28.5 mm)	0.71" (18.0 mm)
Threaded Mounting Holes	Four 4-40 with 16 mm Spacing	Four 8-32 (M4 x 0.7), Four 4-40 with 16 mm Spacing	Four 8-32 (M4 x 0.7)
Center Aperture	SM05 Internal Threads, 1.2" (28.5 mm) Deep	Ø4.9 mm Clear Aperture with 1/4"-20 (M6 x 1.0) Internal Threads, Thru	Ø9.0 mm Clear Aperture with SM05 Internal Threads, 2.5 mm Deep
Speed (Max)	1800°/s	100°/s	20°/s
Base
Dimensions	2.19" x 2.19" (55.6 mm x 55.6 mm)	1.18" x 1.18" (30 mm x 30 mm)	1.57" x 1.57" (40.0 mm x 40.0 mm)
Bottom Surface Mounting Features	-	Two #2 (M2) Slots	Two 8-32 (M4 x 0.7) Holes
Side Holes for Vertical Mounting	Four 8-32 (M4 x 0.7) Eight 4-40	Three 8-32 (M4 x 0.7)	One 8-32 (M4 x 0.7), Two Sides
Cage System Compatibility	Four 4-40 Holes on Back Side with 16 mm Spacing, Four 4-40 Taps on Front Side with 30 mm Spacing	-	Ø6 mm Holes for ER Cage Rods with 30 mm Spacing

Motor Type	2 Phase Stepper Motor with Worm Gear	DC Servo	Brushless DC Servo	Piezo Resonant Motor	2 Phase Stepper Motor with Worm Gear
Rotation Adjustment Range	360° Continuous
Rotating Platform/Carriage
Diameter	1.81" (46.0 mm)	1.97" (50.0 mm)	4.37" (111.0 mm)	-	3.86" (98.0 mm)
Height	0.84" (21.5 mm)	0.91" (23.0 mm)	1.57" (39.9 mm)	0.59" (15.1 mm)	1.73" (44.0 mm)
Threaded Mounting Holes	Six 4-40 (M3)	Four 6-32 (M4), Four 8-32 (M4), Four 4-40 with 30 mm Spacing	Eight 8-32 (M4), Four 1/4"-20 (M6), Four 4-40 with 16 mm Spacing, Four 4-40 with 30 mm Spacing	-	Four 8-32 (M4)
Center Aperture	SM1 Internal Threads, 0.84" (21.5 mm) Deep	SM1 Internal Threads, 0.91" (23.0 mm) Deep	SM1 Internal Threads, 0.82" (21.0 mm) Deep	SM1 Internal Threads, 0.58" (14.7 mm) Deep	Ø50.0 mm Clear Aperture with SM1 Internal Threads, 6.9 mm Deep
Speed (Max)	10°/s	25°/s	1080°/s	430°/s	50°/s
Platform Adapter Plate(s)	K10CR1A2(/M)	PRM1SP1(/M)	NR360SP9(/M) NR360SP4(/M)	-	NR360SP9(/M) NR360SP8 NR360SP4(/M)
Base
Dimensions	4.21" x 2.60" (107.0 mm x 66.0 mm)	5.18" x 3.26" (131.5 mm x 82.8 mm)	4.53" x 4.53" (115 mm x 115 mm)	2.60" x 3.25" (66.0 mm x 82.5 mm)	7.46" x 4.55" (189.4 mm x 115.5 mm)
Stage Adapter Plates	K10CR1A1 K10CR1A3	PRM1SP2 PRM1SP3	-	-	NR360SP2(/M) NR360SP5(/M)
Bottom Surface Mounting Holes	-	Two 1/4" (M6) Counterbores	Four 1/4" (M6) Clearance Holes	-	Four 1/4" (M6) Counterbores
Side Holes for Vertical Mounting	Three 8-32 (M4)	Four 8-32 (M4)	Eight 1/4"-20 (M6)	-	Six 1/4"-20 (M6)
Cage System Compatibility	Four 4-40 Holes on Each Side with 30 mm Spacing	-	Four 4-40 Holes on Back Side with 30 mm Spacing	60 mm Cage using Four Ø0.12" (3.0 mm) Holes for 4-40 Screws, 30 mm Cage using SR025 Cage Rods to Adapt to ER Cage Rods	-
