Customizable Printed Circuit Boards


  • Empty Printed Circuit Boards for Customizable Circuits
  • Ideal for RLC Circuits
  • Compatible with Through-Hole or Surface-Mount Components

EEB33PCB1

For EEB3311 Housing

The EEAPCB1 Populated with Electrical Elements and Partially Inserted into the EEA14 Enclosure

EEAPB1

Perforated Circuit Board for EEA Housings

Related Items


Please Wait
Housing and Connector Compatibility
Item # Component
Groupsa
Dimensions Compatible Housing
EEAPB1 None 2.30" x 0.99"
(58.4 mm x 25.1 mm)
EEA11 (with Blank End Plates)
EEA14 (with BNC Connectors)
EEA17 (with SMA Connectors)
EEAPCB1 Four
EEB33PCB1 Sixb 3.23" x 2.00"
(82.0 mm x 50.8 mm)
EEB3311 (with Blank End Plates)c
EEB40PCB1 3.90" x 2.00"
(99.1 mm x 50.8 mm)
EEB4011 (with Blank End Plates)c
  • Click to view PCB layout.
  • In addition to the six component groups, these boards feature floating inductor locations marked L7 through L10, provided for larger inductors. The layout of the EEB40PCB1 is identical to the EEB33PCB1.
  • We also offer end plates with BNC or SMA connectors.

Click to Enlarge

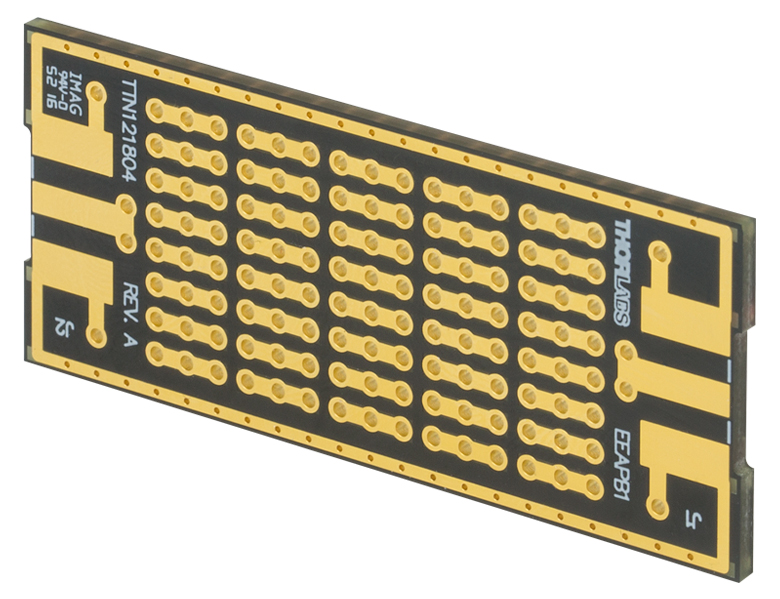

The EEAPB1 does not have component groups or labels, allowing the user to design a fully customized electronic circuit.

Features

  • Blank Printed Circuit Boards (PCB) for Building Custom Electrical Circuits
  • Designed to Fit Inside Thorlabs' Compact Electronics Housings
  • PCBs Available in Tripad Layout or with Component Groups in Series
  • PCBs with Component Groups have Five Footprint Sizes in Parallel
    • Wirewound
    • 5 mm × 5 mm
    • SMT1210
    • SMT1206
    • SMT0805
  • PCBs with Six Component Groups Also Offer Floating Positions for Larger Inductors

Thorlabs' Customizable Printed Circuit Boards (PCB) allow users to create their own passive electrical systems on boards designed to conveniently fit into our Extruded Aluminum Enclosures (see image above). The large grounding bars at the top and bottom of the board ensure a proper electrical connection with the enclosure and help to shield the circuit from external noise.

The EEAPB1 is a perforated circuit board for a custom electrical circuit of the user's own design. The blank circuit board has an array of Ø1 mm through holes with 0.1" spacing in a tripad layout, as shown in the image to the right; this standard grid spacing is ideal for common through-hole electronic components and is compatible with common IC packages. The other PCBs below contain multiple component groups in series with each other, with each component group consisting of 5 elements in parallel. For detailed electrical diagrams, please refer to the PCB Layouts tab. The footprints are designed to accept resistors (R), capacitors (C), or inductors (L). A variety of footprint sizes are made available in each group to accommodate several different types and sizes of electrical elements, including: wirewound, 5 mm × 5 mm, SMT1210, SMT1206, and SMT0805. Additionally, the board is compatible with edge mount BNC and SMA connectors. Please refer to the compatibility table above for more details. These PCBs are constructed from FR4 130tg and feature gold-immersed electrodes.

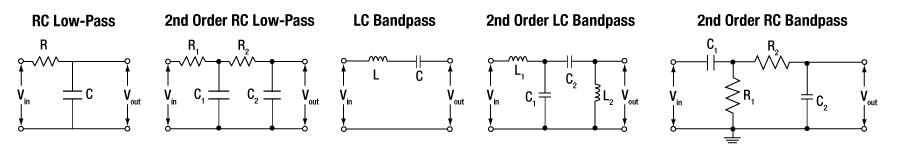

These printed circuit boards are ideal for creating simple, passive electrical circuits such as RC or LC filters. By incorporating multiple component groups, these PCBs are capable of supporting both 1st and 2nd order low-, high-, and bandpass filters, such as those demonstrated below. The PCBs with six component groups can also support 3rd order designs. The examples below are not an exhaustive list of compatible circuits that one could build with this board. The exact design and elements are application dependent.

For applications that require very steep attenuation of stopband frequencies, Thorlabs also offers 5th order elliptical low-pass and 5th or 6th order elliptical high-pass filters.

Example Passive Filter Designs

RLC Circuits

EEAPB1 Layout


Click to Enlarge

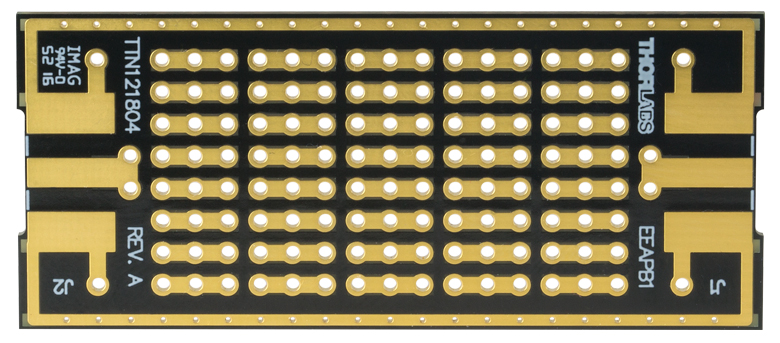

The EEAPB1 has a tripad design for mounting through-hole-compatible components. The holes are Ø1 mm and spaced 0.1" apart.

EEAPCB1 Layout


Click to Enlarge

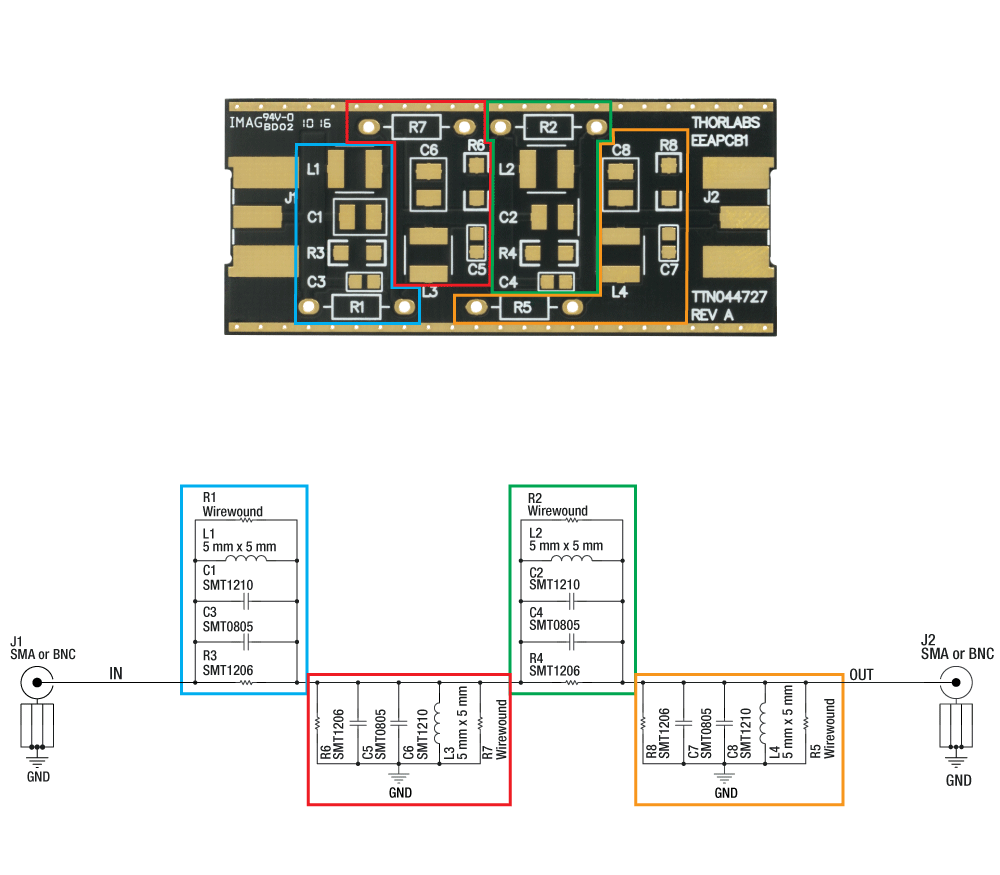

The electrical schematic for the EEAPCB1. The four component groups are called out in the colored boxes on both the schematic and photo.

EEB33PCB1 and EEB40PCB1 Layout


Click to Enlarge

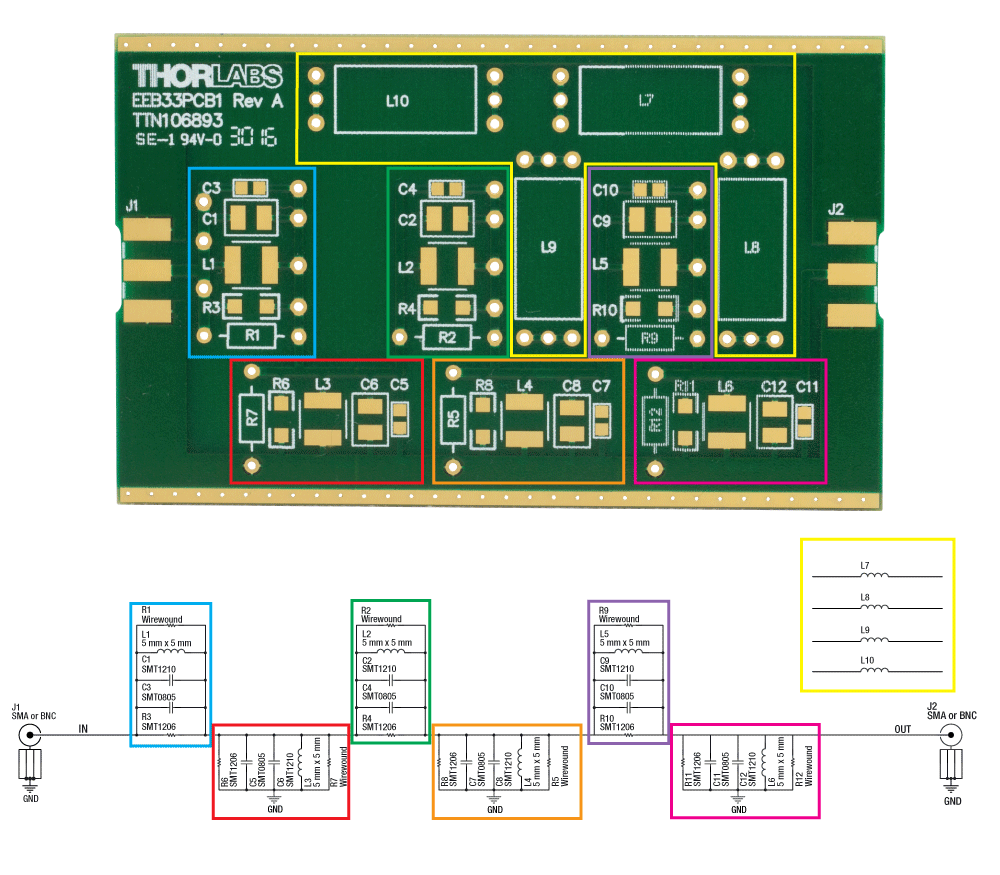

The electrical schematic for the EEB33PCB1. The layout of the EEB40PCB1 is identical. The six component groups are called out in the colored boxes on both the schematic and photo. The floating inductor locations marked L7 through L10 are provided for larger inductors.
