Polarizing Prism Mounts

Full Clear Aperture on All 4 Ports
Rotating Cover Blocks Unwanted Beams
Directly Mounts to SM1 & SM05 Series Lens Tubes

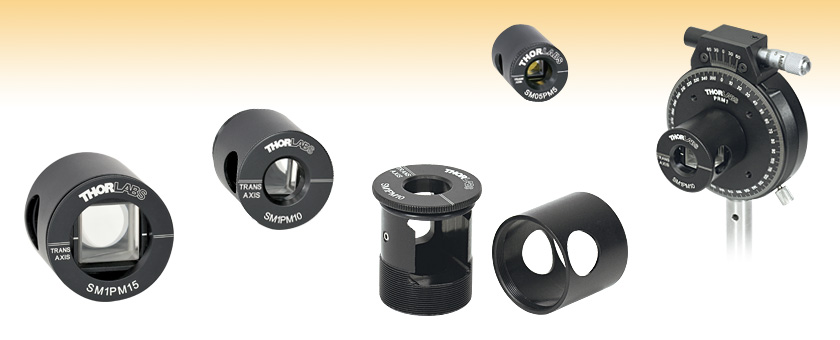

SM1PM15

(GL15 Prism Sold Separately)

SM1PM10

(GL10 Prism
Sold Separately)

SM05PM5

(GL5 Prism
Sold Separately)

PRM1GL10

(GL10 Prism
Sold Separately)

SM1PM10 Disassembled

Related Items

Glan-Laser Alpha-BBO Polarizers

Glan-Laser Calcite Polarizers

Indexed Rotation Mount

Magic Angle Blocks

Rotation Mounts

Motorized Rotation Stages

Polarization Optics

Please Wait

Overview
Feedback

Item #	SM05PM5 PRM05GL5	SM1PM10 PRM1GL10	SM1PM15
Compatible Polarizer	GL5 (-x) GLB5 (-x) GT5 (-x) GTR5-MIR	GL10 (-x) GLB10 (-x) GT10 (-x) GTR8-MIR	GL15 (-x) GT15 (-x)
Threading	External SM05 (0.535"-40)	External SM1 (1.035"-40)

Features

Full Clear Aperture on All Four Ports
Rotating Cover Blocks Unwanted Beams
Prisms Sold Separately

These Prism Mounts are designed to accommodate our Glan Laser, Glan Taylor, and Rutile Polarizing Prisms. To place the prism in the mount, unscrew the rotating cover and secure the prism in place by tightening the setscrew on the side. The rotating cover also allows the user to block the two side ports when they are not required.

The SM1PM10 and SM1PM15 housings feature external SM1(1.035"-40) threading, while the SM05PM5 housing features external SM05 (0.535"-40) threading. These threadings make the prism mounts directly compatible with our manual, motorized, high precision, or cage system rotation mounts.

The PRM05GL5 and PRM1GL10 are bundled packages that include either our SM05PM5 or SM1PM10 prism mount and a 1/2" (PRM05) or 1" (PRM1) High Precision Rotation Mount, respectively.

Posted Comments:

Anitta Rose Thomas (posted 2020-01-15 05:23:50.127)

Would it possible to mount PBS101 to SM1PM10 mounts? Thanks Anitta

YLohia (posted 2020-01-15 08:42:25.0)

Hello Anitta, thank you for contacting Thorlabs. The SM1PM10 cannot be used to mount the PBS101 since the mount is designed for our mounted polarizing prisms, which have a height of 15.9mm.

basapc (posted 2017-11-15 17:32:04.59)

Would it be possible to mount a MRA15-E02 15mm 45° mirror? Thank you very much, Bassem Salem

nbayconich (posted 2018-01-17 11:11:44.0)

Thank you for contacting Thorlabs. The SM1PM10 can be used to mount 15mm right angle prisms such as MRA15-E02. The internal clearance for the height of the prism is about 16.12mm which is compensated by using the adjustable setscrew. The SM1PM15 is too large to mount a 15mm right angle prism. Please note that the clearance holes are not intended for a 90 degree turn of your beam so only small diameter beams can be used with this prism mount.

ssss6909 (posted 2016-03-24 14:22:47.44)

I want to know about dimension of inner size (mount position) when it is disassembled as CAD pdf.

besembeson (posted 2016-03-24 03:24:57.0)

Response from Bweh at Thorlabs USA: I will provide these dimensions to you by email.

aklossek (posted 2014-05-05 07:00:30.533)

Dear ladies and gentlemen, I am planing to use a laser polarizer just to control the laser power. Therefore it would be helpful if the other polarized beam, which is reflected at the interface between the prism is blocked by the mounts. Do you have something for this application? Of course the material should survive the laser radiation. Best regards André Klossek

jlow (posted 2014-05-08 03:57:04.0)

Response from Jeremy at Thorlabs: The cover on the lens tube mount can be rotated so you can block the unwanted beam.

technicalmarketing (posted 2008-01-17 12:44:35.0)

We have added all the missing drawings and apologize for the inconvenience of not having them readily available.

ghegenbart (posted 2008-01-16 05:39:24.0)

Most drawings for these three mounts are missing

View All »Matching Part Numbers

Polarizing Prism Mounts

Features

Mounts for 5 mm Polarizing Prisms

Mounts for 8 mm and 10 mm Polarizing Prisms

Mounts for 15 mm Polarizing Prisms
