Power Supplies


CPS1

5 VDC Battery Pack for CPS Laser Diodes

LDS9

9 VDC Regulated Power Supply

KPS101

15 V Power Supply for One K-Cube or T-Cube

DS5

5 VDC, 2 A Power Supply with USB 2.0 Type-A Port

  • Output Voltages Ranging from 5 VDC to 15 VDC
  • Location-Specific Power Cord or Adapter Included

KCH601

USB Controller Hub and Power Supply for Six K-Cubes or T-Cubes

Related Items


Please Wait

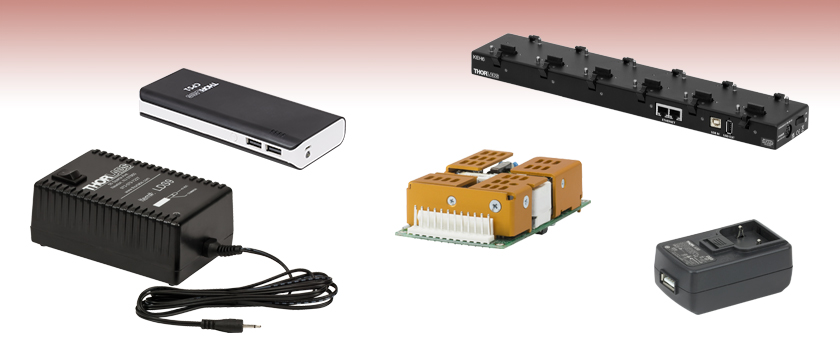

Thorlabs offers a variety of power supplies with output voltages ranging from 5 VDC to 15 VDC.

Power Supply Compatibility
Item # LDS5
LDS5-EC
CPS1 DS5 LDS9
LDS9-EC
LDS12B DS15 KPS101 TPS101 TPS002 KCH301 KCH601
Output Voltage 5 VDC 9 VDC ±12 VDC 15 VDC 15 VDC 5 VDC ±15 VDC / 5 VDC 15 VDC
Maximum Current 330 mA 2 A 220 mA 250 mA 1.3 A 2.4 A 2.0 A 4 A 10 A
Connector Type 2.5 mm
Phono Plug
2.5 mm Phono Plug & USB USB Type-A Female 2.5 mm Phono Plug LUMBERG RSMV3
Male Connector (3 Pins)
Mini-XLR 1.3 mm
Jack Plug
2.1 mm
Jack Plug
8-Pin Mini Din Plug
(2 Places)
26 Way 1.27 mm Pitch,
ERNI Connector (6 Places)
Compatible Products CPS Laser Modules DXM20AF,
LCC2415-VIS(/M),
Any Product Requiring 5 V Power via USB
OEM Laser Diode Drivers PDA and PDB Amplified Photodetectors, DET Biased Detectors, PMM Photomultiplier Modules, APD Avalanche Photodetectors, and FSAC Nanosecond Pulsed Laser Systems KBD101, KDC101, KIM101, KLS635, KLS1550, KSC101KST101, LEDD1B, and TIA60 TTC001 and MTDEVALa KPZ101, TLD001, TNA001/IR, KPA101, and KSG101 All K-Cubes and T-Cubes
  • This previous-generation evaluation board for MTD415xE TEC drivers is no longer offered by Thorlabs.

Posted Comments:
No Comments Posted

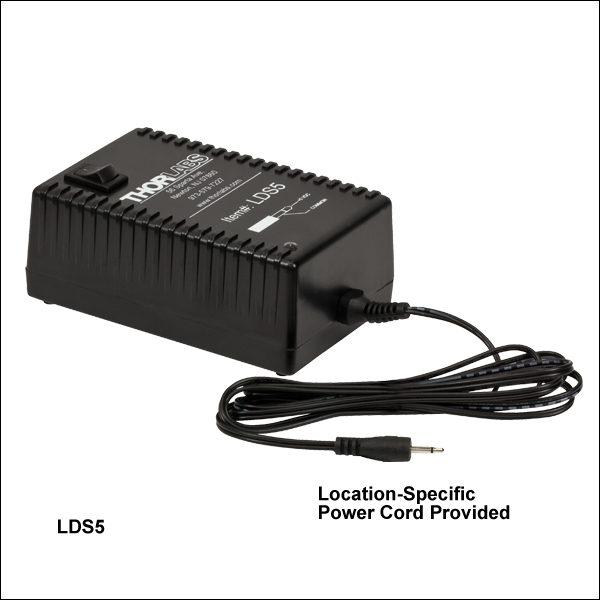

5 VDC Regulated Power Supply

  • Compatible with CPS Laser Modules
  • 5 VDC Power Output
  • 6 ft (183 cm) Cable with 2.5 mm Phono Plug

The LDS5 is a 5 VDC power supply that is ideal for use with our CPS laser diode modules. A 6 ft (183 cm) cable with a 2.5 mm phono plug extends from the body of the power supply for connection to a CPS module.

The power supply has a selectable line voltage of 115 or 230 VAC, which is controlled by a switch near the power switch. A 120 VAC power cable is included with the LDS5, while the LDS5-EC comes with a 230 VAC power cable. To order this item with a different power cable, please contact tech support.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LDS5 Support Documentation
LDS55 VDC Regulated Power Supply, 2.5 mm Phono Plug, 120 VAC
$86.96
Today
+1 Qty Docs Part Number - Metric Price Available
LDS5-EC Support Documentation
LDS5-EC5 VDC Regulated Power Supply, 2.5 mm Phono Plug, 230 VAC
$86.96
Today

5 VDC External Battery Pack

  • Portable USB Battery Pack with 5 VDC Output
  • Compatible with CPS Laser Modules
  • 10 000 mAh Capacity

Thorlabs offers the CPS1 Battery Pack for powering our CPS laser diode modules and other USB-powered devices. The CPS1 battery pack outputs 5 V and offers 10 000 mAh capacity. A fully charged CPS1 battery pack can power any CPS laser module for at least 36 hours hours of continuous operation. The pack includes a USB-to-Micro-USB cable for charging and a custom USB-to-Phono cable for powering the CPS laser diode module. To activate the battery, simply push the power button once. The pack may be charged using standard 5 V USB chargers for portable devices or using a computer USB port. While the battery pack is charging, it can still supply power to an attached laser module.

The CPS1 Battery Pack also includes an LED flashlight adjacent to the micro-USB port. The flashlight is activated and deactivated by holding the power for two seconds.

When connecting the CPS Laser Diode Module, the module and adapter should be connected first. Then the adapter cable should be plugged into the isolated power supply to avoid a short circuit in the phono jack. Please note that the USB adapter included with this battery pack is not intended to be used with power supplies that are not current-limited or isolated from ground, such as some computers or laptops.

Please note: Due to shipping restrictions for lithium ion cells, the CPS1 battery pack is not available for purchase in certain countries. In countries where it is available, the battery pack must be shipped separately using specifically regulated shipping methods and may require special shipping and handling charges. Our sales team is available to answer additional questions concerning the shipment of this battery pack.

Close



Albania
Algeria
American Samoa
Angola
Argentina
Armenia
Azerbaijan
Bangladesh
Belarus
Belize
Benin
Bermuda
Bhutan
Bolivia
Bonaire, Sint Eustatius and Saba
Bosnia-Herzegovina
Botswana
British Virgin Islands
Brunei
Bulgaria
Burkina Faso
Burundi
Cambodia
Cameroon
Cape Verde
Central African Republic
Chad
Chile
Congo
Congo, Dem Rep of
Cook Islands
Curacao
Cyprus
Djibouti

East Timor
Ecuador
Egypt
Equatorial Guinea
Eritrea
Estonia
Ethiopia
Faeroe Islands
Fiji
French Guiana
French Polynesia
Gabon
Gambia
Georgia, Republic of
Ghana
Gibraltar
Greenland
Guinea
Guinea Bissau
Honduras
Iceland
Iran
Iraq
Ivory Coast
Jordan
Kazakhstan
Kenya
Kyrgystan
Laos
Latvia
Lebanon
Lesotho
Liberia
Libya Reunion

Macau
Macedonia
Madagascar
Malawi
Maldives, Republic of
Mali
Malta
Marshall Islands
Martinique
Mauritania
Mauritius
Micronesia
Moldova
Mongolia
Montenegro
Montserrat
Morocco
Mozambique
Myanmar
Namibia
Nepal
New Caledonia
New Zealand
Nicaragua
Niger
Nigeria
Northern Mariana Islands
Oman
Pakistan
Palau
Palestine Autonomous
Papua New Guinea
Paraguay
Peru

Romania
Russia
Rwanda
Saint Martin
Samoa
Saudi Arabia
Senegal
Serbia
Serbia-Montenegro
Serbia-Montenegro Old
Seychelles
Sierra Leone
Solomon Islands
Somalia
South Africa, Republic of
Sri Lanka
Sudan
Suriname
Swaziland
Tanzania
Togo
Tonga
Tunisia
Turkey
Turkmenistan, Republic of
Uganda
Ukraine
Uruguay
Uzbekistan
Vanuatu
Venezuela
Wallis & Futuna Islands
Zambia
Zimbabwe

This battery cannot be shipped to certain zip codes in and around Perth, Australia.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CPS1 Support Documentation
CPS1Customer Inspired! 5 VDC Battery Pack for CPS Laser Diodes, 10 000 mAh
$35.45
Today

* Ground or Air Shipments – Are required to ship separate from any other items in the order with a separate shipping charge.

Ground Shipments - have a limit of two CPS1’s and can ship with UPS or FedEx.

Domestic Air – will incur a Dangerous Goods Surcharge of $38.00 in addition to the regular shipping charge and can only ship via FedEx.

International Air – will incur a Dangerous Goods Surcharge of $58.00 in addition to the regular shipping charge and can only ship via FedEx.

5 VDC Regulated Power Supply

Photo of Power Supply Adapters
Click for Details

Region-Specific Adapters for DS5

The DS5 is a 5 V, 2 A regulated power supply with a USB 2.0 Type-A female port. It can be used with any USB-compatible device that accepts a 5 VDC output, and is directly compatible with our DXM20AF ultrafast fiber optic detector when used with the USB-AB-72 USB cable (sold separately). In addition to the USB-AB-72, we also offer other USB 2.0 cables. A region-specific adapter plug is shipped with the DS5 power supply unit based on your location.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
DS5 Support Documentation
DS55 VDC, 2 A Regulated Power Supply with USB Type-A Port, 100/240 VAC
$20.00
Today
USB-AB-72 Support Documentation
USB-AB-72USB 2.0 Type-A to Mini-B Cable, 72" (1.83 m) Long
$8.36
Today

9 VDC Regulated Power Supply

The LDS9 is a 9 VDC power supply that is ideal for use with our OEM Laser Diode Drivers. A 6 ft (183 cm) cable with a 2.5 mm phono plug extends from the body of the power supply for connection to a 2.5 mm phono power socket.

The LDS9 power supply has a line voltage of 115 VAC, while the LDS9-EC has a line voltage of 230 VAC. A 120 VAC power cable is included with the LDS9 and the LDS9-EC comes with a 230 VAC power cable. To order this item with a different power cable, please contact tech support.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LDS9 Support Documentation
LDS99 VDC Regulated Power Supply, 2.5 mm Phono Plug, 120 VAC
$85.94
Today
+1 Qty Docs Part Number - Metric Price Available
LDS9-EC Support Documentation
LDS9-EC9 VDC Regulated Power Supply, 2.5 mm Phono Plug, 230 VAC
$85.94
Today

±12 VDC Regulated Linear Power Supply

The LDS12B is a ±12 VDC regulated linear power supply specifically for use with our PDA and PDB amplified photodetectors, PMM photomultiplier modules, APD avalanche photodetectors, and the FSAC autocorrelator for femtosecond lasers. In addition, it can be used with our DET biased photodetectors in conjunction with a DET2A power adapter. Note that we offer a bundle of the LDS12B and DET2A (Item # DET2B).

The LDS12B regulated power supply incorporates a current limit, enabling short circuit and overload protection; an on/off switch with LED indicator; and a switchable AC input voltage (100, 120, or 230 VAC). The 2 m (6.6 ft) long cord has three pins: one for ground, one for +12 V and one for -12 V (see diagram to the right). A region-specific power cord is shipped with the LDS12B power supply based on your location.

The LDS12B is fully compatible with Thorlabs products that used the previous generation power supply, the LDS1212.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LDS12B Support Documentation
LDS12B±12 VDC Regulated Linear Power Supply, 6 W, 100/120/230 VAC
$80.33
Today

15 VDC Regulated Power Supply

Photo of Power Supply Adapters
Click for Details

Region-Specific Adapters for DS15

The DS15 is a 15 V, 1.2 A regulated power supply with a 1.53 m (60.24") long cable and a Mini-XLR connector. It is suitable for any Mini-XLR-compatible device that requires a 15 VDC output, and is directly compatible with our nanosecond pulsed laser systems. A region-specific adapter plug is shipped with the DS15 power supply based on your location.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
DS15 Support Documentation
DS1515 VDC, 1.2 A Regulated Power Supply with Mini-XLR Connector, 100/240 VAC
$45.00
Today

K-Cube™ and T-Cube™ Power Supplies

photo of power supply adapters
Click for Details

Region-Specific Adapters for KPS101
Input Specifications
Item # Mains Voltage Requirements
KPS101 80 - 264 V, 0.9 A Max, 47 - 63 Hz
TPS101 90 - 264 V, 0.4 A Max, 47 - 63 Hz
TPS002 90 - 264 V, 0.8 A Max, 47 - 63 Hz
  • Individual Power Supplies for One K-Cube or T-Cube
    • KPS101: Compatible with KBD101, KDC101, KIM101, KLS635, KLS1550, KSC101, KST101, LEDD1B, TIA60, or TSC001 Modules
    • TPS101: Compatible with TTC001 Module
  • Power Supply for up to Two K-Cubes or T-Cubes
    • TPS002: Compatible with KPZ101, TNA001/IR, KPA101, KSG101, or TLD001 Modules

The KPS101 and TPS101 offer a simple power supply for select individual K-Cubes or T-Cubes, while the TPS002 supplies power for one or two select K-Cubes or T-Cubes. Please refer to the compatibility information in the list or table above.

The cubes need to be hooked up individually to a computer via a USB cable to use them with the motion control software. A region-specific adapter plug is shipped with the power supply unit based on your location. The adapter plugs for the KPS101 are shown to the right.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
KPS101 Support Documentation
KPS10115 V, 2.4 A Power Supply Unit with 3.5 mm Jack Connector for One K- or T-Cube
$33.33
5-8 Days
TPS101 Support Documentation
TPS1015 V, 2.0 A Power Supply Unit for One TTC001 Module
$37.33
Today
TPS002 Support Documentation
TPS002±15 V/5 V Power Supply Unit for up to Two KPZ101, TNA001/IR, KPA101, KSG101, or TLD001 Modules
$110.16
Today

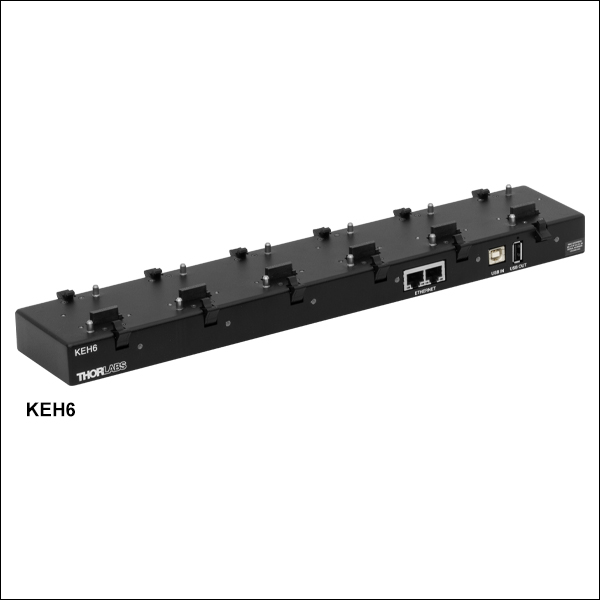

USB Controller Hubs for K-Cubes™ and T-Cubes™


Click to Enlarge

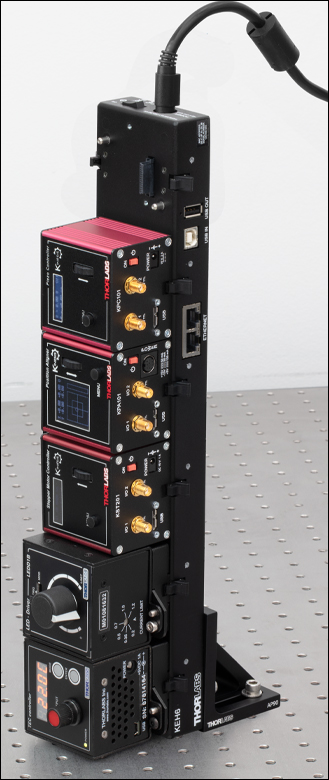

KCH301 USB Controller Hub with Installed
K-Cube and T-Cube Modules
(T-Cube is Shown on a KAP101 Adapter)
Input Specifications
Item # Mains Voltage Requirements
KCH301
KCH601
80 - 264 V, 1.8 A Max, 47 - 63 Hz
  • USB Controller Hubs for up to Three or Six K-Cubes or T-Cubes
  • Provide Power and Communication with a Single USB Cable and a Single Power Connection
  • Adapter Plate Connects T-Cube to Hub

These USB Controller Hubs have been designed specifically with multiple K-Cube and T-Cube operation in mind. The hub vastly reduces the number of USB and power cables required when operating multiple K-Cubes or T-Cubes. Furthermore, a USB output connector can be connected to the USB input on another unit, allowing multiple Controller Hubs to be connected together while still only using a single USB cable from the host control PC.

The hub draws a maximum current of 10 A; please verify that the cubes being used do not require a total current of more than 10 A.

The KCH301 and KCH601 Controller Hubs are compatible with all K-Cube and T-Cube modules. A KAP101 or KAP102 Adapter Plate (sold separately) is required for each T-Cube to operate on the controller hub. The KAP101 is designed to adapt 60 mm wide T-Cubes to the hubs, while the KAP102 is designed to adapt 120 mm wide T-Cubes to the hubs.

For more information on the USB Controller Hubs, see the full web presentation.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
KCH301 Support Documentation
KCH301USB Controller Hub and Power Supply for Three K-Cubes or T-Cubes
$494.70
Today
KCH601 Support Documentation
KCH601USB Controller Hub and Power Supply for Six K-Cubes or T-Cubes
$598.74
Today
KAP101 Support Documentation
KAP101Adapter Plate for KCH Series Hubs and 60 mm Wide T-Cubes
$57.38
5-8 Days
KAP102 Support Documentation
KAP102Adapter Plate for KCH Series Hubs and 120 mm Wide T-Cubes
$62.48
Today
