Ø1" (Ø25.0 mm) Pedestal Pillar Posts


  • Solid Stainless Steel Construction
  • 8-32 (M4) or 1/4"-20 (M6) Taps on Both Ends

8-32 (M4) Tapped Holes
On Both Ends

RS4P8E

RS2P8E

RS05P8E

RS3P

RS1.5P

RS1P

CF125

Steel
Clamping
Forks

1/4"-20 (M6) Tapped Holes
On Both Ends

RS1LM

Peelable Shims

Ø1" (Ø25 mm) Post Spacers

Smooth or Threaded Bore

RS1M

RS5M

RS039

Related Items


Please Wait

Features

  • Post Lengths from 0.5" (12.5 mm) to 6" (155 mm)
  • Stackable via 8-32 (M4) or 1/4"-20 (M6) Taps
  • Extend Height with our Ø1" Extension Posts
  • Pedestal Base for Clamping Fork Compatibility
  • Solid Stainless Steel, Precision Ground to Ø1" (Ø25.0 mm)

These one-piece nonmagnetic stainless steel Pedestal Posts provide unparalleled strength and rigidity. We offer versions with 8-32 (M4) or 1/4"-20 (M6) taps on both ends. A wide relief cut around each tap offers stable fastening to our optical mounts and optical tables. Pedestal posts are available in a variety of heights from 0.5" (12.5 mm) to 6" (155 mm). Additional heights can be achieved by stacking posts with heights of 0.39" (10 mm) or shorter on top of a standard pillar post.

The pedestal base is compatible with our solid steel Clamping Forks (see below), providing a high degree of flexibility when securing post assemblies to an optical table. If space is an issue, our CL8, CF038-P5, and CF038C(/M)-P5 clamps offer a space-saving alternative to secure our posts to an optical table. Also available below are Post Spacers, which add vertical positioning flexibility, and can be stacked with the pedestal posts to achieve in-between lengths. Additionally, these post spacers, along with 1/4"-20 (M6) setscrews, are available in our Post Spacer and Setscrew Kit, which is also sold below.


Posted Comments:
fabian.stutzki  (posted 2016-03-02 08:01:37.617)
Hi, it would be nice to have a post that perfectly fits to mount a Polaris mirror on 40 mm beam height. The post would have to have a height of about 15mm. Best regards Fabian Stutzki
besembeson  (posted 2016-03-02 01:47:04.0)
Response from Bweh at Thorlabs USA: You may achieve this at the moment using the RS05P/M with a suitable spacer such as the RS3M.
roger.ding  (posted 2015-08-07 00:32:01.357)
A Ø1" Pedestal Pillar Post, 8-32 Taps, L = 2.5" (i.e. 1 in pedestal pillar post with a length of 2.5 inches). I'm currently getting the 2.5 in posts from Newport (item #9955) because Thorlabs doesn't offer this height.
besembeson  (posted 2015-08-19 03:32:01.0)
Response from Bweh at Thorlabs USA: Thanks for your feedback. Although you can use the RS1.5P8E and the PLS-P1 with an AP8E25E, we will look into expanding our 1" posts product line to include solid 2.5" length as stock item.
bdada  (posted 2012-03-07 12:20:00.0)
Response from Buki at Thorlabs: Thank you for your feedback on the variation you have experienced with the tolerance of our posts. We will look into this issue. We do not have your contact information, so please contact us so we can keep you updated on our findings and replace any posts that do not meet our tolerance specification.
user  (posted 2012-03-05 17:34:52.0)
All these posts seem to vary in length more than i'd expect, can you look at the tolerance and perhaps tighten it up. This simple change would make these post more useful. Same would apply to your other post series.
bdada  (posted 2011-10-20 12:45:00.0)
Response from Buki at Thorlabs: Thank you for your suggestion. Please consider using one of our extension posts to get a variety of lengths and introduce more flexibility into your system. For instance, to get an RS2.5P/M (62.5mm height), you could combine the RS2P/M (50mm height) with the RS12/M extension post (12.5mm height) shown on the page linked below: http://www.thorlabs.de/NewGroupPage9.cfm?ObjectGroup_ID=241 If you do not want to use the extension post, please contact TechSupport@thorlabs.com regarding a custom length post.
umit79  (posted 2011-10-20 13:39:53.0)
I would like to also see RS2.5P/M in the product list.
Laurie  (posted 2009-03-19 13:18:15.0)
Response from Laurie at Thorlabs to hbabcock: Thank you for your interest in our posts and for your valuable feedback. For customers desiring a 1/4"-20 thread, we do offer a series of "P Posts," which have a 1.5" diameter. However, you are definitely correct that we need to provide links and text specifically guiding you towards the thread adapter that can convert these RS posts to 1/4"-20 threading. We will make that addition very shortly. Once again, thank you for taking the time to provide valuable feedback that will help others in the future!
hbabcock  (posted 2009-03-19 10:23:18.0)
Id also like to see a 1/4-20 threaded version of these. I naively assumed that these would be directly compatible with the 1" post extensions. You might also consider listing the adapter as a related item. I discovered that it existed by reading the feedback for this product.
Laurie  (posted 2008-10-15 12:17:31.0)
Response from Laurie at Thorlabs to acable: Currently we do offer an 8-32 to 1/4-20 adapter (Item# AP8E25E), which would allow you to connect our post extensions to our pedestal posts. However, I understand that youd like the larger thread throughout for stability. Thorlabs does have an internal forum for product ideas, and I will be sure to enter your suggestion into that forum for consideration. In the interim, if you contact our technical support staff, theyd be able to provide you with a custom quote for tapping our pedestal posts with a 1/4-20 thread.
acable  (posted 2008-10-13 09:20:37.0)
The Post Extensions are tapped 1/4-20 (M6-1.0) both ends, however the Pedestal Posts have an #8-32 (M4-0.7) tap, would it be possible to change the Pedestal Post to a 1/4-20 (M6). Using the larger thread size would allow an assembly of Posts to be tightened with sufficent torque to provide assurance that the assembly would not vibrate loose. Then in order for the Pedestal Posts to accept Opto-Mech with #8 (M4)mounting feature inclusion of one of the following thread adapter could be included with each post: AE8E25E - Thread Adapter, Internal to External Stud, #8-32 to 1/4"-20 AE4M6M - Thread Adapter, Internal to External Stud, M4 to M6
technicalmarketing  (posted 2008-02-22 08:33:50.0)
Thank you for suggesting a new product. We always like to hear from our customers about ways that we can better serve you. I will pass this information on to our engineers in mechanics for discussion. If adopted, this item would join our growing list of customer inspired products. Thanks again for your input!
zilong.chen  (posted 2008-02-21 17:02:45.0)
Hi, Would Thorlabs consider manufacturing shorter clamping forks for use in small spaces? A 1.5"-2" short fork can be very useful in constrained spaces. Thanks, Zilong

Ø1" (Ø25.0 mm) Pedestal Posts, 8-32 (M4) Taps

  • Solid Stainless Steel Construction
  • Precision Ground to Ø1" (Ø25.0 mm)
  • Stackable via 8-32 (M4) Tapped Holes on Both Ends
  • Convenient Pedestal Base Design Compatible with Our CF Series Clamping Forks

These pedestal pillars, which are fabricated from 303 stainless steel, are 1" (25.0 mm) in diameter, have 8-32 (M4) taps on both ends, and are available in a variety of lengths. The 8-32 (M4) taps are compatible with many optomechanical devices such as most of our kinematic mounts. A Ø0.24" (6.0 mm) through hole is located on the side of each post and can be used with a 3/16" (5 mm) balldriver or the SPW501 Spanner Wrench to provide extra leverage during tightening. These posts are also available with 1/4"-20 (M6) taps; please see below for details.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
RS05P8E Support Documentation
RS05P8ECustomer Inspired! Ø1" Pedestal Pillar Post, 8-32 Taps, L = 0.5"
$19.69
Today
RS075P8E Support Documentation
RS075P8ECustomer Inspired! Ø1" Pedestal Pillar Post, 8-32 Taps, L = 0.75"
$21.42
Today
RS1P8E Support Documentation
RS1P8ECustomer Inspired! Ø1" Pedestal Pillar Post, 8-32 Taps, L = 1"
$21.93
Today
RS1.5P8E Support Documentation
RS1.5P8ECustomer Inspired! Ø1" Pedestal Pillar Post, 8-32 Taps, L = 1.5"
$23.77
Today
RS2P8E Support Documentation
RS2P8ECustomer Inspired! Ø1" Pedestal Pillar Post, 8-32 Taps, L = 2"
$24.48
Today
RS2.5P8E Support Documentation
RS2.5P8EØ1" Pedestal Pillar Post, 8-32 Taps, L = 2.5"
$25.50
Today
RS3P8E Support Documentation
RS3P8ECustomer Inspired! Ø1" Pedestal Pillar Post, 8-32 Taps, L = 3"
$26.78
Today
RS3.5P8E Support Documentation
RS3.5P8EØ1" Pedestal Pillar Post, 8-32 Taps, L = 3.5"
$29.84
Today
RS4P8E Support Documentation
RS4P8ECustomer Inspired! Ø1" Pedestal Pillar Post, 8-32 Taps, L = 4"
$32.39
Today
RS6P8E Support Documentation
RS6P8EØ1" Pedestal Pillar Post, 8-32 Taps, L = 6"
$43.86
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
RS05P4M Support Documentation
RS05P4MCustomer Inspired! Ø25.0 mm Pedestal Pillar Post, M4 Taps, L = 12.5 mm
$19.69
Today
RS075P4M Support Documentation
RS075P4MCustomer Inspired! Ø25.0 mm Pedestal Pillar Post, M4 Taps, L = 19 mm
$21.42
Today
RS1P4M Support Documentation
RS1P4MCustomer Inspired! Ø25.0 mm Pedestal Pillar Post, M4 Taps, L = 25 mm
$21.93
Today
RS1.5P4M Support Documentation
RS1.5P4MCustomer Inspired! Ø25.0 mm Pedestal Pillar Post, M4 Taps, L = 38 mm
$23.77
Today
RS2P4M Support Documentation
RS2P4MCustomer Inspired! Ø25.0 mm Pedestal Pillar Post, M4 Taps, L = 50 mm
$24.48
Today
RS2.5P4M Support Documentation
RS2.5P4MØ25.0 mm Pedestal Pillar Post, M4 Taps, L = 65 mm
$25.50
Today
RS3P4M Support Documentation
RS3P4MCustomer Inspired! Ø25.0 mm Pedestal Pillar Post, M4 Taps, L = 75 mm
$26.78
Today
RS3.5P4M Support Documentation
RS3.5P4MØ25.0 mm Pedestal Pillar Post, M4 Taps, L = 90 mm
$29.84
Today
RS4P4M Support Documentation
RS4P4MCustomer Inspired! Ø25.0 mm Pedestal Pillar Post, M4 Taps, L = 100 mm
$32.39
Today
RS6P4M Support Documentation
RS6P4MØ25.0 mm Pedestal Pillar Post, M4 Taps, L = 155 mm
$43.86
Today

Ø1" (Ø25.0 mm) Pedestal Posts, 1/4"-20 (M6) Taps

post and post extension
Click to Enlarge

Ø1" Pedestal Pillar Post Shown With Ø1" Post Extension
  • Solid Stainless Steel Construction
  • Precision Ground to Ø1" (Ø25.0 mm)
  • Stackable via 1/4"-20 (M6) Tapped Holes on Both Ends
  • Convenient Pedestal Base Design Compatible with Our CF Series Clamping Forks

These pedestal pillars, which are fabricated from 303 stainless steel, are 1" (25.0 mm) in diameter, have 1/4"-20 (M6) taps on both ends, and are available in a variety of lengths. The 1/4"-20 (M6) thread allows for easy integration of Ø1" post extensions and spacers. Each imperial post ships with an AE8E25E adapter to switch from the 1/4"-20 thread on the post to an internal 8-32 thread. The metric versions have an AE4M6M M6 to M4 adapter included.

A Ø0.24" (6.0 mm) through hole is located on the side of each post and can be used with a 3/16" (5 mm) balldriver or the SPW501 Spanner Wrench to provide extra leverage during tightening.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
RS05P Support Documentation
RS05PØ1" Pedestal Pillar Post, 1/4"-20 Taps, L = 0.5"
$19.99
Today
RS075P Support Documentation
RS075PØ1" Pedestal Pillar Post, 1/4"-20 Taps, L = 0.75"
$22.44
Today
RS1P Support Documentation
RS1PØ1" Pedestal Pillar Post, 1/4"-20 Taps, L = 1"
$22.95
Today
RS1.5P Support Documentation
RS1.5PØ1" Pedestal Pillar Post, 1/4"-20 Taps, L = 1.5"
$24.79
Today
RS2P Support Documentation
RS2PØ1" Pedestal Pillar Post, 1/4"-20 Taps, L = 2"
$27.29
Today
RS2.5P Support Documentation
RS2.5PØ1" Pedestal Pillar Post, 1/4"-20 Taps, L = 2.5"
$28.82
Today
RS3P Support Documentation
RS3PØ1" Pedestal Pillar Post, 1/4"-20 Taps, L = 3"
$29.84
Today
RS3.5P Support Documentation
RS3.5PØ1" Pedestal Pillar Post, 1/4"-20 Taps, L = 3.5"
$32.90
Today
RS4P Support Documentation
RS4PØ1" Pedestal Pillar Post, 1/4"-20 Taps, L = 4"
$35.45
Today
RS6P Support Documentation
RS6PØ1" Pedestal Pillar Post, 1/4"-20 Taps, L = 6"
$43.86
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
RS05P/M Support Documentation
RS05P/MØ25.0 mm Pedestal Pillar Post, M6 Taps, L = 12.5 mm
$19.99
Today
RS075P/M Support Documentation
RS075P/MØ25.0 mm Pedestal Pillar Post, M6 Taps, L = 19 mm
$22.44
Today
RS1P/M Support Documentation
RS1P/MØ25.0 mm Pedestal Pillar Post, M6 Taps, L = 25 mm
$22.95
Today
RS1.5P/M Support Documentation
RS1.5P/MØ25.0 mm Pedestal Pillar Post, M6 Taps, L = 38 mm
$24.79
Today
RS2P/M Support Documentation
RS2P/MØ25.0 mm Pedestal Pillar Post, M6 Taps, L = 50 mm
$27.29
Today
RS2.5P/M Support Documentation
RS2.5P/MØ25.0 mm Pedestal Pillar Post, M6 Taps, L = 65 mm
$28.82
Today
RS3P/M Support Documentation
RS3P/MØ25.0 mm Pedestal Pillar Post, M6 Taps, L = 75 mm
$29.84
Today
RS3.5P/M Support Documentation
RS3.5P/MØ25.0 mm Pedestal Pillar Post, M6 Taps, L = 90 mm
$32.90
Today
RS4P/M Support Documentation
RS4P/MØ25.0 mm Pedestal Pillar Post, M6 Taps, L = 100 mm
$35.45
Today
RS6P/M Support Documentation
RS6P/MØ25.0 mm Pedestal Pillar Post, M6 Taps, L = 155 mm
$43.86
Today

Ø1" (Ø25 mm) Posts, Less than 0.40" (10.2 mm) Length

Post Spacer Spanner Wrench
Click to Enlarge

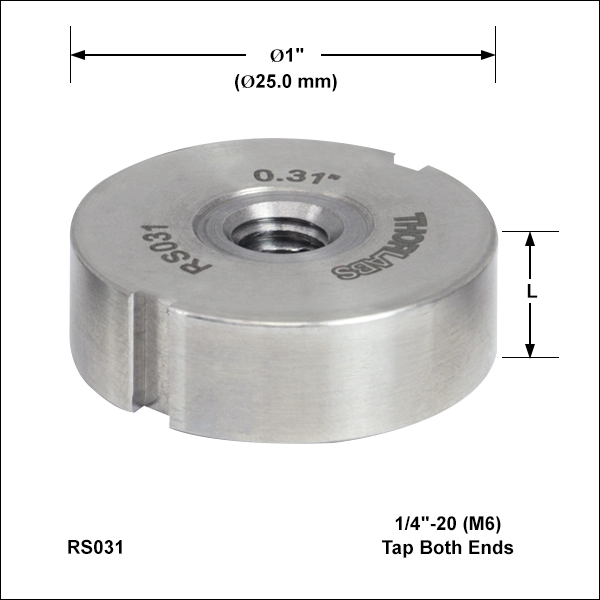

SPW501 Spanner Wrench Being Used to Tighten a Small Ø1" Post onto a Ø1" Pillar Post
