OEM Flange to SM Thread Adapters


  • Compatible with SM-Threaded Lens Tubes and Accessories
  • Ideal for Coupling SM-Threaded Components onto Enclosures or OEM Devices
  • SM05-, SM1-, or SM2-Threaded Options Available

SM1F2

External SM1 Threading

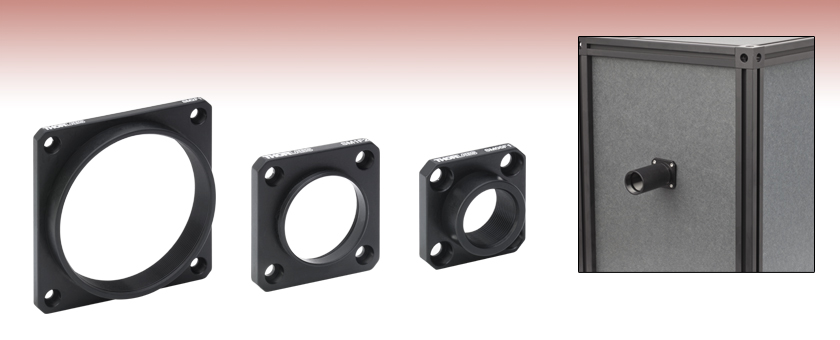

Application Idea

SM1F1 Mounted with Lens Tube
on XE25C3 Enclosure

SM2F1

Internal SM2 Threading

SM05F1

Internal SM05 Threading

Related Items


Please Wait
OEM Flange to SM Thread Adapters
Item # Threading Type Thread Depth Mounting Hole
Spacing
SM05F1 Internal SM05 0.39" (10 mm) 0.70" (17.8 mm)
SM1F1 Internal SM1 0.39" (10 mm) 1.06" (26.9 mm)
SM1F2 External SM1a 0.12" (3.0 mm) 1.06" (26.9 mm)
SM1A53 Internal SM1 0.22" (5.6 mm) 1.02" (26.0 mm)
SM2F1 Internal SM2 0.39" (10 mm) 2.00" (50.8 mm)
  • The SM1F2 also has 0.14" (3.6 mm) of internal SM1 threading accessible from the back of the adapter.

Features

  • Adapters to Integrate SM-Threaded Components into OEM Applications
    • Internal SM05 (0.535"-40) Threading
    • Internal or External SM1 (1.035"-40) Threading
    • Internal SM2 (2.035"-40) Threading
  • Four Counterbored Mounting Holes for 4-40 (M3) Screws

Thorlabs' OEM Flange to SM Thread Adapters allow users to integrate SM-threaded components into existing systems. These adapters can be mounted to any device or enclosure using four 4-40 (M3) screws (not included). The mounting holes are arranged in a square; see the table to the right for the hole spacing on each adapter. The hole spacing on the SM1A53 also allows it to serve as an interface between custom-built setups with an SM1-threaded port and some Nikon Eclipse Ti nosepieces. Once mounted, any compatible SM-threaded components (such as lens tubes and accessories) may be directly mounted to the adapter.


Posted Comments:
No Comments Posted

OEM Flange to SM05 Thread Adapter

  • Compatible with SM05-Threaded (0.535"-40) Components
  • Usable Thread Through Entire Width
  • 0.70" (17.8 mm) Mounting Hole Spacing

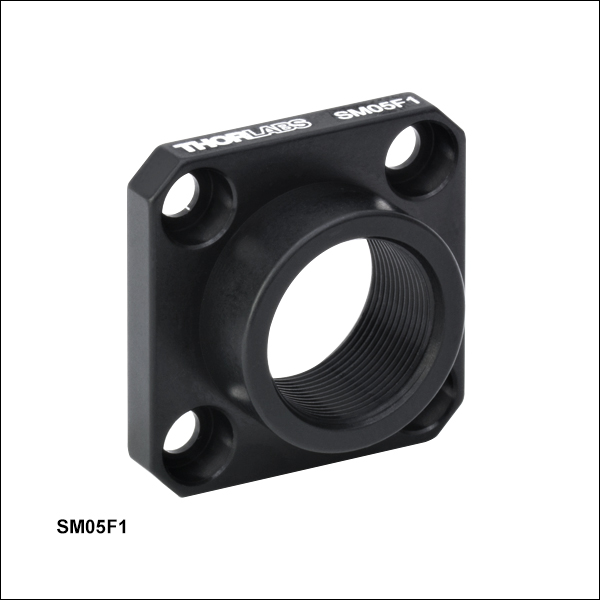

The SM05F1 Flange to SM05 Adapter features 0.39" (10 mm) of internal SM05 threading for compatibility with any externally SM05-threaded component. The adapter can be secured to a device or enclosure using four 4-40 (M3) screws.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM05F1 Support Documentation
SM05F1OEM Flange to Internal SM05 Adapter, 10 mm Thread Depth
$19.33
Today

OEM Flange to SM1 Thread Adapters


Click to Enlarge

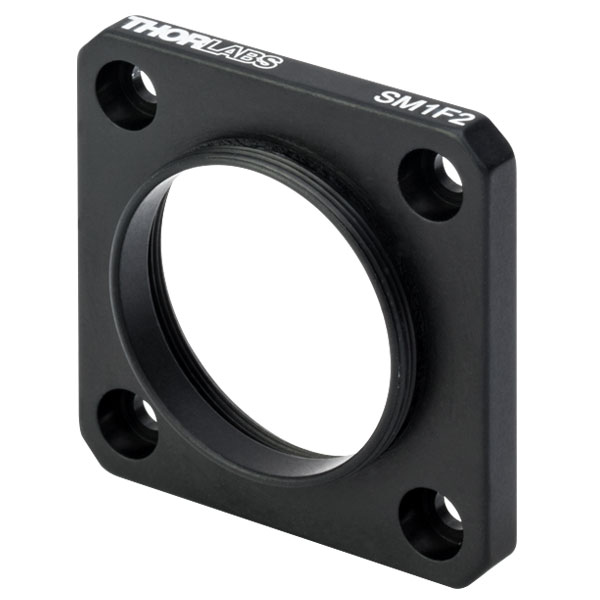

The SM1F2 Adapter with External Threads
  • Compatible with SM1-Threaded (1.035"-40) Components
  • Internal or External Threading
  • SM1A53 Low Profile Adapter for Nikon Nosepieces

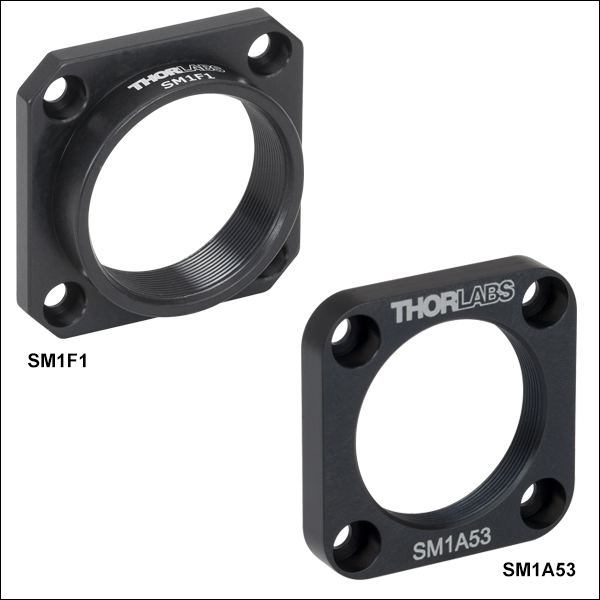

The SM1F1 Flange to SM1 Adapter features 0.39" (10 mm) of internal SM1 threading, while the SM1A53 has a lower profile with 0.22" (5.6 mm) of internal SM1 threading. Alternatively, the SM1F2 has 0.12" (3.0 mm) of external SM1 threading for compatibility with any internally SM1-threaded component. The SM1F2 also has 0.14" (3.56 mm) of internal SM1 threading, accessible from the back.

The mounting holes on the SM1F1 and SM1F2 are 1.06" (2.9 mm) apart, while the mounting holes of the SM1A53 are 1.02" (26.0 mm) apart. Each adapter can be secured to a device or enclosure using four 4-40 (M3) screws.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM1F1 Support Documentation
SM1F1OEM Flange to Internal SM1 Adapter, 10 mm Thread Depth
$19.76
Today
SM1F2 Support Documentation
SM1F2OEM Flange to External SM1 Adapter, 3 mm Thread Depth
$21.43
Today
SM1A53 Support Documentation
SM1A53Nikon Nosepiece/OEM Flange to Internal SM1 Adapter, 5.6 mm Thread Depth
$19.33
Today

OEM Flange to SM2 Thread Adapter

  • Compatible with SM2-Threaded (2.035"-40) Components
  • Usable Thread Through Entire Width
  • 2.00" (50.8 mm) Mounting Hole Spacing

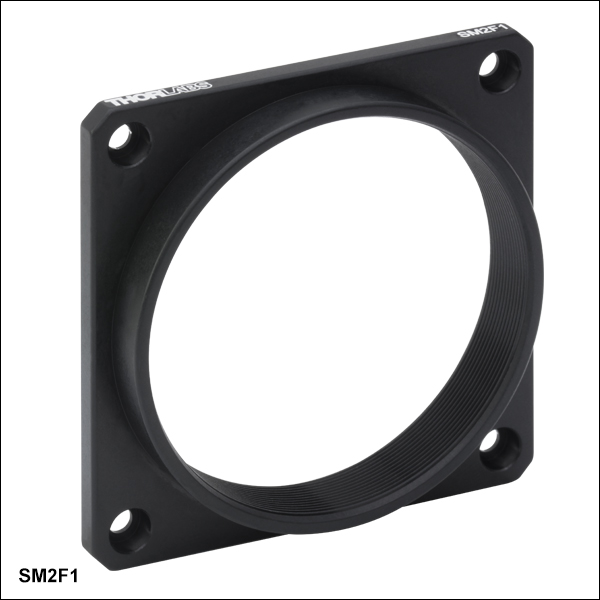

The SM2F1 Flange to SM2 Adapter features 0.39" (10 mm) of internal SM2 threading for compatibility with any externally SM2-threaded component. The adapter can be secured to a device or enclosure using four 4-40 (M3) screws.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM2F1 Support Documentation
SM2F1OEM Flange to Internal SM2 Adapter, 10 mm Thread Depth
$26.00
