Concave Mirrors: UV Broadband Dielectric Coating (350 - 400 nm)


  • Focal Lengths from 25 - 500 mm
  • Ø1/2", Ø1", Ø2", or Ø75 mm
  • Dielectric Coating for 350 - 400 nm
  • No Chromatic Aberration Introduced

CM127-025-E01

(Ø1/2")

CM254-050-E01

(Ø1")

CM508-050-E01

(Ø2")

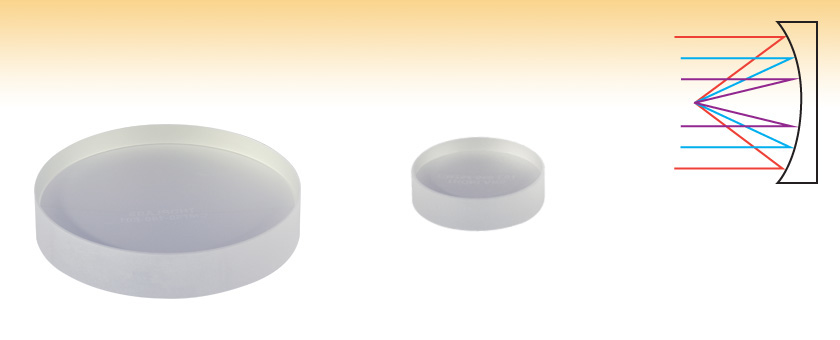

Focus Polychromatic Beams without Chromatic Aberration

CM750-150-E01

(Ø75 mm)

Related Items


Please Wait
Common Specifications
Available Diameters Ø1/2", Ø1", Ø2", and Ø75 mm
Dielectric Coating Range 350 - 400 nm; Ravg >99%
Clear Aperture >90% of Diameter
Surface Irregularity λ/4 @ 633 nm
Surface Quality 20-10 Scratch-Dig
Diameter Tolerance +0.0/-0.2 mm
Thickness Tolerance ±0.2 mm
Substrate N-BK7a
Backside Surface Fine Ground and Engraved with Part Number
(Not Polished)
  • Click Link for Detailed Specifications on the Substrate
Dielectric Concave Mirrors Selection Guidea
UV (350 - 400 nm) Visible (400 - 750 nm)
NIR (750 - 1100 nm) Telecom (1280 - 1600 nm)
  • See the Concave Mirror Guide tab, above, for our complete selection of concave mirrors.

Features

  • Dielectric Coating: 350 - 400 nm (-E01)
  • >99% Average Reflectivity in Dielectric Coating Range
  • Four Diameter Options: 1/2", 1", 2", or 75 mm
  • Focal Lengths Range from 25 mm - 500 mm

Thorlabs' Broadband Dielectric Concave Mirrors are designed for light collection, imaging, and focusing applications. These reflective optics focus light without introducing chromatic aberration, making them especially suitable for broadband sources.

All of the mirrors on this page can be mounted by our Precision Kinematic Mirror Mounts.

Thorlabs also offers metallic concave mirrors that operate over a broader wavelength range at the expense of lower reflectivity. Please contact Tech Support for custom versions of these optics.

Optical Coatings and Substrates
Optic Cleaning Tutorial

These plots show the reflectivity of our -E01 dielectric coating for a typical coating run. The shaded region in each graph denotes the spectral range over which the coating is highly reflective. Due to variations in each run, this recommended spectral range is narrower than the actual range over which the optic will be highly reflective. If you have any concerns about the interpretation of this data, please contact Tech Support. For applications that require a mirror that bridges the spectral range between two dielectric coatings, please consider a metallic concave mirror.

Excel Spreadsheet with Raw Data for -E01 Coating, 8° and 45° AOI

Concave Mirrors Coating Options
Coating Wavelength Range
UV Enhanced Aluminum 250 - 450 nm
Aluminum 450 nm - 20 µm
Silver 450 nm - 20 µm
Gold 800 nm - 20 µm
E01 Dielectric 350 - 400 nm
E02 Dielectric 400 - 750 nm
E03 Dielectric 750 - 1100 nm
E04 Dielectric 1280 - 1600 nm

Concave Mirror Selection Guide

Thorlabs offers concave mirrors with both metallic and dielectric stack reflective coatings. Metallic-coated mirrors offer relatively high reflectivity (90-95%) over a wide wavelength range, while dielectric-coated mirrors provide even higher reflectivity (>99%) but over a smaller wavelength range. See the table to the right for an overview of the various coatings we offer for our concave mirrors. All coating options are available on optics with diameters ranging from Ø1/2" to Ø75 mm. Metallic mirrors are available with focal lengths from 9.5 - 1000 mm, while dielectric mirrors are available with focal lengths from 12 - 1000 mm.

Below are reflectivity plots for our complete line of concave mirrors. To view our selection of mirrors available with a particular coating, either click on the graphed line of interest or the corresponding coating name in the legend. Graphs are shown for an angle of incidence (AOI) of 8 degrees, which is the recommended angle at which to use a concave mirror.

Metallic Concave Mirror 8 AOI Reflectivity

Concave Dielectric Mirrors 8 Degrees AOI

Click on a particular graphed line or the corresponding name in the legend to view concave mirrors with that coating option.

E01 Dielectric CoatingE02 Dielectric CoatingE03 Dielectric CoatingE04 Dielectric CoatingE01 Dielectric CoatingE02 Dielectric CoatingE03 Dielectric CoatingE04 Dielectric Coating

UV Aluminum (F01)Aluminum (G01)Silver (P01)Gold (M01)UV Aluminum (F01)Aluminum (G01)Silver (P01)Gold (M01)


Posted Comments:
tcohen  (posted 2012-04-05 15:30:00.0)
Update from Tim at Thorlabs: These have fine ground backs and as such will be unusable for your application. However, we are able to offer a custom with a polished backside. I have contacted you with more information.
tcohen  (posted 2012-04-05 15:06:00.0)
Response from Tim at Thorlabs: Thank you for your feedback. I am looking into the reflection/transmission of these mirrors when incident light is on the uncoated side and I will update you with the information soon!
junge  (posted 2012-04-05 06:19:36.0)
Hello, is the backsurface of the mirror transparent so that it can be used to set up a FPI? Thanks a lot, Christian

Ø1/2" (12.7 mm) -E01 Broadband Dielectric Concave Mirrors (350 - 400 nm)

Limited Stock Icon

This item will be retired without replacement when stock is depleted. If you require it for line production, please contact our OEM Team.

Item # Focal Length Center Thickness Edge Thickness Radius of Curvature Reference Drawing
CM127-025-E01 25 mm 3.0 mm 3.4 mm 50.0 mm (1.97") Concave Mirror Drawing
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CM127-025-E01 Support Documentation
CM127-025-E01Ø1/2" Dielectric-Coated Concave Mirror, 350 - 400 nm, f = 25 mm
$39.92
Today

Ø1" (25.4 mm) -E01 Broadband Dielectric Concave Mirrors (350 - 400 nm)

Item # Focal Length Center Thickness Edge Thickness Radius of Curvature Reference Drawing
CM254-025-E01 25 mm 6.0 mm 7.6 mm 50.0 mm (1.97") Concave Mirror Drawing
CM254-050-E01 50 mm 6.8 mm 100.0 mm (3.94")
CM254-075-E01 75 mm 6.5 mm 150.0 mm (5.91")
CM254-100-E01 100 mm 6.4 mm 200.0 mm (7.87")
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CM254-025-E01 Support Documentation
CM254-025-E01Ø1" Dielectric-Coated Concave Mirror, 350 - 400 nm, f = 25 mm
$165.99
Today
CM254-050-E01 Support Documentation
CM254-050-E01Ø1" Dielectric-Coated Concave Mirror, 350 - 400 nm, f = 50 mm
$165.99
Today
CM254-075-E01 Support Documentation
CM254-075-E01Ø1" Dielectric-Coated Concave Mirror, 350 - 400 nm, f = 75 mm
$165.99
Today
CM254-100-E01 Support Documentation
CM254-100-E01Ø1" Dielectric-Coated Concave Mirror, 350 - 400 nm, f = 100 mm
$165.99
Today

Ø2" (50.8 mm) -E01 Broadband Dielectric Concave Mirrors (350 - 400 nm)

Limited Stock Icon

This item will be retired without replacement when stock is depleted. If you require it for line production, please contact our OEM Team.

Item # Focal Length Center Thickness Edge Thickness Radius of Curvature Reference Drawing
CM508-050-E01 50 mm 9.0 mm 12.2 mm 100.0 mm (3.94") Concave Mirror Drawing
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CM508-050-E01 Support Documentation
CM508-050-E01Ø2" Dielectric-Coated Concave Mirror, 350 - 400 nm, f = 50 mm
$76.69
Today

Ø75 mm -E01 Broadband Dielectric Concave Mirrors (350 - 400 nm)

Limited Stock Icon

These items will be retired without replacement when stock is depleted. If you require one of these parts for line production, please contact our OEM Team.

Item # Focal Length Center Thickness Edge Thickness Radius of Curvature Reference Drawing
CM750-075-E01 75 mm 12.0 mm 16.7 mm 150.0 mm (5.91") Concave Mirror Drawing
CM750-150-E01 150 mm 14.3 mm 300.0 mm (11.81")
CM750-200-E01 200 mm 13.7 mm 400.0 mm (15.75")
CM750-500-E01 500 mm 12.7 mm 1000.0 mm (39.37")
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CM750-075-E01 Support Documentation
CM750-075-E01Ø75 mm Dielectric-Coated Concave Mirror, 350 - 400 nm, f = 75 mm
$105.06
Today
CM750-150-E01 Support Documentation
CM750-150-E01Ø75 mm Dielectric-Coated Concave Mirror, 350 - 400 nm, f = 150 mm
$105.06
Today
CM750-200-E01 Support Documentation
CM750-200-E01Ø75 mm Dielectric-Coated Concave Mirror, 350 - 400 nm, f = 200 mm
$105.06
Today
CM750-500-E01 Support Documentation
CM750-500-E01Ø75 mm Dielectric-Coated Concave Mirror, 350 - 400 nm, f = 500 mm
$105.06
Today
